Commercial industrial cleaning equipment dry ice blasting machine chemical cleaning
- Category: >>>
- Supplier: Shandong Lantian Huaer Environmental Protection Equipment Co. Ltd.
Share on (1600542209496):
Product Overview
Description
Product Description

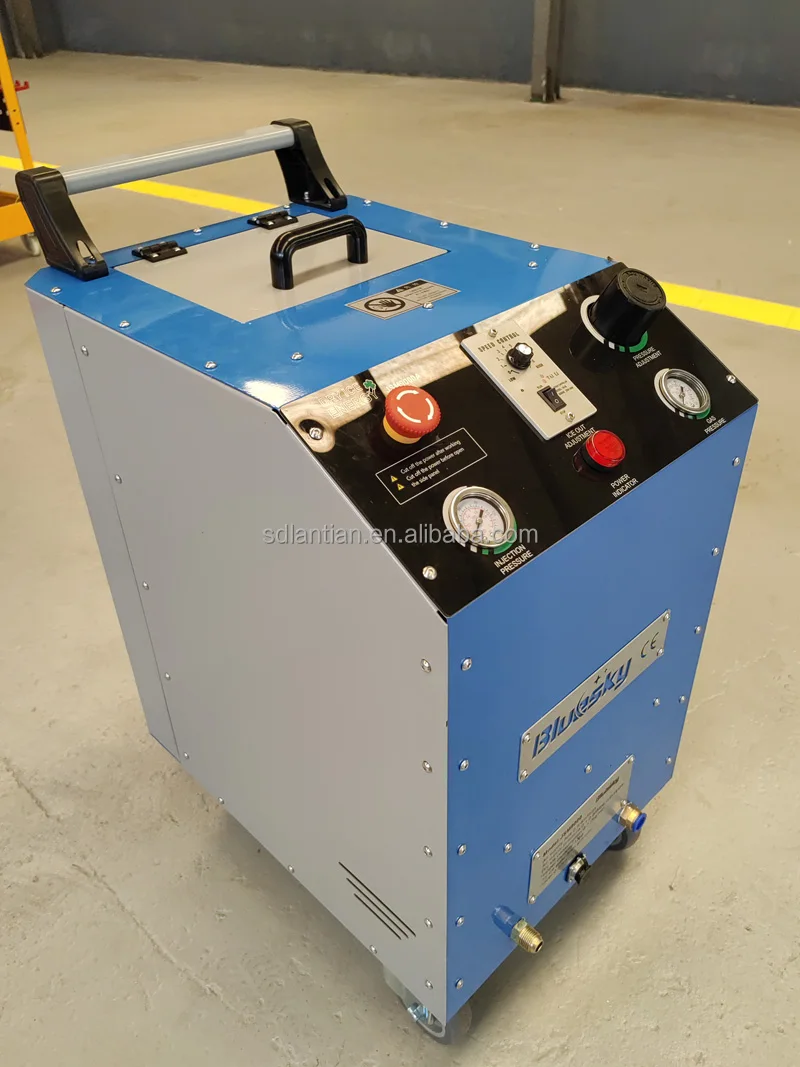

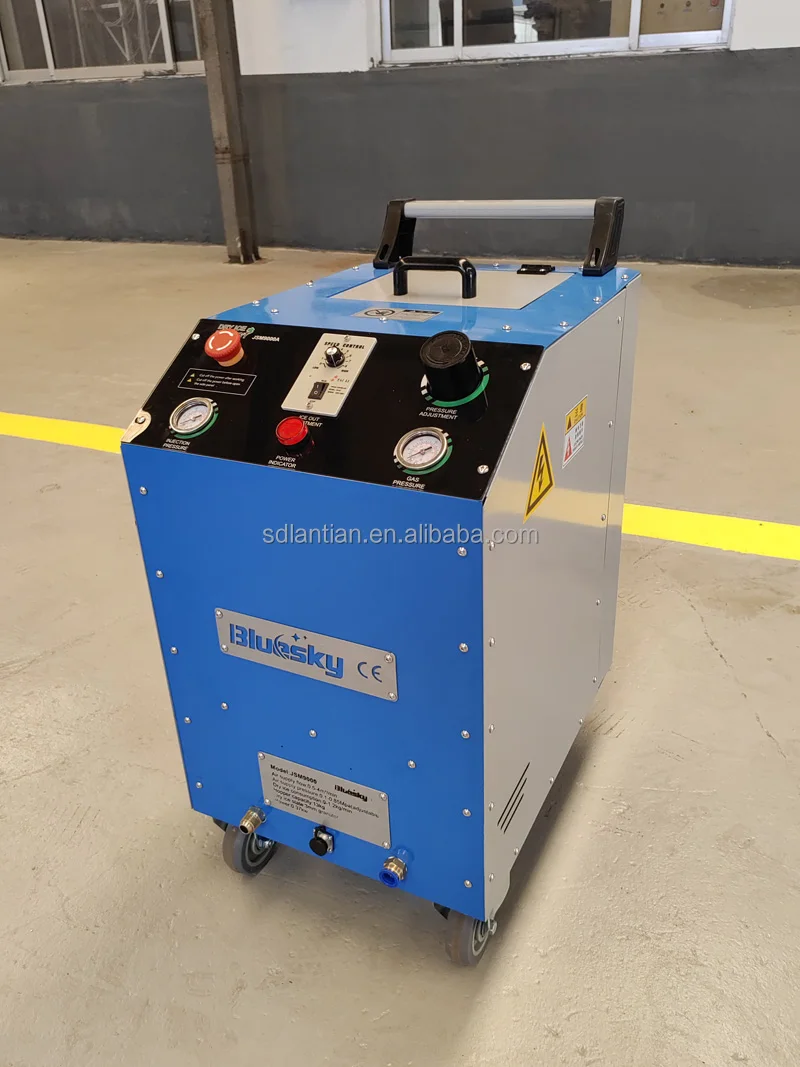

Eco-friendly Use Dry Ice Blasting Machine
Chemical Cleaning Rust Remover Machine
Specification
Product name | Dry ice blasting machine chemical cleaning |
Model | JSM9100 |
Air supply flow | 0.5~4.0m³/min |
Air supply pressure | 0.1~0.85Mpa (adjustable) |
Dry ice consumption | 0~1.2kg/min |
Hopper capacity | 13kg |
Dry ice state | 3mm granular |
Power | 0.37kw |
Drive mode | Permanent magnet synchronous |
Voltage | AC220V/50~60HZ |
Size | 60*40*85cm |
Weight | 55kg |
Why choose dry ice cleaning?
Cleaning method | No secondary pollution | Non-conductive | Non-toxic | Non-abrasive |
Dry ice blasting | ✔ | ✔ | ✔ | ✔ |
Sand blasting | ✔ | ✔ | ||
Soda blasting | ✔ | ✔ | ||
High pressure water blasting | ✔ | ✔ | ||
Manual cleaning | ✔ | |||
Chemical solvent cleaning | ✔ |
Advantage
Compared to traditional cleaning methods,dry ice cleaning has the following advantages:
1.Saving costs
2.Dry cleaning process
3.Protect the environment
4.Extend the service life of the equipment 5.High efficiency
6.Wide range of uses
1.Saving costs
2.Dry cleaning process
3.Protect the environment
4.Extend the service life of the equipment 5.High efficiency
6.Wide range of uses
Details Images

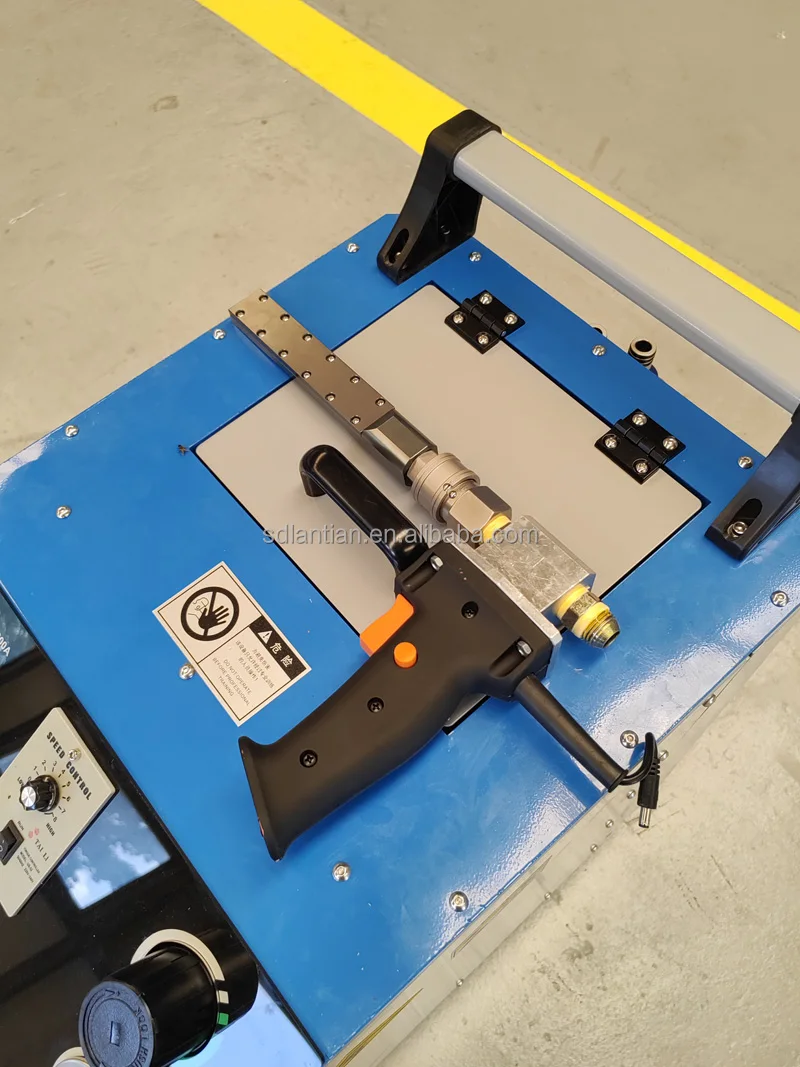

Flat nozzle spray gun
Used for cleaning the chassis and when cleaning the engine room

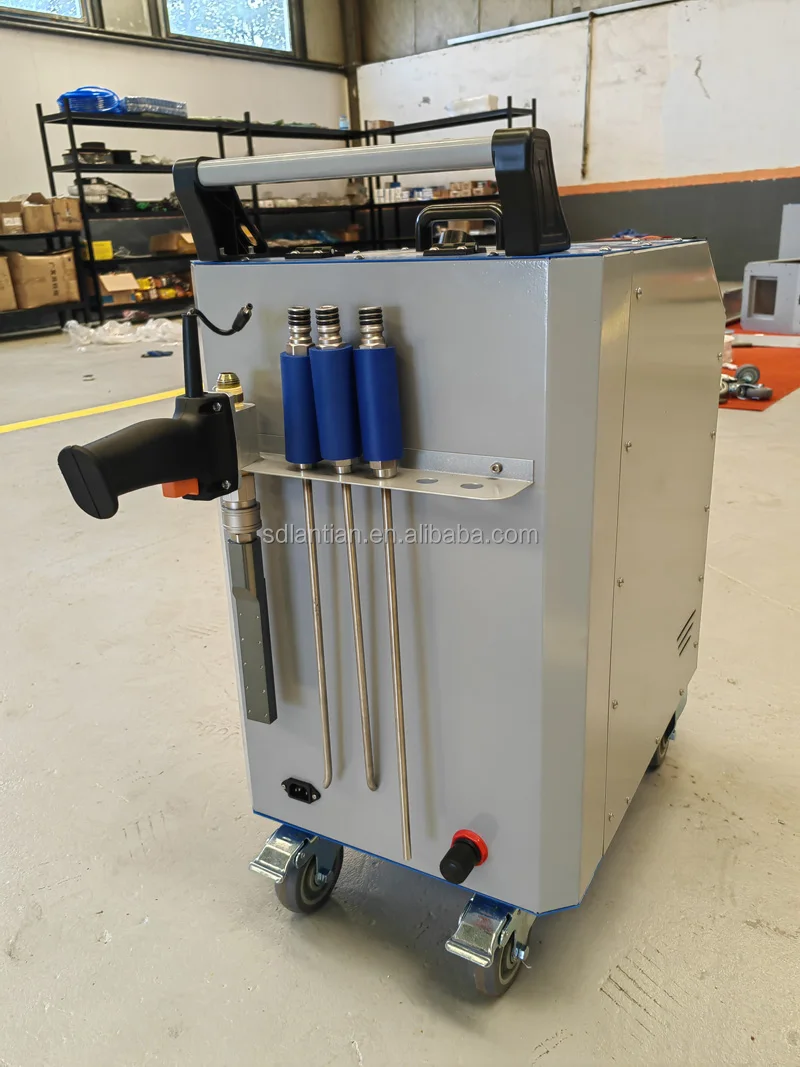

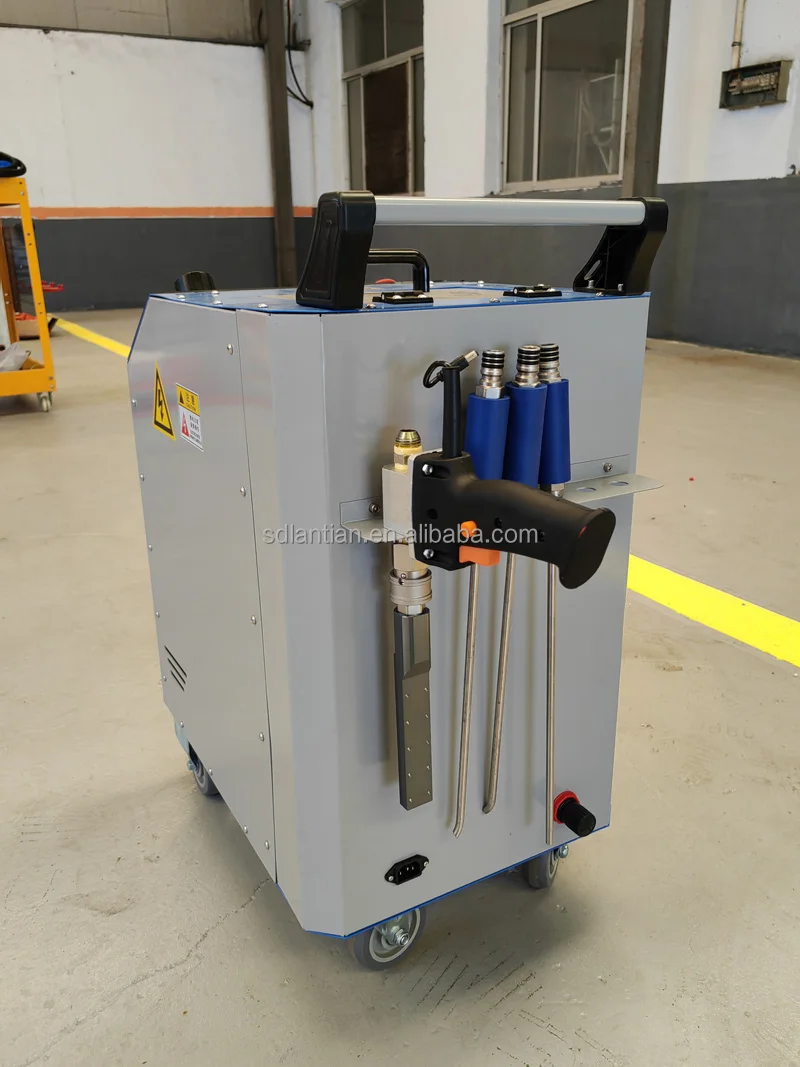

Dry ice blasting nozzles
Stainless steel spray guns.
Various spary guns applicable for different cleaning areas;

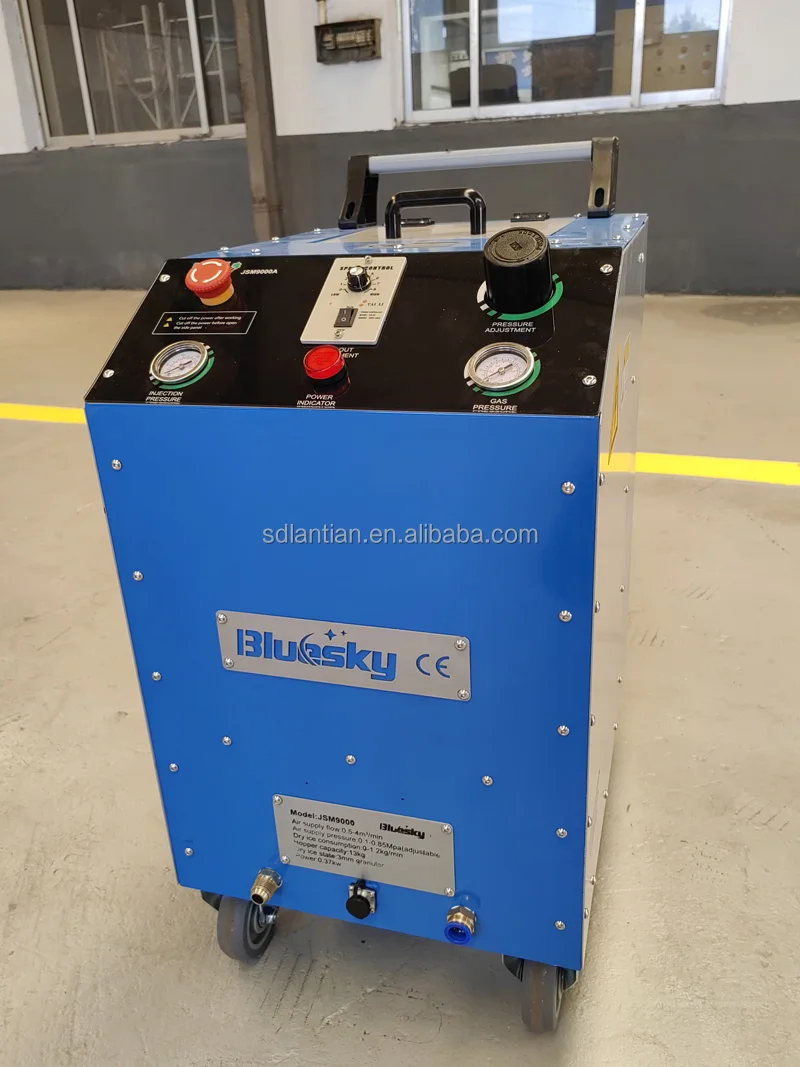

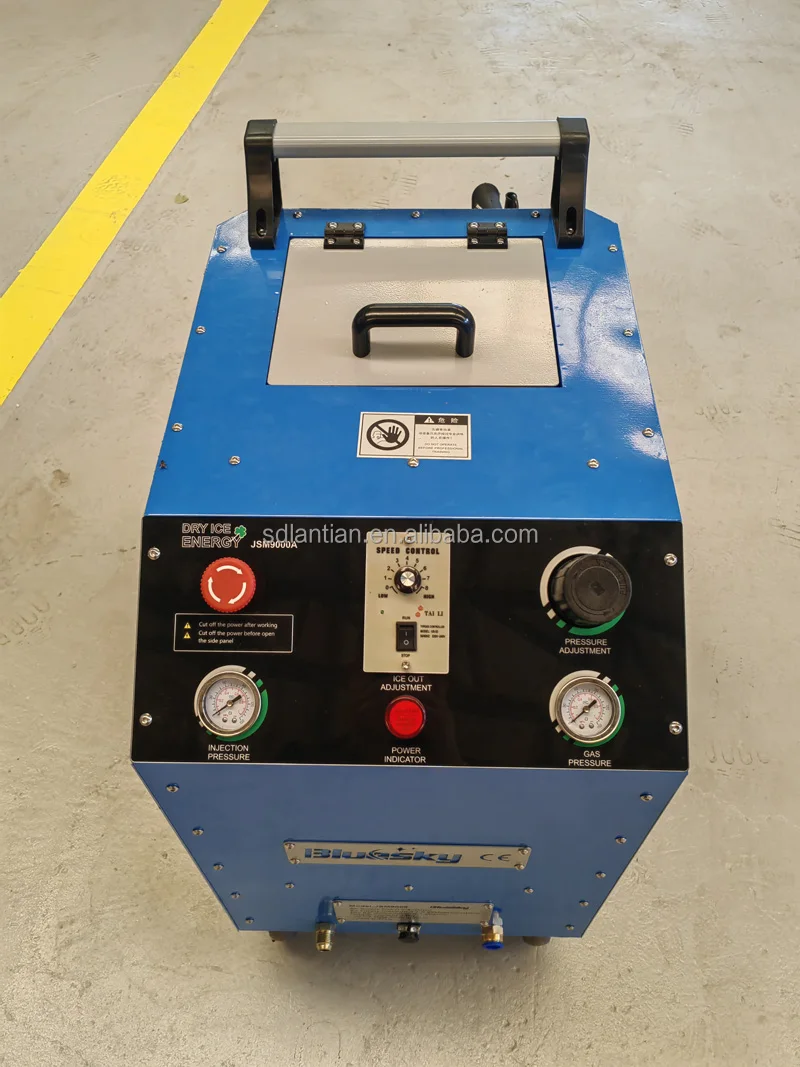

Control Panel, Easy operation
Dry ice consumption adjustable
Switch between dry ice output/ air output
Dry ice injection pressure adjustment
Air source pressure gauge display
Dry ice injection pressure gauge display
Switch between dry ice output/ air output
Dry ice injection pressure adjustment
Air source pressure gauge display
Dry ice injection pressure gauge display
Control buttons and interfaces
Dry ice interface
Control cable interface for spraying dry ice
Quick connection of air source
Control cable interface for spraying dry ice
Quick connection of air source
Accessories | ||
Aerodynamic nozzles | 4pcs | |
Control cable | 1pc | |
Switch handle | 1pc | |
Compressed air hose | 1pc | |
Dry ice blasting hose | 1pc | |
Dry ice shovel | 1pc | |
Mask | 1pc | |
Earmuffs | 1pc | |
Waterproof power cord | 1pc | |
Instructions for use and operating procedures | 1pc | |
Comparasion Of Cleaning Effect
Packing & Shipping

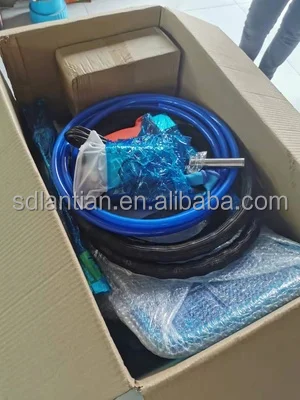

Standard carton packaging

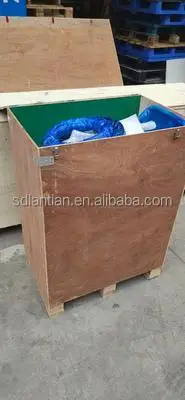

Plywood wooden case packing optional
Application
Machinery Industry
Dry ice cleaning becomes an integral part of production processes in the machinery industry in cleaning all production machine components (including electrical components), welding robots, conveyors and painting lines, moulds, etc. Compared to traditional cleaning methods, dry ice cleaning is a significantly faster cleaning process which can increase productivity and reduce costs.
Printing / Paper Industry
Keeping rollers and machines components clean in the printing and paper industry is extremely important. Dry ice blasting offers a fast and high-quality solution, without any need to disassemble equipment. This process gently and easily effectively cleans settled and baked grease, paper dust, pulp, ink and paint without damaging individual components. The process is dry, non-abrasive and uses no chemicals.
Automotive
Dry ice cleaning technology can restore assembly plants, robotics, spray booths, foundries, electrical equipment, hydraulic units, moulds, mechanical components, engines, wheel suspensions, gearboxes, electrical components, etc. to almost their original condition.
Food Industry
Removing food residues, grease, dirt and other residues from production equipment is critical in preventing the growth of bacteria and ensuring high quality food. The ideal solution is dry ice cleaning, which uses solid CO2 pellets or microparticles to strike the surface and clean it. The particles sublimate on impact, removing dirt and contaminants from surfaces without damaging
equipment.
equipment.
Rubber Industry
Cleaning the moulds used in rubber production is generally a slow and time-consuming process. However, dry ice cleaning technology saves time, costs and the risk associated with cleaning, as traditional methods mainly use chemicals and hazardous solvents. Dry ice cleaning allows small and hard-to-reach places to be cleaned without damage or the use of any solvents.
Woodworking Industry
Dry ice blasting eliminates manual cleaning of wood presses and wood dryers, reduces overall cleaning time and provides a more effective cleaning result. Dry ice cleaning also allows historical buildings, structures, statues, etc. to be safely restored by remove layers of paint, carbon, pollution, smoke damage, fire, fungi and many other pollutants.
Service for Cities /
Construction Industry
Dry ice cleaning does not generate secondary waste. The need for additional protection is minimal when cleaning with dry ice. Buildings or other objects do not need to be covered, which saves costs and significantly accelerates work.
Maritime Industry
Dry ice used as a cleaning medium has the unique ability to sublimate when it strikes a surface without damaging it. This makes it an ideal solution for cleaning ship hull envelopes, from small recreational boats to large commercial vessels. The benefits of dry ice blasting in the maritime industry are enormous and include reduced working hours, reduced costs, and no damage to hulls caused by grinding wheels or sand blasting
FAQ
Q1:Does it produce it own ice? Where do I get the dry ice from?
A: No,it doesn't product the dry ice.You need to buy the dry ice in the local market.
Q2: What size and form of dry ice required to use on the machine?
A: Use the 3mm particles dry ice is ok,the machine will crush the dry ice.
Q3: Any suggestion for the compressor?
A: We suggest you use 7.5KW or above screw air compressor.
The pipe diameter of the gas supply path is ≥DN15 to ensure the flow
The air compressor is away from the cleaning site ≯50m
Q4: Does the machine run on single phase?
A: No,it doesn't run on single phase.The socket must to connect with earth wire.
Q5: What will dry ice blasting NOT remove from my vehicle?
A: The process will remove almost any cosmoline, grease, oil, road debris from a vehicles undercarriage. It will NOT remove rust that has already started. It will clean surface rust. This process will also NOT remove paint from a vehicle.
Q6: Will dry ice blasting harm anything on vehicle?
Answer: No. Dry ice is a solid state form of C02 (carbon dioxide), when the ice makes contact with the surface it is cleaning it freezes the grime and the blast of air simply removes the frozen grime with the dry ice dissipating into C02 and leaving only the dirt to be swept from the floor. No harmful chemicals or degreasers needed. No water needed to be sprayed either! It is completely safe on all rubber, metal and electrical components.
A: No,it doesn't product the dry ice.You need to buy the dry ice in the local market.
Q2: What size and form of dry ice required to use on the machine?
A: Use the 3mm particles dry ice is ok,the machine will crush the dry ice.
Q3: Any suggestion for the compressor?
A: We suggest you use 7.5KW or above screw air compressor.
The pipe diameter of the gas supply path is ≥DN15 to ensure the flow
The air compressor is away from the cleaning site ≯50m
Q4: Does the machine run on single phase?
A: No,it doesn't run on single phase.The socket must to connect with earth wire.
Q5: What will dry ice blasting NOT remove from my vehicle?
A: The process will remove almost any cosmoline, grease, oil, road debris from a vehicles undercarriage. It will NOT remove rust that has already started. It will clean surface rust. This process will also NOT remove paint from a vehicle.
Q6: Will dry ice blasting harm anything on vehicle?
Answer: No. Dry ice is a solid state form of C02 (carbon dioxide), when the ice makes contact with the surface it is cleaning it freezes the grime and the blast of air simply removes the frozen grime with the dry ice dissipating into C02 and leaving only the dirt to be swept from the floor. No harmful chemicals or degreasers needed. No water needed to be sprayed either! It is completely safe on all rubber, metal and electrical components.
