household 10' mini metal lathe machine mini lathe machine metal
- Category: >>>
- Supplier: Zaozhuang Tok Machinery Co. Ltd.
Share on (1600542246803):
Product Overview
Description

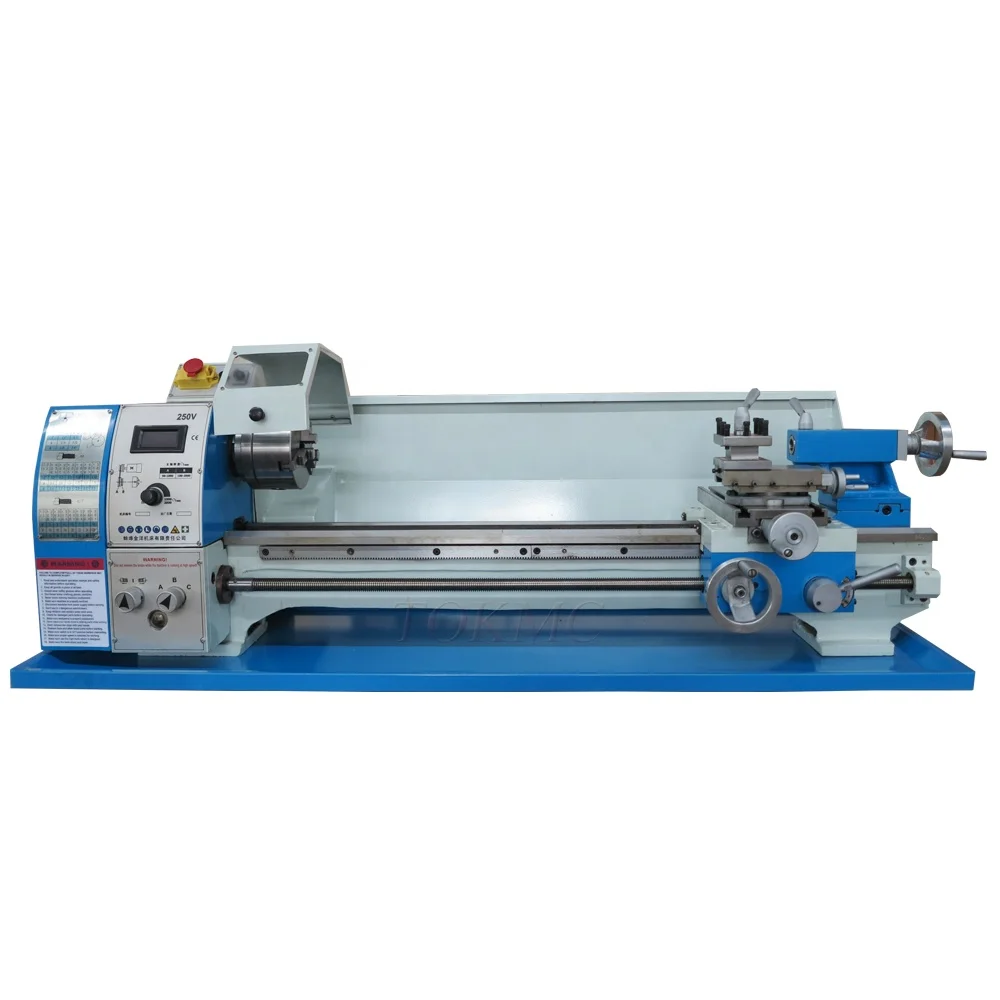

mini metal lathe machine for household use with CE, Most popular variable speed lathe
V-way bed is hardened and precision ground
Spindle is supported by precision tapered roller bearing
MT4 spindle hole gets more capacity
High precision chuck
T-slotted cross slide
Power longitudinal feed allows threading
Adjustable gids for slideways
Top design of gear box gets more function
Right and left hand threads cutting is available
Tailstock can be offset for turning tapers
Equiped with high quality belt and control board
Tolerance test certificate,test flow chart included
V-way bed is hardened and precision ground
Spindle is supported by precision tapered roller bearing
MT4 spindle hole gets more capacity
High precision chuck
T-slotted cross slide
Power longitudinal feed allows threading
Adjustable gids for slideways
Top design of gear box gets more function
Right and left hand threads cutting is available
Tailstock can be offset for turning tapers
Equiped with high quality belt and control board
Tolerance test certificate,test flow chart included
Specification | TOK250VL |
Distance between centers | 750mm |
Swing over bed | 250mm |
Swing over cross slide | 145mm |
Width of bed | 135mm |
Spindle taper | MT4 |
Spindle Bore | 26mm |
Number of Spindle Speed | Variable speed |
Spindle speed range | 50-2000 r.p.m |
Range of Longitudinal feeds | 0.07-0.2mm |
Range of inch Threads | 8-56 T.P.I |
Range Of Metric Threads | 0.4-3.5mm |
Top slide travel | 50mm |
Cross slide travel | 115mm |
Tailstock quill travel | 70mm |
Taper of Tailstock quill | MT2 |
Motor | 750W |
N.W. | 140kgs |
Packing size | 1350x560x570mm |
optional accessory mini mechanical lathe | ||||||
1 | Four jaw chuck | 6 | ER25 collet chuck | |||
2 | Back plate | 7 | Collet holder | |||
3 | Follow rest | 8 | Turning tools | |||
4 | Steady rest | 9 | Speed counter | |||
5 | Face plate | 10 | Quick change tool post | |||
11 | Foot stand | |||||
-When do you delivery?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
