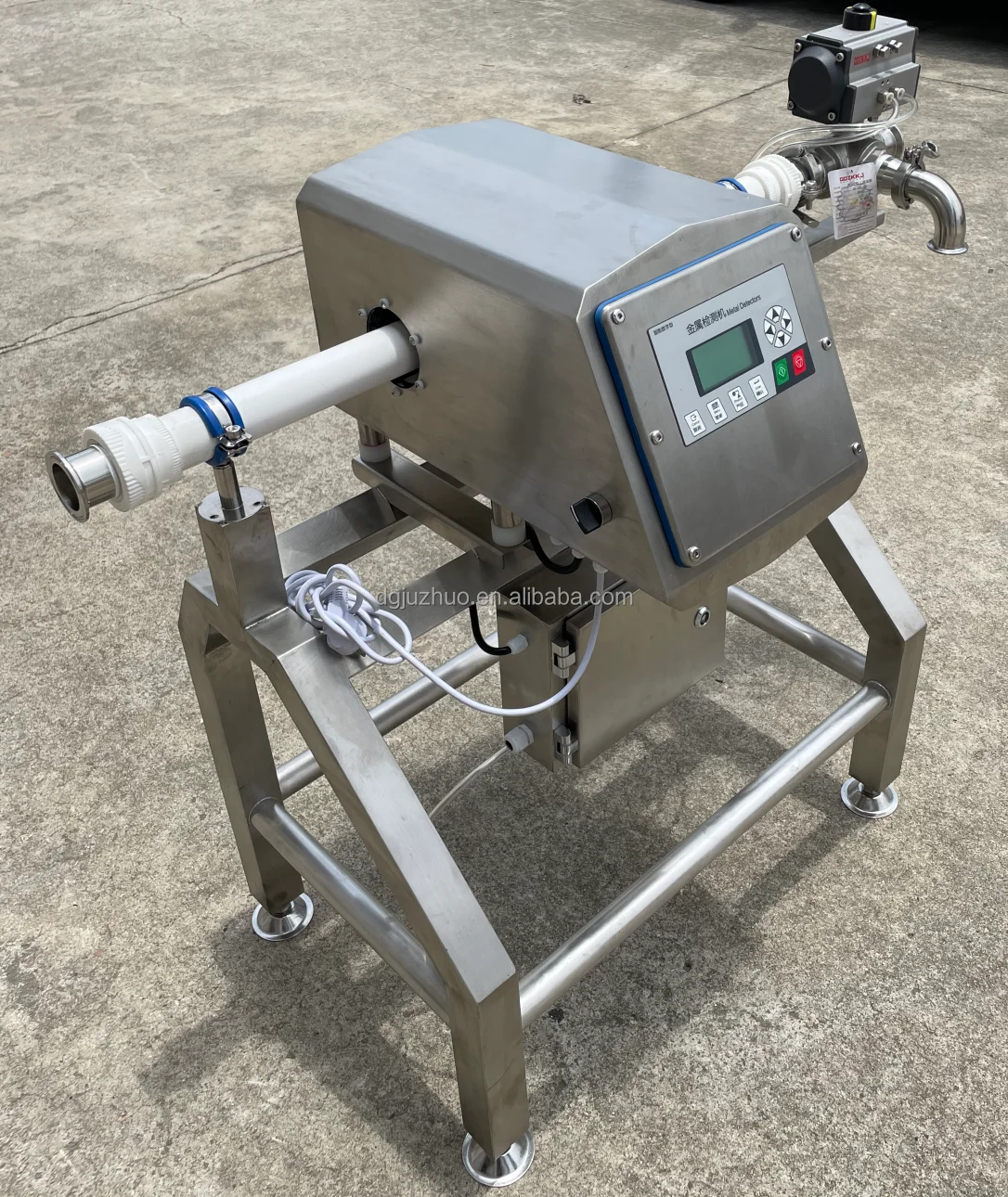

Automatic Program Sensitivity pipeline Metal Detector Machine with Reject JZD 366B

Automatic Program Sensitivity pipeline Metal Detector Machine with Reject JZD-366B

Application:

The sauce pipeline metal detector is mainly used for the inspection of paste and liquid products, such as jam/chocolate/sausage meat/sauce/soup, etc. Detection and separation of metal contaminants for pumped, liquid and paste productes;

Features:

1,Our Liquid Pipeline Metal Separator’s equipment are carefully developed with leading digital technology and original imported chips. The inside of the detection coil is molded at one time by potting, which has the characteristics of high detection accuracy, stable performance, and strong anti-interference ability.

2,It can be produced in a variety of frequencies according to product characteristics, and has a product testing data storage function, which can store about 100 product testing data, and has a wide range of applications.

3,Adopting intelligent recognition technology, with self-learning and memory functions, can automatically recognize and remember product characteristics, and effectively eliminate the interference caused by various "product effects".

4,Simple and friendly operation interface, dialogue LCD screen is adopted, parameters can be set quickly and conveniently through a simple key control interface; it can detect a variety of products containing different product signals (characteristics), and one setting can ensure extremely high The detection accuracy does not need to be re-adjusted and set up the program.

5,Modular component replacement, convenient and quick maintenance.

6,Comply with HACCP, GMP etc requirements.

7,Shockproof and waterproof design, dustproof and waterproof function in line with IP-66/IP-65 international certification, anti-vibration and noise absorption, can adapt to harsh working environments.

8,Unparalleled detection accuracy and stability, stable detection performance and the highest detection accuracy of various metal foreign bodies

9,The compact design is convenient to connect to the production line, so that the metal detector can be placed in a small installation space, and the length of the pipeline is shortened as much as possible

Product parameter:

Pipe diameter (mm) 50~150mm

Detection accuracy Fe (mm) ≥Φ 0.8mm

Detection accuracy SUS (mm) ≥Φ 1.5mm

Detection capacity (t/h) 3 ~10 t/h

Alarm mode: automatic shutdown or valve exclusion optional

Elimination method Pneumatic elimination

Air source requirement ≥0.5Mpa

Power supply AC380V±10% 50-60Hz (AC110V or AC380V can be customized) Other options

Remark:

1. the above sensitivity judged by the machine without bearing any parts,the actual sensitivity have relation with nature and the temperature of the products etc,

2. The amount of metal detection per hour is related to the specific gravity and flow rate of the product.

3. Other special specification requirement can be customized.
