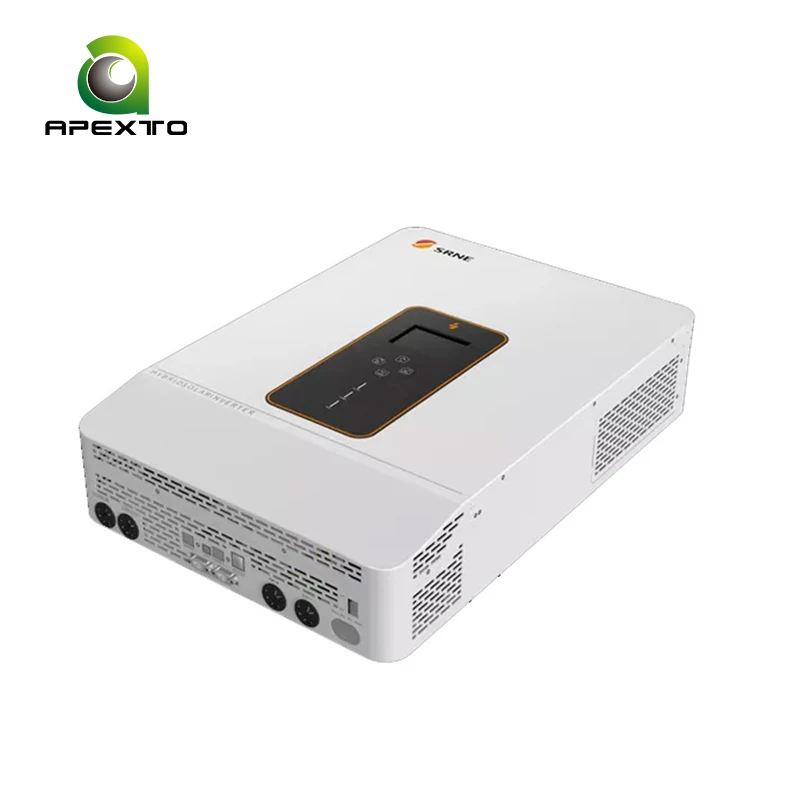

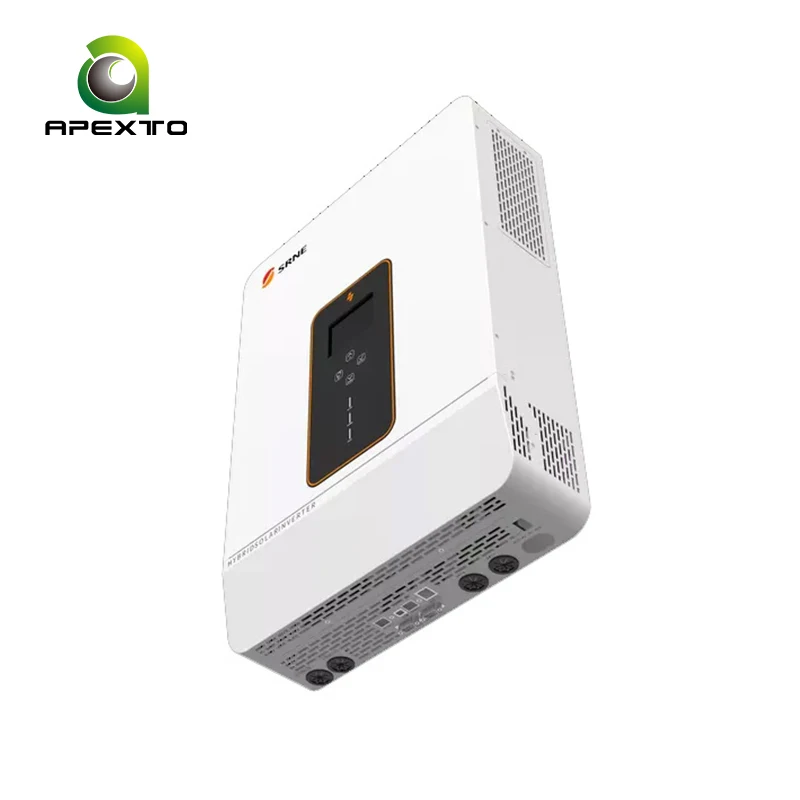

Low price china wholesale solar inverter 8kw 10kw single phase solar system hybrid solar inverter without battery
Low price china wholesale solar inverter 8kw 10kw single phase solar system hybrid solar inverter without battery
Low price china wholesale solar inverter 8kw 10kw single phase solar system hybrid solar inverter without battery
Low price china wholesale solar inverter 8kw 10kw single phase solar system hybrid solar inverter without battery
Low price china wholesale solar inverter 8kw 10kw single phase solar system hybrid solar inverter without battery
Low price china wholesale solar inverter 8kw 10kw single phase solar system hybrid solar inverter without battery
Low price china wholesale solar inverter 8kw 10kw single phase solar system hybrid solar inverter without battery

Low price china wholesale solar inverter 8kw 10kw single phase solar system hybrid solar inverter without battery

Share on (1600542607785):


Price:$1,479.00 - $1,499.00

Quantity:


Product Overview

Description





Efficient
* Dual MPPT with up to 99.9% efficiency
* Up to 22A PV input current perfect for high power modules
Reliable
* Outputs high quality pure sine wave AC power
* 8-10kW load power to meet the needs of most households


All-in-one
* Solar Charger Controller up to 200A charging current
* Support for Li-ion battery BMS communication
Intelligent
* Exclusive Li-ion battery BMS dual activation
* Time-slot function to save cost with peak-valley tariff




Specification
MODEL
ASF4880U180-H
ASF48100U200-H
INVERTER OUTPUT
Rated Output Power
8,000W
10,000W
Max.Peak Power
16,000W
20,000W
Rated Output Voltage
120Vac（single phase L+N+PE）/ 240Vac（split phase L1+L2+N+PE）
Load Capacity of Motors
5HP
6HP
Rated AC Frequency
50/60Hz
Waveform
Pure Sine Wave
Switch Time
10ms（typical）
Output Mode
Off-grid（default）/ On-grid / Hybrid
BATTERY
Battery Type
Li-ion / Lead-Acid / User Defined
Rated Battery Voltage
48Vdc
Voltage Range
40-60Vdc
Max.MPPT Charging Current
200A
Max.Mains/Generator Charging Current
100A
120A
Max.Hybrid Charging Current
180A
200A
PV INPUT
Num. of MPP Trackers
2
Max.PV array power
5,500W + 5,500W
Max.input current
22A + 22A
Max.Voltage of Open Circuit
500Vdc + 500Vdc
MPPT Voltage Range
125—425Vdc
EFFICIENCY
MPPT Tracking Efficiency
99.9%
Max. Battery Inverter Efficiency
92%
GENERAL
Dimensions
620*445*130mm（2*1.46*0.4ft）
Weight
27kg（59.5lb）
Protection Degree
IP20，Indoor Only
Operating Temperature Range
-15~55℃,>45℃ derated （5~131℉，>113℉ derated）
Cooling Method
Internal Fan
Warranty
2 Years
COMMUNICATION
Embedded Interfaces
RS485 / CAN / USB / Dry contact
External Modules （Optional
Wi-Fi / GPRS
CERTIFICATION
Safety
IEC62109-1, IEC62109-2,UL1741
EMC
EN61000-6-1, EN61000-6-3, FCC 15 class B
RoHS
Yes

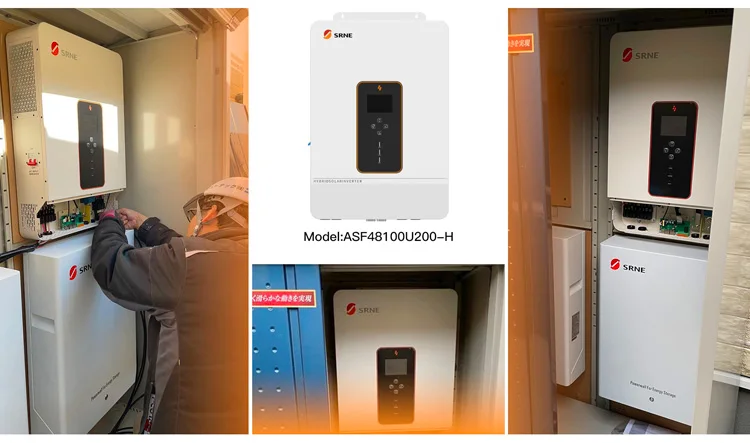

Case installation
We know about all the issues that come with conventional energy sources…Our solar experts will be guiding you on how to get the most out of your solar power system!






Apexto—The China's leading provider of Solar Inverter, with dedication to bring green energy to the world. Leaderpower has a team of professional and experienced specialists in the field of photovoltaic.

Our products are capable of meeting the most demanding requests, both for redidential and commercial applications. We only supply high quality systems with guarantees you can rely on from leading macufacuturers.

We have access to the whole of the renewable energy market. If you are looking for a solar inverter or solar pannel and you can contact us for inquire. We will customize an exclusive solar system solution for you according to your needs.
