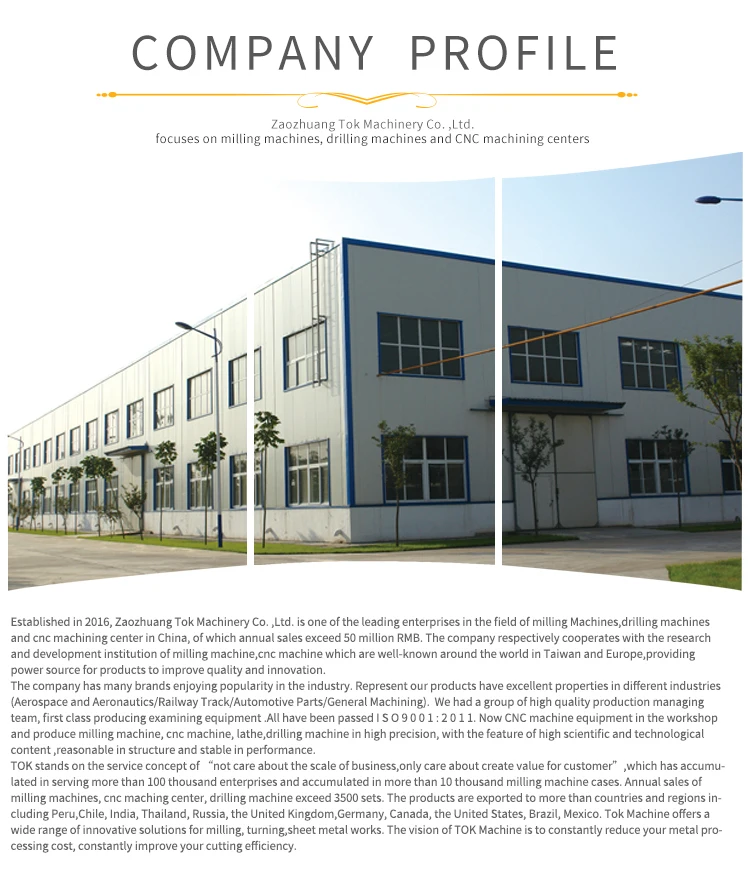

- Supplier: Zaozhuang,Tok,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

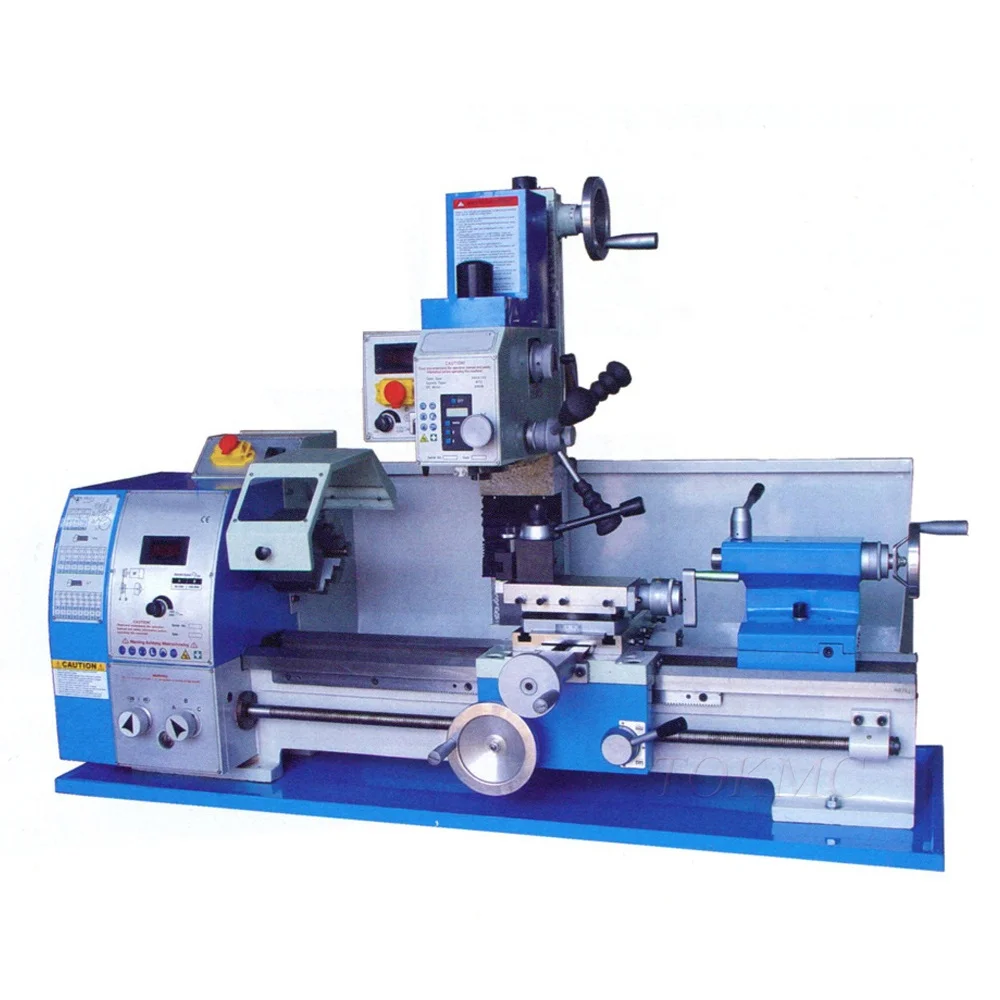

Most popular multi purpose combo lathe machine
V-way bed is hardened and precision ground
Spindle is supported by precision tapered roller bearing
MT4 spindle hole gets more capacity
T-slotted cross slide
Power longitudinal feed allows threading
Adjustable gids for slideways
Spindle feeding handle with softgrip for perfect operation.
Tailstock can be offset for turning tapers
Geared mill head gets more torque
Milling head can be tilted +/-90 degree C
Tolerance test certificate,test flow chart included
V-way bed is hardened and precision ground
Spindle is supported by precision tapered roller bearing
MT4 spindle hole gets more capacity
T-slotted cross slide
Power longitudinal feed allows threading
Adjustable gids for slideways
Spindle feeding handle with softgrip for perfect operation.
Tailstock can be offset for turning tapers
Geared mill head gets more torque
Milling head can be tilted +/-90 degree C
Tolerance test certificate,test flow chart included
Specification | unit | TOKP280V |
Lathe | ||
Distance between centers | mm | 700 |
Swing over bed | mm | 280 |
Swing over cross slide | mm | 165 |
Spindle taper | Morse | MT4 |
Spindle Bore | mm | 26 |
Number Of Spindle Speed | Variable | |
Spindle speed range | Rpm | 50-2000 |
Range of Longitudinal feeds | Mm/rev | 0.07-0.2 |
Range of inch Threads | T.P.I | 8-56 |
Range of Metric Threads | mm | 0.4-3.5 |
Top slide travel | mm | 50 |
Cross slide travel | mm | 140 |
Tailstock quill travel | mm | 70 |
Taper of Tailstock quill | Morse | MT2 |
Motor | kw | 1.1 |
Milling Drilling parts | ||
Taper of spindle bore | Morse | MT2 |
Spindle stroke | mm | 50 |
Spindle speed | Rpm | 50-2250 |
Max.distance from spindle to table | mm | 375 |
Max.distance between spindle and column | mm | 185 |
Motor | W | 600 |
Packing size | mm | 1400x780x1070 |
N.W./G.Weight | Kgs | 230/250 |
multi purpose combo lathe machine | ||||||
1 | Four jaw chuck | 6 | Foot stand | |||
2 | Follow rest | 7 | Turning tools | |||
3 | Steady rest | 8 | Back plate | |||
4 | Face plate | 9 | Digital depth ruler | |||
5 | ER25 collet chuck | 10 | Speed counter | |||
11 | Quick change tool post | |||||
-When do you delivery?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
