Легкий каркас, легкий стальной каркас, сборный дом, контейнерный дом
- Category: Prefab Houses >>>
- Supplier: East,Prefabricated,House,Manufacture,(shandong),Co.,Ltd.
Share on:
Product Overview
Description
Product Description

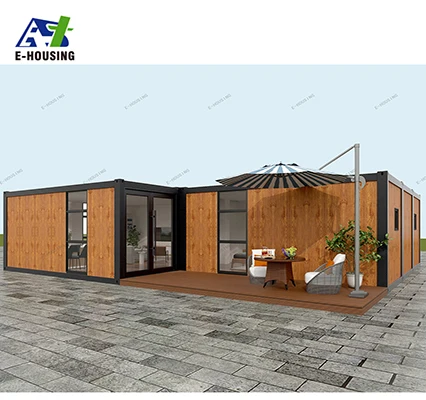

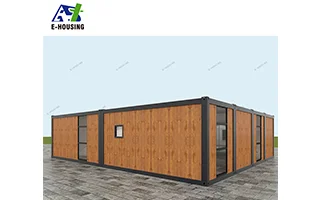

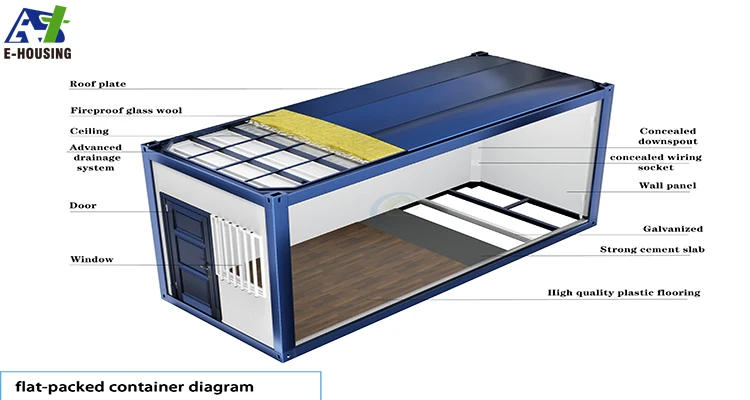

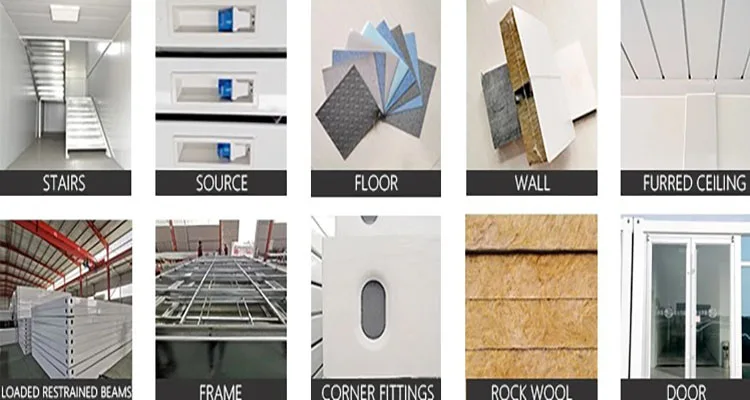

Product Detailed Photos

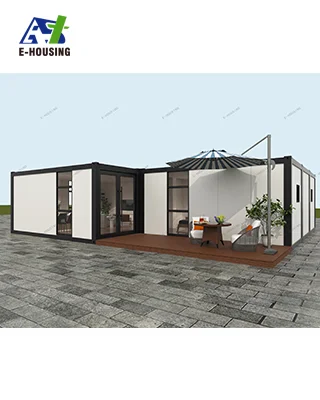

The exterior color can be customized and the interior design can be personalized.

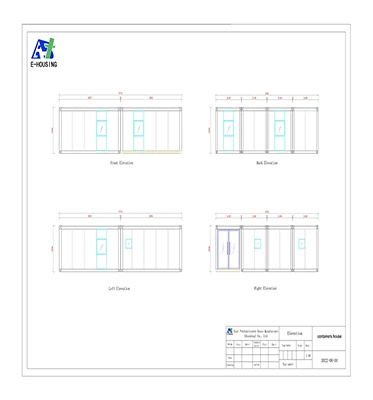

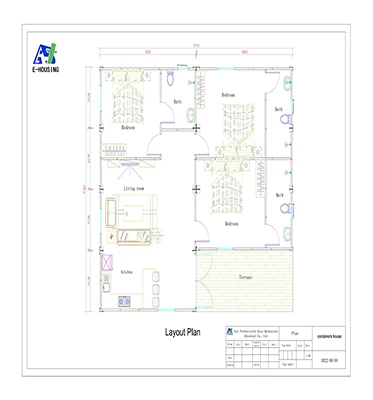

The graphic design and elevation can be customized.
Specification
Container House Parameter | ||||||
1 | Design Parameter | Product Name | Light Frame Design Light Steel Structure Prefab House Container House | |||
Main Material | Galvanized Steel | |||||
Per Unit Container Size of the Compound | L6058*W2438*H2896mm | |||||
Storey | Usually no more than 3 storeys | |||||
Life Span | Up to 20 years | |||||
Earthquake Resistance | Grade 8 | |||||
Refractory Grade | Grade A(Noncombustible Building Materials) | |||||
Surface | Polyester Powder Coatings, electrostatic spray, Thickness≥80μm (Environmental protection and pollution-free） | |||||
Floor Live Load | 2.0KN/m2 --（204KGF） | |||||
Roof Live Load | 1.0KN/m2 --（102KGF） | |||||
Wind Load | 1.2KN/m2 --（120.4KGF） | |||||
2 | Roof System | Roof Type | Flat or sloping roof with organized internal water draining design | |||
Steel Frame | Main Steel Frame: Galvanized Cold-Formed Steel | |||||
Roof Panel | Aluminum-Zinc Color Steel Sheet, PE Finishing Coat, 360° Full Connection | |||||
Insulation | ||||||
Ceiling Board | Aluminum-Zinc Color Steel Sheet, PE Finishing Coat. | |||||
Industrial Socket | Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers | |||||
3 | Corner Pillar | 4PCS Galvanized-Cold rolled steel; Corner pillar and main frame are joined by hexagon socket head bolt and corner fittings which grade 8.8 strength | ||||
4 | Wall System: Rock Wool Board, Sandwich Panel | Size | Thickness: 50-75mm | |||
Exterior/Interior Color Plate (standard configuration) | Corrugated Aluminum-Zinc Color Steel Sheet, PE Finishing Coat | |||||
Insulation Layer (standard configuration) | 50-75mm Rock Wool Board | |||||
Fire-Proof Standard | Grade A Non-Flammable | |||||
5 | Floor System | Steel Frame | Main Steel Frame: Galvanized cold-Formed Steel | |||
Floor Board | Cement Pressure Plate, MgO board, etc, Grade A Non-flammable | |||||
Interior Flooring | Plastic Board, etc, the color alternative | |||||
6 | Door & Window | Insulated Light Steel Door | Glass sliding door is also available. | |||
Plastic Steel Window | Double glass with mosquito screen and security bar. Aluminum alloy window is also available. | |||||
International CE and National Certification

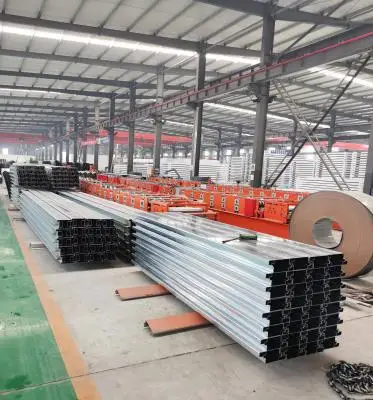

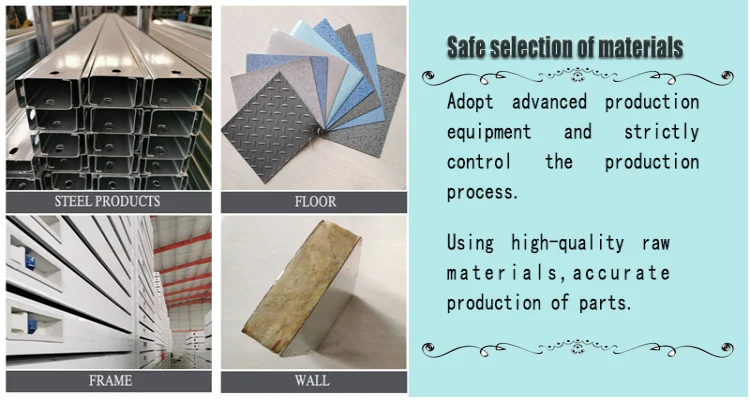

Qualified Raw Material
Green Manufacturing Process

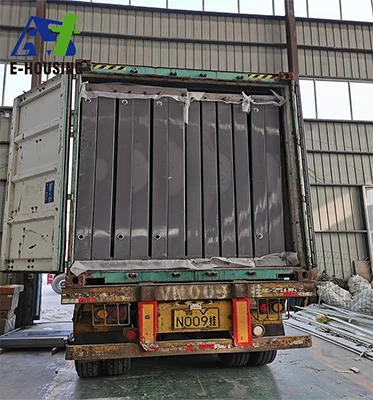

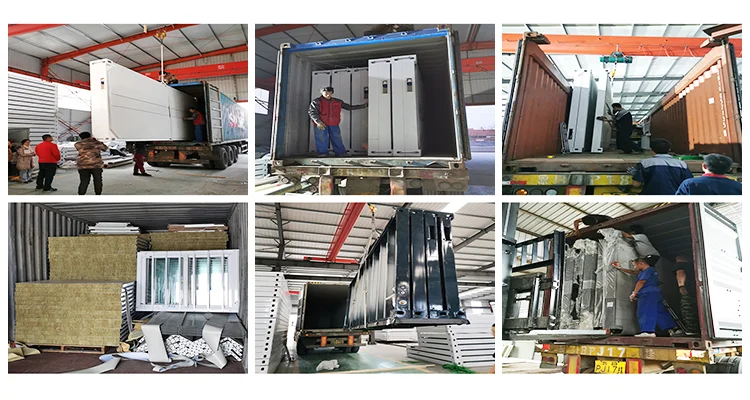

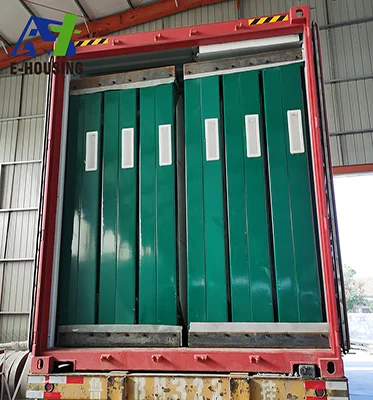

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

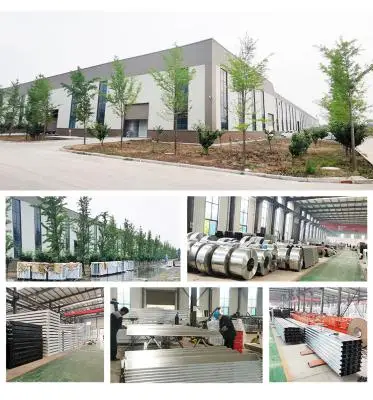

Company Profile

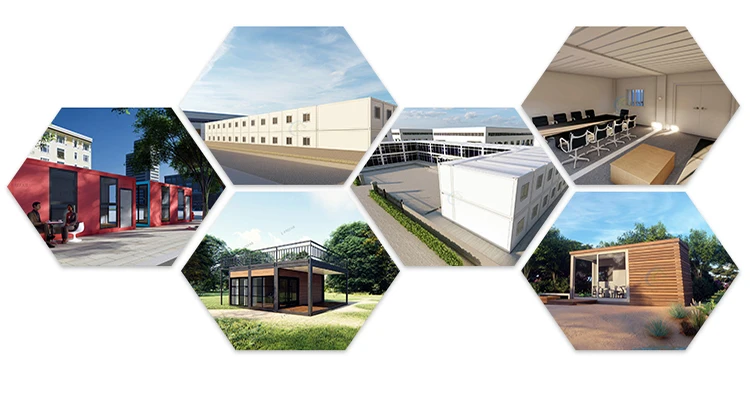

A Wide Product Range
Company Honors and Customer Photos
FAQ
1. Q: Are you the manufacturer?
A: Yes, we are. And you are welcome to visit us at any time.
2. Q:Can you offer design service?
2. Q:Can you offer design service?
A:Yes, our professional engineering and design team can make drawings according to customers' requirements.
3. Q:What's the delivery time?
3. Q:What's the delivery time?
A:The delivery time depends on the size and quantity of the container houses you ordered. Regularly within 30 days and for large orders, the time can be negotiated.
4. Q:How to install?
4. Q:How to install?
A:We will provide detailed construction manuals ,videos and instructions to you and technicians will be sent to help you on site if necessary.
5. Q:How to get a quote from you?
5. Q:How to get a quote from you?
A:You can contact us online or by email.If you have drawings, we can quote them according to your drawings, too.
6. Q: Could you please design a new and unique prefab house for me?
6. Q: Could you please design a new and unique prefab house for me?
A: Absolutely! We are able to provide you with not only construction scheme, but also landscape design. One-stop service is our outstanding superiority with no doubt.
7. Q: What should I provide to design a prefab house?
A: So easy! A sketch or drawing would be a nice reference for us. However, never mind if you don’t have any. Simply notify us of your requirements, such as the size of the area, the usage and the number of storeys of the house. Before long, you’ll possess an amazing design.
8. Q: How could I ensure the cost of building a prefab house?
A: Firstly, the designing scheme should be agreed upon. Then, the kinds of building materials should be confirmed since different types and qualities lead to different After that, we will send you a detailed quotation.
9. Q: How Long does it take to build a light steel prefab house?
A: It depends on the size of the house. Generally, two to five workers can finish the installation of a 50-square-metre house in 1-3 days , which saves both manpower and time.
10. Q: Is it difficult to build a prefab house?
7. Q: What should I provide to design a prefab house?
A: So easy! A sketch or drawing would be a nice reference for us. However, never mind if you don’t have any. Simply notify us of your requirements, such as the size of the area, the usage and the number of storeys of the house. Before long, you’ll possess an amazing design.
8. Q: How could I ensure the cost of building a prefab house?
A: Firstly, the designing scheme should be agreed upon. Then, the kinds of building materials should be confirmed since different types and qualities lead to different After that, we will send you a detailed quotation.
9. Q: How Long does it take to build a light steel prefab house?
A: It depends on the size of the house. Generally, two to five workers can finish the installation of a 50-square-metre house in 1-3 days , which saves both manpower and time.
10. Q: Is it difficult to build a prefab house?
A: Totally not, you can build the house independently according to the construction drawings as long as you know how to use an electric tool.
11. Q:How can we communicate?
A:You are welcome to chat with me or call me through this Alibaba dialogue box or send me an inquiry email whenever it is convenient for you.
