Edfa Price B&A CATV EDFA 1550nm Multi ports Optical fiber Amplifier Price
- Category: >>>
- Supplier: Shanghai B And A Technology Co. Ltd.
Share on (1600543009972):
Product Overview
Description

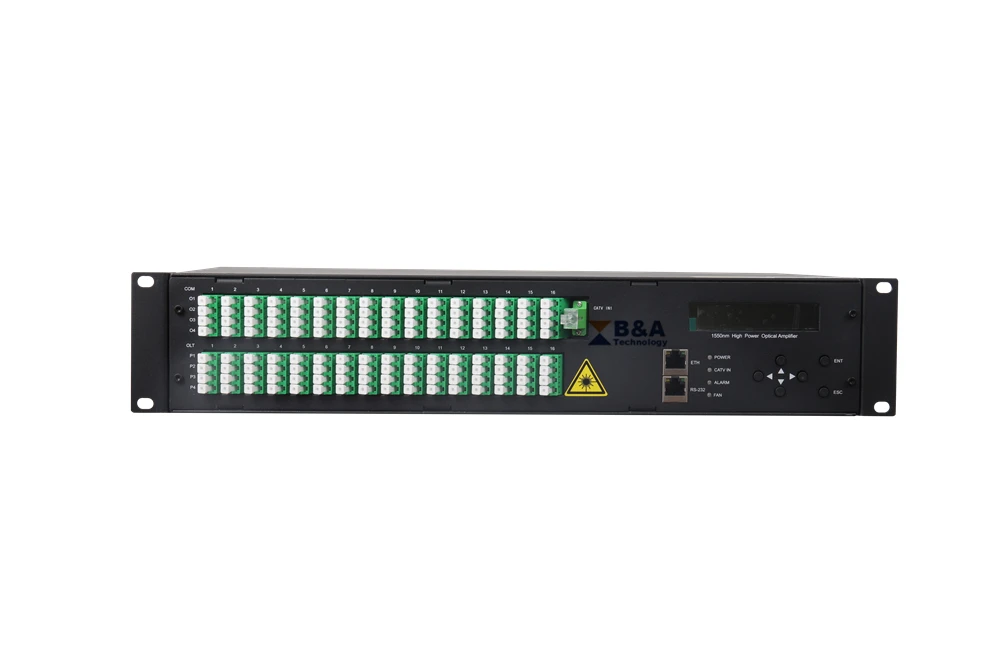

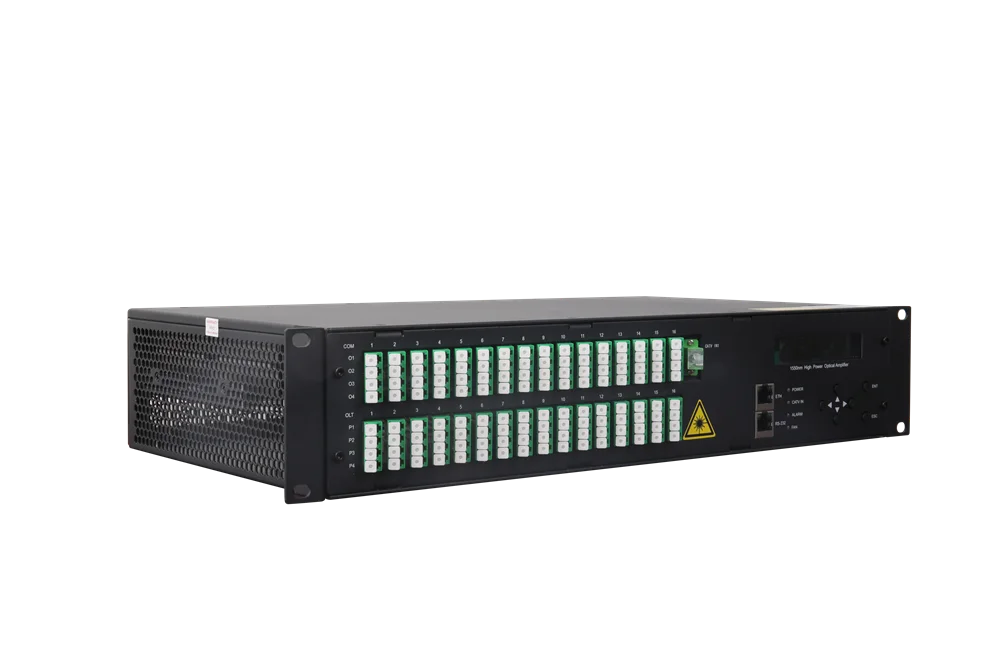

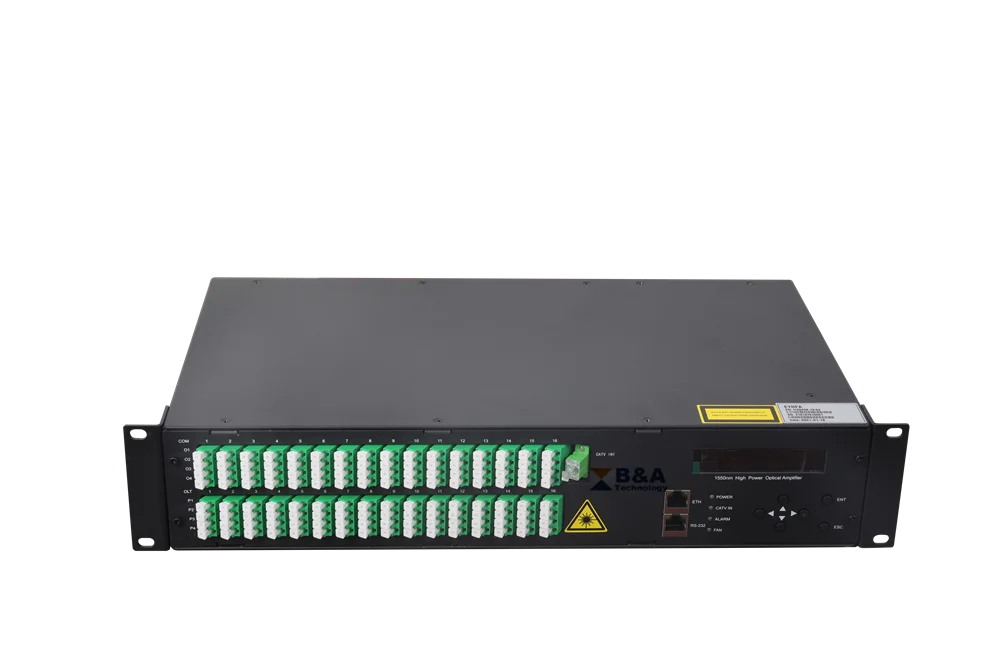

8~64 ports CATV FTTH 1550nm Optical High Power Pon EDFA 32 Port fiber Amplifier 23dbm
Products Description
Overview:
The product is a high output power C-Band Er-Yb co-doped double cladding optical fiber amplifier. A proprietary ATC (Automatic Temperature Control) and an APC (Automatic Power Control) circuit ensure the high stability and reliability output power, and the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system ensure the control, adjustment and display are intelligent and user-friendly.
The product can realize different service wavelength (GPON/XGPON1/OTDR and CATV) multiplexing in FTTX network to maximize the value of optical distribution network (ODN). To suit multiple application scenarios, the GPON ports are compatible with the XGPON1 and OTDR wavelength.
The product can realize different service wavelength (GPON/XGPON1/OTDR and CATV) multiplexing in FTTX network to maximize the value of optical distribution network (ODN). To suit multiple application scenarios, the GPON ports are compatible with the XGPON1 and OTDR wavelength.
This high power EDFA is mainly used in following applications:
➢ Analog CATV Transmission
➢ FTTH Optical Access
➢ Optical Distribution
➢ Free Space Optical
➢ Analog CATV Transmission
➢ FTTH Optical Access
➢ Optical Distribution
➢ Free Space Optical
Features:
1. Suitable for CATV, PON system orvideo combiner is optional

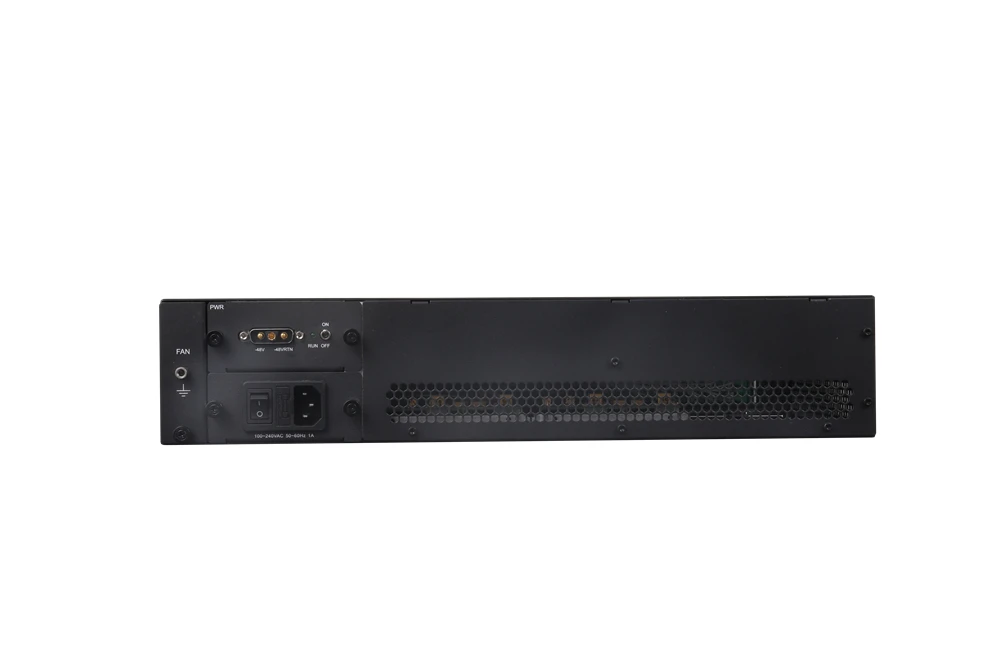

2. Power Supply: Redundancy Hot Swap Power module

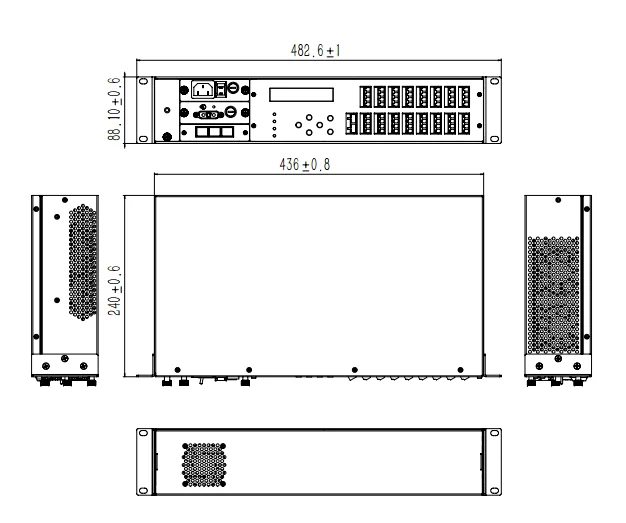

3. All optical and management ports front panel access, and works for 19’ or 21’ racks
4. The Fan and power suppliescan be plugged in 2U rack, which is very convenient to maintain
5. LCD display shows and controls the system parameters, LED status indicationshows the alarm status
6. Support ETH, RS232 and Monitor ports
7. Network Management interface supporting SNMP via ETHport.
8. APC（Automatic Power Control）optical output
9. High power components, high reliability, low noise
2. Power Supply: Redundancy Hot Swap Power module
3. All optical and management ports front panel access, and works for 19’ or 21’ racks
4. The Fan and power suppliescan be plugged in 2U rack, which is very convenient to maintain
5. LCD display shows and controls the system parameters, LED status indicationshows the alarm status
6. Support ETH, RS232 and Monitor ports
7. Network Management interface supporting SNMP via ETHport.
8. APC（Automatic Power Control）optical output
9. High power components, high reliability, low noise
Product Paramenters
No. | Item | Min. | Typ. | Max. | Unit | ||||||
1 | CATV EDFA Optical Specifications | ||||||||||
1.1 | CATV Port Wavelength Range(λ1) | 1545- 1565 | nm | ||||||||
1.2 | Input Power | -10 | 0 | 10 | dBm | ||||||
1.3 | Output Power (Every Port) | 23 | dBm | ||||||||
1.4 | Total Output Power | 40 | dBm | ||||||||
1.5 | Numbers of Output1 | 128 | |||||||||
1.6 | Output Power Uniformity (among Output Ports) | ± 1 dB | dB | ||||||||
1.7 | Output Power Stability | -0.5 | 0.5 | dB | |||||||
1.8 | NF (In=0dBm, λ=1550nm) | 5.5 | 6.0 | dB | |||||||
1.9 | Pump leakage @ Input/output port | -30 | dBm | ||||||||
1.10 | Isolation @ Input/output port | 30 | dB | ||||||||
1.11 | PMD (Polarization Mode Dispersion) | 0.5 | ps | ||||||||
1.12 | PDG (Polarization dependent gain) | 0.5 | dB | ||||||||
1.13 | RL (Optical Return Loss) | 50 | dB | ||||||||
1.14 | Output Power Adjustable | Output power can control 5 dB | |||||||||
2 | Built-in WDM Specifications（Optional in PON system） | ||||||||||
2.1 | CATV Port Wavelength Range (λ1) | 1545- 1565 | nm | ||||||||
2.2 | PON Port wavelength Range (λ2) | 1260-1360&1480-1500 &1575 - 1581 &1616 -1660 | nm | ||||||||
2.3 | Insertion Loss | Pass Band | 1.2 | dB | |||||||
Reflection Band | 1.2 | dB | |||||||||
2.4 | PDL (Polarization Dependent Loss) | 0.1 | dB | ||||||||
2.5 | PMD (Polarization Mode Dispersion) | 0.1 | Ps | ||||||||
2.6 | Isolation (Com→PON@λ1) | 15 | dB | ||||||||
2.7 | Isolation (Com→CATV@λ2) | 40 | dB | ||||||||
2.8 | Directivity (P«R) | 50 | dB | ||||||||
2.9 | PON Signal that passes through when EDFA is turned off | 1577, 1270&1310,1490 &1625/1650 | nm | ||||||||
2.10 | Power Tolerance | 26 | dBm | ||||||||
2.11 | Constant Output | @ variable input: -6 ~ +8 dBm | |||||||||
Item | Min. | Typ. | Max. | Unit |
Operation Temperature | -5 | ------ | +60 | ℃ |
Storage Temperature | -40 | ------ | +85 | ℃ |
Operation Humidity | 5 | ------ | 95 | % |
Storage Humidity | 5 | ------ | 95 | % |
Power supply | -72 | -48 | -36 | VDC |
90 | 240 | VAC | ||
Consumption※ | 0 | 50 | W |
