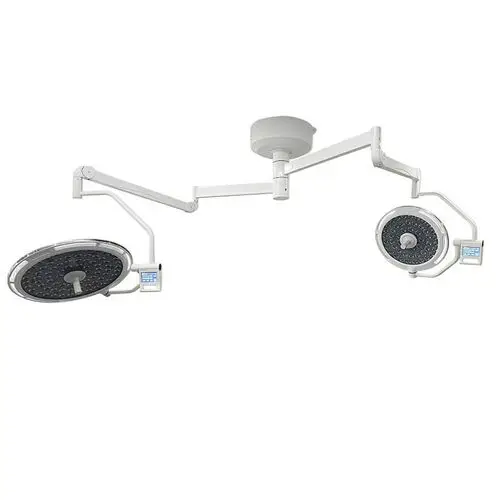

AG LT023 Hot sale shadowless operating lamp surgical ceiling LED ot light manufacturer hospital theatre lights
- Category: >>>
- Supplier: Jiangsu Weiwo Network Technology Co. Ltd.
Share on (1600543010607):
Product Overview
Description
AG-LT023 Hot sale shadowless operating lamp surgical ceiling LED ot light manufacturer hospital theatre lights
LED Operating OT Light Introduction
1. Ideal cold light effect.
Using advanced LED as the cold light source for OT lighting, there is almost no temperature rise in the doctor's head and wound area.
2. The light holder adopts the overall disc-shaped design, the light spot is more uniform; the streamlined, ultra-thin design, the thickness of the lamp plate is less than 10cm, and the excellent laminar flow effect can be obtained;
3. Reliable circuit design.
With PWM step-less dimming, uniform brightness adjustment, wide adjustment range, and no flicker.
4. Continuous lighting:
The entire shadowless ot light head is composed of 51/81 high-brightness white LEDs, 7/12 connected in series to form a group, which is called a high-brightness LED string, which is formed by 6 groups in parallel.
5. Gesture sensing:
The sensor detects gestures, which can realize non-contact brightness adjustment, which is convenient and quick.
6. Shading Compensation:
Humanized intelligent shading compensation technology. When the doctor’s head blocks part of the light source, other areas The brightness of the light source will automatically increase to ensure the brightness of the field
7. Electric light spot adjustment:
The control is diversified, and the controller of the handle can adjust the light spot size, which is convenient and fast
8. Adjustable color temperature:
You can increase red and green compensation to improve the color rendering index, which can distinguish different tissue types more clearly, and more accurately identify the truest color of the tissue.
9. Mutual control of lamp holders:
The controllers of the two lamp holders can mutually control each other's color temperature, cavity mirror, and camera parameters.
10. One-key switch to endoscope mode, illuminance, and color temperature can be adjusted to meet different surgery needs of the hospital. The LCD screen displays the adjustment status.
11. The light source adopts OSRAM LED lamp beads, and the lamp beads have a life of 50,000 hours
12. The shell is made of engineering plastics, inlaid with aviation aluminum top cover, which is unique and has excellent heat dissipation;
13. The buckle-type detachable disinfection handle is convenient for cleaning and disinfection.
14. Constant current drive design, so that the working current is always in a stable state, greatly prolonging the service life
15. New drilling lens design. Excellent optical design, more beautiful appearance, higher light efficiency, and less glare
16. Adopting PMMA optical lens, with unique condensing technology, high luminous efficiency, low power consumption, long life of the light source
17. Equipped with a lightweight balance arm suspension system, which is lightweight and stable in positioning. 360°omni-directional design to meet any height and angle during surgery.
18. The LED operating ot light emits visible light, without infrared and ultraviolet parts, so that there is very little heat. The temperature rise in the operation area is very small, and the average auxiliary illumination energy is only 3.6mw/m2, which is an internationally leading level.
| Lamp diameter | 700 mm/500 mm |
| Center illumination | |
| 40000-160000Lx adjustable | |
| 40000-120000Lx adjustable | |
| Spot diameter | ≥180mm |
| Beam depth | ≥1000 mm |
| Color temperature | 4000-5000K adjustable |
| Color rendering index Ra | > 92 |
| Maximum irradiance | 600 W/m2 |
| Light source | LED (1W×81)/LED (1W×51) |
| Working voltage | AC 100V-240V 50Hz/60Hz |
| Machine power | 70W/60W |
Similar Products
Operating room
According to the degree of sterility or sterility of the operation, the operating room can be divided into the following five categories:
(1) Class I operating room: that is, the sterile purification operating room, which mainly accepts operations such as brain, heart, and organ transplantation.
(2) Class II operating room: the sterile operating room, which mainly accepts aseptic operations such as splenectomy, open reduction of closed fractures, intraocular surgery, and thyroidectomy.
(3) Class III operating room: that is, the operating room with bacteria, which accepts operations on the stomach, gallbladder, liver, appendix, kidney, lung and other parts.
(4) Class IV operating room: the infection operating room, which mainly accepts operations such as appendix perforation peritonitis surgery, tuberculous abscess, abscess incision and drainage, etc.
(5) Class V operating room: that is, the special infection operating room, which mainly accepts operations for infections such as Pseudomonas aeruginosa, Bacillus gas gangrene, and Bacillus tetanus.
According to different specialties, operating rooms can be divided into general surgery, orthopedics, obstetrics and gynecology, brain surgery, cardiothoracic surgery, urology, burns, ENT and other operating rooms. Because the operations of various specialties often require special equipment and instruments, the operating rooms for specialized operations should be relatively fixed.
Here Are Some Operating Room Equip Recommend
 |  |  |
|  |  |
Company Information
Our company is located in Jiangsu, China. It is in a beautiful, clean and convenient environment. We are a professional manufacturer engaged in the research, development, production, sales and export of medical equipment. At the same time, we have a professional foreign trade team. Our main products include various manual and electric beds, operating tables, labor beds, accompanying chairs, infusion chairs, rescue vehicles and other hospital facilities. The products have been sold well in the United States, Southeast Asia, India, Europe, South America and other regions and countries, won the praise and praise of domestic and foreign customers! We constantly develop new products, young professional team, strict management system, and star-rated after-sales service, customer-centric! Welcome new and old customers to come to our company to discuss cooperation and join hands in creating a better tomorrow.
Packaging & Shipping
We usually packed product in carton or plywood or it also can depends on your requirements.
FAQ
Q1.Are you a manufacturer or trading company?
We are a manufacturer of hospital furniture field.
Q2.What are your advantages?
A: Credibility foundation, quality conquers customers.We persist in developing new products; have strictly management system and after-sales service.
Q3.Do you have independent research and development capabilities?
A: Yes. We have our own R & D department. We will collect each customers’ feedback regularly for product’s improvement and new product development.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings according to the quantity .
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
