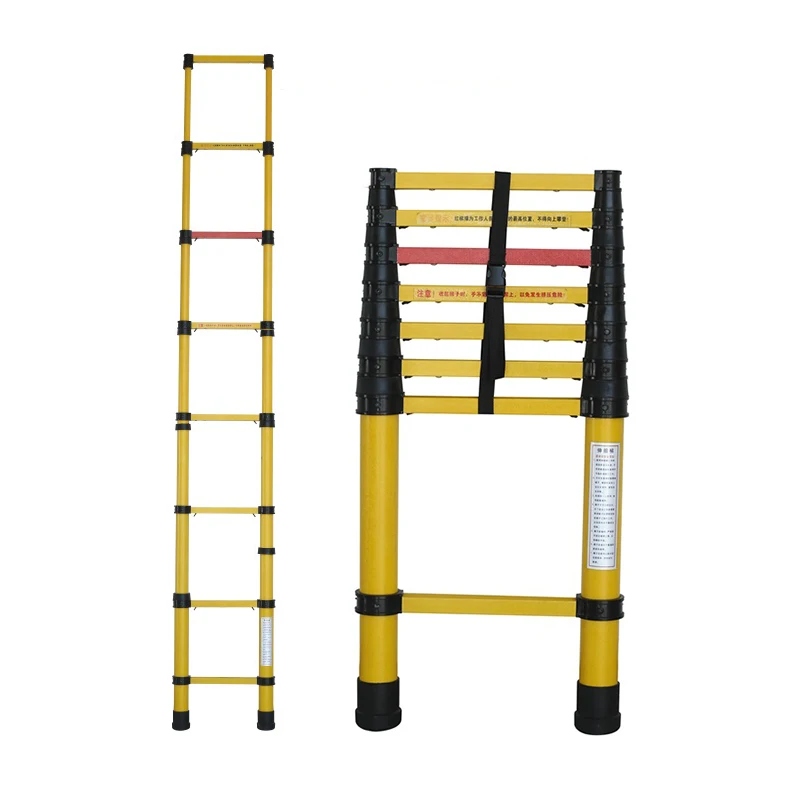

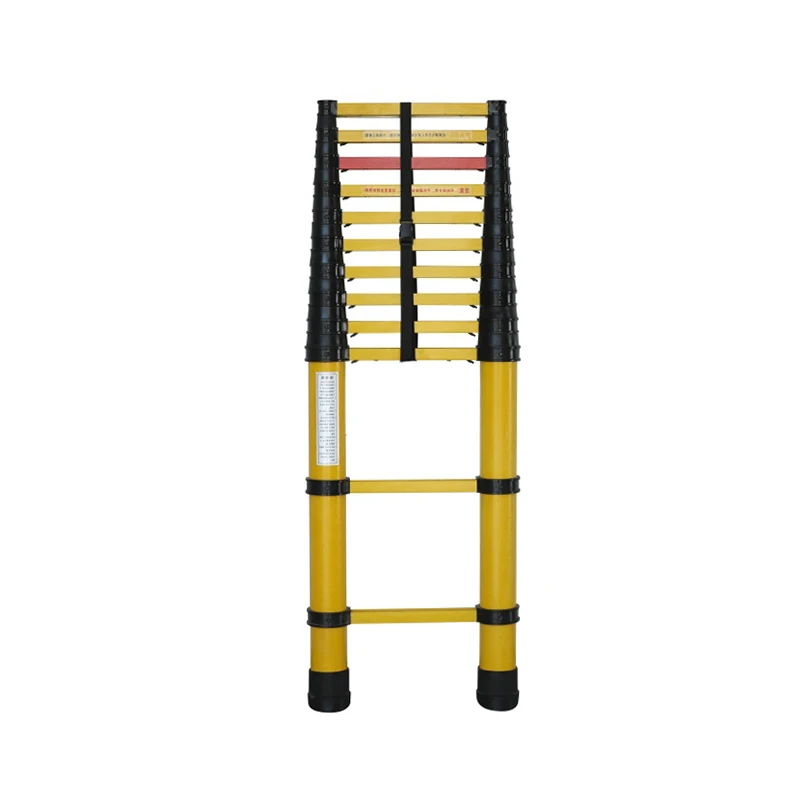

Product name: | Insulated telescopic ladder |
Product introduction: | The insulated telescopic ladder can be stretched and shortened like a fishing rod. The shortened length is about 0.7 meters, and the stretched height can reach about 4 meters. The weight of the insulated telescopic ladder is only about 6-10 kg. , can bear about 150 kg. |
Withstand voltage level: | 220kV |
Dimensions: | 2/2.5/3/3.5/4/5 meters(customizable) |
Product material: | Epoxy resin / glass fiber reinforced plastic |
Product color: | Yellow |
Scope of application: | Power system operations, live line operations, substation maintenance operations |
Product features: | High safety, strong insulation, corrosion resistance, light weight, easy to carry, strong mechanical properties |
Insulated telescopic ladder specifications | ||||
Specifications | Retracted dimensions | Weight | ||
2M | 0.81M | 6.2KG | ||
2.5M | 0.86M | 7.4KG | ||
3M | 0.94M | 9.2KG | ||
3.5M | 1M | 11KG | ||
4M | 1.07M | 13KG | ||
4.5M | 1.12M | 15.5KG | ||
5M | 1.39M | 17.5KG |
