Gold/copper/iron/stainless steel/aluminium high frequency 20kg induction melting furnace for melting metal
- Category: >>>
- Supplier: Zhengzhou Daqing Automation Equipment Co. Ltd.
Share on (1600543104484):
Product Overview
Description

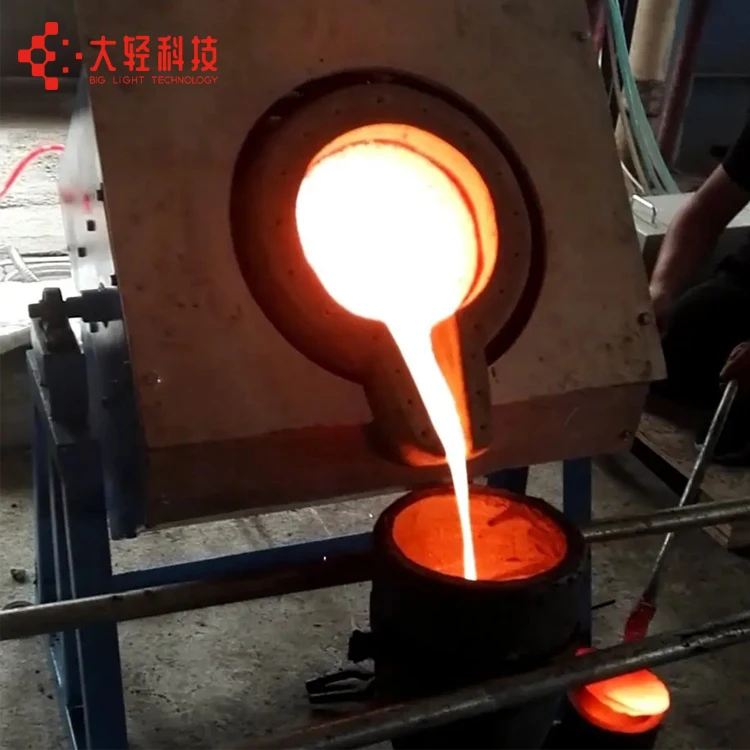

Gold/copper/iron/stainless steel/aluminium high frequency 20kg induction melting furnace for melting metal
Heating Temperature: 2500℃
Can be used to melting gold, silver, copper, aluminum etc.
Can be used to melting gold, silver, copper, aluminum etc.
Product Description

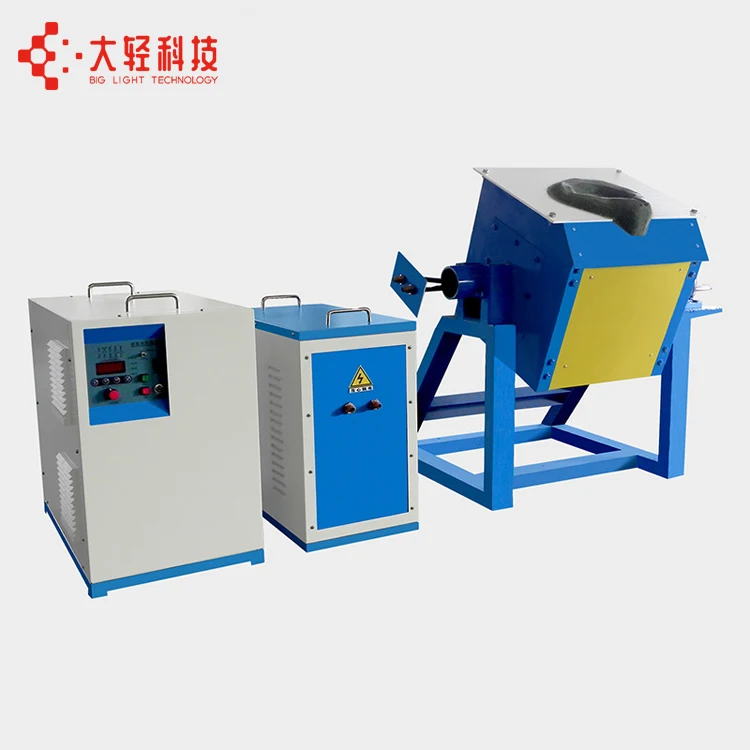

Brief Introduction of induction melting furnace:
Medium frequency induction melting furnace is an induction heating machine. Alternating current in the coils melts the metals in the crucible and then heat the hot metal to the temperature needed.As well as heating treatment prior to forging, sintering and hot rolling in casting and melting industries.
IGBT
Board
Product Paramenters
DQ-15KW
DQ-35KW
DQ-45KW

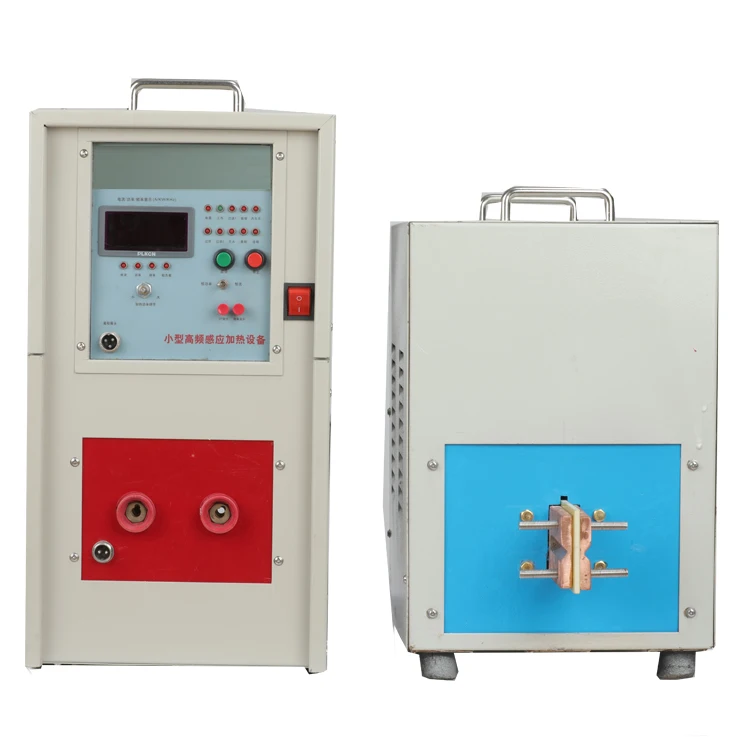

High Frequency Induction Heating Machine | ||||||||||
Model | DQ-15KW | DQ-35KW | DQ-45KW | DQ-60KW | DQ-80KW | |||||
Input voltage | 220V,380V,480V | |||||||||
Output power | 15kw | 35kw | 45kw | 60kw | 80kw | |||||
Frequency | 10-50KHZ | |||||||||
Current | 20A | 60A | 90A | 120A | 160A | |||||
Generator weight | 25kg | 65kg | 75kg | 85kg | 90kg | |||||
Transformer weight | / | 60kg | 60kg | 80kg | 80kg | |||||
Generator dimension(mm) | 535*245*550 | 595*275*580 | 595*275*580 | 650*320*590 | 745*345*600 | |||||
Transformer dimension(mm) | / | 485*275*450 | 485*275*450 | 485*275*450 | 790*425*580 | |||||
Induction Melting Machine | ||||||
Model | Steel/Iron | Aluminum | Copper/Gold/Silver/Noble metal | |||
DQ-15KW | 3KG | 3KG | 3KG,5KG,10KG | |||
DQ-25KW | 5KG | 5KG | 20KG | |||
DQ-35KW | 10KG | 10KG | 30KG | |||
DQ-45KW | 18KG | 18KG | 50KG | |||

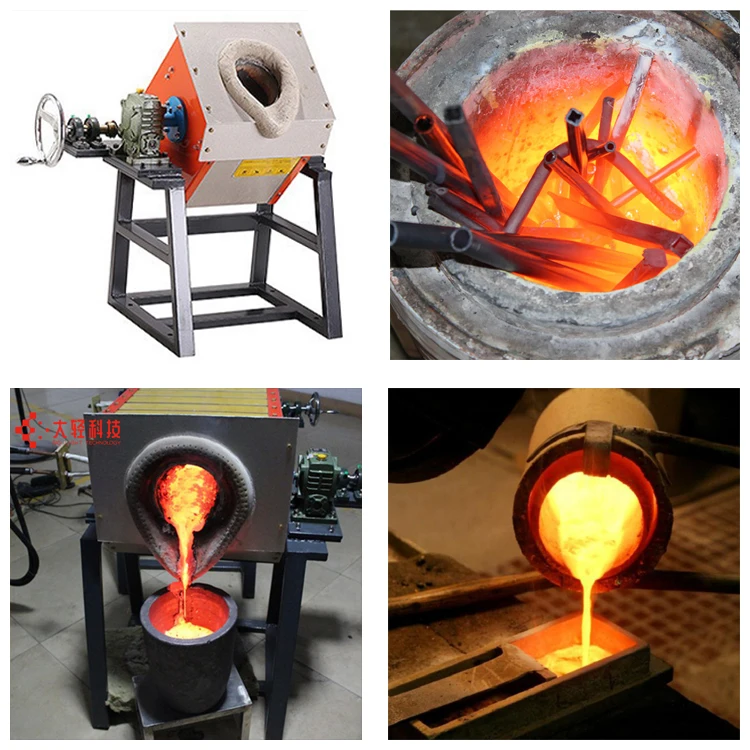

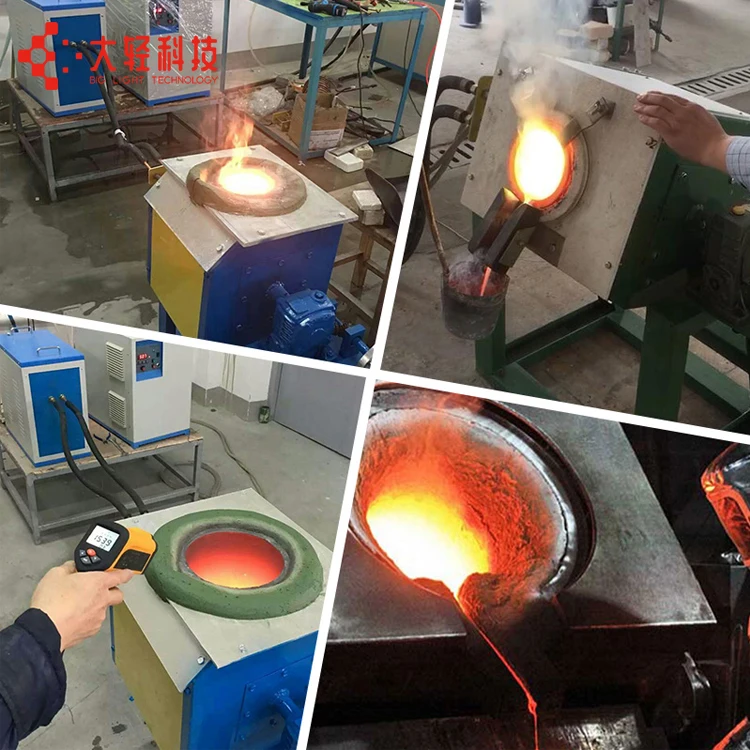

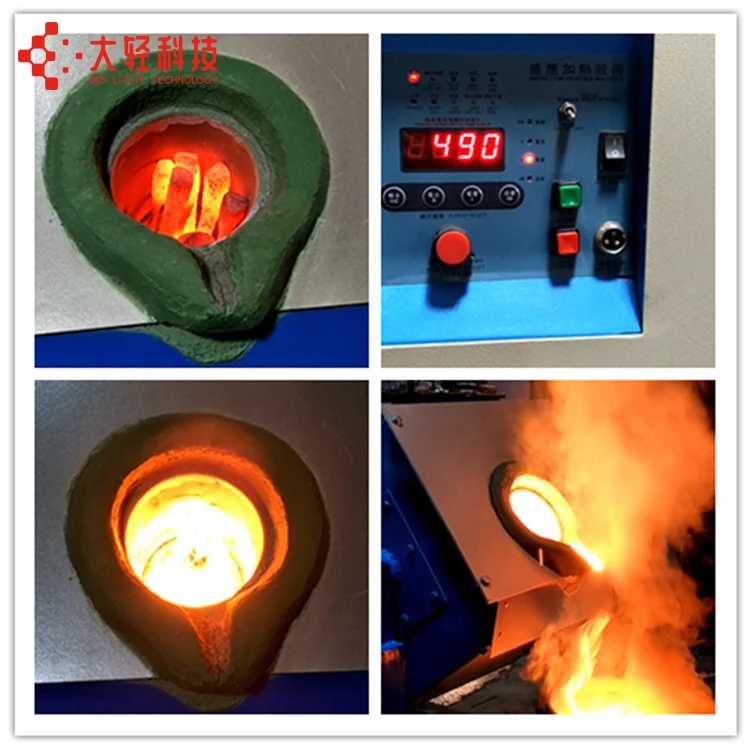

Application
Recommend Products
Accessories
One set crucible always include one black crucible and one white crucible
Black: high pure graphite crucible White: ceramic crucible
Black: high pure graphite crucible White: ceramic crucible
Crucible Tong
Melting Mould
Stir Rod
Water Pump
Cooling Chiller
There are two kinds of cooling system for option: one is water pump,which you need prepare water tank/pool by yourself; the one is cooling chiller,just connect with electric and water then can use.
Packing And Shipping
Item | Name of machine or parts | Specification | Amount |
1 | DQ-35 induction heating machine | - | 1 pc |
2 | Foot switch | - | 1 pc |
3 | Induction Coils | - | 2 sets |
4 | Water Cable | - | 1 set |
5 | User Manual | - | 1 set |
Company Profile
DQAUTO company has been committed to the development, production as well as the sales of induction heating equipments since 2017. Our factory covers an area of 1000+ square meters. DQAUTO obtained the honor of national high-tech enterprise and more than 47+ patent certificates.
And we provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is DQAUTO's goal!
And we provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is DQAUTO's goal!
FAQ
Q1: If the device fails, how can it be solved quickly?
A1: The engineer will quickly determine the cause of the fault and guide the replacement of the accessories based on the operator's description, as well as the pictures and videos. If it can't be solved, we will send engineers to the site for repair.
Q2: What advantages do you have compared to others?
A2: We can customize the most suitable products according to the customer's specific conditions, so that the equipment is more stable and more efficient, and the customer's benefit is maximized.
Q3:What is your warranty?
A3: We provide you with lifetime technical support for free. Spare parts are provided free of charge during the warranty period. In the case of more than one year warranty, we will provide spare parts at cost price.
Q4: Are you the Manufacturer or a trading company?
A4: We are a scientific and technological innovation enterprise integrating R&D, design, production and service.
