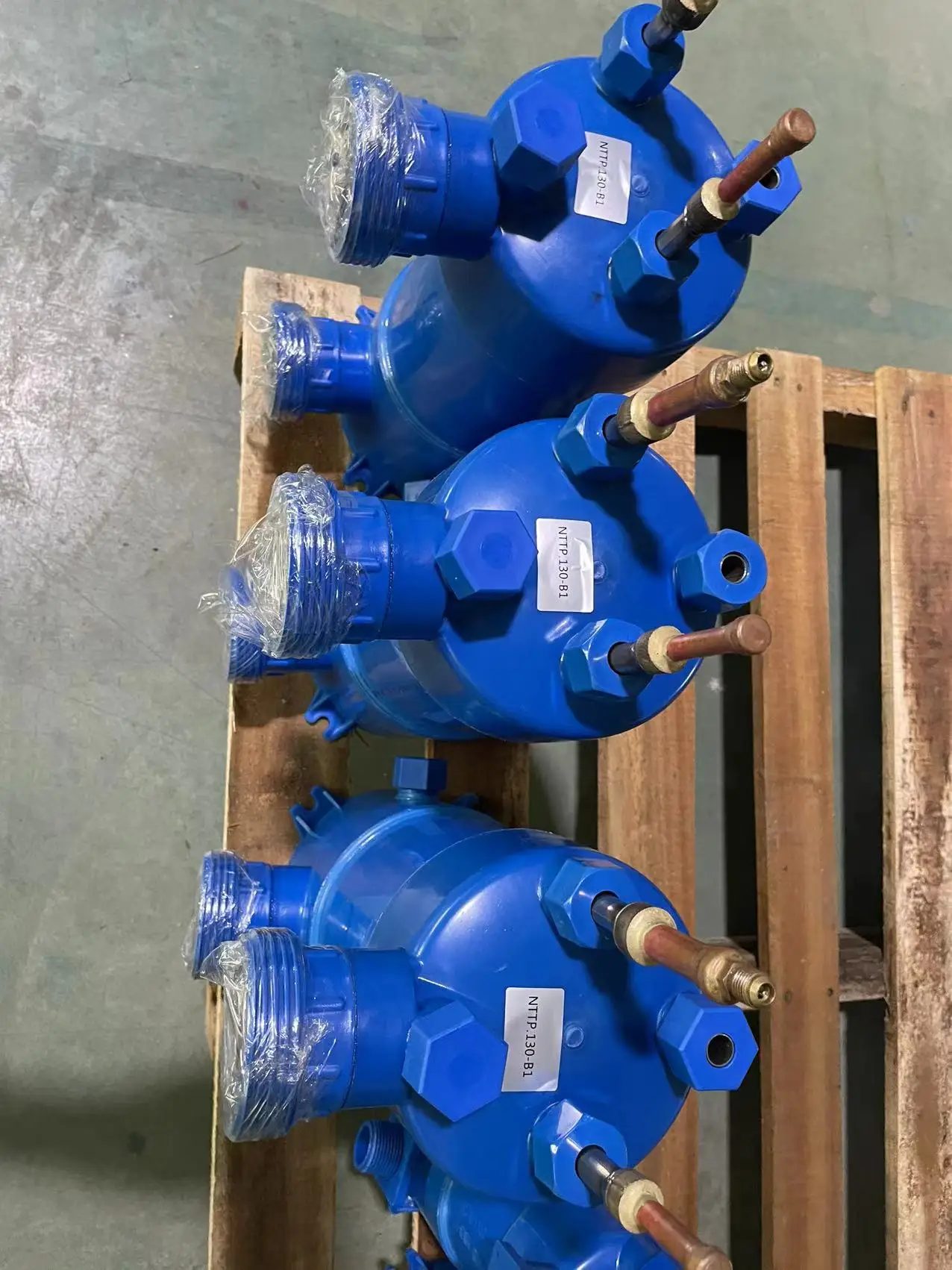

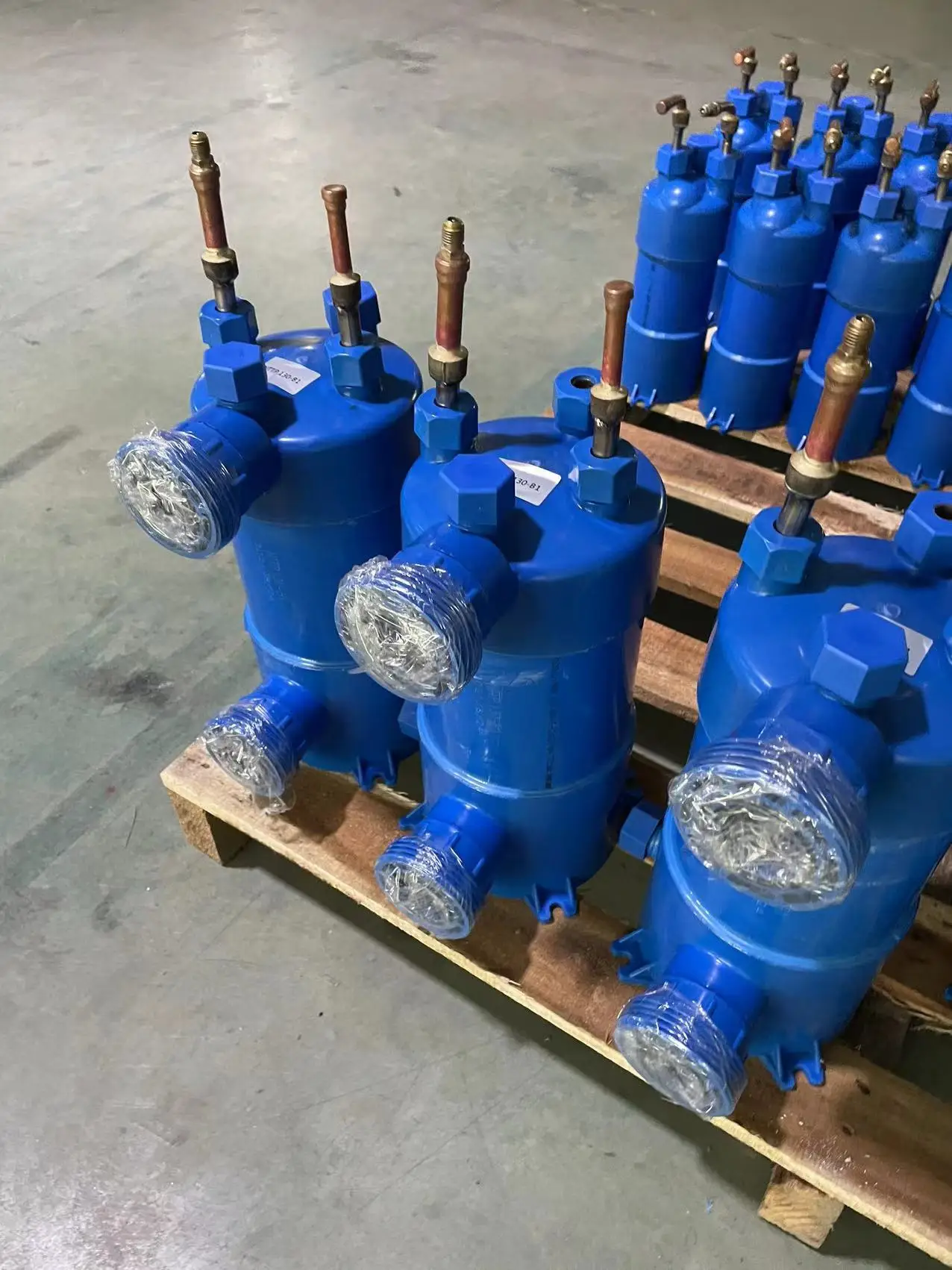

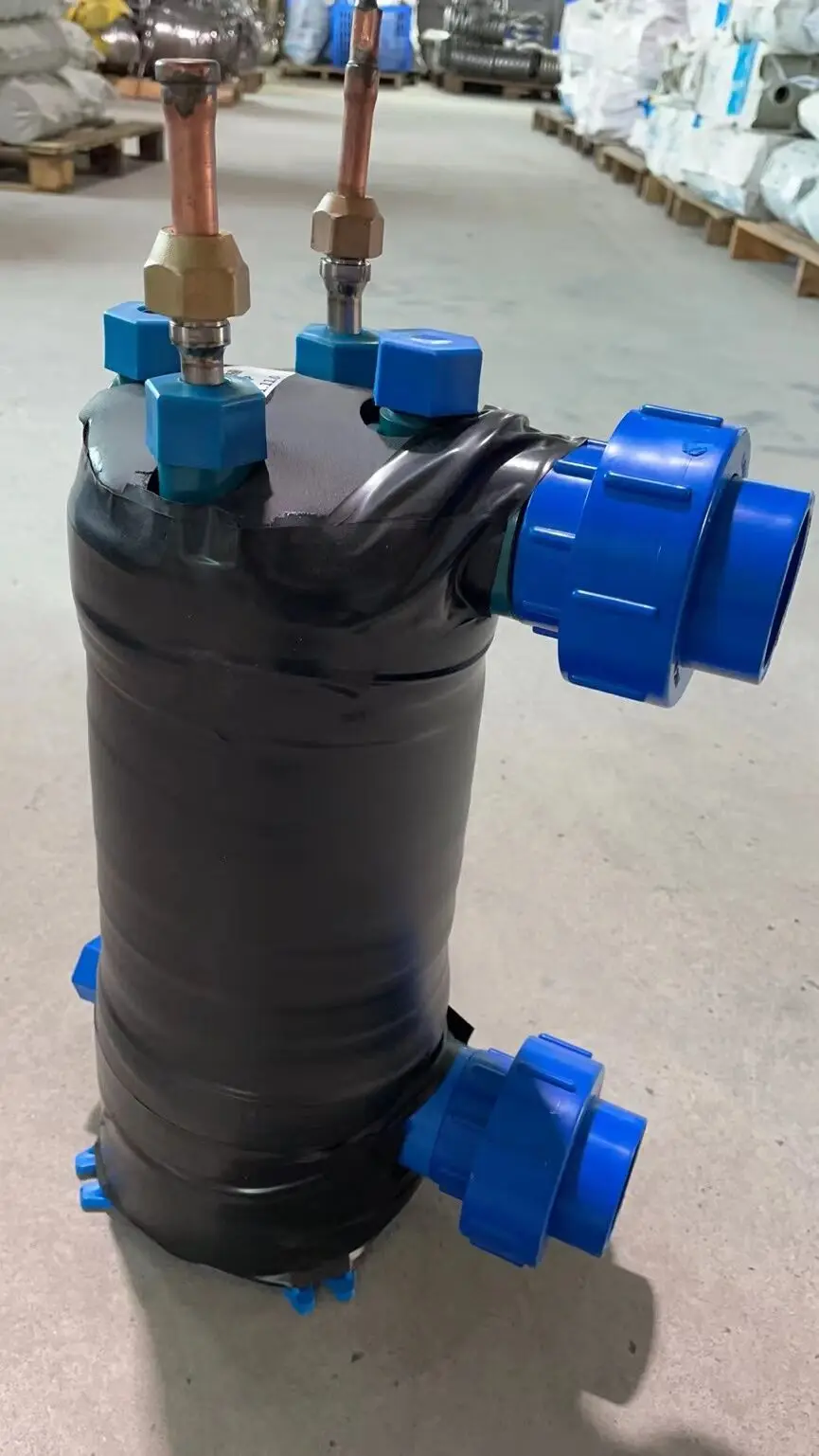

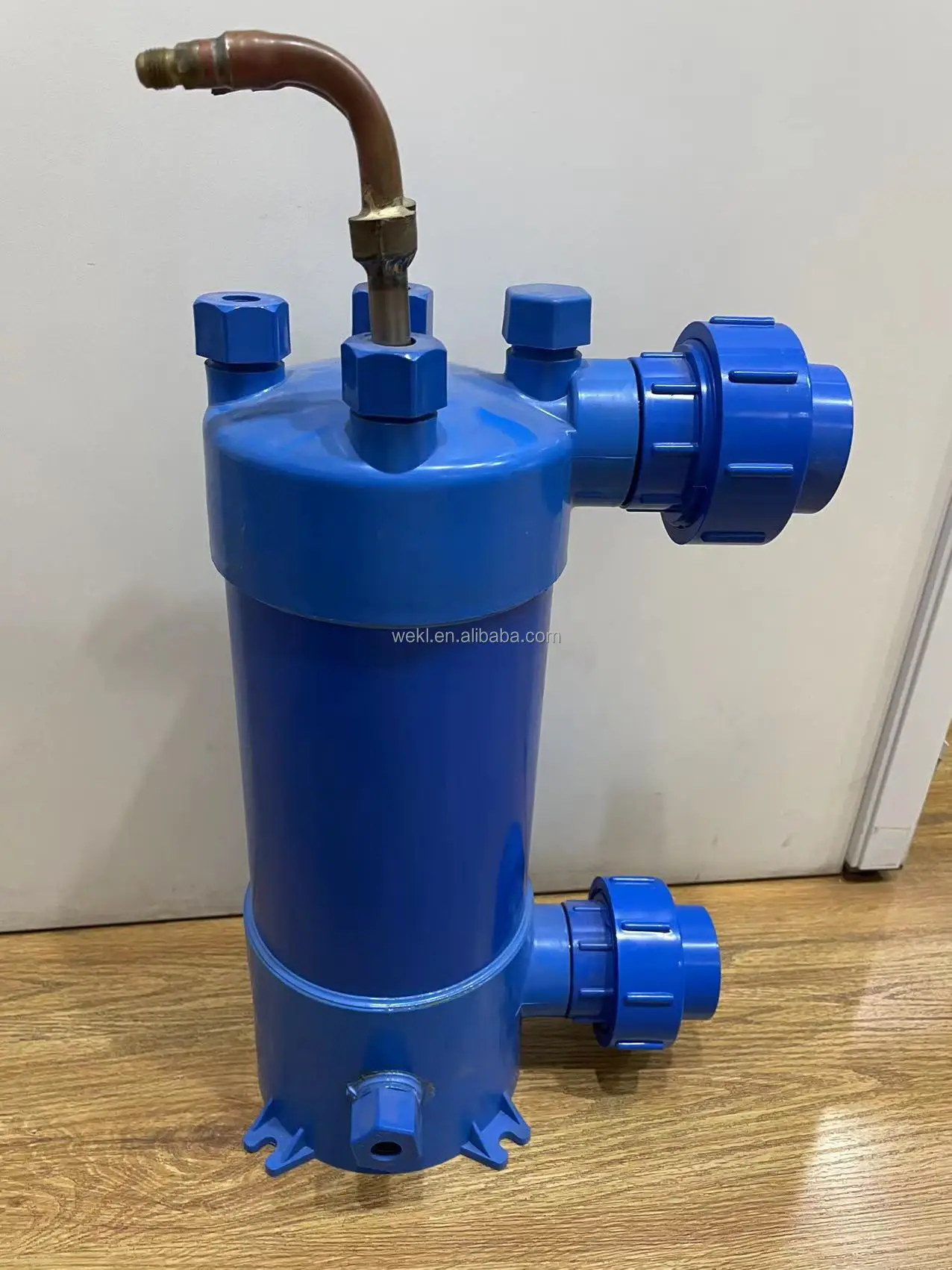

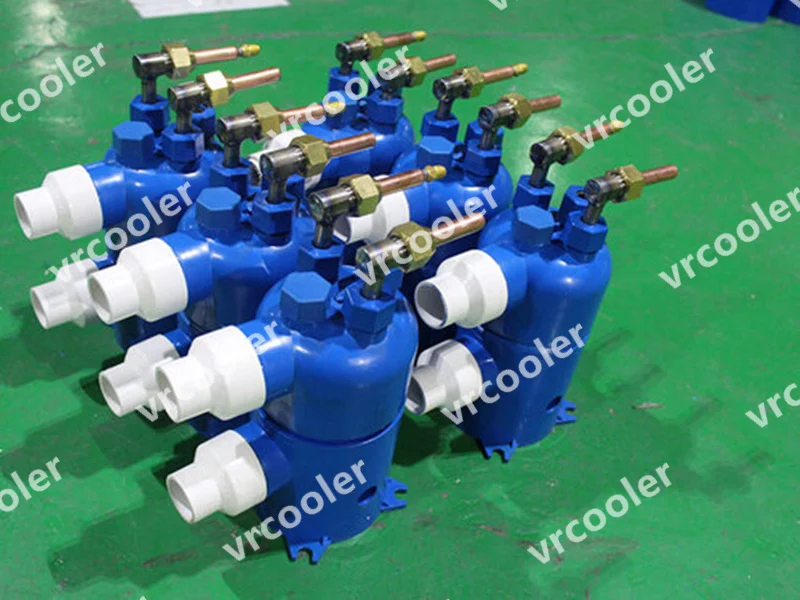

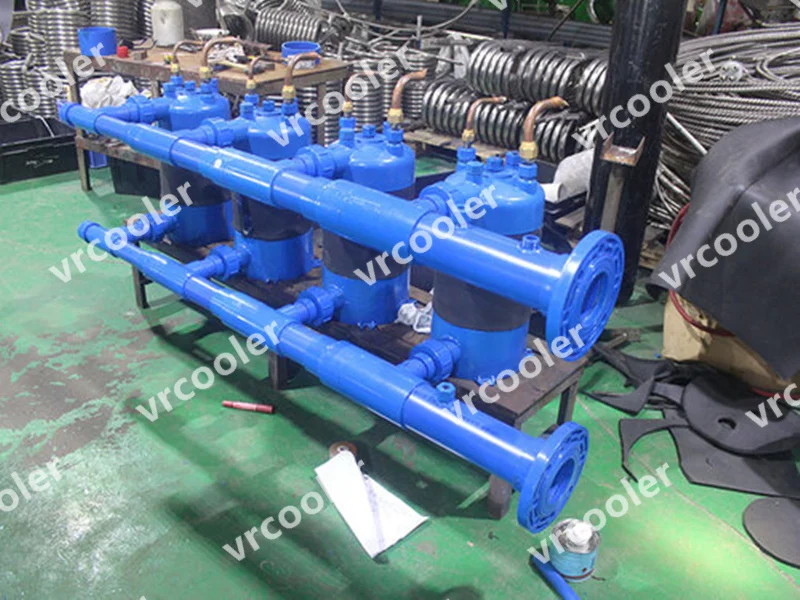

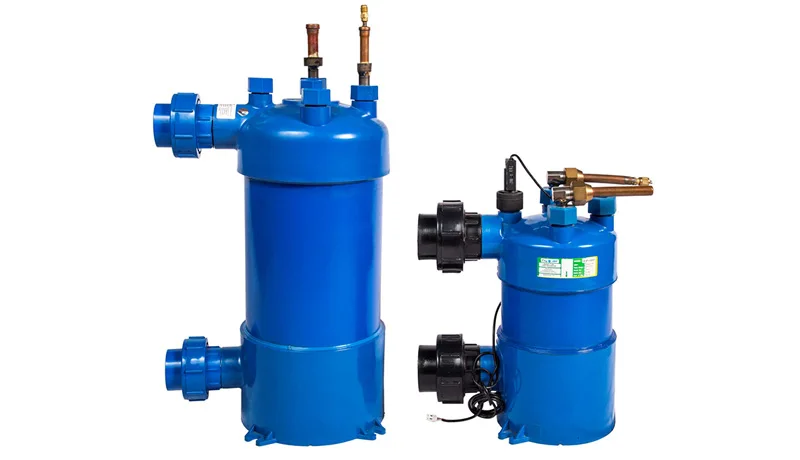

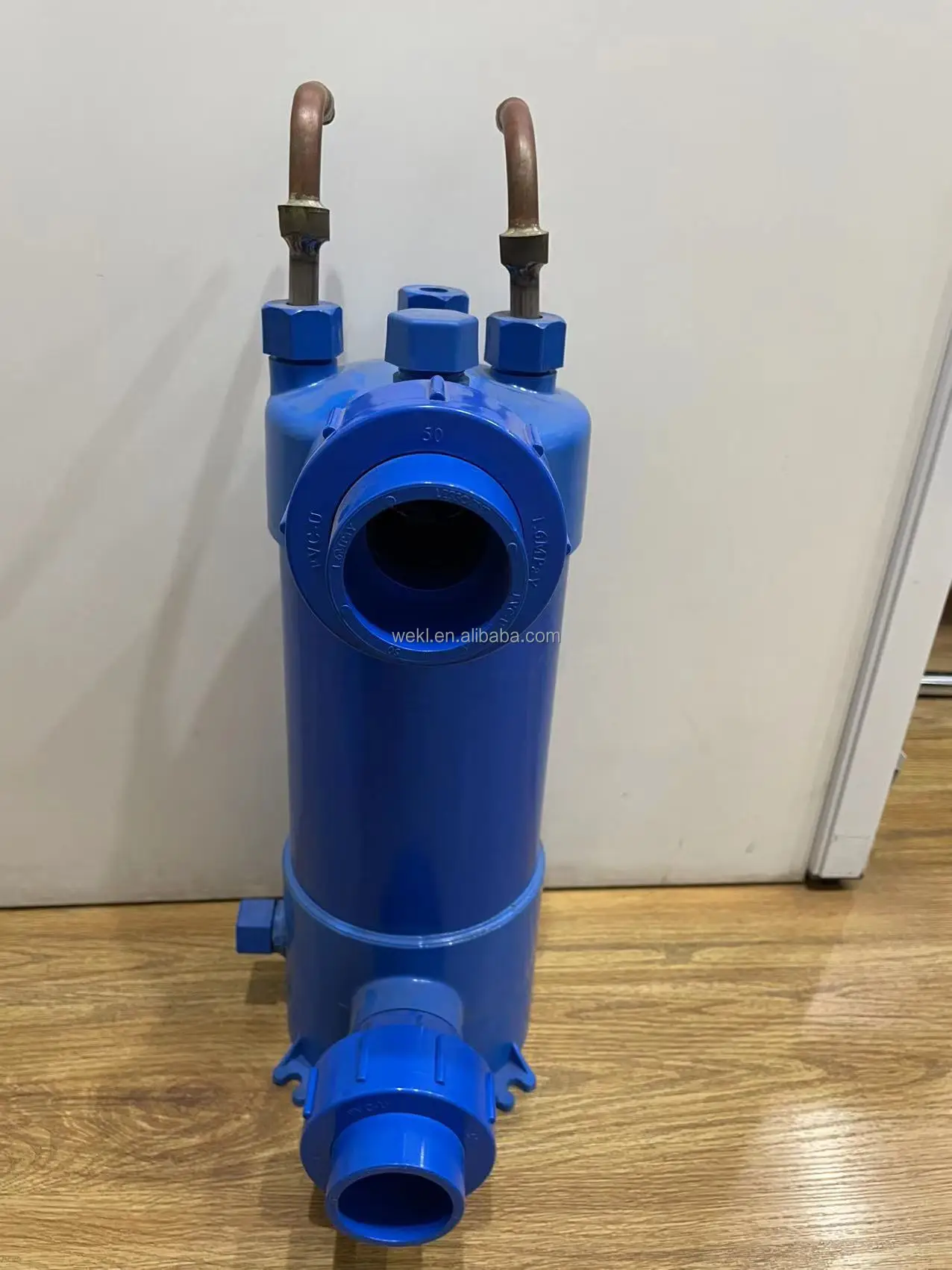

Swimming Pool Heat Pump Screwed Titanium Tube PVC Shell Heat Exchanger
- Category: >>>
- Supplier: Changzhou Vrcoolertech Refrigeration Co. Ltd.
Share on (1600543116949):
Product Overview
Description
Product Description
Pool Heating System
Save money on air conditioning costs while heating your pool for free.
Water-cooling your normal air conditioner with a titanium pool condenser improves AC efficiency up to 40%.
Our pool heating systems are compatible with air conditioners and heat pumps, you must specify when ordering a heat pump kit.
*Only a Titanium Heat Exchanger can withstand salt or chlorine water.
*Only a Titanium Heat Exchanger can withstand salt or chlorine water.
Features:
1. Pure titanium Seamless tube, or PVC-U, PP-R, stainless steel
2. Excellent PVC plastic
3. Compact design with high heat transfer bility.
4. Suitable for R22, R134a, R410a,, R407c
5. Working temperature:-10~50°C
1. Pure titanium Seamless tube, or PVC-U, PP-R, stainless steel
2. Excellent PVC plastic
3. Compact design with high heat transfer bility.
4. Suitable for R22, R134a, R410a,, R407c
5. Working temperature:-10~50°C

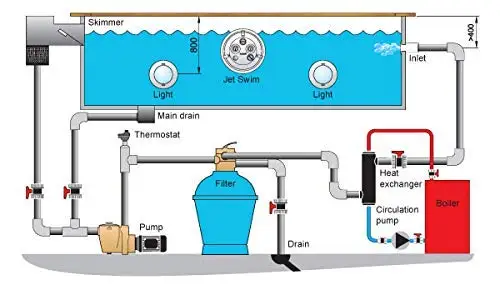

How It Works
Like a Geothermal Heat Pump, the FPH pool heating system transfers all of the heat rejected from inside your building directly into water, a much more efficient heat transfer medium than air. This can result in substantial electrical savings and reduce your cooling costs, while heating your pool with free energy.When the pool needs heat and the air conditioning is running, the heat that is normally thrown away into the atmosphere is instead transferred into the pool. When the pool reaches the user-defined temperature, the system switches back to normal air-cooled operation.

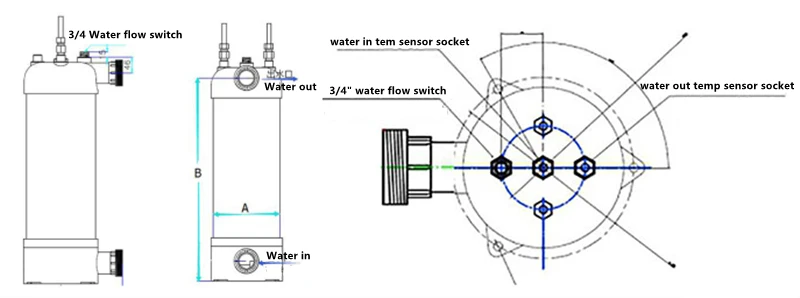

Model | Cooling capacity (kw) | water flow (m³/h) | PVC shell dimention (mm) | titanium twisted tubing (mm) | refrigeration import&export (mm) | water import & export (mm) |
VR050V-B1 | 5 | 1 | φ160*575 | φ12.7*0.6 | φ12.7/φ12.7 | 50 |
VR075V-C1 | 7.5 | 1.3 | φ160*480 | φ16*0.6 | φ12.7/φ12.7 | 50 |
VR100V-C1 | 10 | 1.8 | φ200*550 | φ16*0.6 | φ12.7/φ19 | 50 |
VR125V-D1 | 12.5 | 2.2 | φ200*640 | φ19*0.6 | φ12.7/φ19 | 50 |
VR150V-D1 | 15 | 2.6 | φ250*590 | φ19*0.6 | φ12.7/φ19 | 50 |
VR180V-D1 | 18 | 3.1 | Φ250*650 | φ19*0.6 | φ12.7/φ19 | 50 |
VR200V-D1 | 20 | 3.5 | φ250*715 | φ19*0.6 | φ12.7/φ19 | 50 |
VR250V-D2 | 25 | 4.3 | φ250*810 | φ19*0.6 | φ12.7/φ19 | 50 |
VR300V-D2 | 30 | 5.2 | φ250*1110 | φ19*0.6 | φ12.7/φ19 | 50 |
VR375V-D2 | 37.5 | 6.5 | Φ250*1310 | φ19*0.6 | φ12.7/φ19 | 50 |
VR500V-D2 | 50 | 11 | 2-Φ250*810 | φ19*0.6 | φ12.7/φ19 | 50 |
APPLICATION

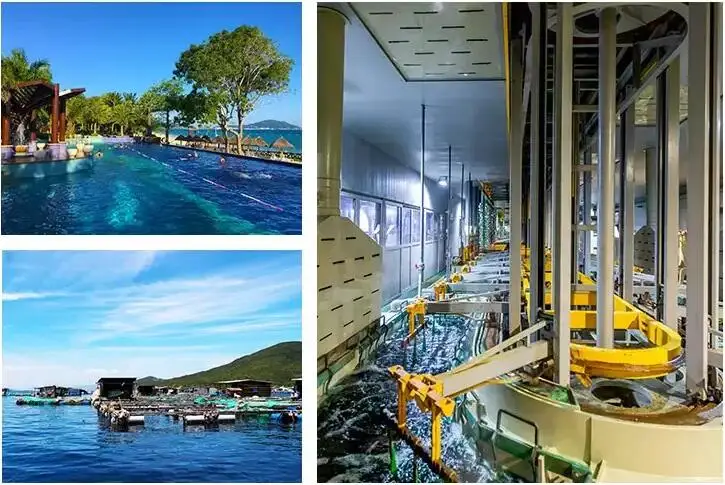

Our products are mainly used in seafood breeding, chemical plating, pool heat pump and other fields, to provide customers with high-quality products and services, products can provide customized services.
Our products are mainly used in seafood breeding, chemical plating, pool heat pump and other fields, to provide customers with high-quality products and services, products can provide customized services.

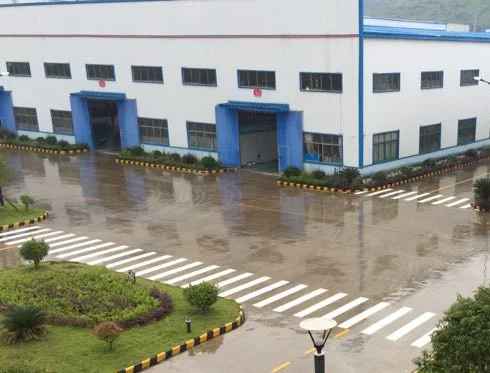

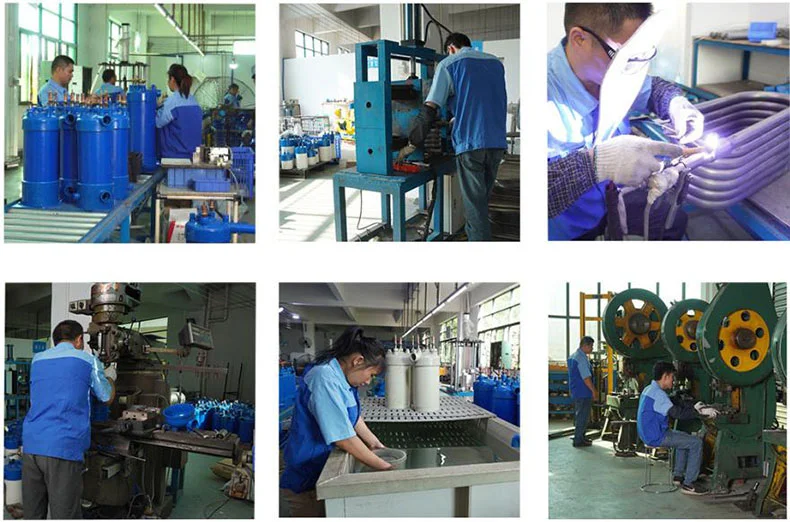

Our Factory
VRCOOLERTECH CST Company
We specialize in designing, manufacturing and exporting refrigeration equipments for the varied industries since 2004.
When it comes to building heat exchanger for any application VRCOOLERTECH CST Company has the capability to meet your requirements. If you need a heat exchanger using water, steam, refrigerant, glycol, ammonia, CO2 or any other medium, CST Company can build it for you. We build heat exchanger for replacement of existing heat exchanger or for new jobs, as well. We make standard copper tube / aluminum fin commercial heat exchanger and we build heavy industrial heat exchanger for process applications. You will be hard-pressed to come up with a job we can't handle.
How to contact and visit us?
Changzhou Vrcoolertech Refrigeration Co.,Ltd
CST Heat Exchanger Co.,Ltd
Address: Xinsheng Road 56, Luoyang, Changzhou, China. （Near Shanghai）
E-mail: totoro@cstheatexchanger.com info@cstheatexchanger.com
CST Heat Exchanger Co.,Ltd
Address: Xinsheng Road 56, Luoyang, Changzhou, China. （Near Shanghai）
E-mail: totoro@cstheatexchanger.com info@cstheatexchanger.com
Certifications
Test Report & Certifications

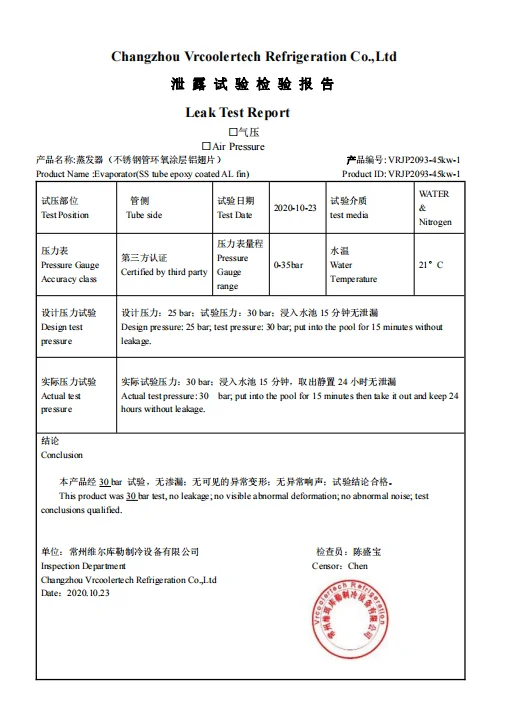

Leak test report:Before package, we will do the pressure test in the pool to check if the product leak. (Process: Connect the inlet/outlet of the product to the tube s then put nitrogen in it, and put the product in water. If there is no bubbling, there is no leak.)

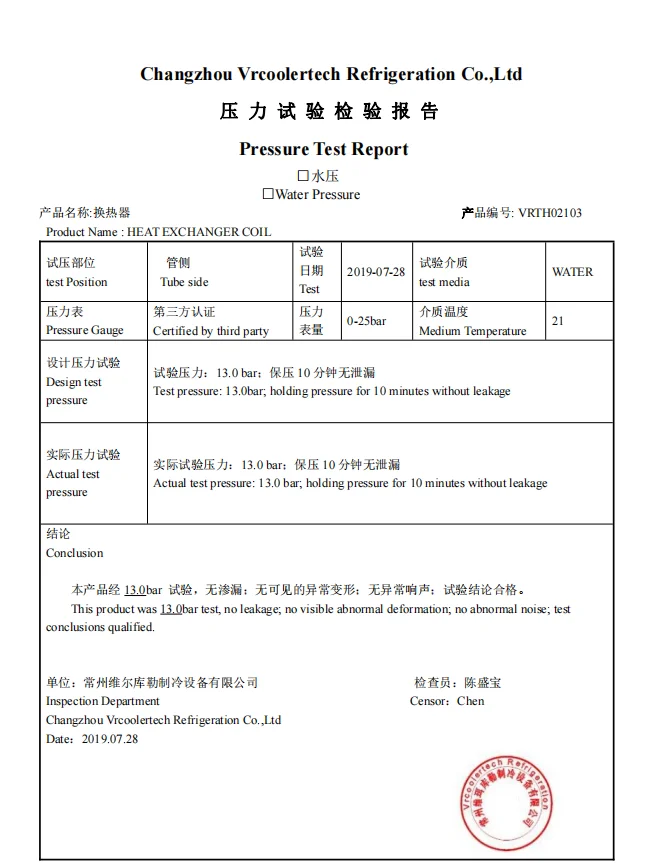

Pressure Test Report:Under the pressure test, this product has no leakage; no visible abnormal deformation; no abnormal noise; the test conclusion is qualified.

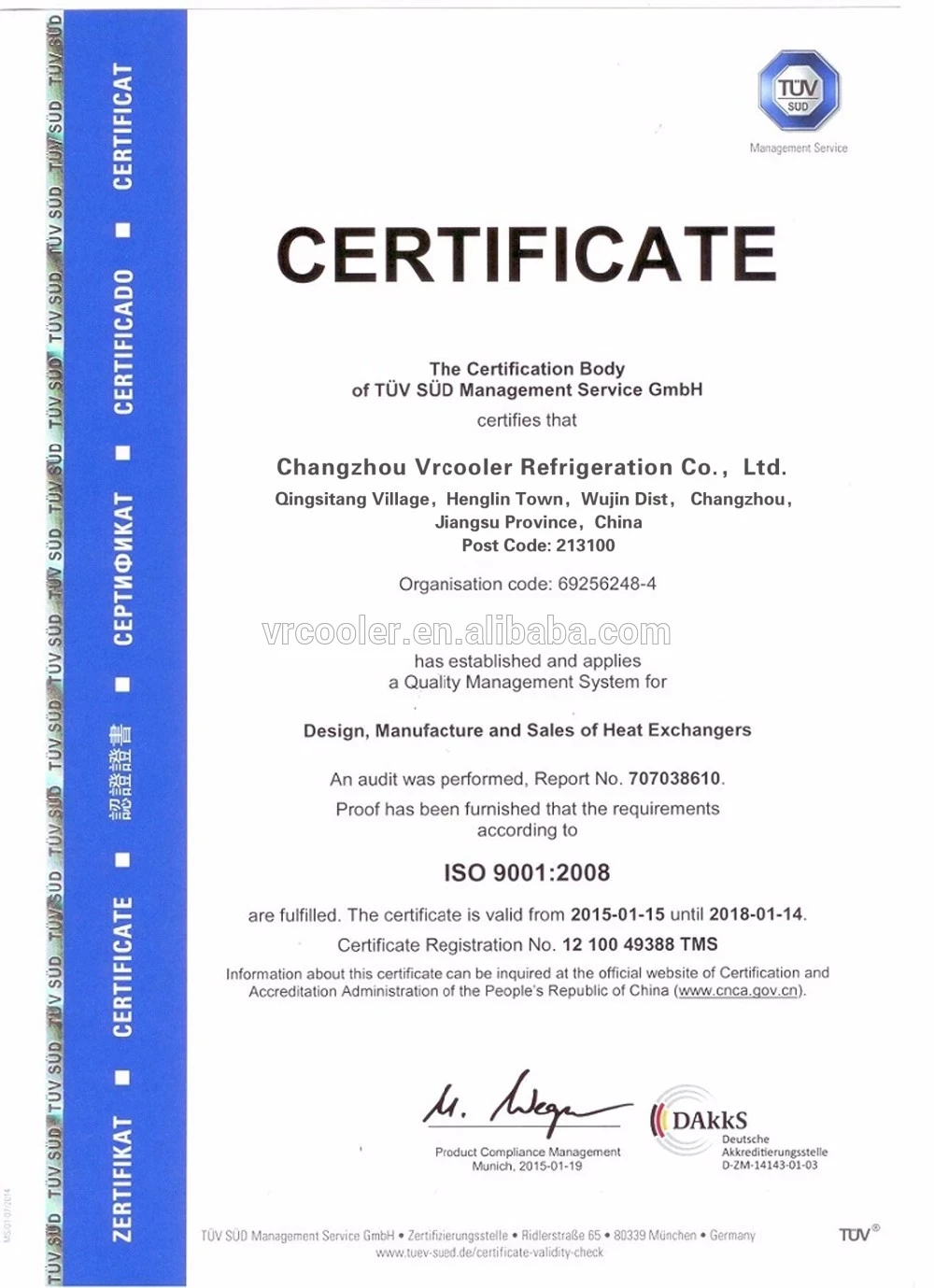

ISO 9001 Certifications
FAQ
Q1: What is your strength ?
A: Design and manufacture.
Q2: How long is your delivery time?
A:Different products' production time is different. Generally, it needs 10 to 40 working days.
Q3: What is your terms of payment ?
A:50% TT deposit in advance, 50% TT balance before delivery.
We provide Alibaba Trade Assurance Service. Welcome for more advise.
Q4: Any other products except charge air cooler ?
A: Yes.
Our 3 main products are: Condenser and Evapotator, Industrial air cooler and Unit cooler and Coil.
Q5. How to contact with you ?
A: 24hours online from TradeManager, quick answer, or email with us, wechat, skype, whatsapp is available.
Select one product and leave message to us.
