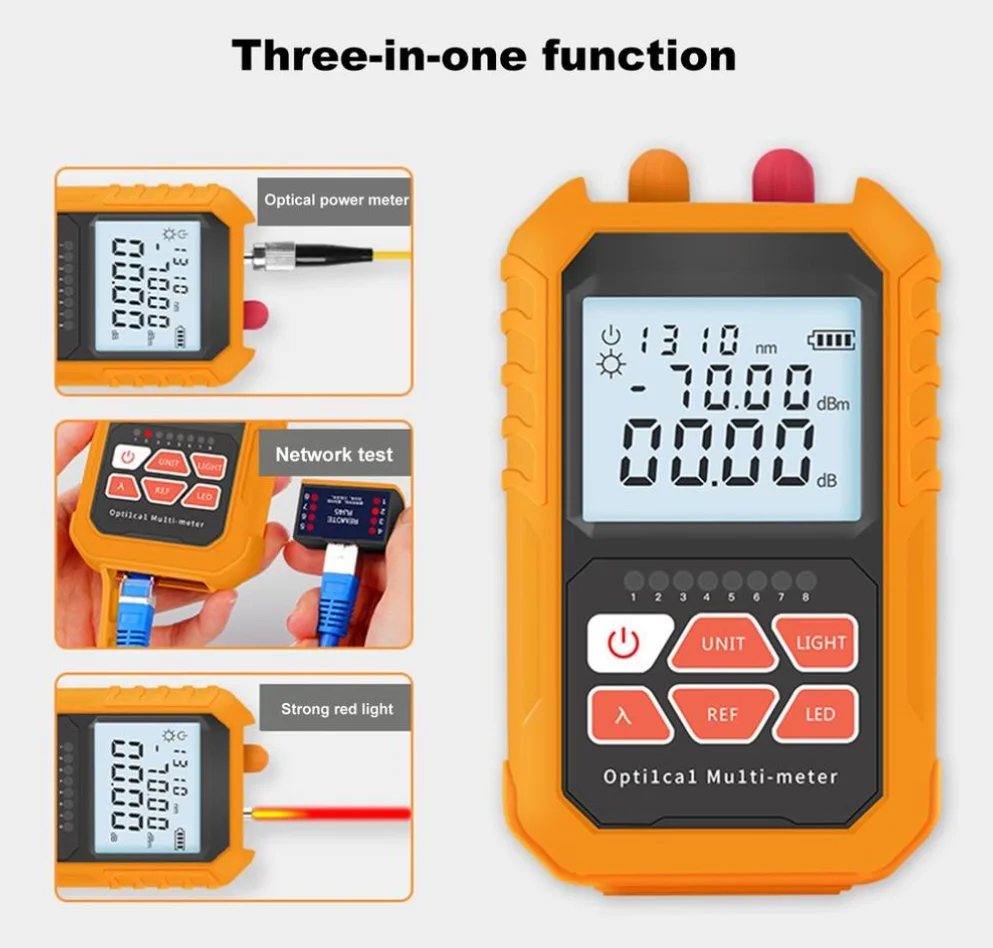

3 In 1 Tester multimeter 5KM standard /15km option Optic Power Meter low price Visual Fault Locator FTTX Network Cable Test

Product Overview

Description

Onefind WF1211 mini optical fibre power meter fiber optic with vfl low price

5KM standard (AAA battery ) /15km option (chargeable)

Hand-held optical power meter, red-light integrated machine series products are mainly used for continuous optical signal power measurement, optical fiber link loss testing and optical fiber line on-off testing.

It is controlled by a single chip microprocessor with complete functions. Widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, optical CATV and other fields.

The fuselage design meets the requirements of human body function and adopts advanced thermoplastic moulding technology, which is beautiful and durable. The red-light integrator of optical power meter can be well protected by using embedded detectors and lasers.

The machine has compact shape, automatic shutdown function, three red light modes, backlight display, wavelength memory function, optical fiber work identification, support user calibration, wide test range, support lighting.

1. Support lighting

2. Support automatic shutdown

3. Support backlight switch

4. Supporting Wavelength Memory Function

5. Support frequency identification (selection)

6. Support user calibration

7. Supporting red constant and scintillation (optional)

8. Supporting simultaneous display of linear mW and non-linear index dBm

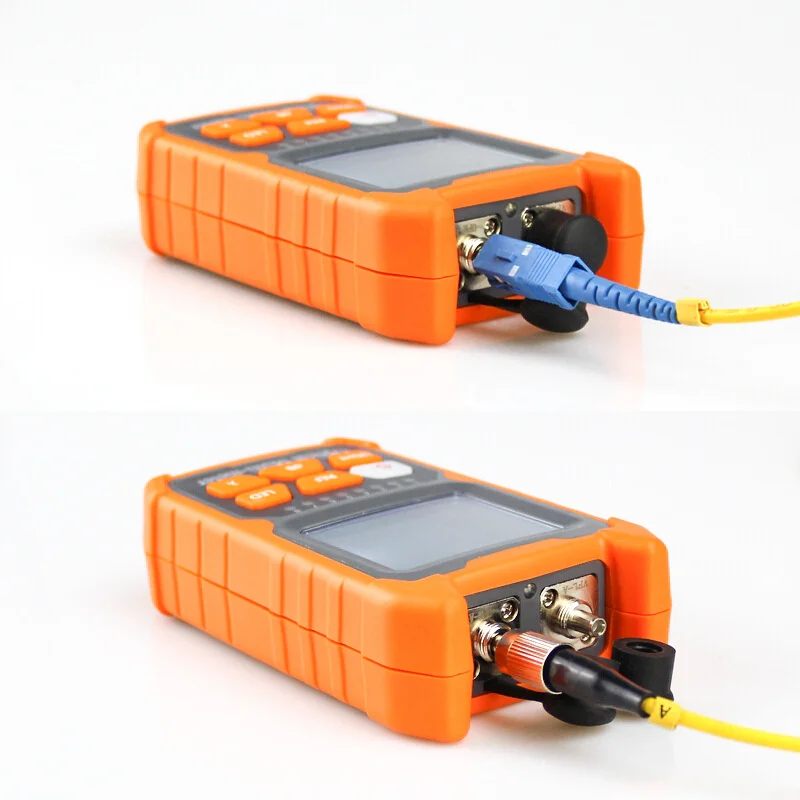

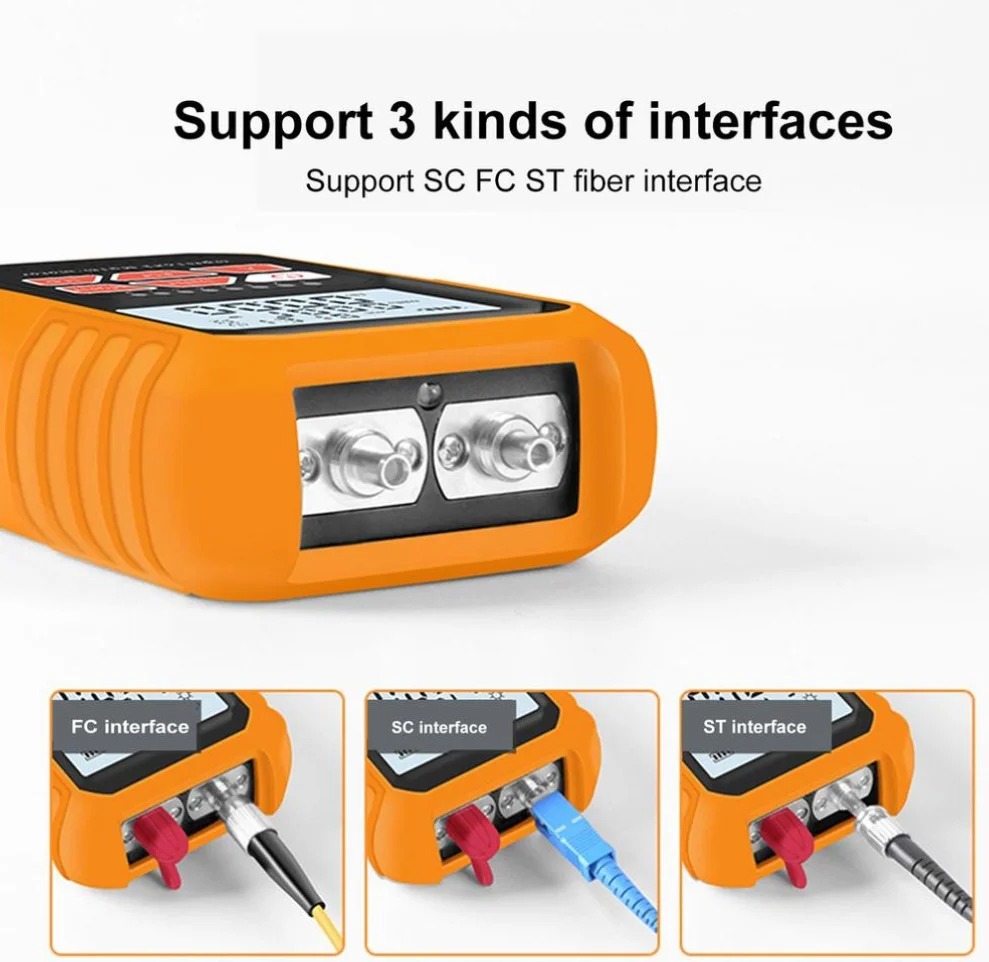

9. Supporting SCFCST Interface

10. Supporting external power supply such as charging treasure, computer, etc.

11. Supporting simultaneous linear (mW) and non-linear (dBm) display

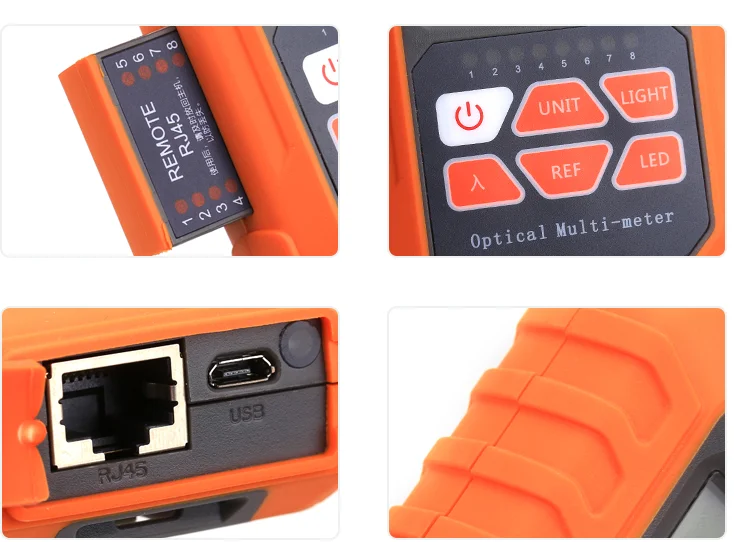

12. Supporting RJ45 testing (optional)

13. Changing, work 72 hours (optional)



Wavelength range(nm)	800-1700
Connector	Universal FC/SC/ST
Type of connector	InGaAs
Power measurement range(dBm)	-70~+6 or -50~+26
Uncertainty	±5%

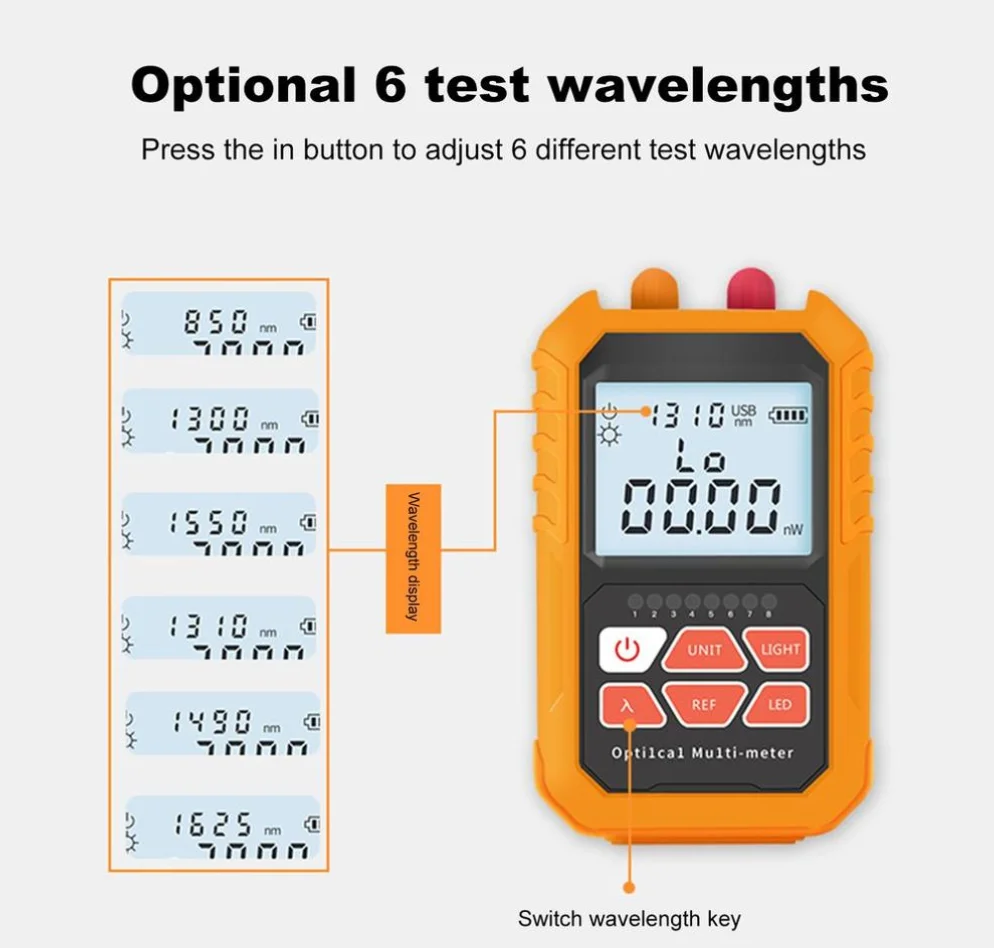

Standard wavelength (nm)	850,980,1300,1310,1490,1550,1625,1650
Display resolution	Linear display: 0.1% logarithmic display: 0.01 dBm
650nm light source (Options)	1mw/10mw/20mw/30mw/50mw
Operating temperature (C)	-10~+60
Storage temperature (C)	-30~+70
Automatic shutdown time (min)	10
Continuous working hours of batteries (h)	≥72

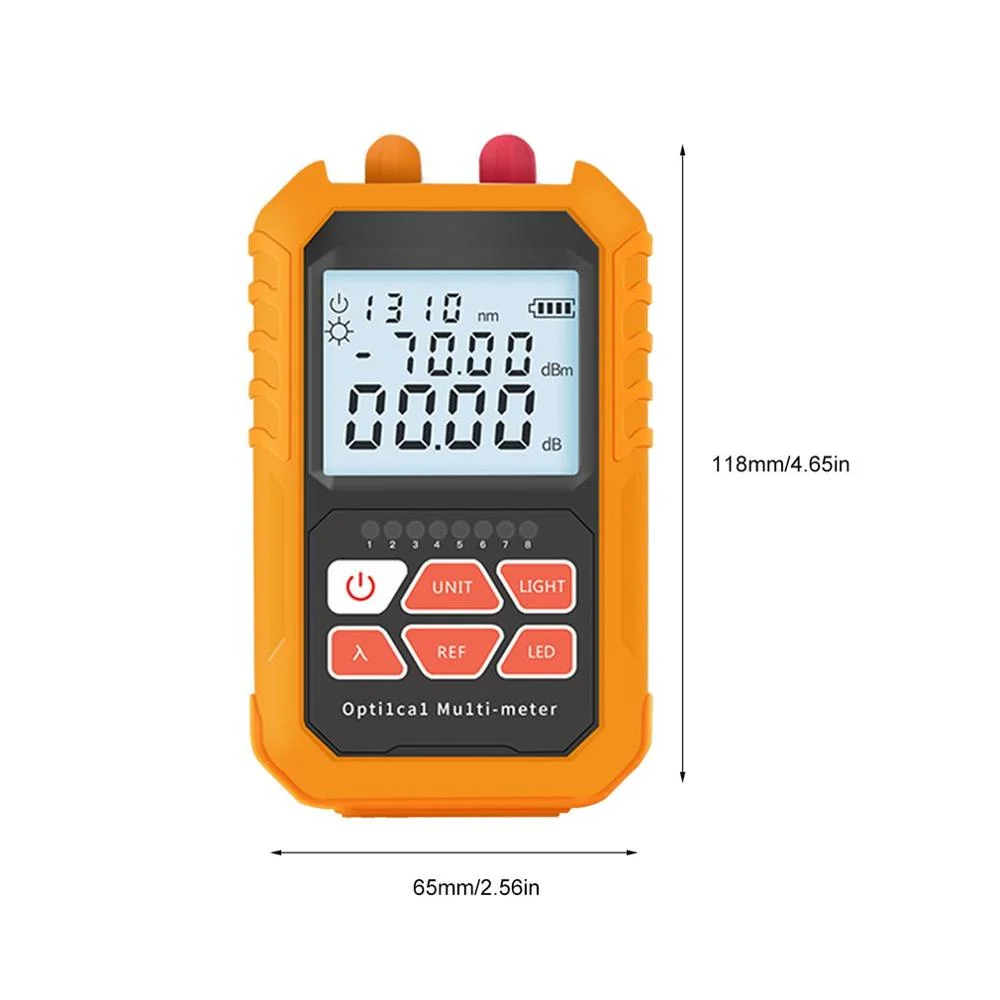

Instrument size (mm)	118*66*30

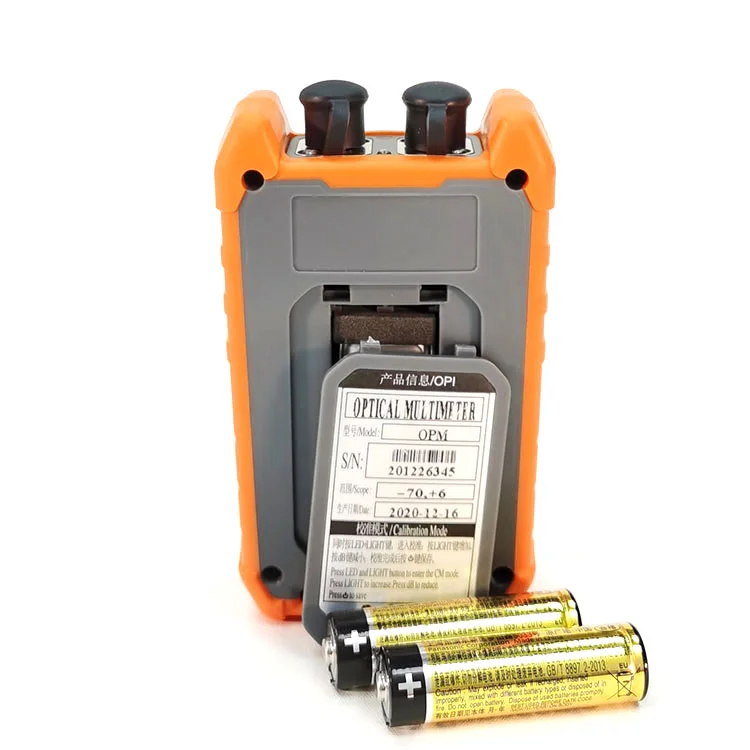

Power Supply	Two Segment 7 Batteries/ Rechargeable Lithium Batteries (Options)
Instrument Net Weight (g)	140/150

Note:

1. Wavelength range: specify a standard operating wavelength range from 800 to 1700 nm, in which the optical power meter can work under the specified index.

2. Power measurement range: the range in which the maximum power can be measured according to the specified index.

3. Uncertainty: The error between the measured result of a certain optical power and the measured result of standard optical power.
