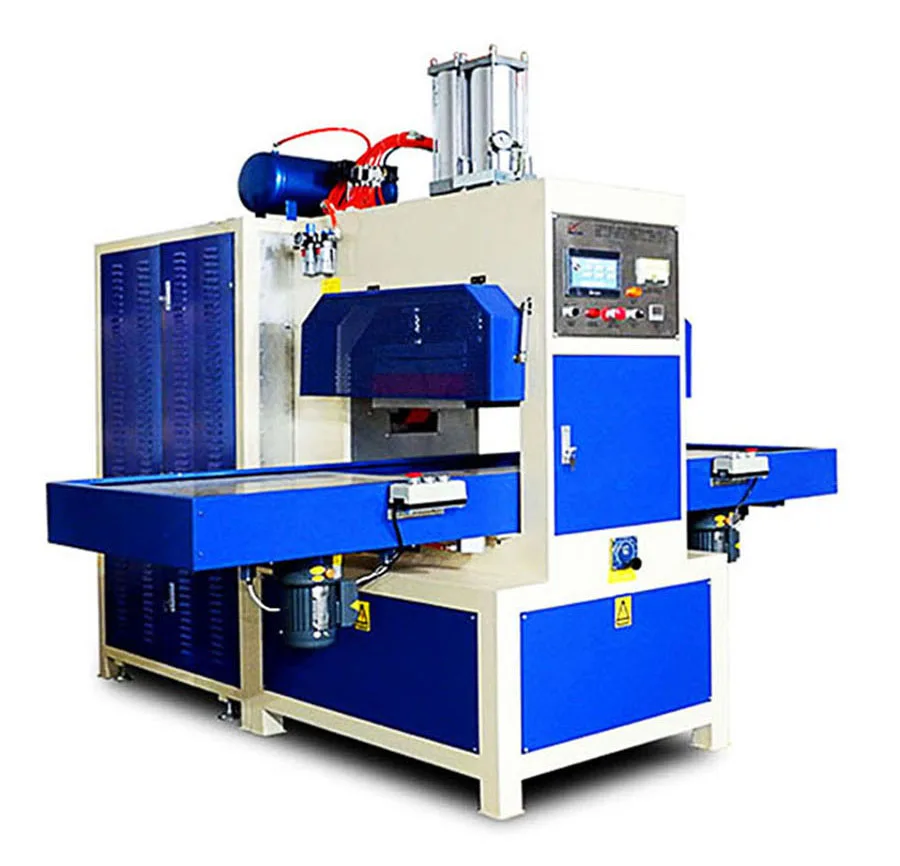

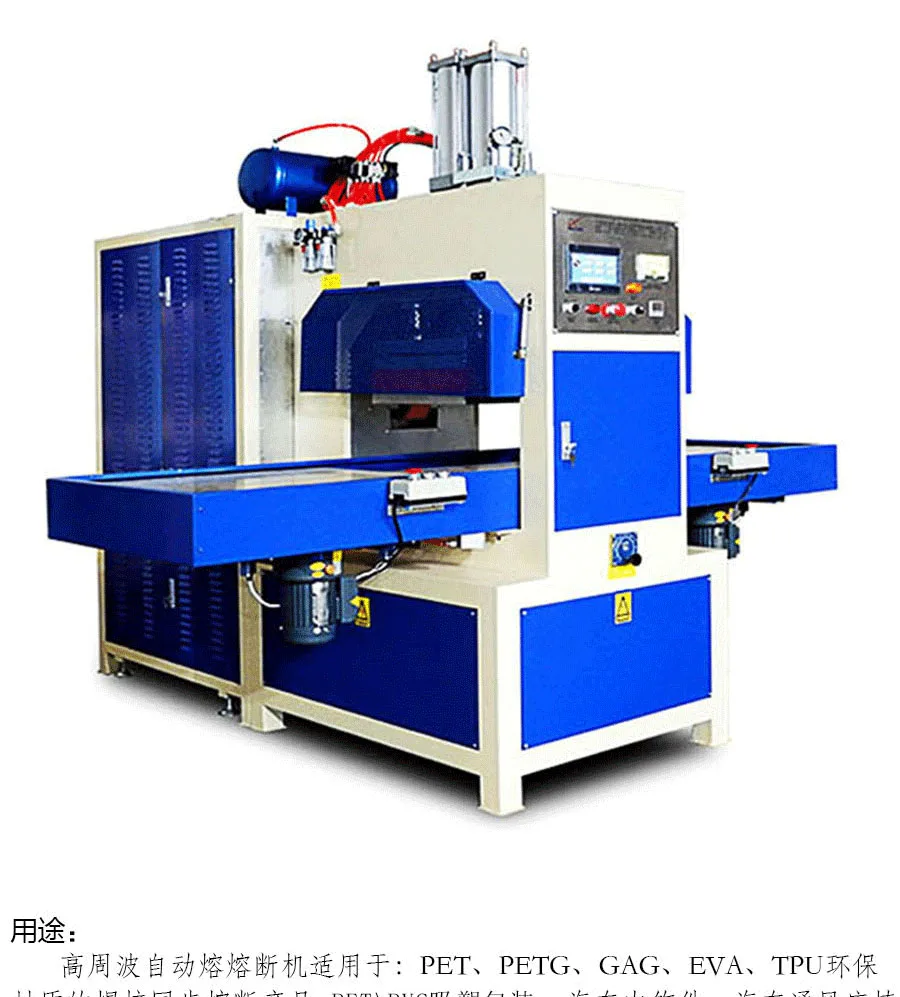

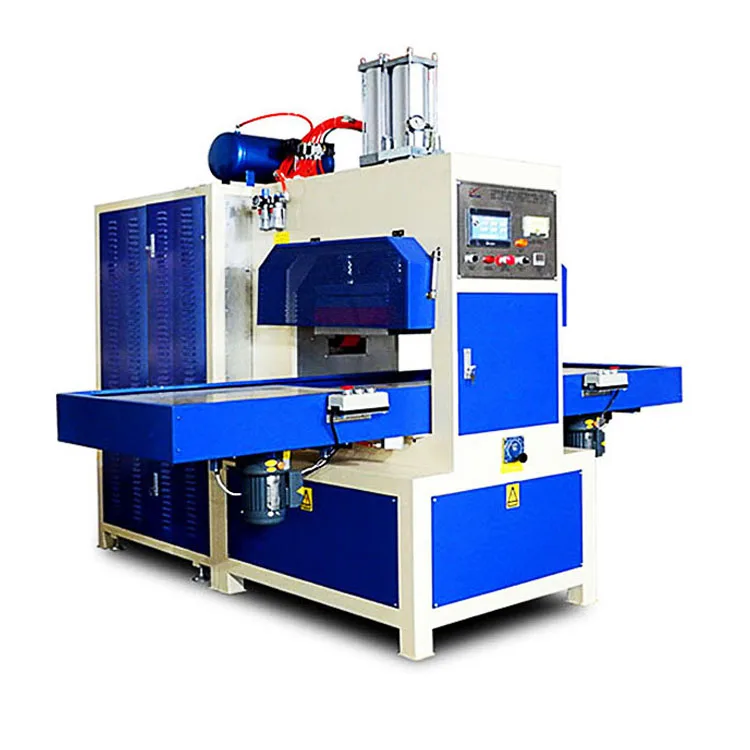

magic surprise hatching growing dinosaur eggs making machine HF welding machine sealing packing machine
- Category: Plastic Welders >>>
- Supplier: Ningbo Davison Machinery Manufacture Co. Ltd.
Share on (1600543147218):
Product Overview
Description
high frequency welding mahcine for kids toy egg
Characteristics:

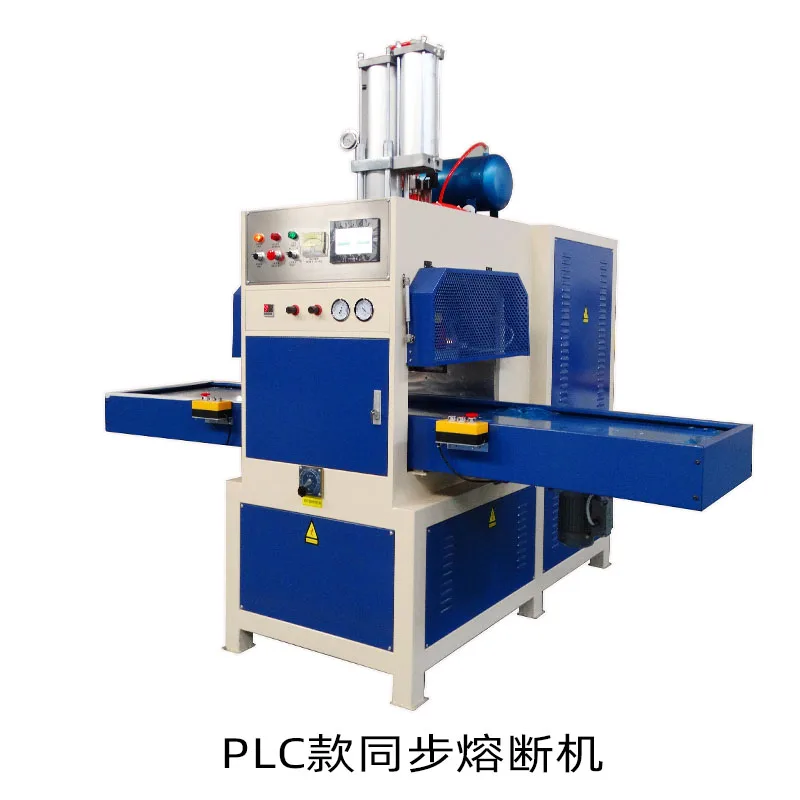

1. It adopts PLC and touch screen control to make the work precisely, and reduces operation difficulty.
2. Automatic slide table makes lower reject ratio and reduces labor intensity.
3. It requires low skill for operators. The operator can use it after short training.
4. The surface is perfect without seam, and the welding is strong, stiff and smooth.
5. It has big pressure, so it can cut the wasted edge in a short time after welding to make the edge and pattern smooth & perfect.
6. Left & right slide table design, sometimes, 1 mold can be shared. So it saves the expensive mold cost.
7. It adopts high quality components, stable and low failure rate.
8.It adopts sensitive spark protection device. When it sparks, it will cut off the high frequency oscillation power protect mold and material.
9. Without high frequency leakage because it adopts good shield device.
10. The mold can be changed easily and quickly because it adopts hanging mold device.
11. Safe & rational design to make sure the slide table will not hurt hands.
12. Special & strong head: Special design makes the pressure equably to make the products perfectly.
13. Heating device: It adopts heating device to increase the welding area for special material PET, PU, etc.
14.Output power tuner: It can be adjusted according to different material to make sure the products can be made perfectly.
Specifications:
| Model | DXTD5-A(M) | DXTD8-A(M) | DXTD10-A(M) | DXTD12-A(M) |
| Output power | 5kw | 8kw | 10kw | 12kw |
| Frequency | 27.12mhz | 27.12mhz | 27.12nhz | 27.12mhz |
| Electron tube | 7T85 | 7T69 | 3069 | 8T85 |
| Voltage | 380v | 380v | 380v | 380v |
| Dimension | 2000x1350x1800mm | 2000x1450x1800mm | 2000x1450x1800 | 2000x1550x1800mm |
| Distance between electrodes | 200mm | 200mm | 200mm | 200mm |
| Stroke | 100mm | 100mm | 100mm | 100mm |
| Upper electrode | 300x450mm | 350x500mm | 400x500mm | 450x600mm |
| Lower electrode | 300x450mm | 350x500mm | 400x500mm | 450x600mm |
Applications:
Certifications
Customer visit
Packaging & Shipping
Our Services
Pre-sales service
1. Help you find the suitable machine for your product.
2. You are always welcome to visit our factory.
3. 30%deposit
4. Machine manufacture and quality control during whole process.
5. Show you the finished product.
After-sales service
1. Get your confirmation before delivery.
2. Balance payment against B/L.
3. Timely solve your working problems.
4. If necessary, we will send technician to guide you for machine usage.
5. One year quality guarantee for the machine
Company Information
Ningbo DAVISON Machinery Manufacture Co., Ltd. integrates research, production and sales such as below machines and parts:
1. High frequency plastic welding machines (high frequency machine),
2. Ultrasonic plastic welders,
3. Cutting machines,
4. Packaging machines,
5. Skin packaging films, stretch films, protective film, etc.
Various non-standard machinery equipment and imitation of imported equipment are available to the specific requirements of customers. Moreover the design and producing of moulds as well as sampling service can also be offered by us.
Since foundation in 1999, our company has constantly carried forward rigid quality control, guided by customers demand, aimed for customers' satisfaction, persisting on "quality first, customers utmost", and striving to offer optimal products and efficient after-sales service for customers domestic and oversea!
