Pet medical X ray equipment DR x ray portable x ray machine portable digital x ray machine
- Category: >>>
- Supplier: Guangzhou Mecan Medical Limited
Share on (1600543150069):
Product Overview
Description

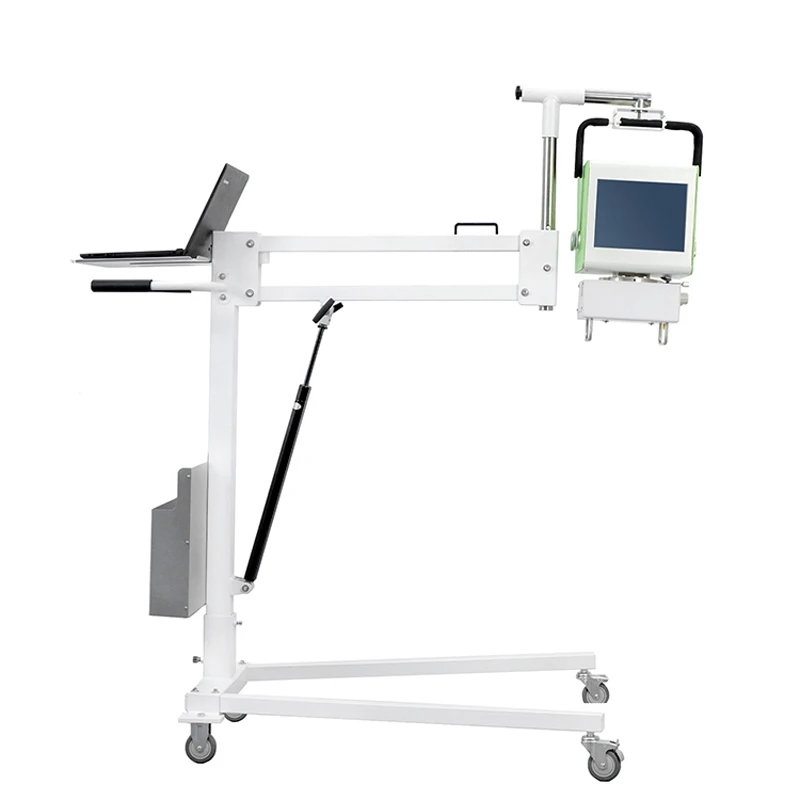

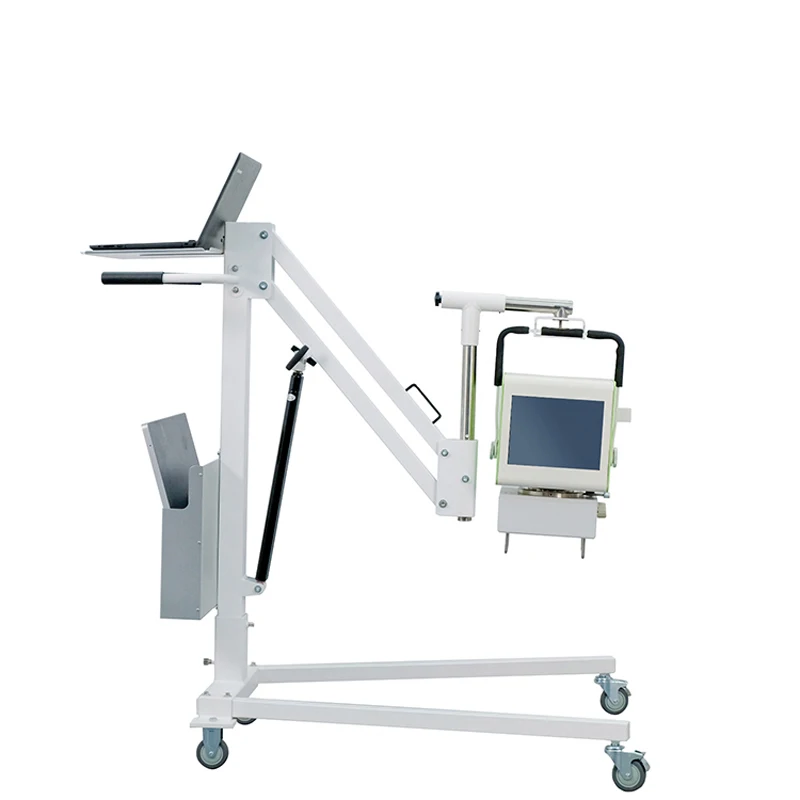

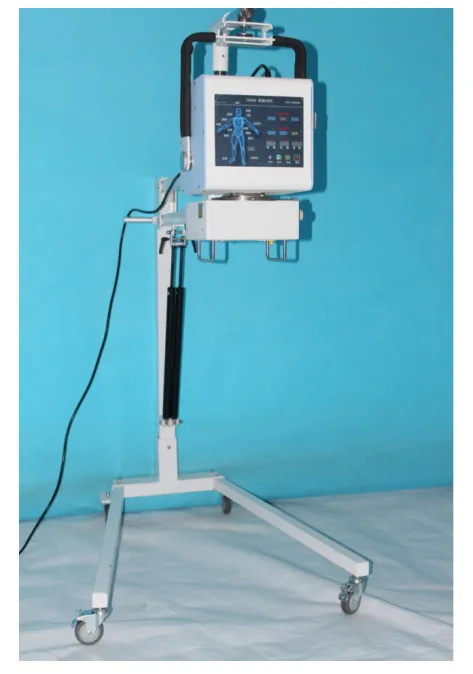

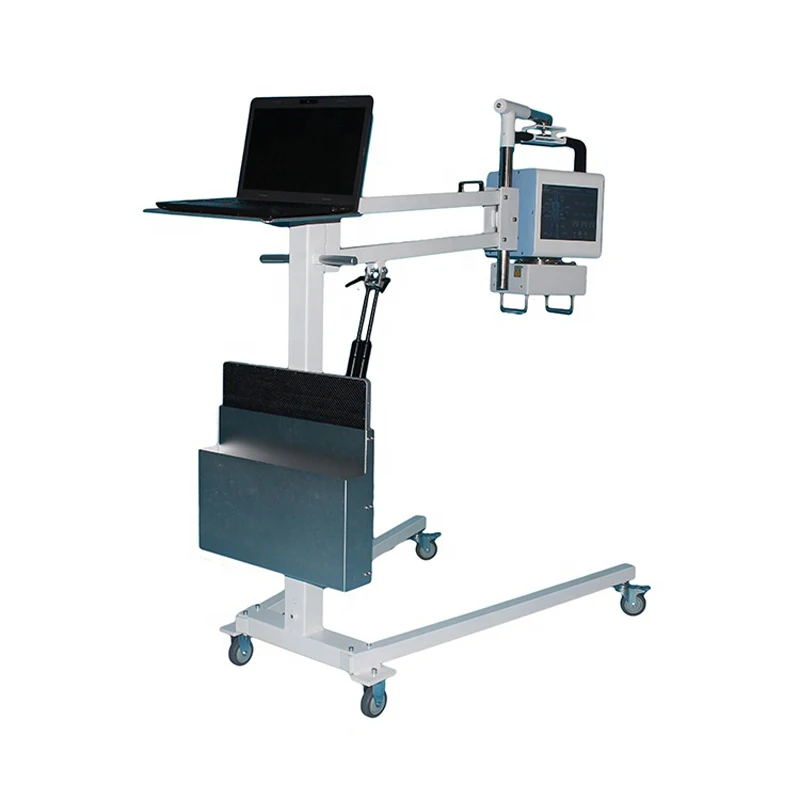

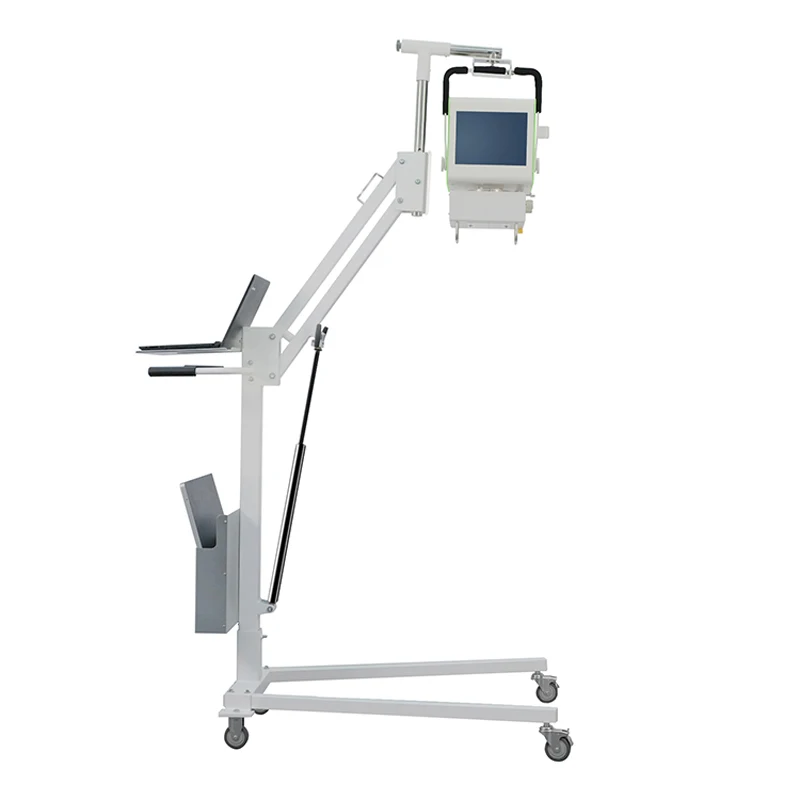

Pet medical X-ray equipment DR x-ray portable x-ray machine portable digital x-ray machine
MCX-P50-DR (MCX-DR08)
Product Description
1.Composition
Main Components | Parts | Qty |
X-ray Units | Portable high frequency x-ray unit | 1 set |
X-ray tube | 1 set | |
Collimator | 1 pc | |
DR System | Digital detector | 1 set |
DR image processing software | 1 set | |
Computer | For the x-ray machine | 1 set |
Mobile stand | Optional | 1 set |
2. Application
The 5kW portable digital high frequency x-ray unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, animal clinics, etc.
3. Features
1) Simple & light structure;
2) LED digital display;
3) Anatomical memories for selection program;
4) Double-loop (analog & digital) high precision control mode;
5) High precision control in tube voltage & current;
6) Self-protection & auto-diagnosis available when malfunction occurs.
The 5kW portable digital high frequency x-ray unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, animal clinics, etc.
3. Features
1) Simple & light structure;
2) LED digital display;
3) Anatomical memories for selection program;
4) Double-loop (analog & digital) high precision control mode;
5) High precision control in tube voltage & current;
6) Self-protection & auto-diagnosis available when malfunction occurs.
4.Specifications
Portable / Mobile X-Ray Machine
Total power | 5KW |
Power supply voltage | 220V |
mA | 10-110 mA |
mAs | 0.1--110mAs SteppingR’10 |
KV | 40—125KV Stepping1KV |
Time of exposure | 0.001—6.3S |
Focus size | 0.6*0.6mm/1.2*1.2mmBifocal focus |
Power requirements | Single phase 3 wire system 220 V/50HZ.(line diameter greater than 4 mm2; internal resistance <0.5Ω) |
High frequency and high voltage generator frequency | 30kHZ |
Upgrade DR | Reserved upgrade interface |

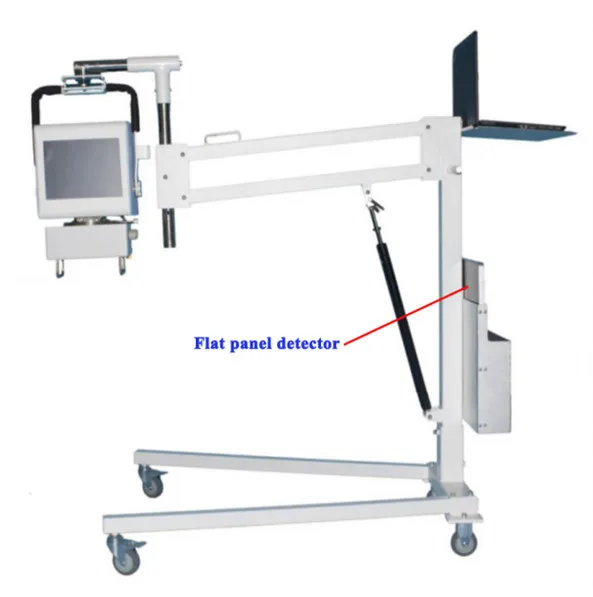

Flat-Panel Detector :
Project | 3543A parameter | 4343A parameter |
Flat panel detector type | TFT amorphous selenium direct imaging | Direct imaging of cesium iodide amorphous silicon |
Imaging area | 14*17inch | 17*17inch |
Pixel resolution | 2560*3072 | 3072*3072 |
Pixel size | 140um | 140um |
Imaging time | <5 seconds | <5 seconds |
A/D conversion | 16bits | 16bits |
spatial resolution | 3.6lp/mm | 3.6lp/mm |
Flat panel detector size (w * L * h) | 383*460*15mm | 460*460*15mm |
Communication mode | Wired, wireless (optional) | Wired, wireless (optional) |

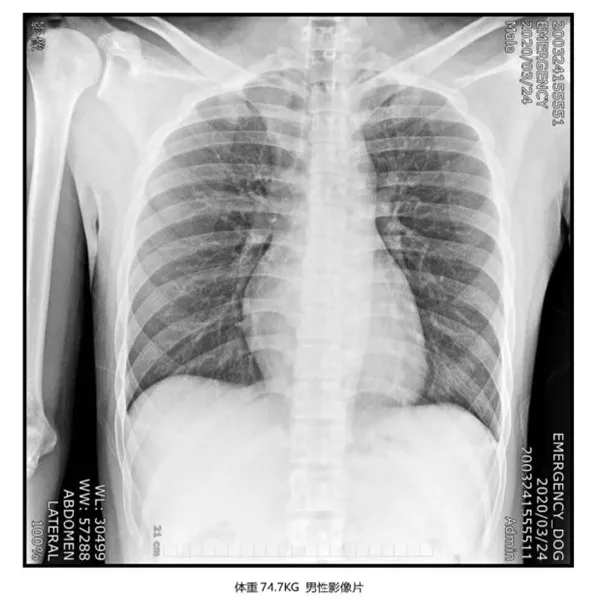

Digital Image for human
