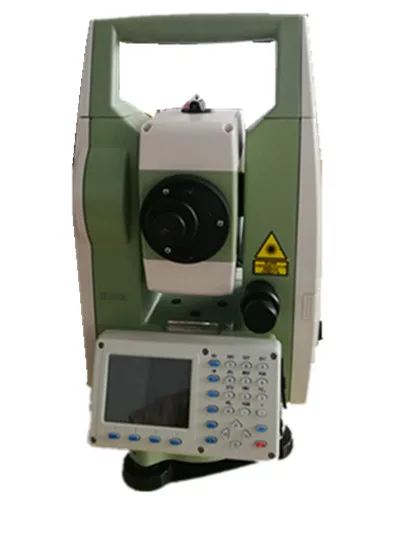

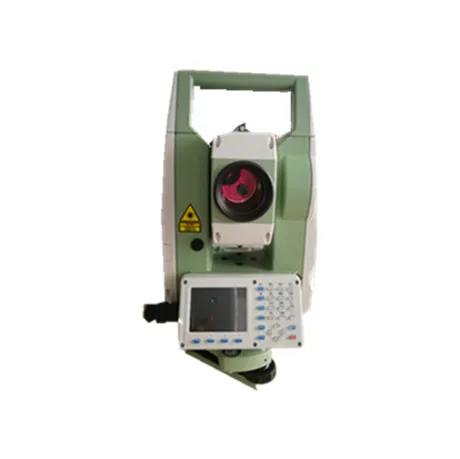

STS 762R

TELESCOPE

Tube Length

154mm

Objective Lens Diameter

Telescope: 45mm;  EDM: 50mm

Magnification

30X


Erect

Field of View

1°30’

Resolving Power

3”

Min. Focus

1.0m

DISTANCE MEASUREMENT

Single Prism

5000m *¹

Non-Prism

1000m*²

Accuracy  -Prism Mode

±(2mm+2ppm x D)m.s.e. *³

  -Non-Prism Mode

                      0-600m:±(3mm+2ppm x D)m.s.e. *³

Measuring time

fine: 0.3s; tracking: 0.1s *⁴

Atmospheric Correction

T-P Sensor, Auto Detect and Correct

Prism Constant

Manual Input, Auto Correction

ANGLE MEASUREMENT

Method

Absolute Encoding

Detecting System

H: 2 sides      V: 2 sides

Min Reading

0.5”/1”/5”10” selectable

Accuracy

2”

Diameter of Circle

79mm

Vertical Angle 0°

Zenith: 0°/Horizontal:0°

Unit

360°/400gon/6400mil

DISPLAY

Size

3.5”; 320*240 Dot Matrix

No.of Display

2 Color Screens

Keyboard

Alphanumeric

TILT CORRECTION

Tilt Sensor

Dual Axis

Method

Liquid Electric

Range

±3′

Setting Unit

1”

LEVEL SENSITIVITY

Plate Level

30”/2mm

circular vial

8’/2mm

OPTICAL PLUMMET(OPTIONAL:INTERNAL LASER PLUMMET)


Erect

Magnification

3X

Focusing Range

0.3m ~ ∞

Field of View

5°

DATA STORAGE INTERFACE

Storage

Internal Memory: 4MB; Max.SD card:32GB

Data Interface

SD-card/Mini USB/RS232C

GENERAL

Laser Class *⁵  -EDM

Class IIIA

              -Laser Plummet

Class II

Working Temperature

-20°C~ + 50°C

Battery Type

Rechargeable Ni-H Battery

Battery Voltage

DC 7.4V

Working Time

8h

Water & Dust Proof

IP55
