Color doppler ultrasound SUN 906B full digital ultrasound machine laptop obgyn ultrasound 3d
- Category: >>>
- Supplier: Shanghai Sunbright Industrial Co. Ltd.
Share on (1600543242792):
Product Overview
Description
Product Description
Medical table top ultrasound System Manufacturer Price 3D Laptop Notebook Color Doppler Ultrasound equipment
Application
Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal

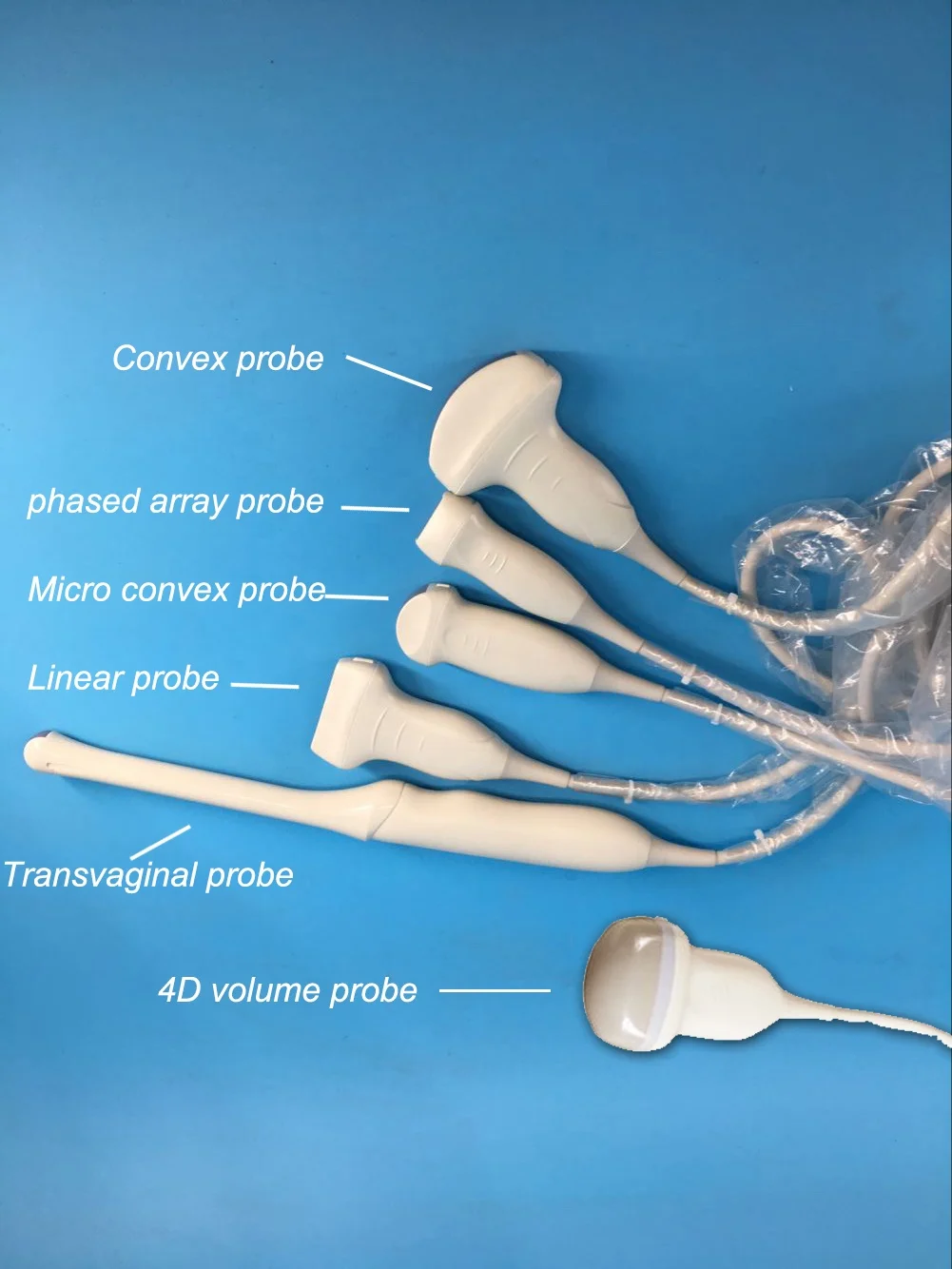

Sales point: 128 elements + PW + CW + phased array probe + 4D volume probe + 3D + 4D
Physical Specifications
Equipment size： 365mm×300mm×75mm
Equipment weight： 5.5kg
Packing size： 490mm×270mm×490mm
Packing weight： 10kg
Connectivity/Media/Peripherals

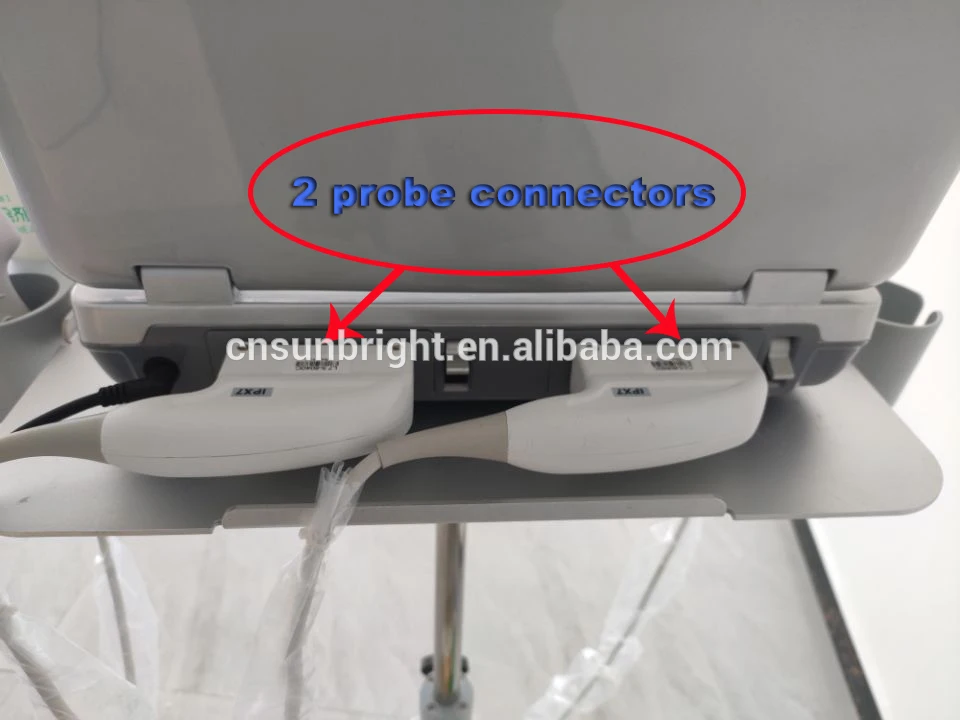

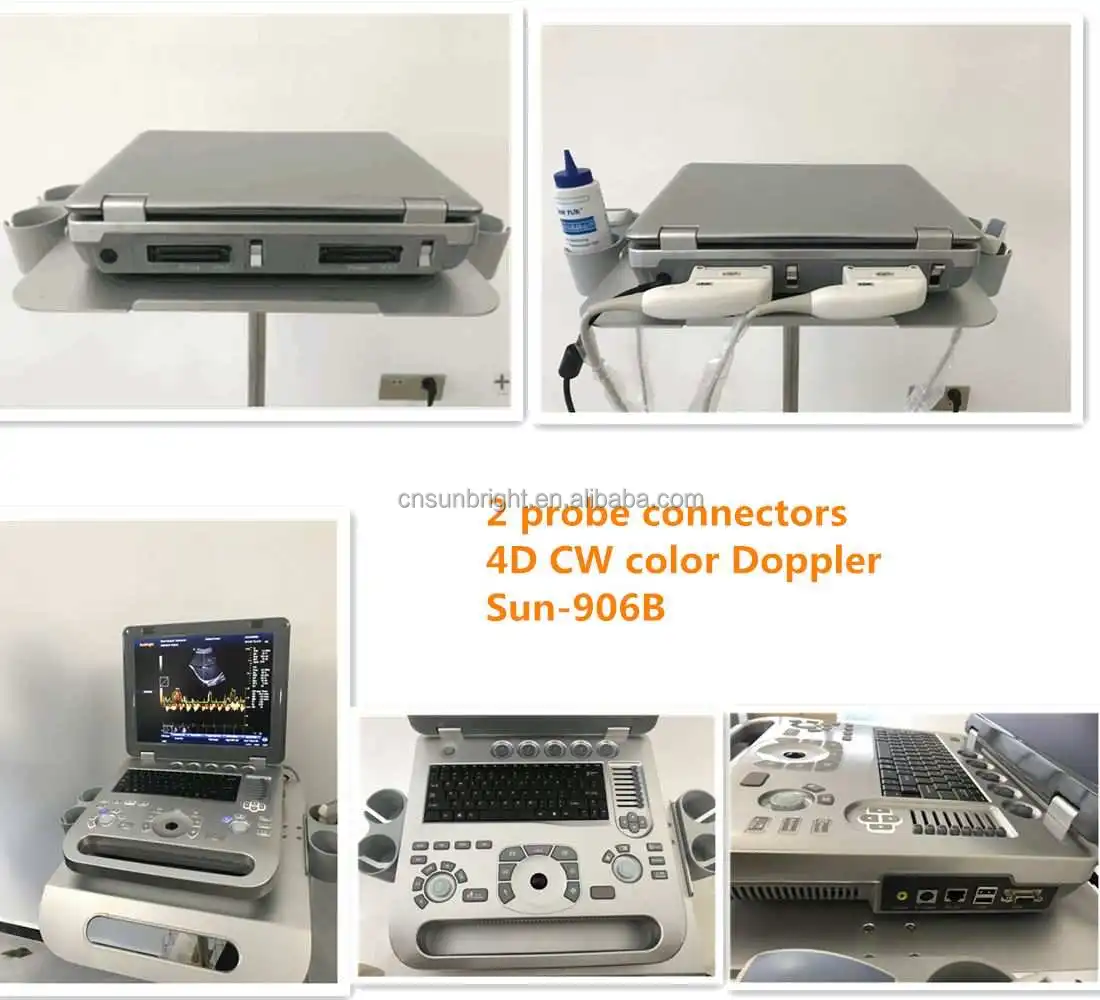

Transducer Ports | 2 |
USB Ports | 2 |
Hard Disc | 64GB (SSD), 120G/200GB SSD (Optional) |
Footswitch | USB |
Ethernet Port | 2(100Mb/1000Mb) |

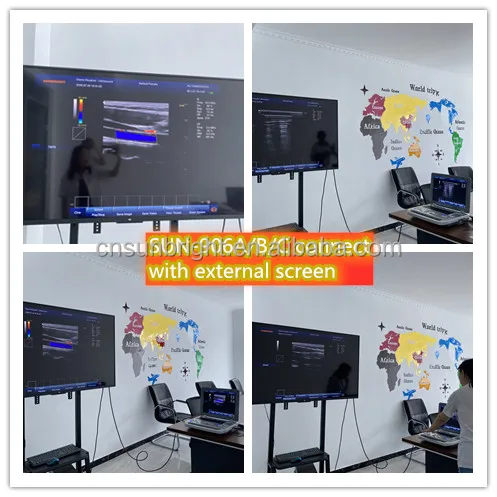

External Display | VGA, HDMI, |
Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
Printing Area | Image, report, Image+report |
Cine/Image Memory
Cine Memory: 1200 frame (max)
Cine Review Speed: 1, 2, 4, 8
Cine Review Loop: YES
Cine Capture Function: YES
DICOM Connectivity
DICOM3.0 Compliant
3D Software
Built-in 3D software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
USB Flash Drive
Technology
Panoramic Imaging Tech |
All-digital signal processing Tech |
Multi-beam formation Tech |
Speckle Reduction Tech |
Tissue Harmonic Imaging Tech |
Dynamic Tissue Optimization Tech |
Duplex & Triplex Synchronous Display |
Directional Power Doppler |
Imaging Parameters Preset |
Tissue Special Image |
PW Auto Trace |
Update in line |
CF+B mode in one screen |
Complex Model Imaging |
IMT auto measurements |
Virtual convex array |
Trapezoidal imaging |
General Performance
Digital Broadband | 12288 channels |
Beam-former | Re-programmable |
Transmit Voltage | Adjustable (15 steps) |
Beam-former Frequency Range | 1~40 MHz |
Pan/Zoom
Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion
Hardware Specification
LED Monitor
Size (Diagonal) | 15" |
Contrast Ratio | 800:1 |
Resolution | 1024×768 pixels |
Brightness | 230 cd/m2 |
Color Depth | 24bit |
Rotate Angle | ± 90° |
Grey Levels | 256 |
UPS (Optional)
Embedded Speakers
Impedance: 4Ω
Power: 5 W
Power: 5 W
Imaging Performance
Startup Time (Max) | Avg. < 90 seconds |
Preset Switching Time | Avg. < 1 second |
Storage Time (Image to Disk) | Avg. < 0.5 second |
Probe | Convex Array Probe | Linear Array Probe | Intra-Cavity Probe | Micro-convex probe |
Frequency | Central 3.5 MHz (2.0MHZ to 10.0MHZ) | Central 7.5 MHz (6.0MHZ to 10.0MHZ) | Central 6.5 MHz (5.0MHZ to 9.0MHZ) | Central 4.0 MHz (2.0MHZ to 5.5MHZ) |
Pitch | 0.516mm | 0.352mm | 0.216mm | |
Radius | 60mm | N/A | 10 mm | |
Elements | 128 | 128 | 128 | 128 |
User Interface
User Permission setting
Intuitive Windows-based operating principles
User-centric control panel with Home Base layout and control customization
On/Off task light and back-lit illumination of control panel
Variable brightness indicates active state of function keys
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu
Imaging Modes
B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, Dual Color, Simultaneous 2D/Color Compound, PW, Duplex/Triplex, CFM, CDE, PD, Directional PD, CD
Detailed images
Recommend Products
Packing & Delivery
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
