Product Overview
Description
PRODUCT DISPLAY

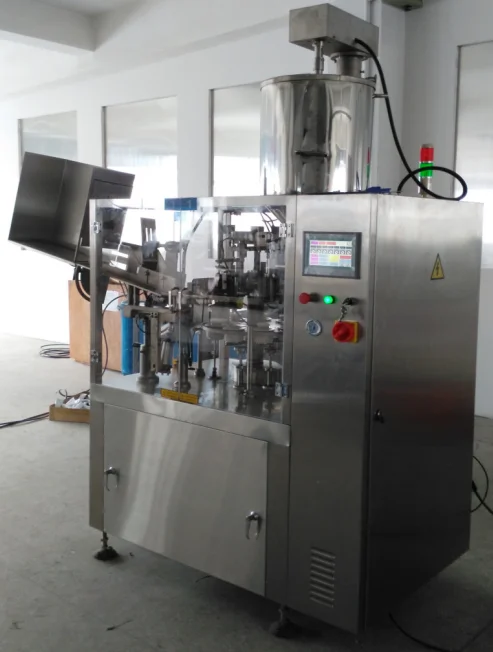

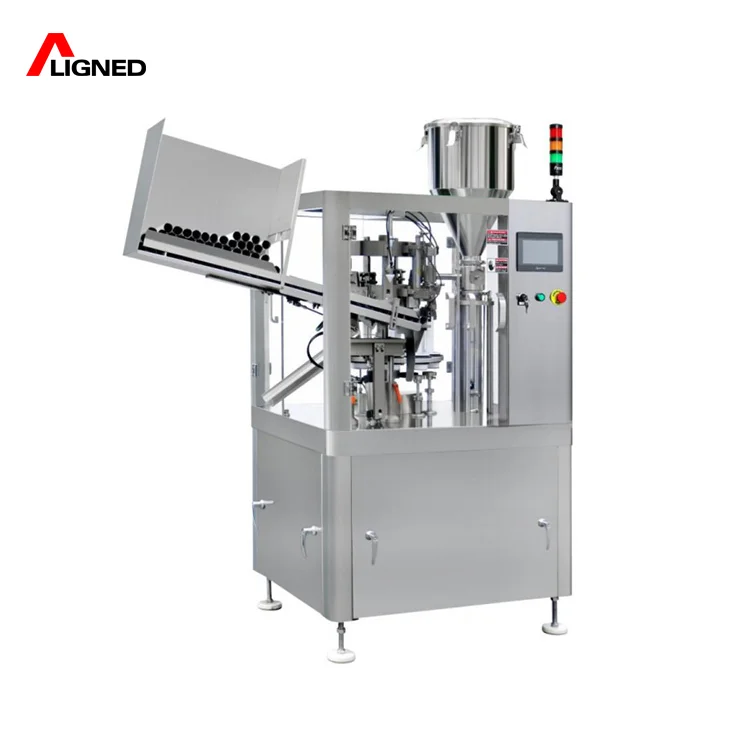

Metal Tube Filling And Sealing Machine
This machine fully reflects the advanced design, reliability and rationality of GMP requirements for pharmaceutical equipment, pays attention to people-oriented, and reduces the human factors in the process of equipment use. Automatic feeding of the tube, automatic positioning of the tube direction, filling, sealing, batch numbering, finished product exit, using linkage design, all actions are completed simultaneously.
Items | Parameters |
Model | RGF-60N |
Usage | Metal Tube&Laminated Plastic Tube |
Working Capacity | 30-40 Pieces Per Minutes |
Filling Range | 5ml-200ml/piece |
Filling Accuracy | ≤±1% |
Tube Diameter | 13-35mm |
Tube Length | 200mm |
Aorking Pressure | 0.55-0.65Mpa |
Machine Weight | 800kg |
Power | 380V |
Overall Dimensions | 1500 × 1000 × 2000mm |
This machine ensures that the filling process is free from contamination. The materials in contact with the medicine are all made of high-quality stainless steel, and the contact surface is fully polished.

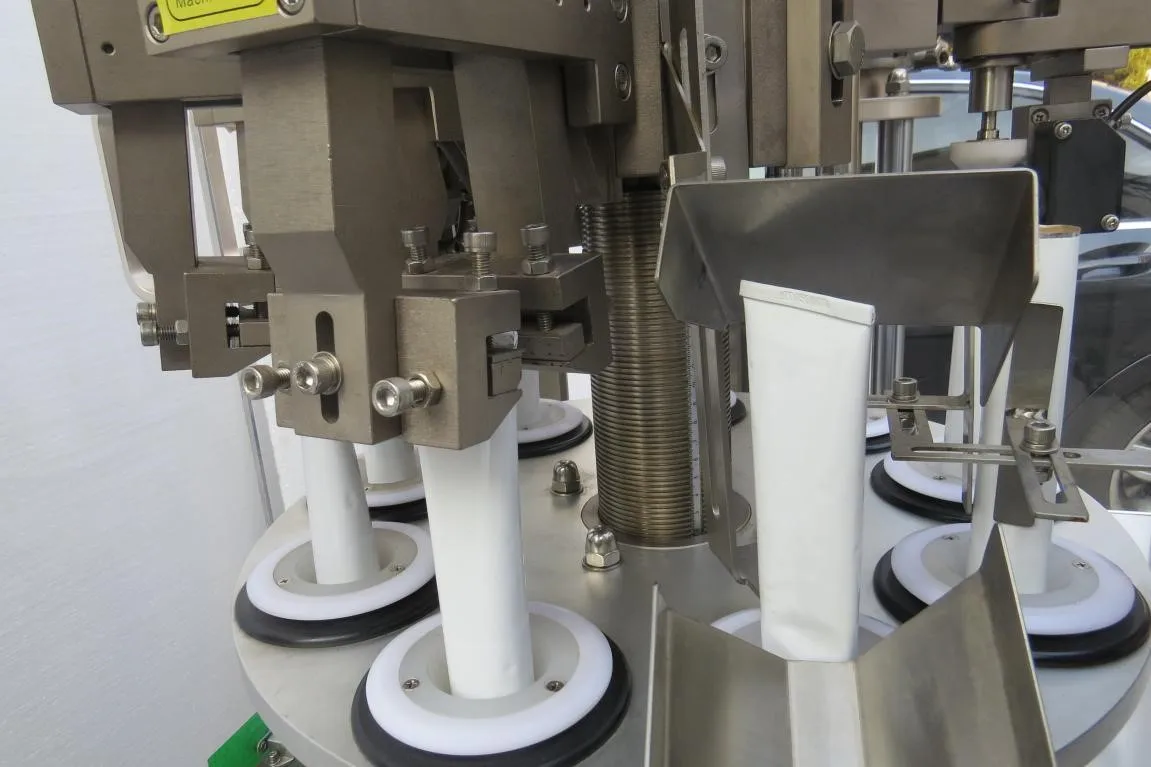

This machine can directly complete the two-side folding, three-side folding and sealing and saddle-shaped folding and sealing of metal pipes such as aluminum pipes. The shape and size of the end cap can be easily and accurately adjusted according to the needs of the user.
This machine adopts lifting filling, and the injection nozzle can extend into the pipe, which can ensure effective material injection and prevent the phenomenon that the material liquid sticks to the wall of the hose and affects the sealing.
WORKING PRINCIPLE

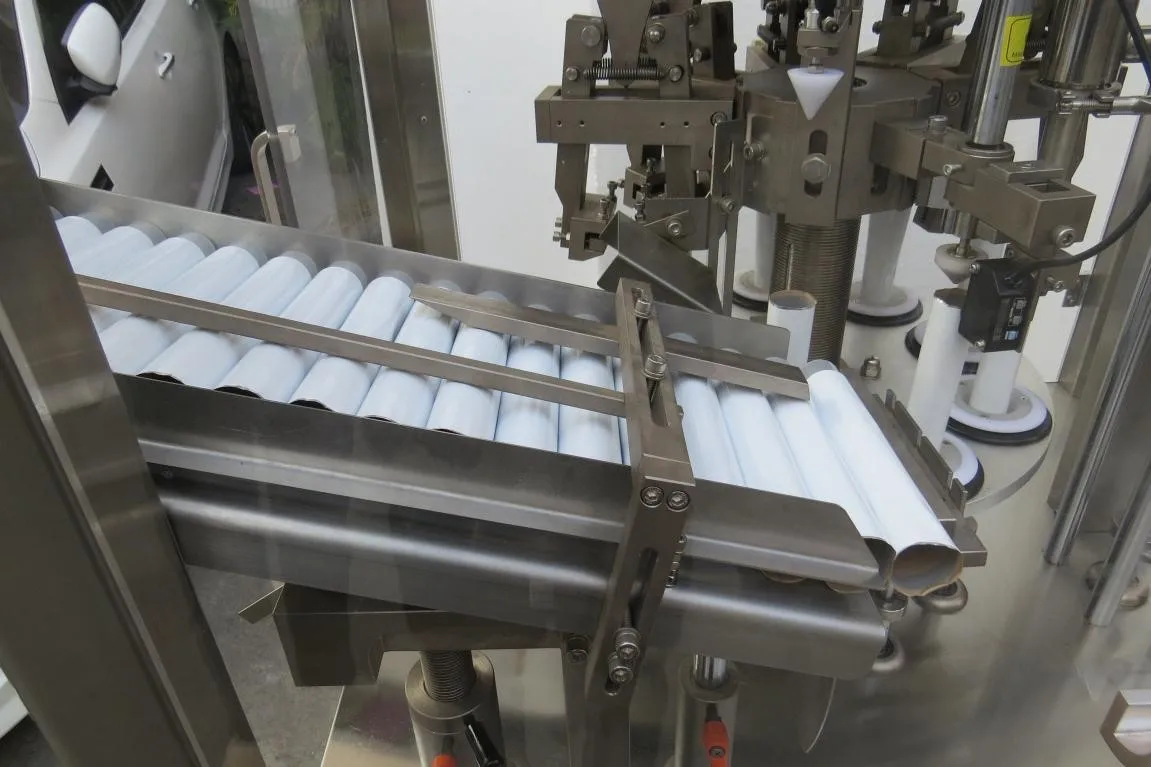

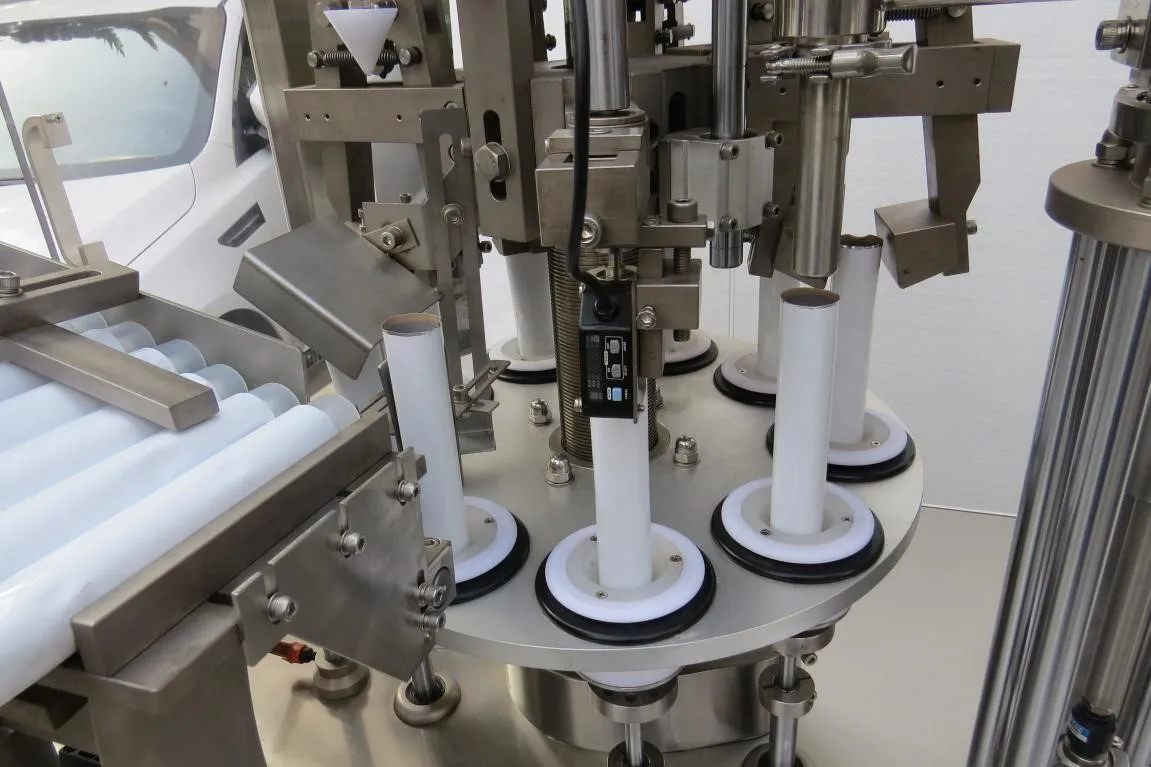

The working principle of the automatic hose filling and sealing machine is controlled by PLC program, automatic tube loading, color mark positioning, air cleaning of the inner space of the tube, filling of the injection nozzle deep into the tube, heating of the inner wall of the tube tail, and cooling of the outer wall of the tube tail (refrigeration). Water machine drainage cycle), hot-melt pressing and typing, tail shearing, and finished product discharge.
