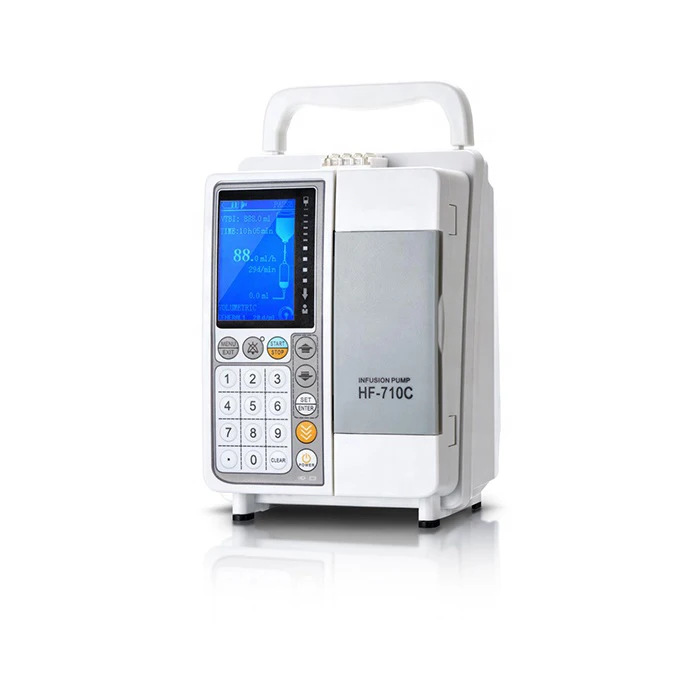

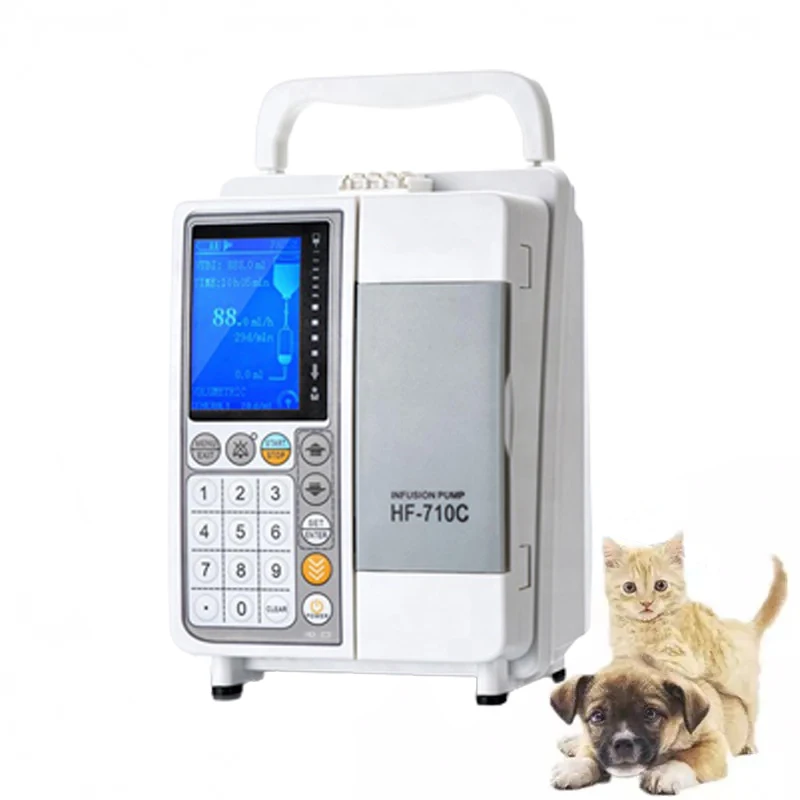

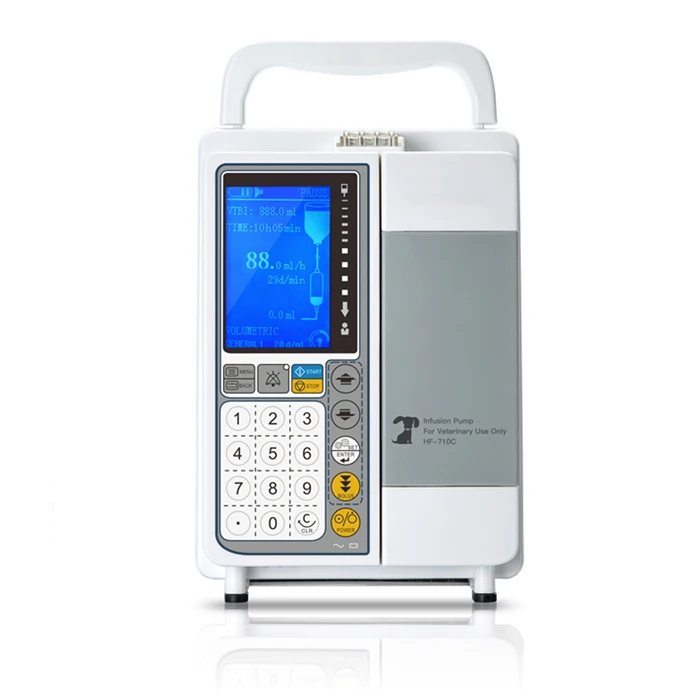

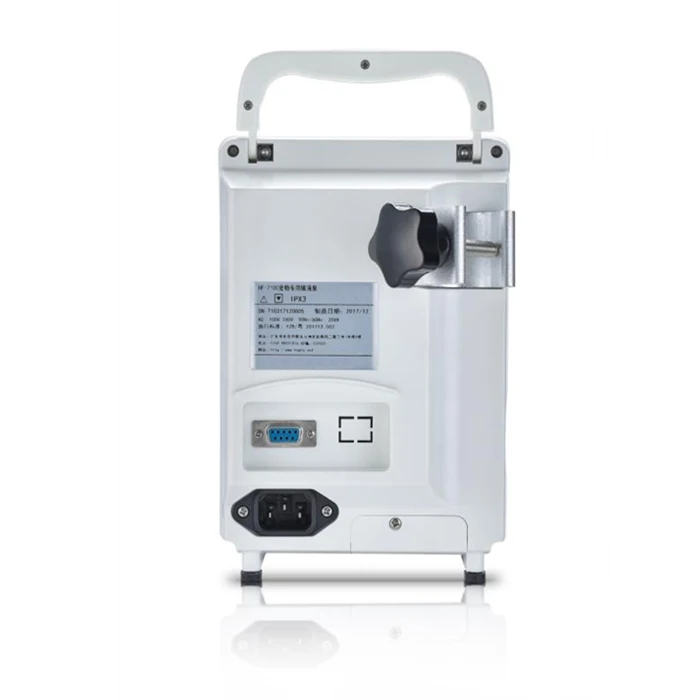

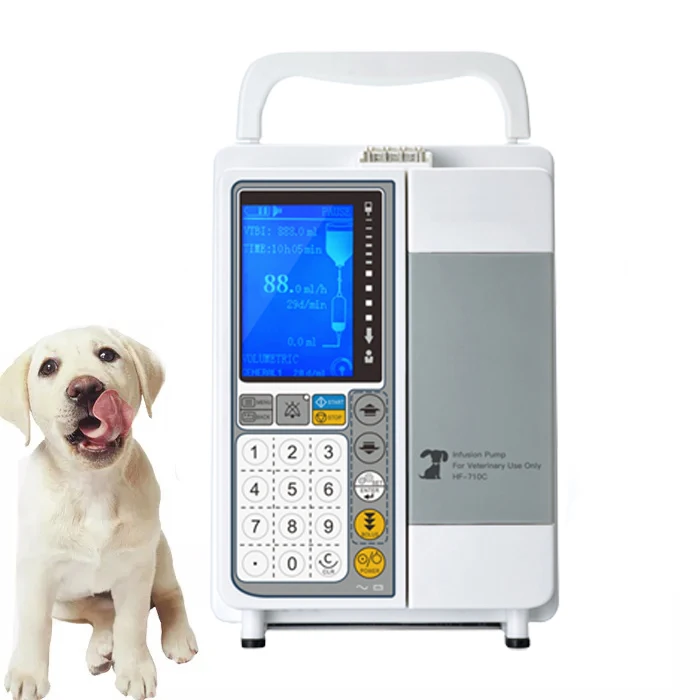

Small size veterinary medical syringe infusion pump for vet clinic
- Category: >>>
- Supplier: Qingdao KingElephant Supply Chain Technology Co. Ltd
Share on (1600543255152):
Product Overview
Description
Product Description
Safe and reliable
1 Using double CPU design, reliable data transmission, safer infusion.
2 Upper and lower duble occlusion pressure sensors design, upper-occlusion sensor can avoid underflow effectively, 10
adjustable level settings for occlusion by lower- occlusion.
3 Real-time self-testing，real-time self-testing when startup and during infusing process, ensure the safety of each component and each function, safer infusion.
4 Automatic switching between AC and DC power supply , backup time more than 10hours under battery supply to ensure no interruption when no AC power supply or in moving condition.
5 Alarm prompt with sound, light and message, 10 adjustable level of alarm volume.
6 Dynamic pressure value display, and real-time detect occlusion pressure status.
7 Various alarm, avoid the suddenly accidents during infusion process.
8 Motor anti-reverse function, avoid preventing upstream absolutely.
User friendly
1 Numeric keypad input, very user friendly.
2 Big brightness LCD, display visually rich content and intuitive.
3 Easy operation menu, that is according people operation hobbits.
4 No need to open the battery door when maintain, easy to maintain.
5 Squirm pump is removable for cleaning.
6 Able to display the purge volume, accurately find out the purge volume.
7 Flow rate of d/min and ml/h display in same time, no need to convert.
Deviation and effective
1 The deviation of all international standard IV set are within ±5% after calibration.
2 Pulse compensation technology, more accurate when infusion.
3 Automatic and manual calibration should calibrate different brand and material international standard IV set, more accurate
when infusion.
4 Able to store more than 25 brands of infusion sets, user friendly；
5 The position of alarm light is highlighted, visible in directions from a long distance.
6 Can not use the new infusion without calibration, ensure the accuracy and safety of the infusion.
Advanced technology
1 Multiple infusion mode, such as the ml/h, d/min, bolus, drug mode, which are greatly facilitate the different users with
usage habits.
2 Night mode, energy saving and environmental protection.
3 Can foldable handle, can reduce the use of space.
4 Double door buckle design makes the infusion pressure more stable.
5 Air–in-line 10 adjustable level settings, can reduce the false alarm caused by secondary bubbles.
6 Classic vertical infusion pump, beautiful atmosphere.
7 KVO parameter and KVO rate are adjustable from 0.1ml/h to 5ml/h, that ensure the blood vessels are unblocked, and the needle blood does not coagulate.
8 Pausing over time is adjustable from 30 seconds to 5 minutes,which convenient to use in different hosipital departments.
9 Occlusion pressure release function, reducing the pain caused to patients after occlusion.
1 Using double CPU design, reliable data transmission, safer infusion.
2 Upper and lower duble occlusion pressure sensors design, upper-occlusion sensor can avoid underflow effectively, 10
adjustable level settings for occlusion by lower- occlusion.
3 Real-time self-testing，real-time self-testing when startup and during infusing process, ensure the safety of each component and each function, safer infusion.
4 Automatic switching between AC and DC power supply , backup time more than 10hours under battery supply to ensure no interruption when no AC power supply or in moving condition.
5 Alarm prompt with sound, light and message, 10 adjustable level of alarm volume.
6 Dynamic pressure value display, and real-time detect occlusion pressure status.
7 Various alarm, avoid the suddenly accidents during infusion process.
8 Motor anti-reverse function, avoid preventing upstream absolutely.
User friendly
1 Numeric keypad input, very user friendly.
2 Big brightness LCD, display visually rich content and intuitive.
3 Easy operation menu, that is according people operation hobbits.
4 No need to open the battery door when maintain, easy to maintain.
5 Squirm pump is removable for cleaning.
6 Able to display the purge volume, accurately find out the purge volume.
7 Flow rate of d/min and ml/h display in same time, no need to convert.
Deviation and effective
1 The deviation of all international standard IV set are within ±5% after calibration.
2 Pulse compensation technology, more accurate when infusion.
3 Automatic and manual calibration should calibrate different brand and material international standard IV set, more accurate
when infusion.
4 Able to store more than 25 brands of infusion sets, user friendly；
5 The position of alarm light is highlighted, visible in directions from a long distance.
6 Can not use the new infusion without calibration, ensure the accuracy and safety of the infusion.
Advanced technology
1 Multiple infusion mode, such as the ml/h, d/min, bolus, drug mode, which are greatly facilitate the different users with
usage habits.
2 Night mode, energy saving and environmental protection.
3 Can foldable handle, can reduce the use of space.
4 Double door buckle design makes the infusion pressure more stable.
5 Air–in-line 10 adjustable level settings, can reduce the false alarm caused by secondary bubbles.
6 Classic vertical infusion pump, beautiful atmosphere.
7 KVO parameter and KVO rate are adjustable from 0.1ml/h to 5ml/h, that ensure the blood vessels are unblocked, and the needle blood does not coagulate.
8 Pausing over time is adjustable from 30 seconds to 5 minutes,which convenient to use in different hosipital departments.
9 Occlusion pressure release function, reducing the pain caused to patients after occlusion.

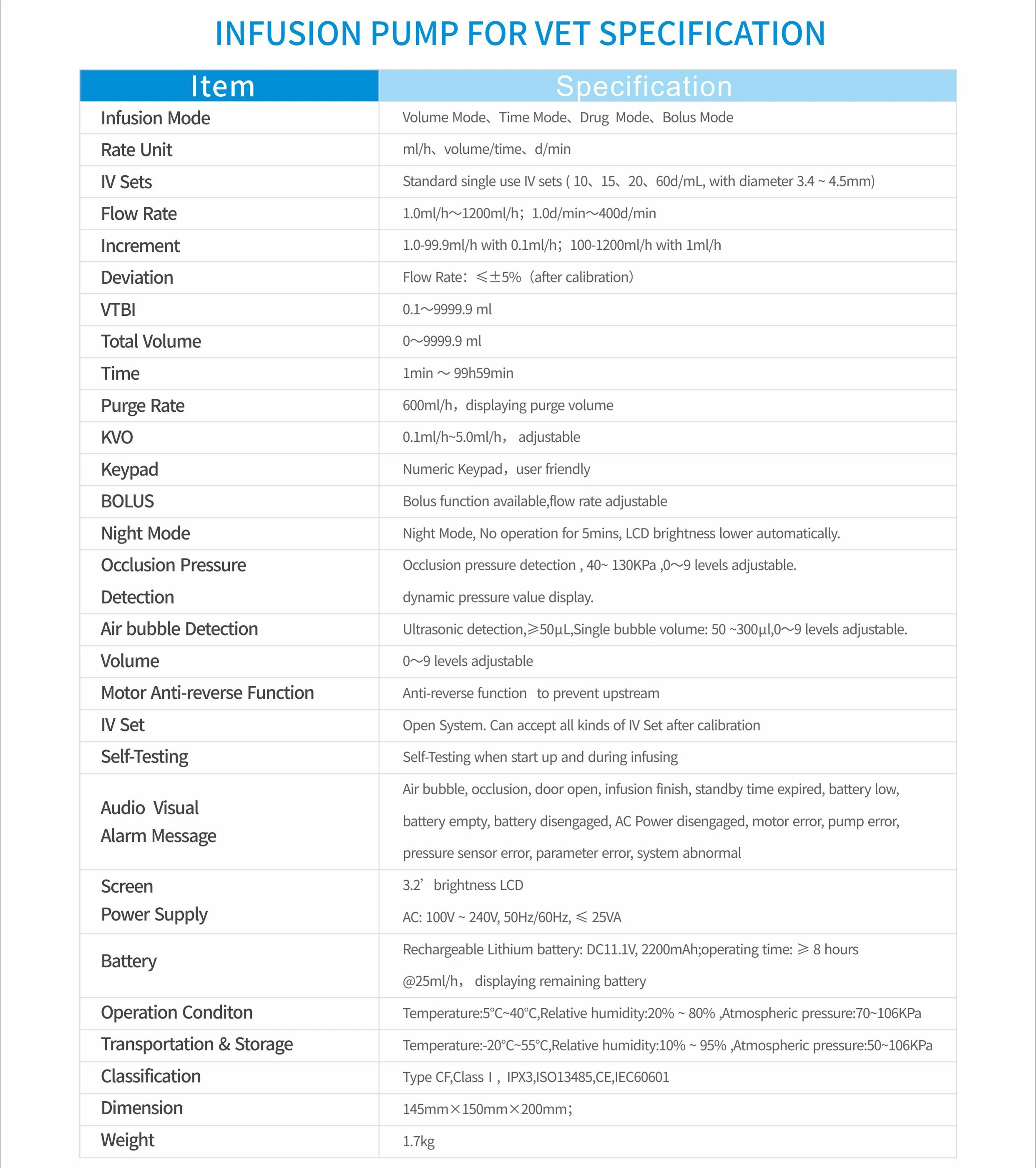

Specification
item | value |
Place of Origin | China |
Model Number | HF-710C |
Properties | Anatomy Appliances |
Type | First-Aid Devices |
Flow Rate Range | 1.0ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h |
Flow Rate Increment | 1.0-100ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h |
Flow Rate Deviation | <±5%(after calibration) |
VTBI | 0.1~9999ml |
Infused Volume | 0~999ml |
Display | 3.5" Brightness LCD |
AC power | AC:100V~240V, 50Hz/60Hz,≤25VA |
Battery | Rechargeable Lithium battery: DC11.1V, 3000mAh |
IV Sets | Standard single use IV sets |
