AG OT009 China Factory Supplier X Ray Examination Electric Operating Table
- Category: >>>
- Supplier: Jiangsu Weiwo Network Technology Co. Ltd.
Share on (1600543260139):
Product Overview
Description

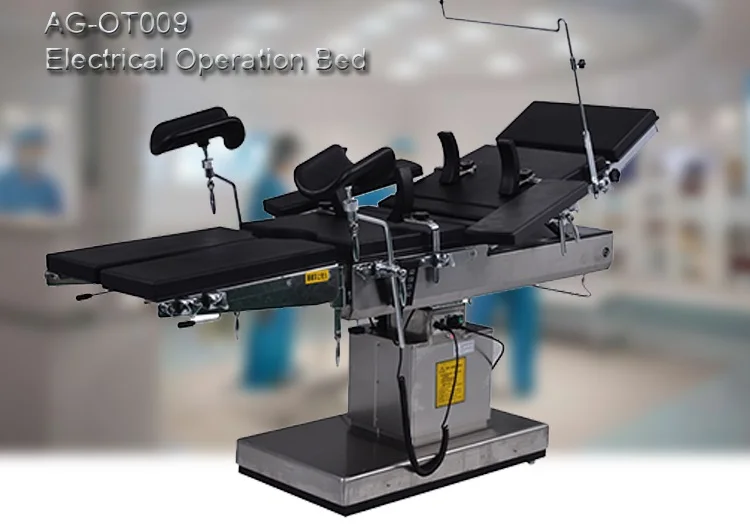

AG-OT009 China Factory Supplier X-Ray Examination Electric Operating Table
Operation Table Structure

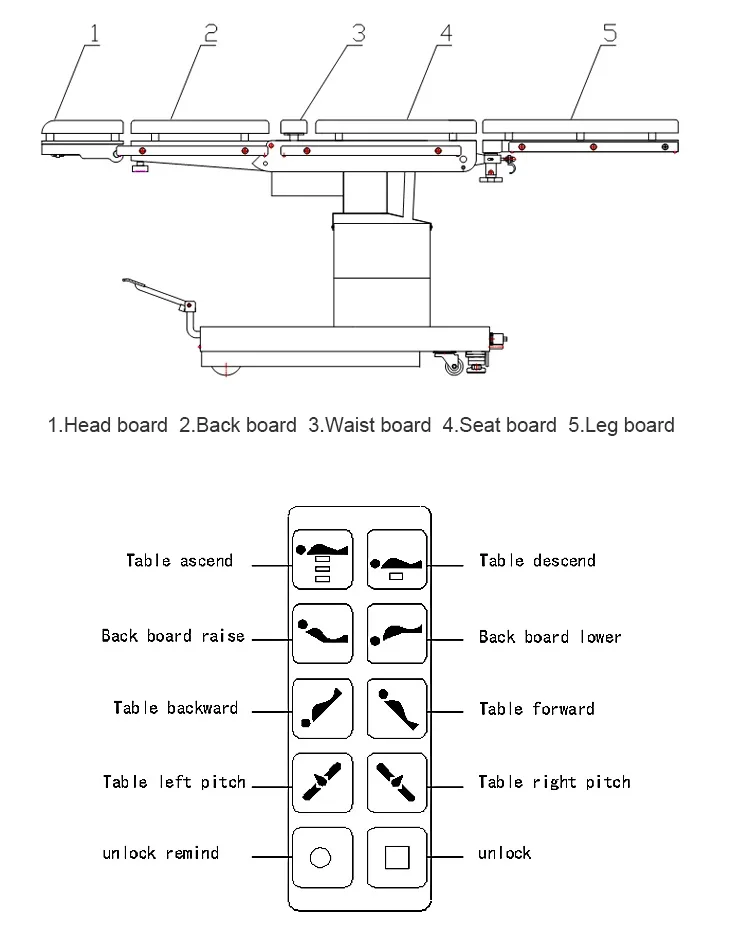

1. The tabletop is made up of a head section, back section, seat section, leg section, foot section, and kidney bridge.
The head section and the foot section can all be disassembled. The head section can be raised or lowered from the horizontal.
The leg section can be lowered from the horizontal and opened.
2. Tabletop is made of engineering plastics, thus X-ray examination of can be carried out on it.
3. The main part includes rotary frame, lateral tilt arrangements, Trendelenburg and reversed Trendelenburg arrangements,
ascending and descending arrangements, and the base. The lateral tilt arrangements Trendelenburg and reversed Trendelenburg
arrangements can drive the rotary frames to carry out the lateral tilt, Trendelenburg, and reversed Trendelenburg movements.
Ascending and descending arrangements and back section movements can drive the operating table to ascend or descend.
4. The electric controlling part is made up of a steady power supply, a controlling push-button container.
Operation Table Specification
Safe working load: 135kg
Dimension of tabletop

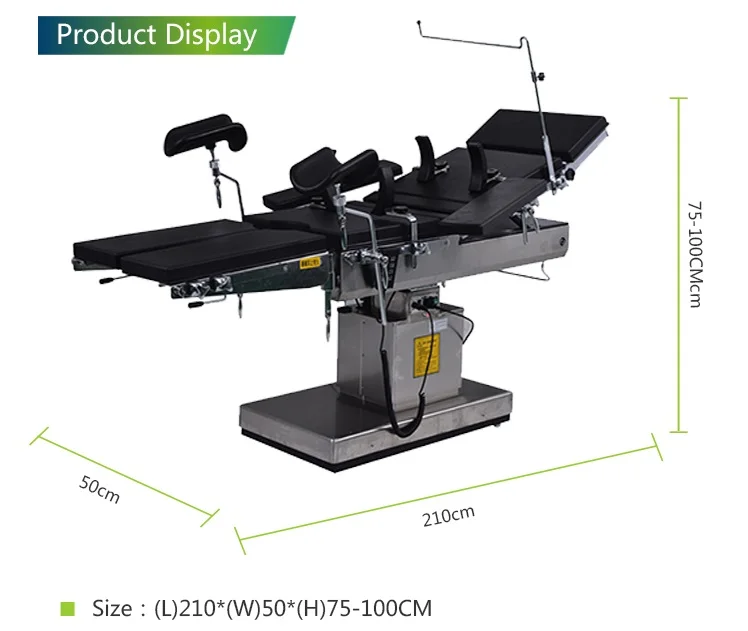

Overall Size: 210cm*50cm
Height: 75-100 cm Adjust. 25cm
Head Section: 25×50cm
Back Section: 54.5×50cm
Kidney Bridge: 7.5×50cm
Seat section: 45×50cm
Leg Section: 60×24cm
Foot Section: 18×27.3cm
Reversed Trendelenburg: ≥20°
Trendelenburg: ≥15°
Lateral Tilt: ≥15°
Head Section: 45°- 90°
Back Section Raised from the horizontal: ≥45°
Kidney Bridge Elevated: ≥80mm
Leg Section Lowered from the horizontal: ≥90°
Leg section opened: ≥90°
Backward and Forward Movements: ≥40cm
Lifting speed: 4~16mm/s
Device safety sort: I B
Ingress protection: IPX4
Power customized
Internal power supply (DC): 24V
Battery capacity: ≥ 2.4AH

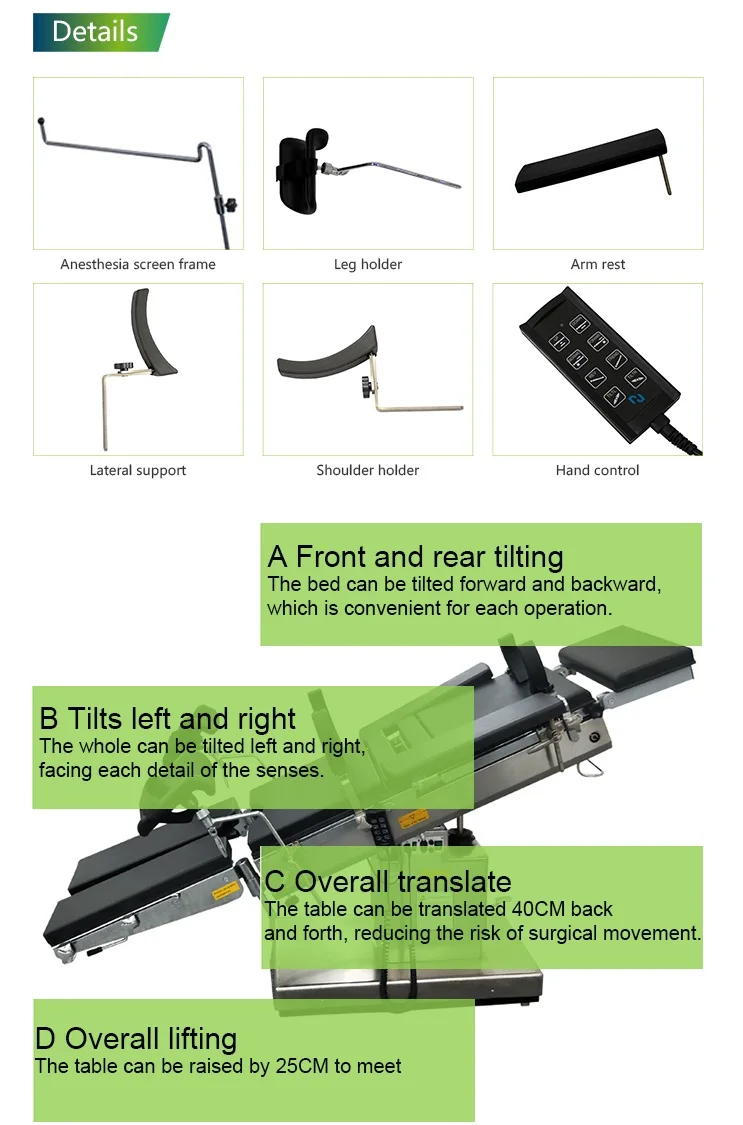

Operation Table Accessories
Anesthesia screen frame: 1 set
Body strap: 1 pc
Lateral support: 1 pair
Should holder:1 pair
Leg holder: 1 pair
Clamp:1 set
Armrest: 1 pair
Hand control :1 pc
Similar Products
Operating room
According to the degree of sterility or sterility of the operation, the operating room can be divided into the following five categories:
(1) Class I operating room: that is, the sterile purification operating room, which mainly accepts operations such as brain, heart, and organ transplantation.
(2) Class II operating room: the sterile operating room, which mainly accepts aseptic operations such as splenectomy, open reduction of closed fractures, intraocular surgery, and thyroidectomy.
(3) Class III operating room: that is, the operating room with bacteria, which accepts operations on the stomach, gallbladder, liver, appendix, kidney, lung and other parts.
(4) Class IV operating room: the infection operating room, which mainly accepts operations such as appendix perforation peritonitis surgery, tuberculous abscess, abscess incision and drainage, etc.
(5) Class V operating room: that is, the special infection operating room, which mainly accepts operations for infections such as Pseudomonas aeruginosa, Bacillus gas gangrene, and Bacillus tetanus.
According to different specialties, operating rooms can be divided into general surgery, orthopedics, obstetrics and gynecology, brain surgery, cardiothoracic surgery, urology, burns, ENT and other operating rooms. Because the operations of various specialties often require special equipment and instruments, the operating rooms for specialized operations should be relatively fixed.
