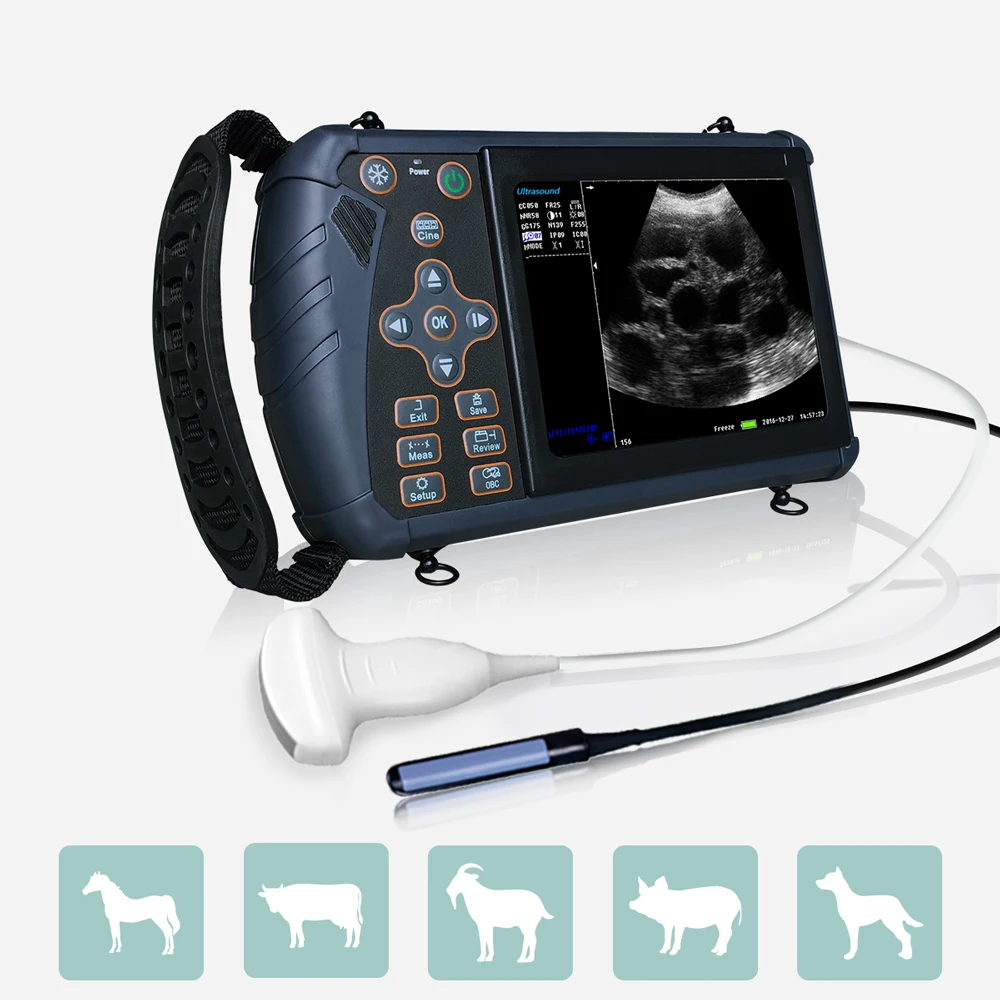

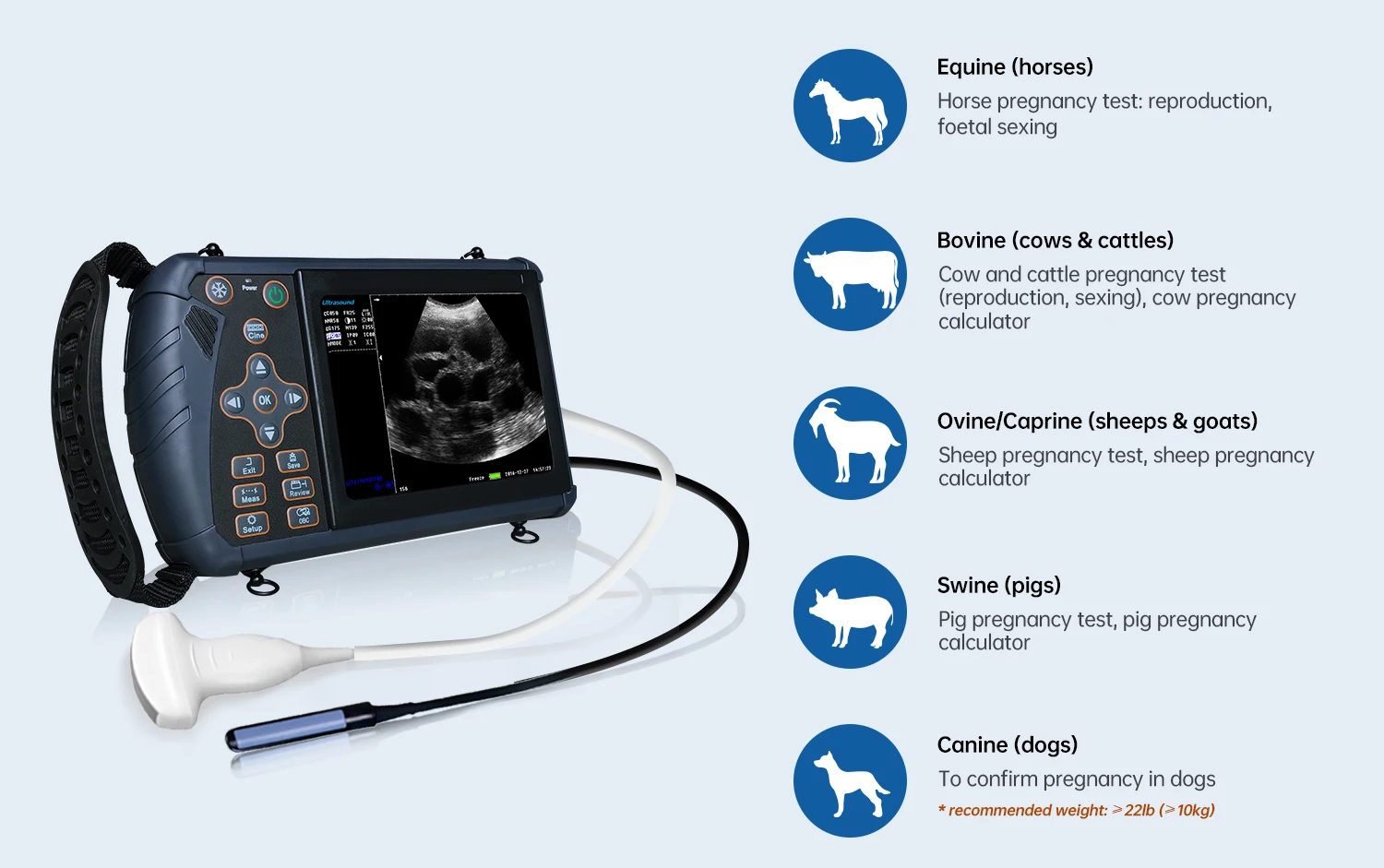

Petiro S1 Ultrasound Scanner For Equine Diagnostic Ultrasound Equine Pregnancy Test Handheld Veterinary Ultrasound
- Category: >>>
- Supplier: Shenzhen Viatom Technology Co. Ltd.
Share on (1600543261381):
Product Overview
Description
Petiro S1 Ultrasound Scanner For Equine Diagnostic Ultrasound Equine Pregnancy Test Handheld Veterinary Ultrasound
Technical Parameters
Focus | three sections electronic focus, support point by point focus |
Gain adjustment | main gain, near and far field adjustment can reach 255 15 levels contrast and brightness adjustment |
Frame correlation | 15 adjustable |
Scan mode | convex array |
Scanning depth | 57-230mm, 15 levels adjustable |
Electronic linear | 128 elements |
Cine loop | 255 frames |
Built-in battery | rechargeable lithium-ion battery, imported 2600mAh standard batteries, more than 4 working hours |
Display mode | B, B + B, B/M |
Gray | 256 levels |
Pseudo color | 8 kinds |
Image magnification | 15 levels magnification |
Screen size | 5.6 inch high-definition LED screen |
Measurements | distance, perimeter, area, volume, gestational age |
Image processing | up / down, left / right flip, pseudo color processing, frame correlation, focus conversion |
Gain regulation | near field, far field, main gain dynamic adjustable continuously |

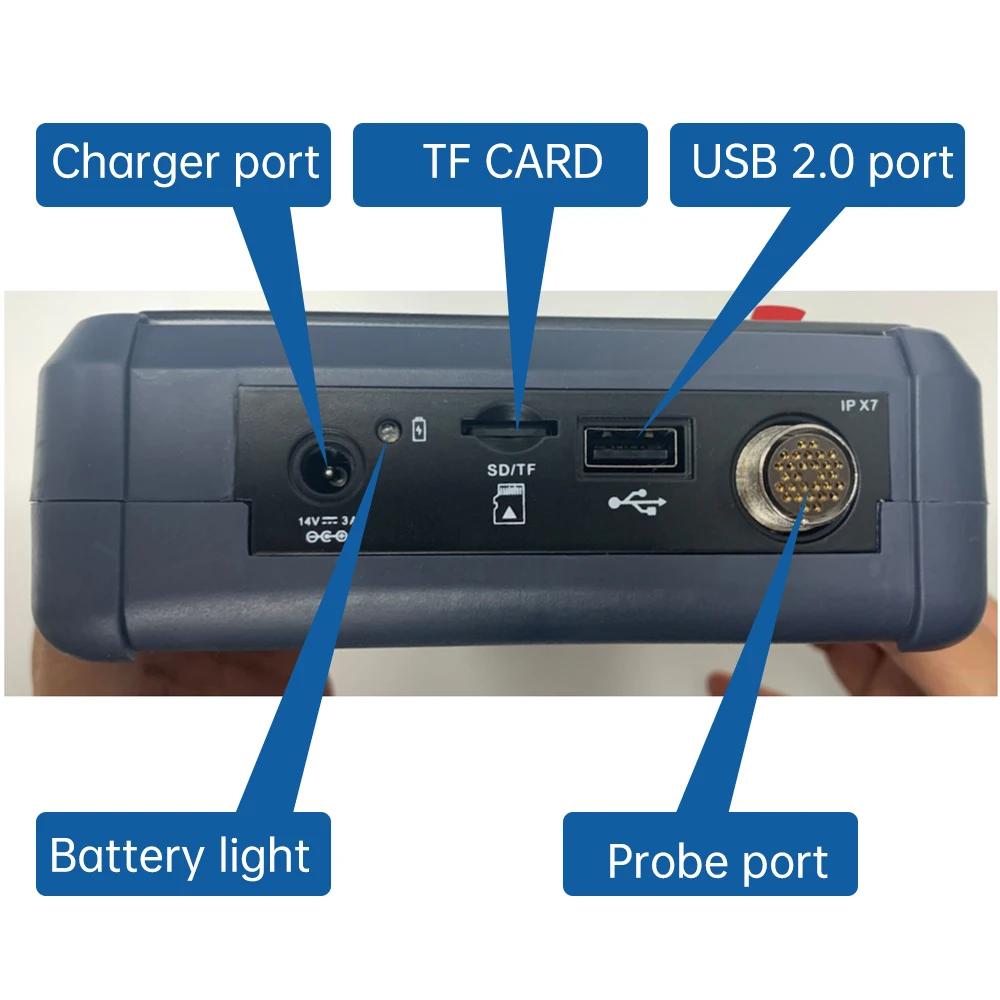

Interfaces | mini USB interface, TF card interface |
Machine size | 240*120*45mm |
Power consumption | 25W |
Weight | 950g |
Warranty | 2 year warranty |
Product Features
A veterinarian's day can be unpredictable, and so can their patients. You need a portable ultrasound machine that goes where you need it, when you need it.

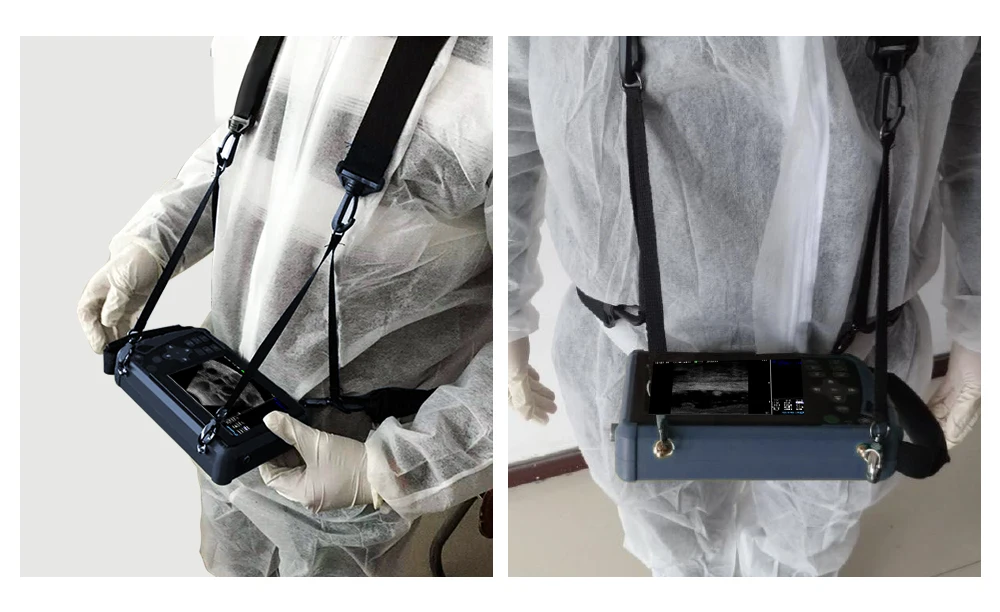

Portability —— Portable ultrasound diagnostic instruments weigh less than one kilogram.
Reliability —— With a two-year warranty on new products, you can rest assured that your ultrasound will work when you need it.
Durability —— Our battery uses the same type of battery as Tesla and lasts up to 6 hours with a long standby time.
Screen —— We use a 5.6 inch medical LCD screen.
Stability —— The probe is a pressed ceramic probe, no preheating required, no problem to use in cold weather.
Environmentally friendly —— The toxic and hazardous substances or elements contained in this diagnostic system will not leak or mutate under normal conditions of use for 10 years from the date of manufacture, and the use of the product by the user will not cause serious pollution to the environment or serious damage to their person or property.
Reliability —— With a two-year warranty on new products, you can rest assured that your ultrasound will work when you need it.
Durability —— Our battery uses the same type of battery as Tesla and lasts up to 6 hours with a long standby time.
Screen —— We use a 5.6 inch medical LCD screen.
Stability —— The probe is a pressed ceramic probe, no preheating required, no problem to use in cold weather.
Environmentally friendly —— The toxic and hazardous substances or elements contained in this diagnostic system will not leak or mutate under normal conditions of use for 10 years from the date of manufacture, and the use of the product by the user will not cause serious pollution to the environment or serious damage to their person or property.
We take the guesswork out of imaging with excellent diagnostic images that are easy to obtain. We also offer first-class after-sales support with an industry-leading two-year warranty.
Durability
Our battery uses the same type of battery as Tesla and lasts up to 6 hours with a long standby time.
Environmentally friendly
The diagnostic system will not cause serious pollution to the environment or serious damage to the user's person or property for 10 years from the date of manufacture.

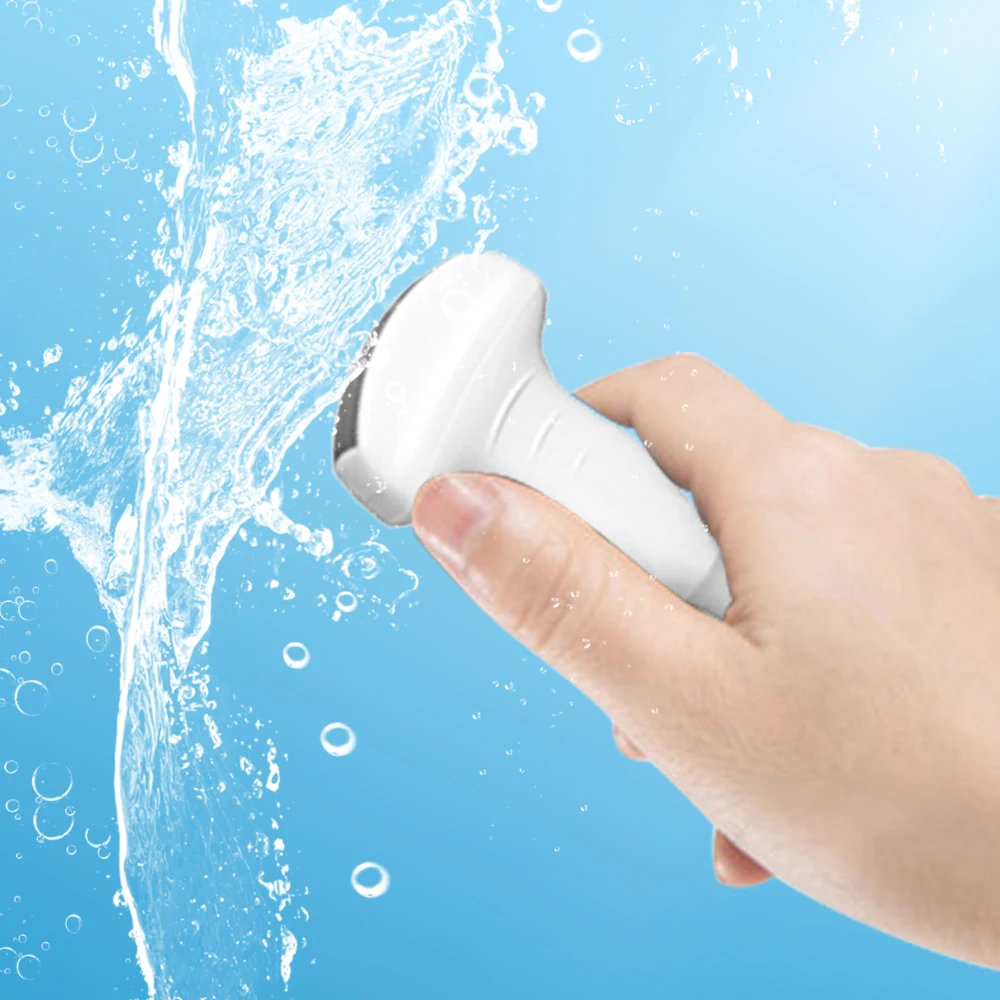

IPX7 waterproof
The waterproof level of the probe is IPX7. The position of the immersion in water should not exceed the sound head
of the probe, and the probe housing should be checked frequently for cracks to avoid immersing the liquid to damage the internal components.
of the probe, and the probe housing should be checked frequently for cracks to avoid immersing the liquid to damage the internal components.

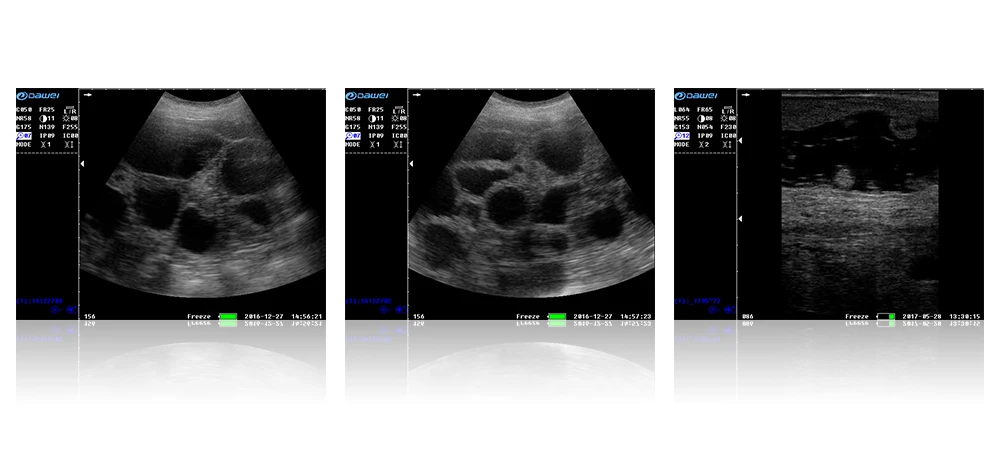

Image Gallery
Why Choose Ours?
S1 Portable Veterinary Ultrasound | Other Veterinary Ultrasounds | |
Probe | Electronic transducer provides dynamic focusing | Mechanical sector probe causes louder image noises |
Frequency | Scan at different frequencies | Only scan at a fixed frequency |
Imaging Modes | B, B+B, B/M | B, B+B |
Depth | Up to 230mm | Up to 190mm |
Animal Size | Equine, Bovine, Ovine, Swine, Canine (all sizes of animals) | Swine, Ovine, Dogs (small animals) |
Battery | ≥ 6 hours | up to 4 hours |
Drop-resistant | Yes | No |

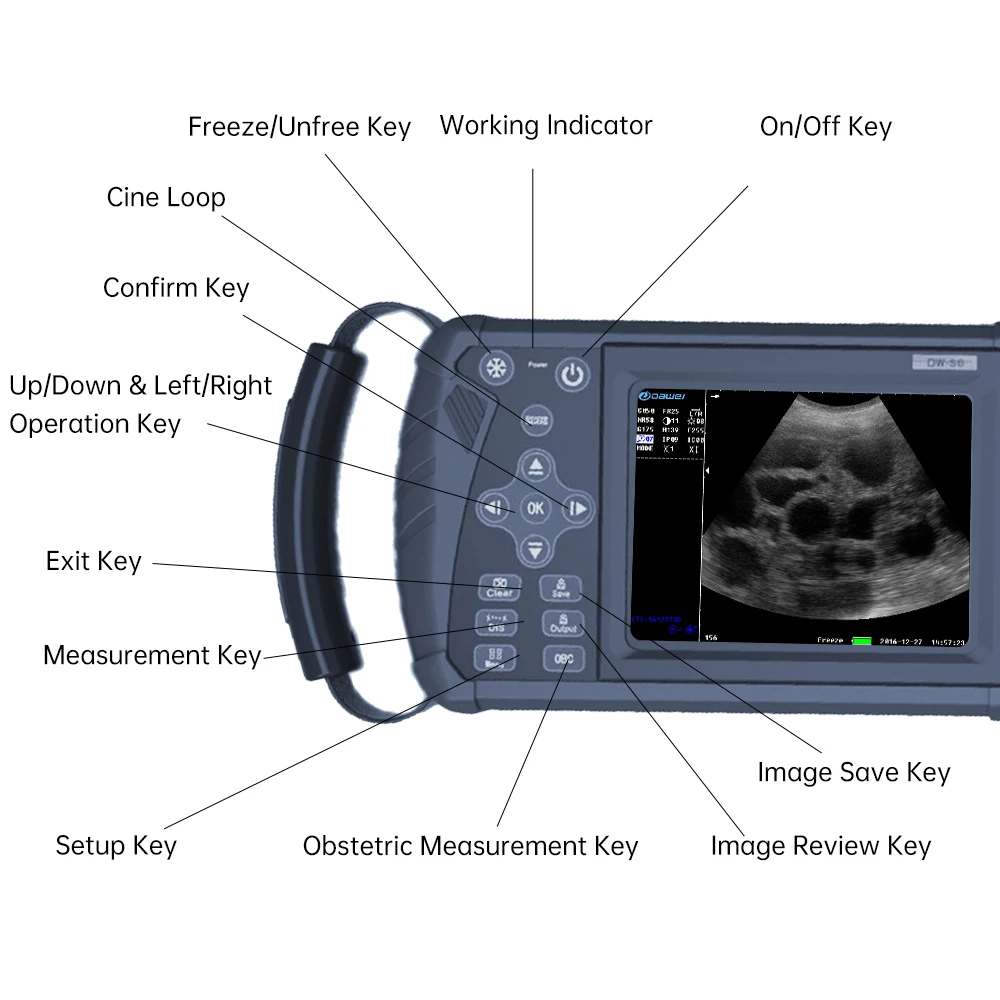

Details Images
