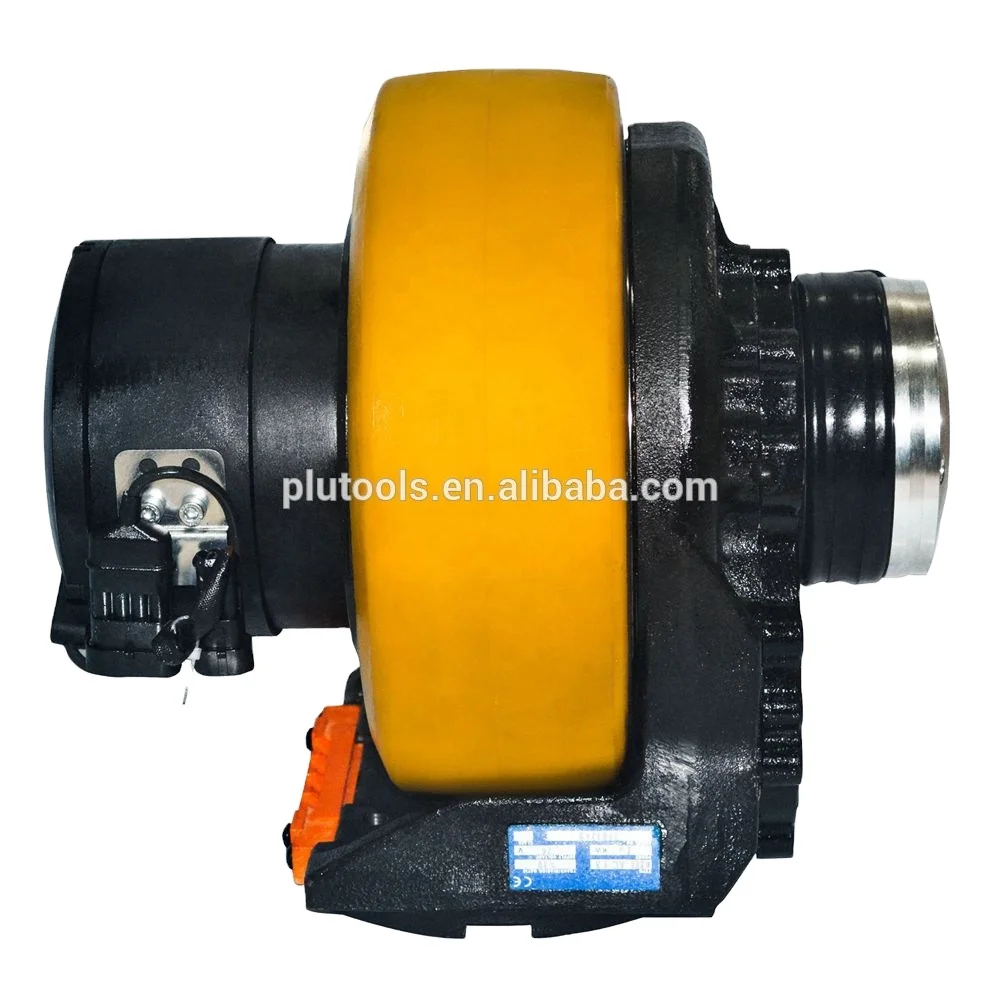

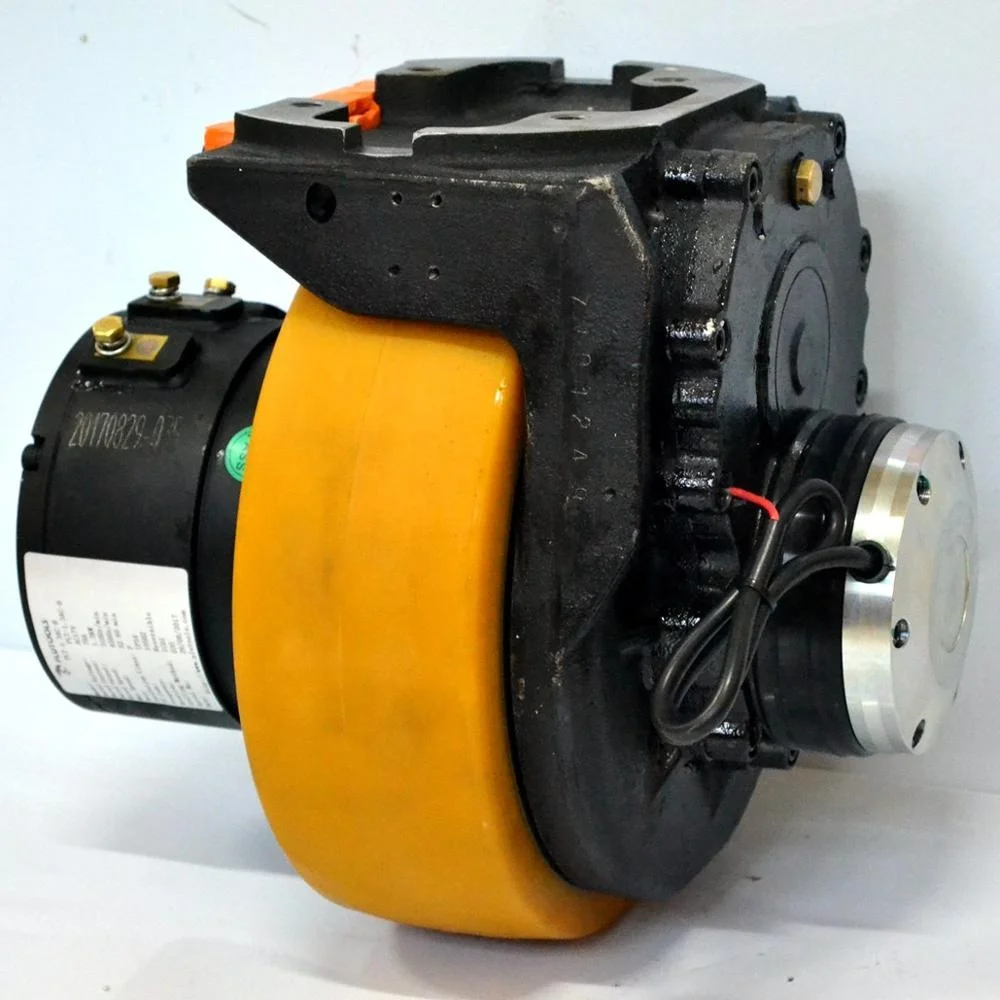

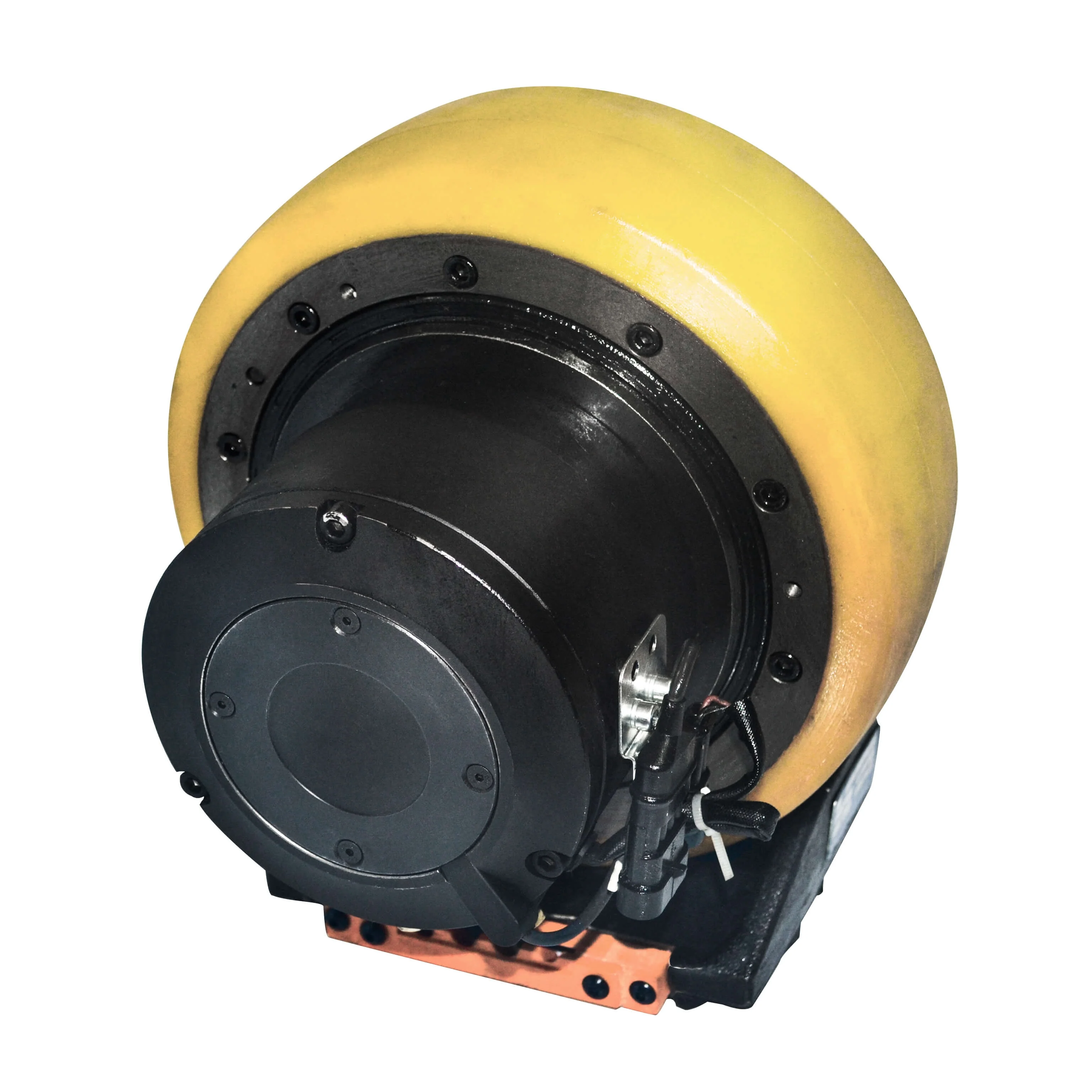

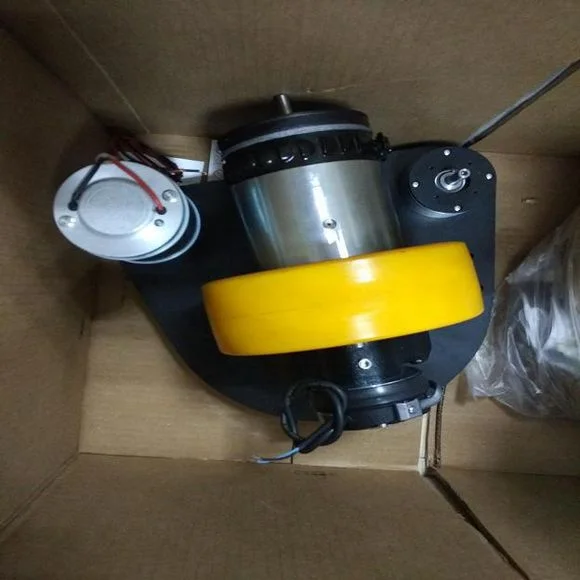

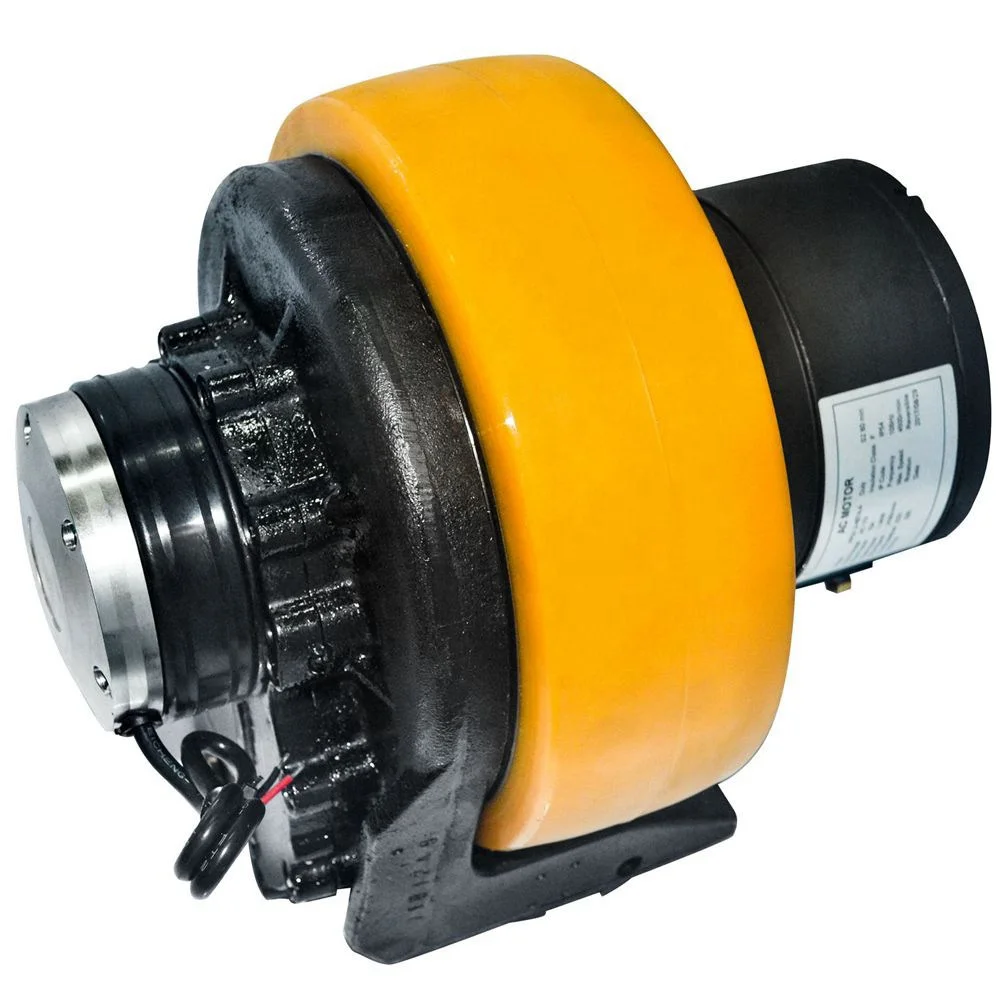

48 v 750 W Brushed DC Motor Horizontal Vertical Drive Wheel Assembly for AG V transportation
- Category: >>>
- Supplier: Shanghai Plutools Automation Corporation Limited
Share on (1600543262459):
Product Overview
Description
Product Description
Specification
Traction motor type | Brushed DC |
Rated Power（S2-60 minutes）（W) | 750 |
Battery voltage | 48 |
Traction motor rated speed（RPM) | 2650 |
Traction rated current（A) | 22 |
Traction motor torque（Nm） | 2.7 |
Traction gear ratio | 24.69 |
Traction gear torque（Nm） | 53 |
Wheel diameter（mm） | 210 |
Wheel width（mm） | 76 |
Mounting height（mm） | 240 |
Max.load(kg) | 660 |
Max.speed(m/s) | 1.18 |
Weight | 28 |

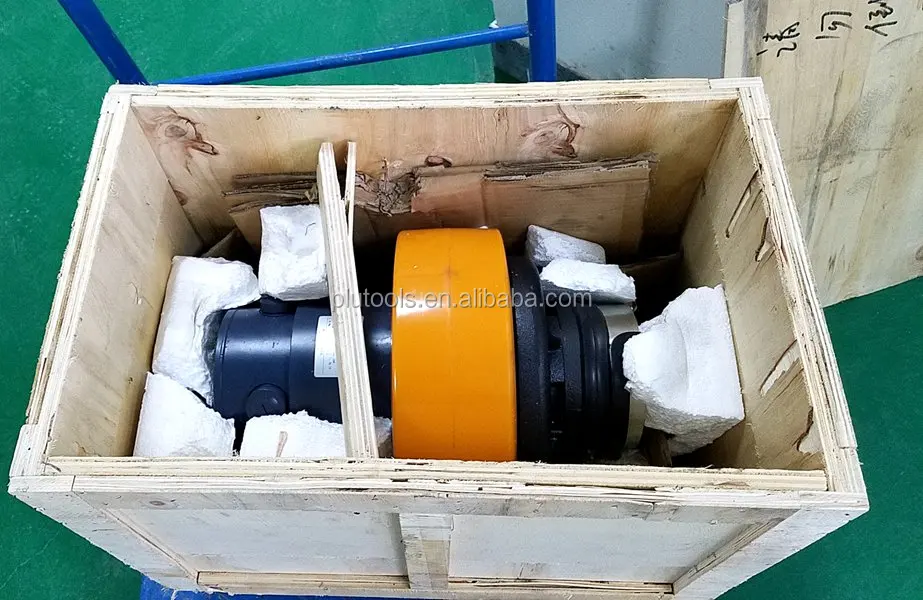

Packing & Delivery
wooden box
Company Profile
Plutools has one of the strongest R & D teams in automation industry. That team consists of more than 15 R & D engineers and all of them are highly educated with most of them carrying PhD & Master degrees in controls, electrical & electronics engineering,mechanical engineering, computer engineering, and computer science.
Based on the latest technology, Plutools is capable of designing world-class products which can meet high requirements of our customers.
Superior Product Quality
All products offered by Plutools are at industrial quality level and have proven records of successfully implemented in tens of industries by hundreds of clients in the world. They are made of high quality materials in strictly controlled manufacturing and quality control processes. All product is subject to 100% electrical testing and 100% visual inspection under the responsibility of Production Management.All Plutools products are CE certified
Highly Cost-effective
Plutools understand that cost is one of the most important factors that all clients will consider, while product quality can be guaranteed. With multiple manufacturing facilities in China, annual sales of our products allows us to buy high quality materials and components in the lowest prices and pass the cost savings to our customers.
Wide Product Choices
With many choices of models and types, Plutools product lines covers AC/DC motors, motor drive system,horizontal/vertical motor in wheel units, differential drive steering system.
Professional Technical Support and Customer Services
Staffed with a highly professional and experienced application support team, Plutools can help in the whole process of product development, including initial application evaluation, product selection, design help & suggestion, and technical support. Our expertise and experience allow us to help clients to produce competitive high quality machines in their industries.
Guaranteed Product Quality
All products sold by Plutools, authorized distributors come with 12 months warranties. We also provide product repairing or replacement services to worldwide customers
Based on the latest technology, Plutools is capable of designing world-class products which can meet high requirements of our customers.
Superior Product Quality
All products offered by Plutools are at industrial quality level and have proven records of successfully implemented in tens of industries by hundreds of clients in the world. They are made of high quality materials in strictly controlled manufacturing and quality control processes. All product is subject to 100% electrical testing and 100% visual inspection under the responsibility of Production Management.All Plutools products are CE certified
Highly Cost-effective
Plutools understand that cost is one of the most important factors that all clients will consider, while product quality can be guaranteed. With multiple manufacturing facilities in China, annual sales of our products allows us to buy high quality materials and components in the lowest prices and pass the cost savings to our customers.
Wide Product Choices
With many choices of models and types, Plutools product lines covers AC/DC motors, motor drive system,horizontal/vertical motor in wheel units, differential drive steering system.
Professional Technical Support and Customer Services
Staffed with a highly professional and experienced application support team, Plutools can help in the whole process of product development, including initial application evaluation, product selection, design help & suggestion, and technical support. Our expertise and experience allow us to help clients to produce competitive high quality machines in their industries.
Guaranteed Product Quality
All products sold by Plutools, authorized distributors come with 12 months warranties. We also provide product repairing or replacement services to worldwide customers
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer & Trading
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are wooden cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 6-8 weeks usually.
A1: We are manufacturer & Trading
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are wooden cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 6-8 weeks usually.
