fine tube heat exchanger Steam To Water Heat Exchanger for Milk Cooler
- Category: >>>
- Supplier: Shanghai Qingji Beverage Machinery Co. Ltd.
Share on (1600543265766):
Product Overview
Description
Product Description

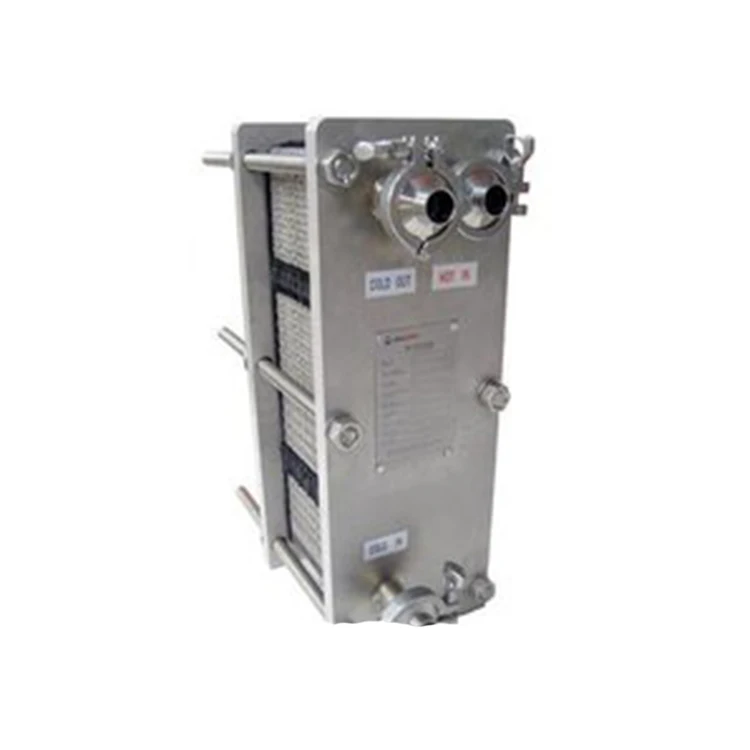

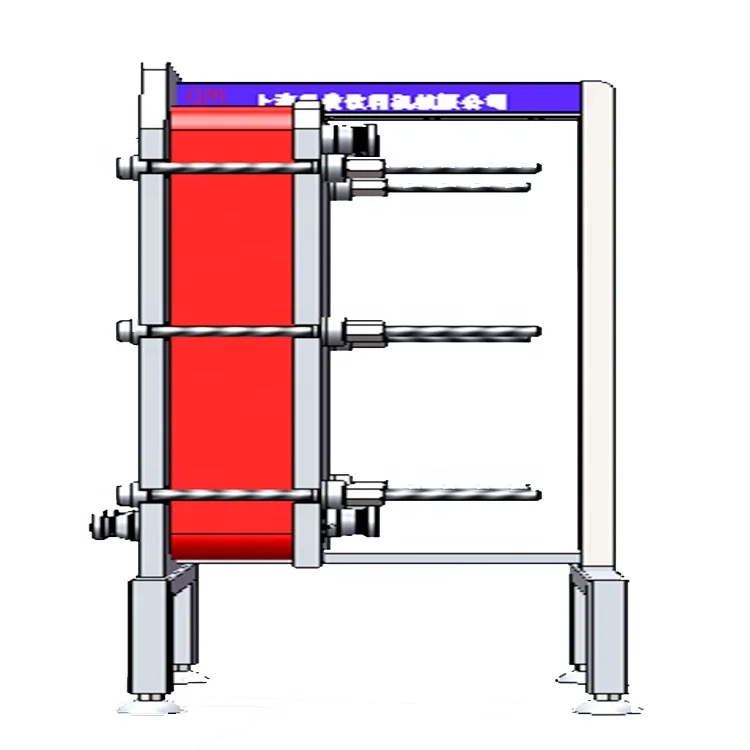

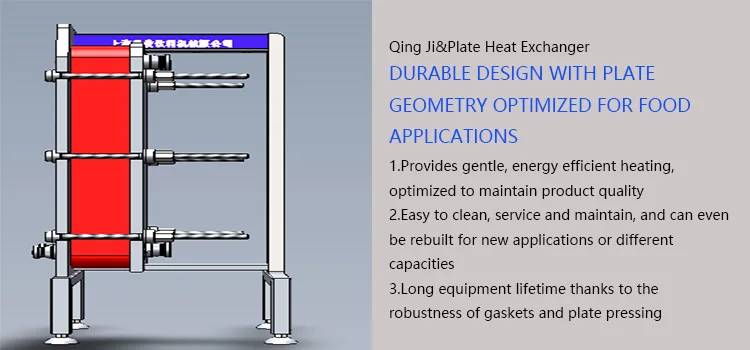

3t/h Steam To Water Heat Exchanger for Milk Cooler
Applicable range
| Single-section type plate heat exchanger | ||||||
| Type | Flux(L) | Area(m2) | Material Diameter (mm) | Medium Diameter (mm) | Dimension (mm) | weight (kg) |
| BR0.1-1-1B | 1000 | 1 | 25 | 25 | 350×210×600 | 60 |
| BR0.1-2-1B | 2000 | 2 | 38 | 38 | 600×285×810 | 85 |
| BR0.25-3-1B | 3000 | 3 | 38 | 38 | 600×285×810 | 95 |
| BR0.25-4-1B | 4000 | 4 | 51 | 51 | 600×470×1400 | 240 |
| BR0.25-5-1B | 5000 | 5 | 51 | 51 | 600×470×1400 | 250 |
| BR0.25-6-1B | 6000 | 6 | 51 | 51 | 600×470×1400 | 260 |
| BR0.25-8-1B | 8000 | 8 | 63 | 63 | 600×470×1400 | 280 |
| BR0.25-10-1B | 10000 | 10 | 63 | 63 | 600×590×1600 | 380 |
| BR0.25-12-1B | 12000 | 12 | 63 | 63 | 800×590×1600 | 400 |
| BR0.25-15-1B | 15000 | 15 | 63 | 63 | 800×650×1600 | 490 |
Related Product
Certifications
Company Information
Packaging & Shipping
Our Services
1)pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
2)After-sale service:
1. We provide long-term after-sale service.
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine
3) MOQ ?
Our MOQ is 1 set machine.
