low maintenance 100Ah LiFePO4 Car Start Battery Start stop high cranking Amps 10 years life LFP car battery
- Category: >>>
- Supplier: Shenzhen DJS Tech Co. Ltd
Share on (1600543272830):
Product Overview
Description
Products Description

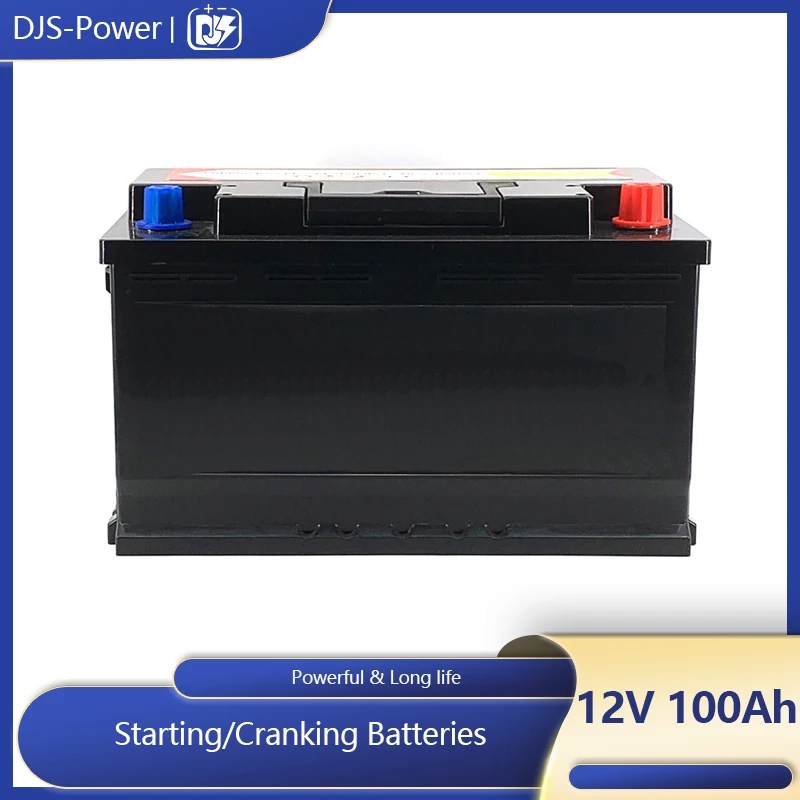

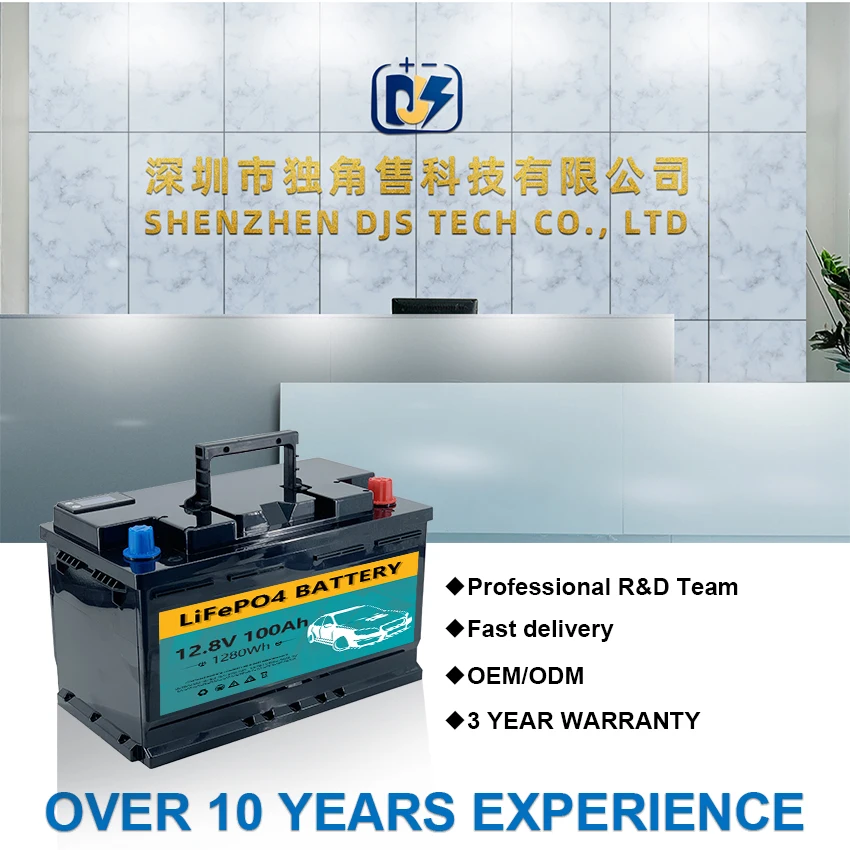

12V 100Ah LiFePO4 Cranking/Starting Battery
This 12V 100Ah LiFePO4 starting battery, with a super 100Ah capacity, has higher cranking power. Besides normal passenger car, it can be also used on heavy duty vehicles.
With 100Ah long endurance capacity, it's also ideal for SUVs, Camping cars, off-road cars, it can provide emergency energy while broke down or lost in the wild.
Features:
Features:

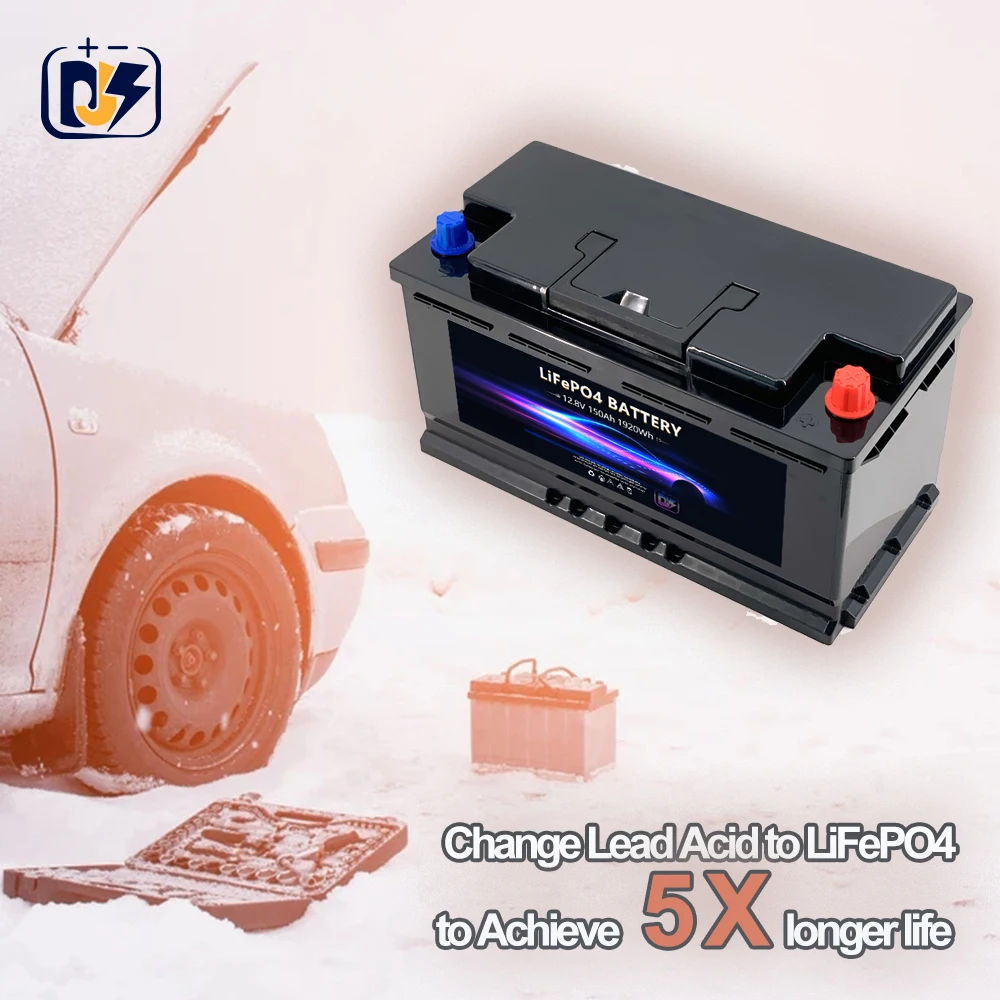

* Replace old SLA, achieve more power and longer using time;
* Has very light weight,only 1/3 of lead acid battery, approx 11kg, easy to be carried;
* LiFePO4 cell adopted, can be used for a very long time, around 5 years;
Datasheet
Technical Specifications | Model | DJS-12-100S |

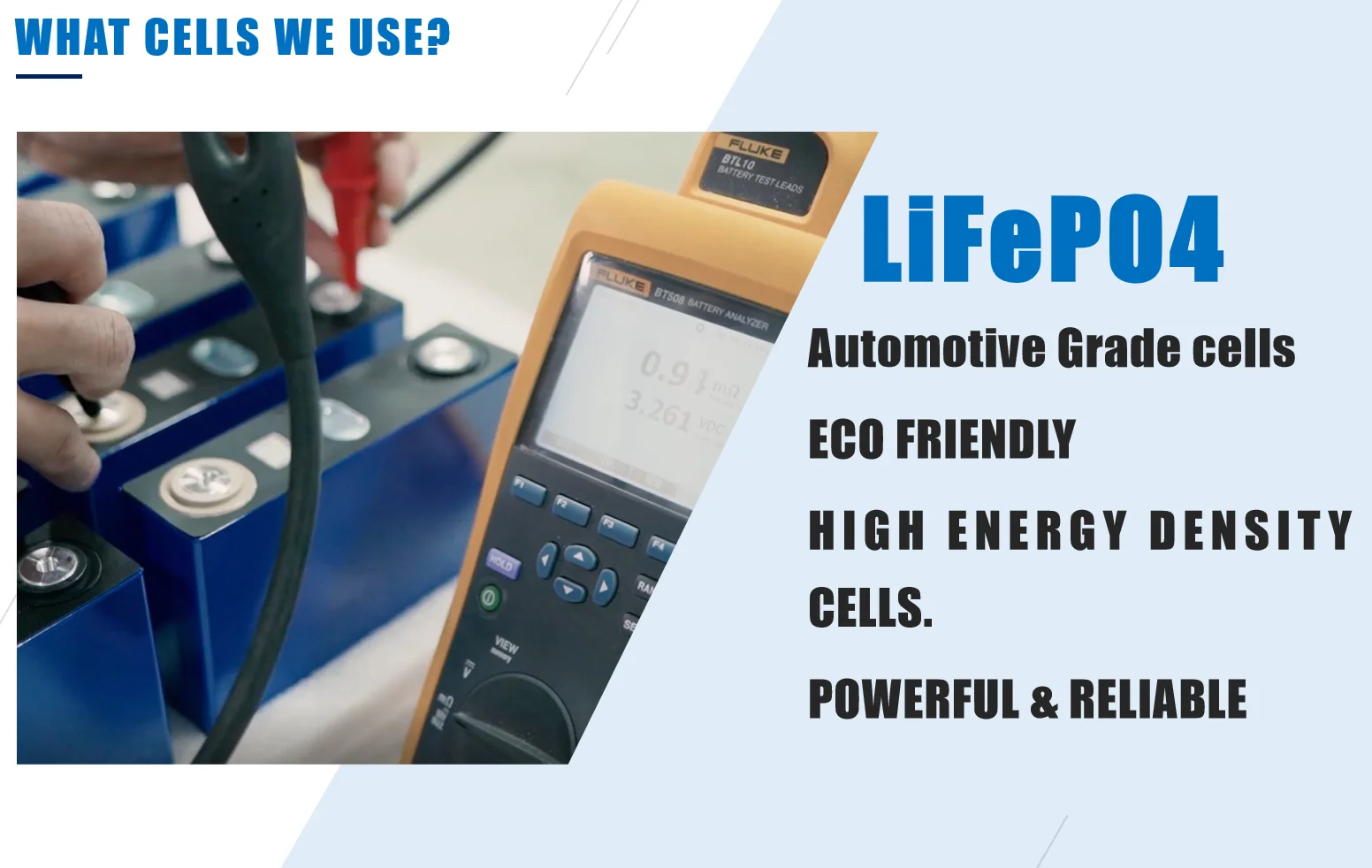

Cell Chemistry | LiFePO4 prismatic cell | |
Cell Configuration | 4S1P | |
Rated Capacity(Ah) | 100Ah @0.2C discharge rate | |
Nominal Voltage(V) | 12.8V | |
Rated Energy(Wh) | 1280Wh | |
Voltage Range(V) | 10V-14.6V | |
Cycle life | ≥4000 cycles @1C Charging/Discharging at 80% DOD | |
Charging | Standard Charge Current(A) | 0.2C |
Max. Charge Current(A) | 100A | |
Charge Condition | @0℃~55℃ | |
Discharging | Max. Discharge Current(A) | 100A |
Max Pulse Current(A) | 800A,3S | |
Discharge Condition | @-20~60℃ | |
Enclosure & Terminals | Dimensions | L318*W176*H187mm |
Enclosure | ABS,IP65 | |
Terminal | Left -, right +(customizable) |

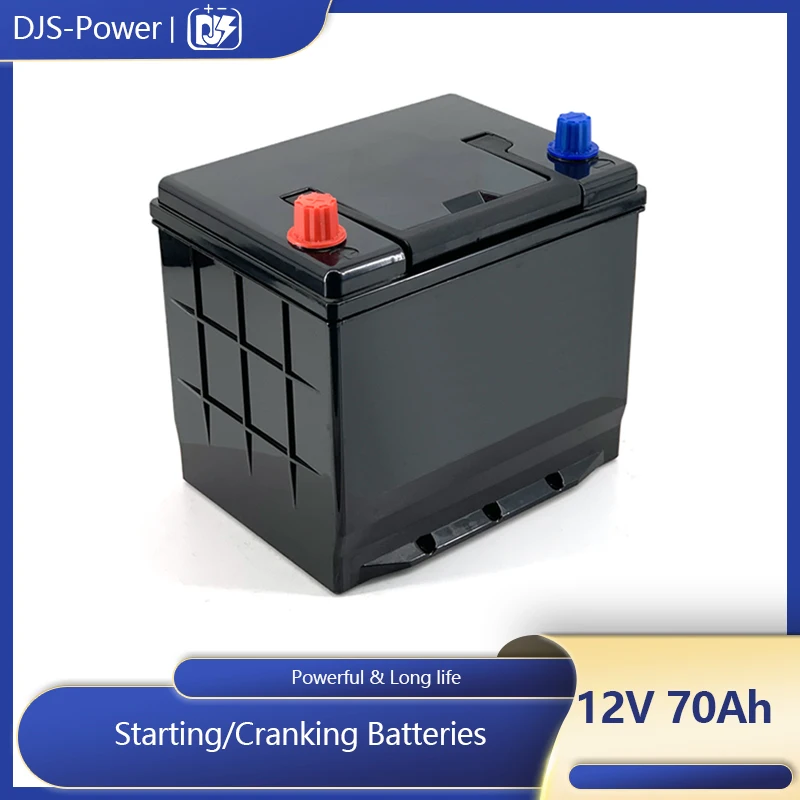

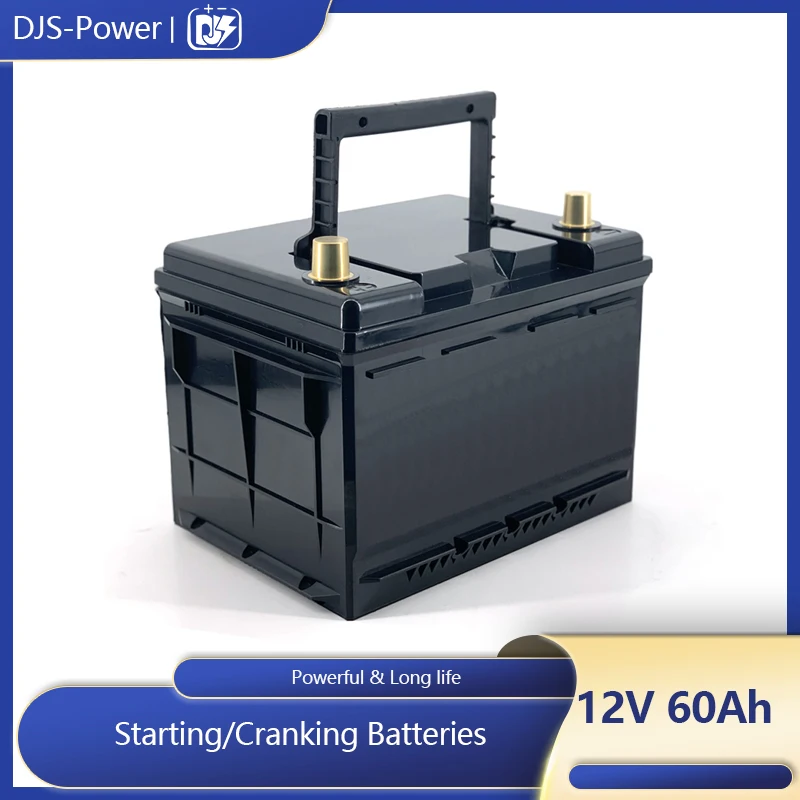

LiFePO4 Car Batteries Series
Model | Specs | Dimensions(mm) | N.W(kg) |

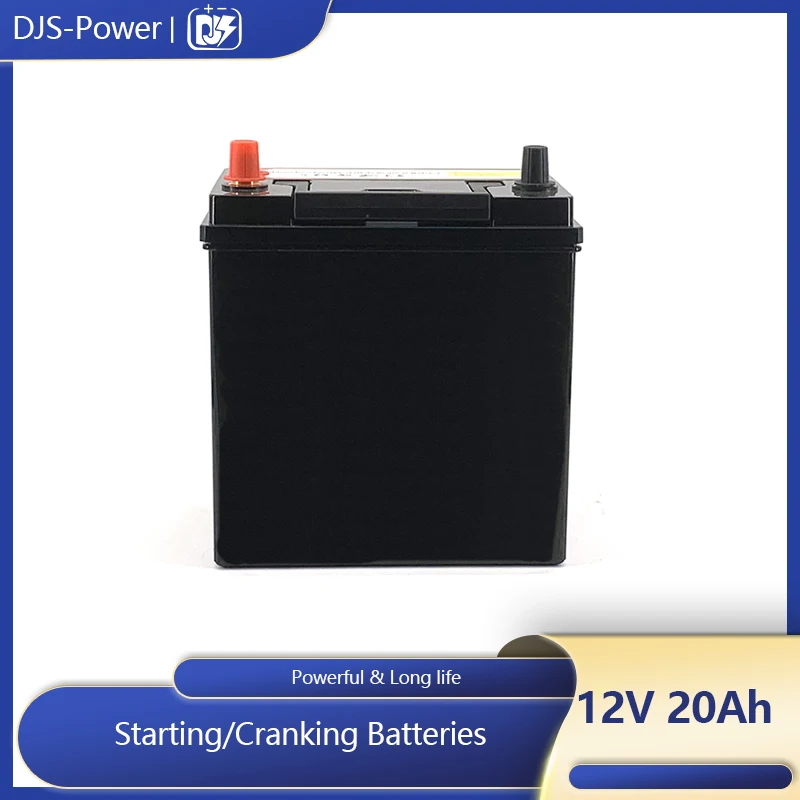

DJS-1220S | 12V 20Ah | L197*W128*H200/220 | 4 |

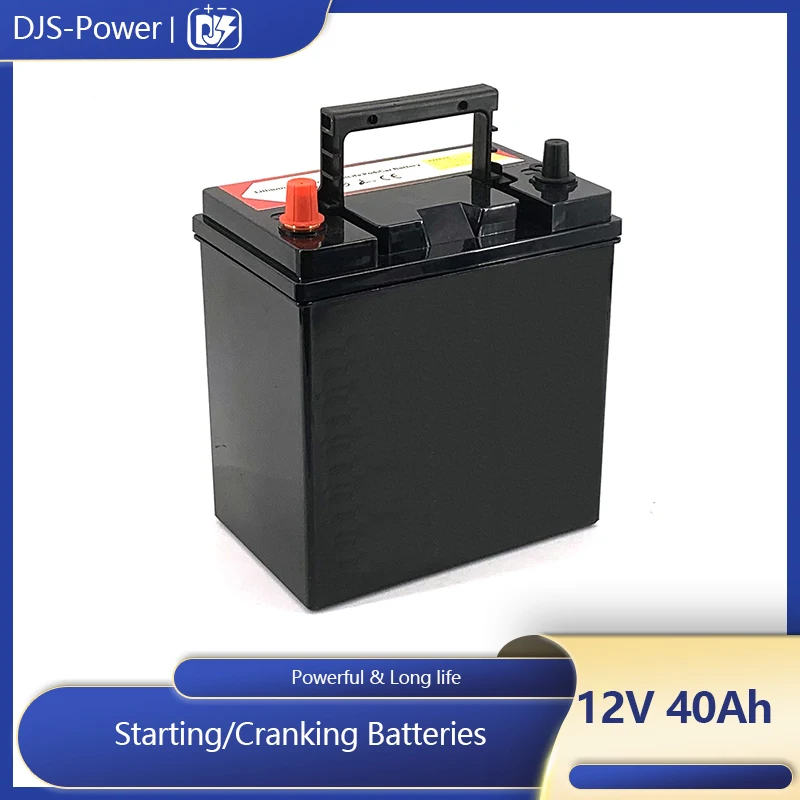

DJS-1240S | 12V 40Ah | L197*W128*H200/220 | 6 |

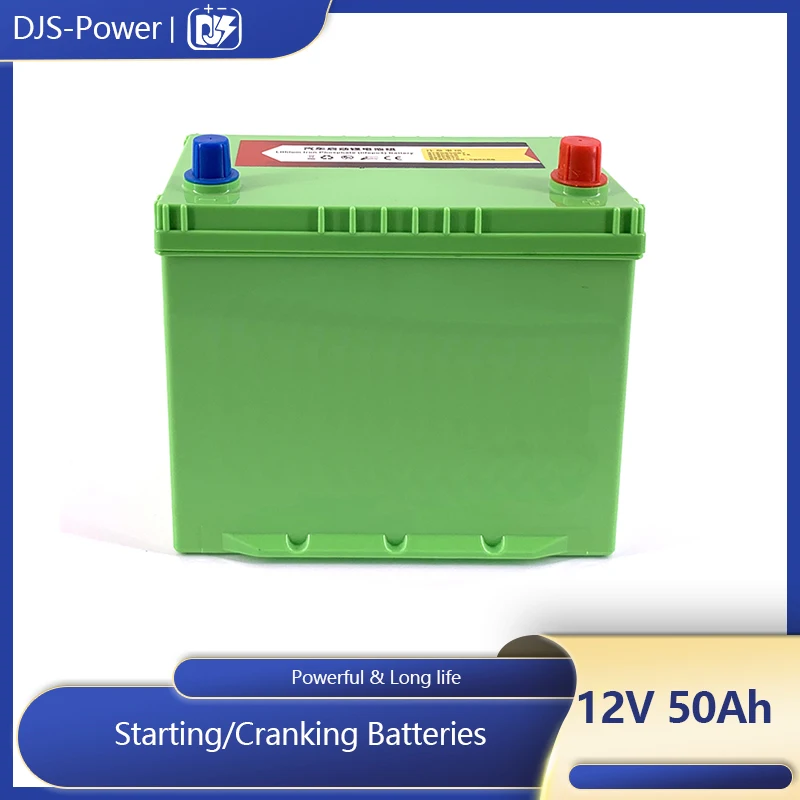

DJS-1250S | 12V 50Ah | L238*W133*H198/222 | 6.5 |
DJS-1260S | 12V 60Ah | L244*W176*H197 L242*W175*H162/183 L230*W174*H200/219 | 7 |
L230*W175*H181/200 L260*W175*H201/221 L278*W176*H172 | 7.5 | ||

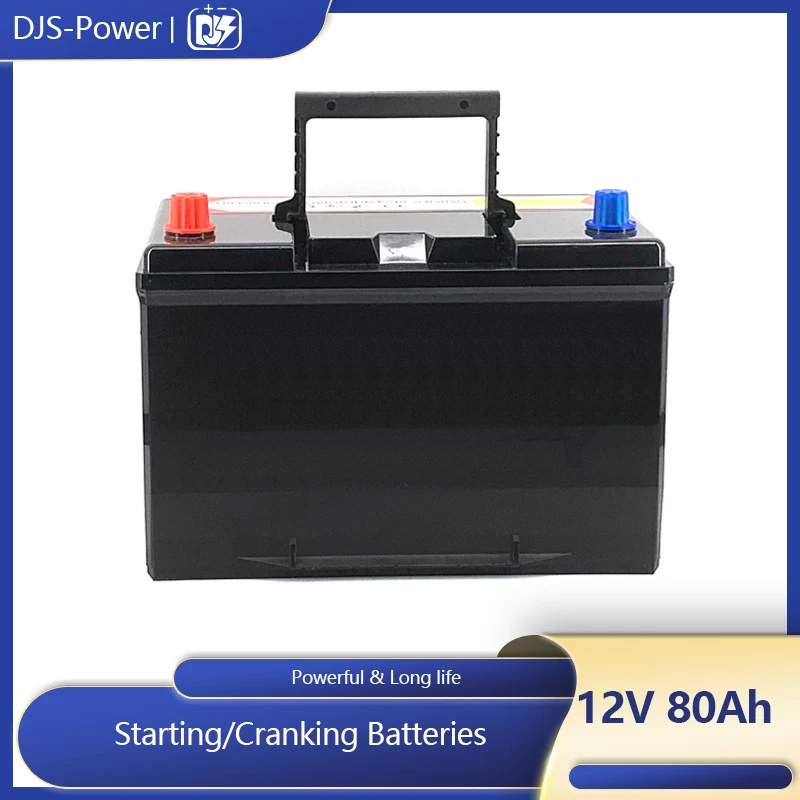

DJS-1280S | 12V 80Ah | L306*W174*H200/220 L279*W175*H189 | 9 |
DJS-1290S | 12V 90Ah | L318*W176*H187 | 9.5 |
DJS-12100S | 12V 100Ah | L318*W176*H187 | 10.5 |

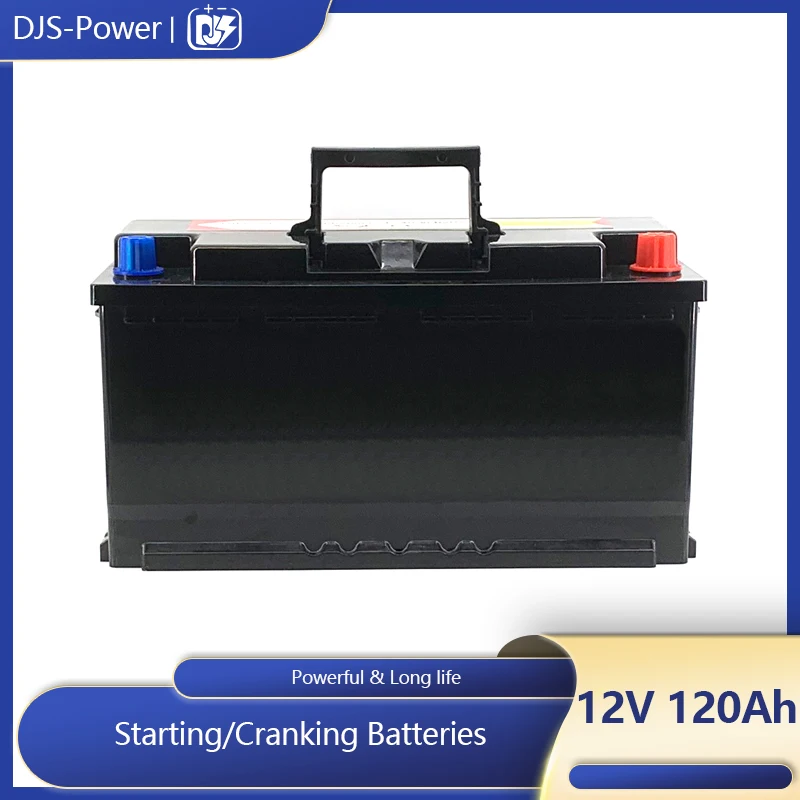

DJS-12120S | 12V 120Ah | L355*W175*H188 | 13 |
DJS-12135S | 12V 135Ah | L230*W174*H200/219 | 14 |
DJS-12150S | 12V 150Ah | L355*W175*H188 | 15 |
Above are our regular car starting batteries, we support customization, customize them to be used on boat or other motor cranking.
COMMON SHELL SHAPE
We have developed a variety of shapes based on common application scenarios.
I want to change a box
Company Profile
Shenzhen DJS Tech Co., Ltd is a professional Lithium Battery Manufacturer, specialized in the design and producing LiFePO4 battery pack and system, having 12 years of R&D experience, and various kinds of energy storage/EV power battery system producing experience.Our annual output is 50MWh, have been exported to more than 50 different countries.
Our main products including Lithium Deep Cycle batteries for solar system/RV/marine/off-grid uses, high burst cranking/ starting batteries for car/boat, Lithium ESS for industrial & residential use, Power Battery system for forklift/golf cart/high voltage vehicle and so on.
For technology, We focus on reliable long cycle life LiFePO4 batteries,having a professional engineer team and a strict QC team, to ensure valuable and high quality products.Currently,we can support CANBUS/ RS485/ RS232 communication solution, complete EV class BMS system to meet smart home solar system & high voltage Electric vehicle system, we also developed battery self-heating and low temperature protection function to solve battery environment problem and extend battery’s lifespan.
For Certificate, As factory, we can support complete battery certificate for shipment,sale and so on. Such as: CE,UN38.3, MSDS,Transport Report,DG packaging cert.,IEC,BIS,etc. We can also support new certificate testing for clients' customized products.
Our main products including Lithium Deep Cycle batteries for solar system/RV/marine/off-grid uses, high burst cranking/ starting batteries for car/boat, Lithium ESS for industrial & residential use, Power Battery system for forklift/golf cart/high voltage vehicle and so on.
For technology, We focus on reliable long cycle life LiFePO4 batteries,having a professional engineer team and a strict QC team, to ensure valuable and high quality products.Currently,we can support CANBUS/ RS485/ RS232 communication solution, complete EV class BMS system to meet smart home solar system & high voltage Electric vehicle system, we also developed battery self-heating and low temperature protection function to solve battery environment problem and extend battery’s lifespan.
For Certificate, As factory, we can support complete battery certificate for shipment,sale and so on. Such as: CE,UN38.3, MSDS,Transport Report,DG packaging cert.,IEC,BIS,etc. We can also support new certificate testing for clients' customized products.
Customization
As specialized battery factory, our company support OEM/ODM customization.Besides appearance changing, we can also support technical customization, like CANBUS/RS485/RS232 communication, smart Blue tooth function, high voltage battery system solution,and low temperature protection function.
We can do batteries:
Voltage: 12v~700v;
Capacity: 20Ah~1000Ah.
Application: Solar system, RV, Marine, off-grid, Golf cart, Forklift, ESS.
Voltage: 12v~700v;
Capacity: 20Ah~1000Ah.
Application: Solar system, RV, Marine, off-grid, Golf cart, Forklift, ESS.
PROJECT CASES
2019. 2MWh Container ESS for Factory
2020. 400KWh Lake Around Power Station
2017. Thailand Airport. Aircraft Tractor Battery Project
2016. Logistics Tractor Battery Case
Package & Delivery
All shipment are 100% inspected and packed according to DG packing requirement.
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
