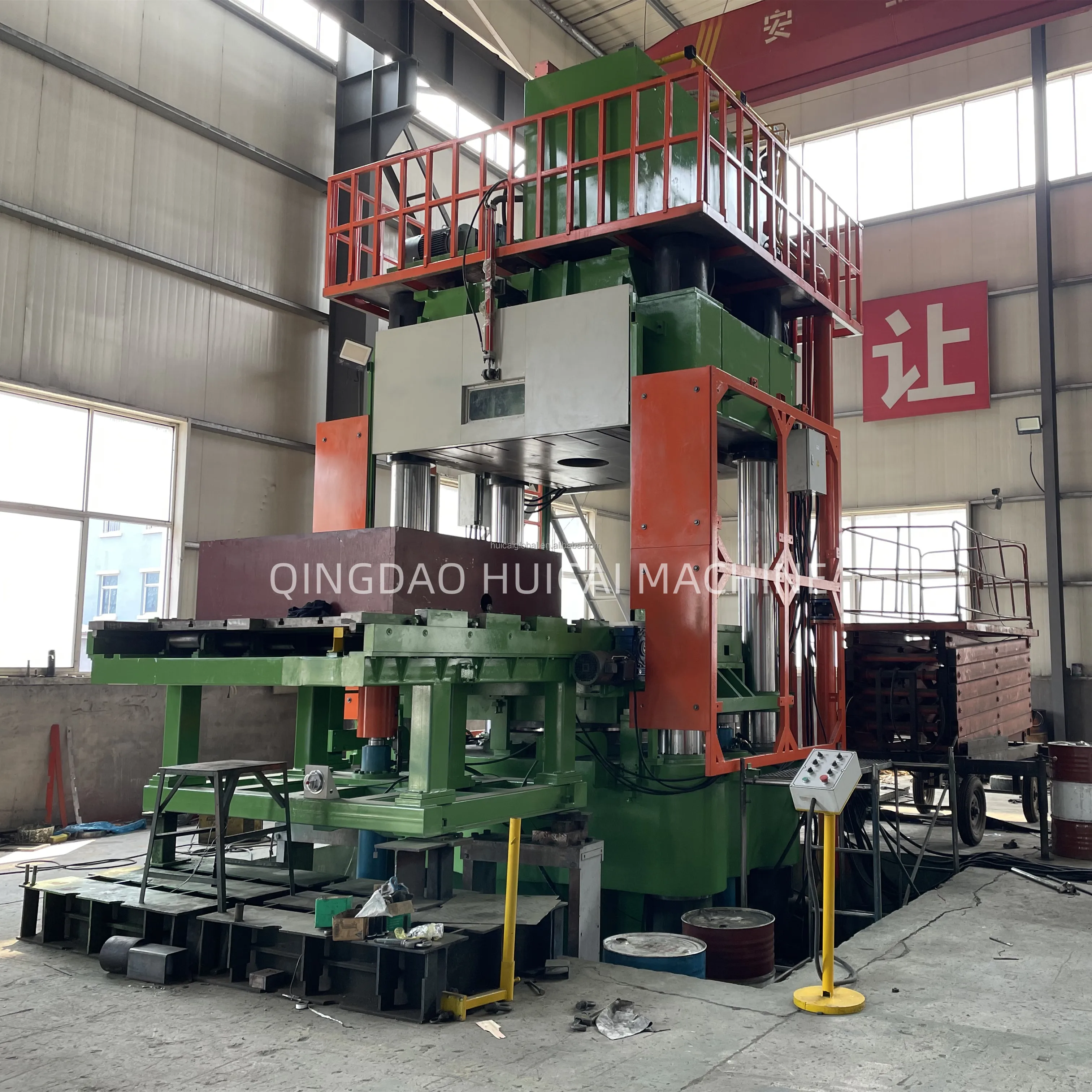

Hydraulic Tire Vulcanizing Machine Rubber Vulcanizing Machine
- Category: >>>
- Supplier: Qingdao Huicai Machine Manufacture Co. Ltd.
Share on (1600543284806):
Product Overview
Description
Product Description
Technical Parameter | ||||||
Type | XLB-D(Y)1000*1000*1 | XLB-D(Y)1200*1200*1 | XLB-D(Y)1500*1500*1 | |||
Nominal molding power | 1.60-2.00MN | 3.15MN | 4.00-5.00MN | |||
Working layer number | 1 | 1 | 1 | |||
Piston stroke | 250-500mm | 250-500mm | 250-500mm | |||
Main motor power | 3.0kW | 3.0kW | 3.0kW | |||
Plate clearance | 125-500mm | 125-500mm | 125-500mm | |||
Heating method | Steam,ecectricity | Steam,ecectricity | Steam,ecectricity | |||
Configuration | Frame | Frame | Frame | |||
Electric pipr heating power | 12kW | 15.6kW | 27kW | |||

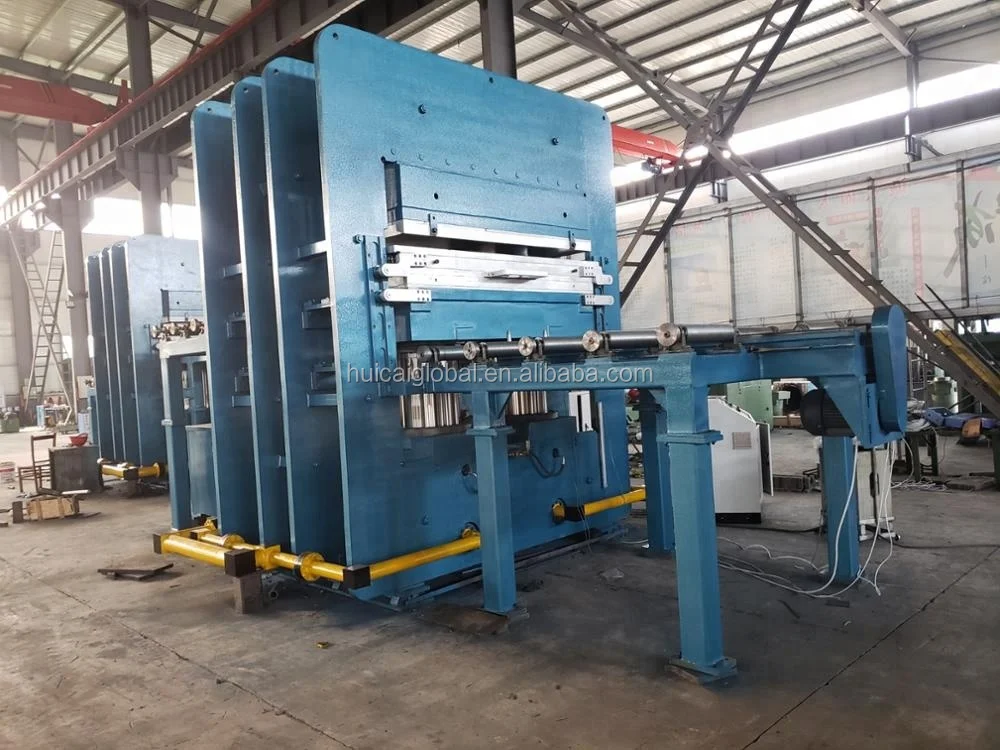

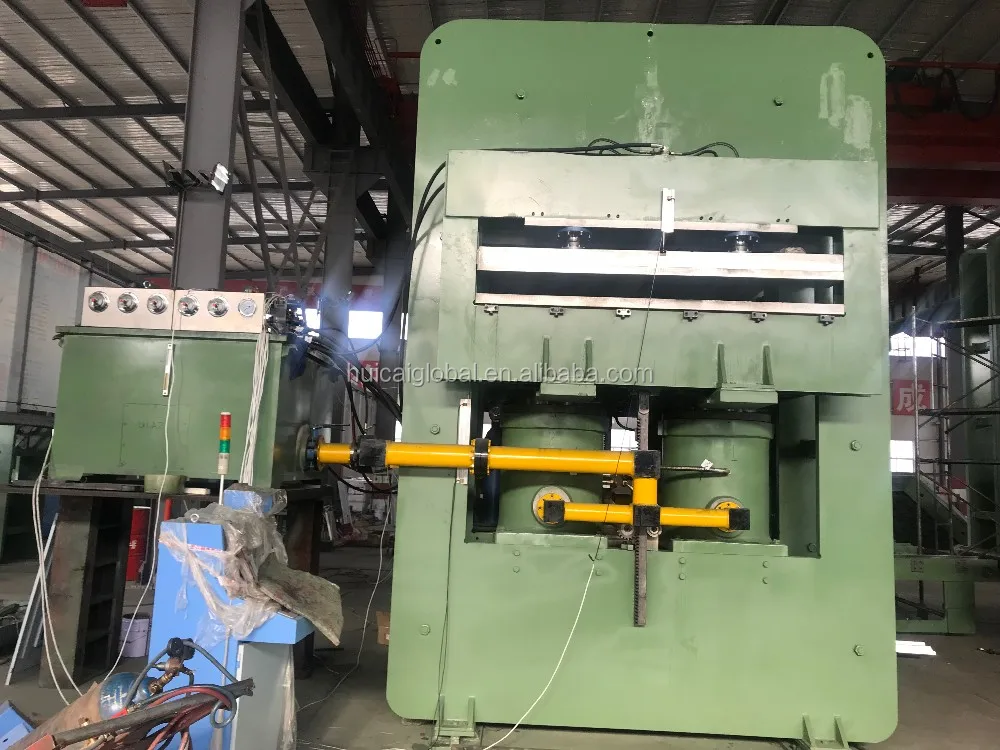

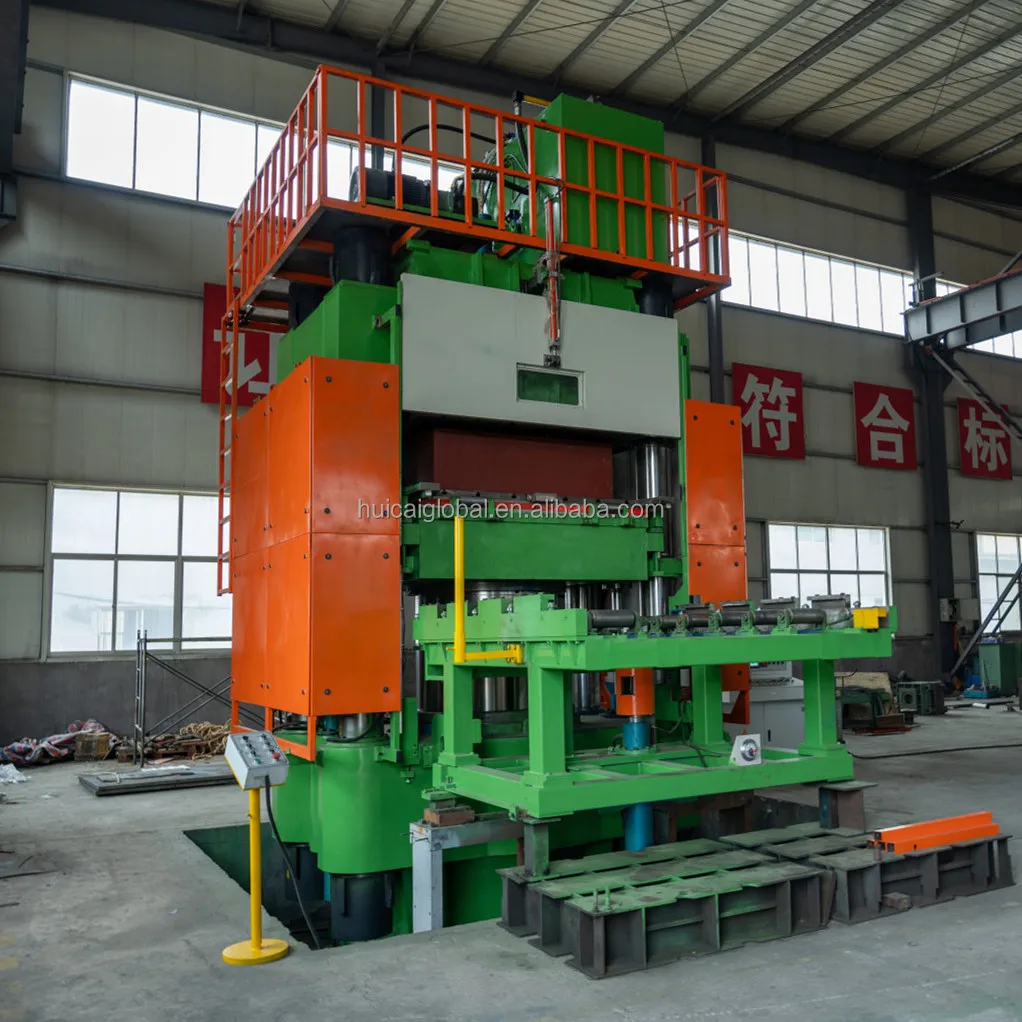

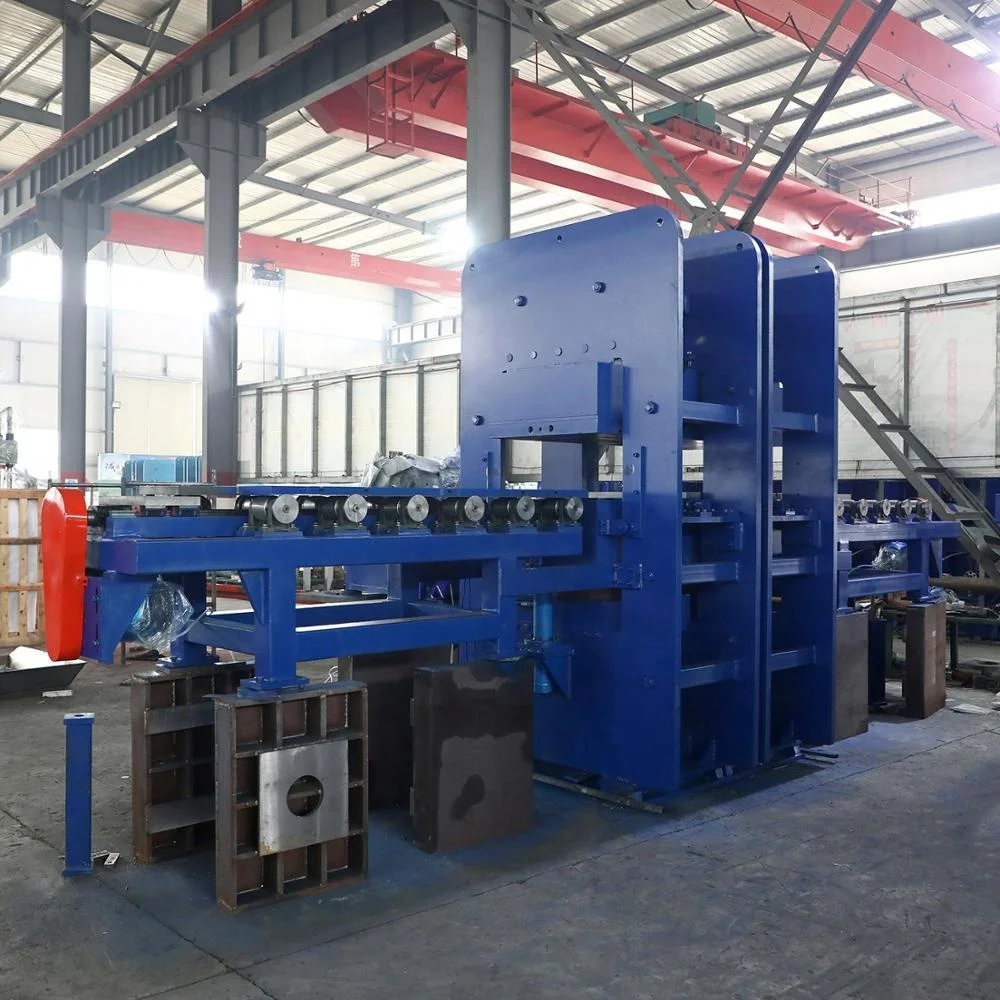

Machine Show

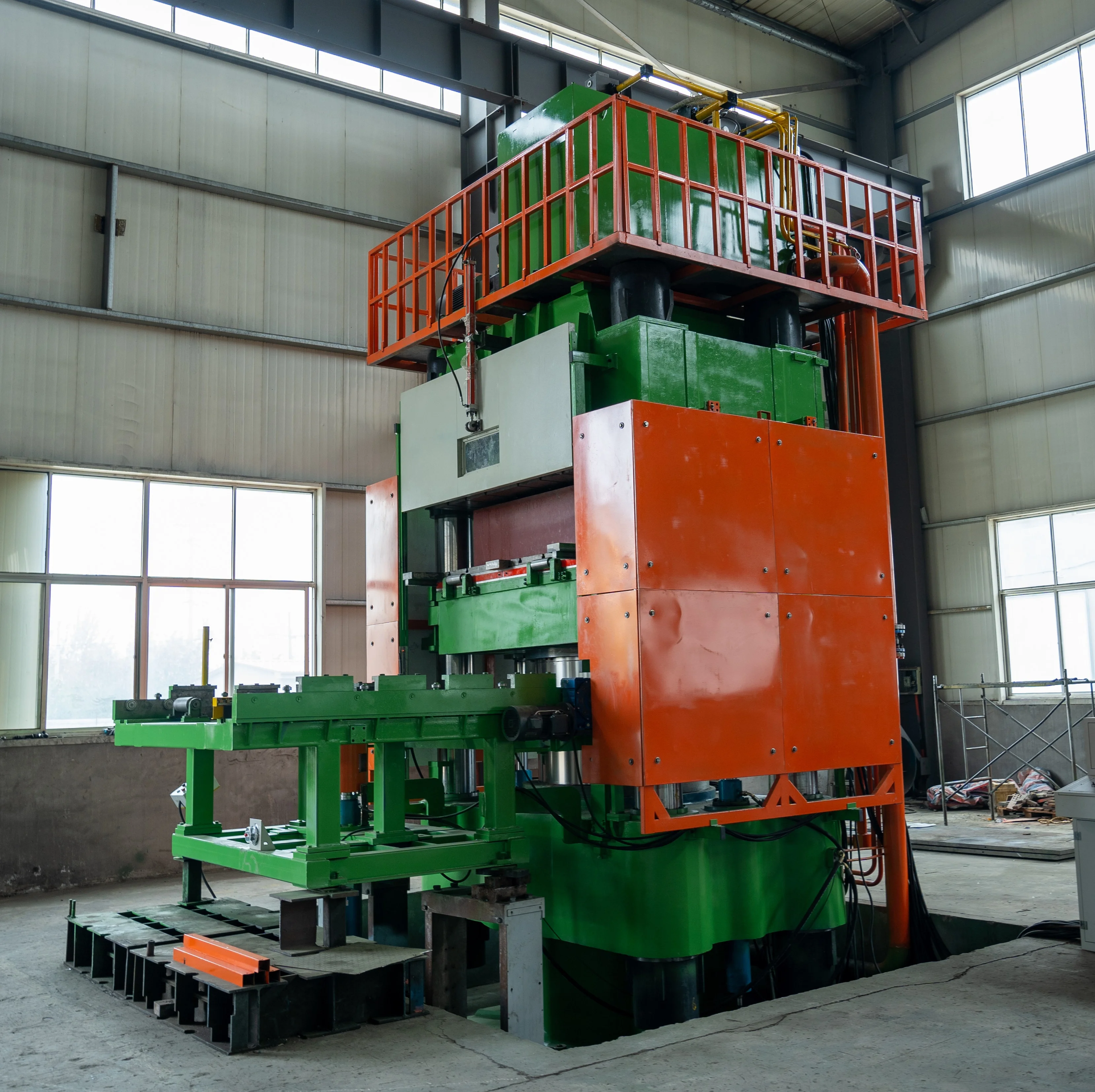

HYDRAULIC PRESS RUBBER MAT PRESS MACHINE

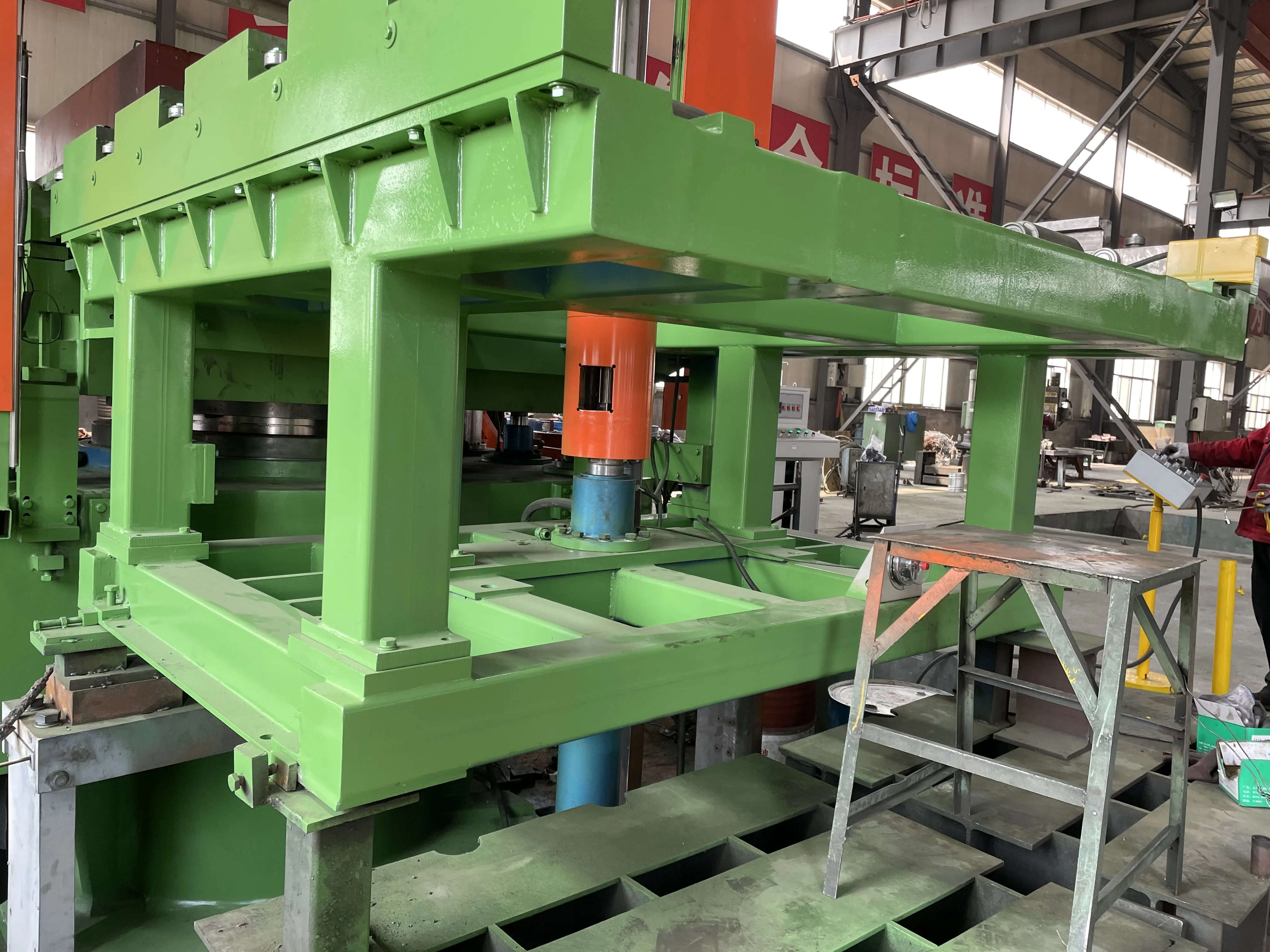

MAIN FRAME:
Using high-quality carbon steel plate Q235, welding forming structure. After eliminating stress, into the whole process.
OIL CYLINDER:
The material is QT500 or ZG270-500 or 45# steel .Use QT500 quality castings, can withstand 20MPa or more.
PUSH-PULL MOLD DEVICE:
This type can be divided into link chain,steel wire and air-operated three types.
GUIDE RAIL:
A groove or Ridge, made of metal or other materials, that can withstand, fix, guide and reduce friction in a moving device.
AUXILIARY CYLINDER:
The auxiliary cylinder can make the speed up,and can be high working efficiecy.
HYDRAULIC UNIT:
Hydraulic system is equipped with low-pressure pump and high-pressure pump. Used by the US company 116/237. The system has safety pressure limiting devices.
We can according to all your requirements , design your suitable machine
♥ If you are interested in our products, please contact me ♥
Company Informations
(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) one-year warranty and long-term technical support;
(5)Our company owned 2 process workershop,2 assembly workershop and total 40,000 squre meters.
(6)Our registered fund is USD 30,0000.00.
Workshop Show
