Full Automatic High Speed Extrusion Coating Laminating Machine for Paper Rolls Sack Rolls Non Woven Fabric Rolls
- Category: >>>
- Supplier: Wenzhou Haixin Machinery Co. Ltd.
Share on (1600543298118):
Product Overview
Description
Wenzhou Haixin Machinery CO., Ltd is a professional supplier of Extrusion coating laminating machine, Suitable paper rolls,non woven rolls,sack rolls,PP film rolls and so on.
Wenzhou Haixin Machinery CO., Ltd. have 12 years experience in export in PE coating machine ,Laminating Machine ,Paper cup Laminating machine,Sack bag Extrusion Coating Laminating Machine,Non Woven Extrusion Coating Laminating Machine,Single side extrusion lamination PE coating machine,double sides PE Extrusion coating
laminating machine and so on
laminating machine and so on
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including Europe, Poland, Serbia,Turkey, Russia,USA, Mexico, Brazil, India, Thailand ,Middle east and South Africa.

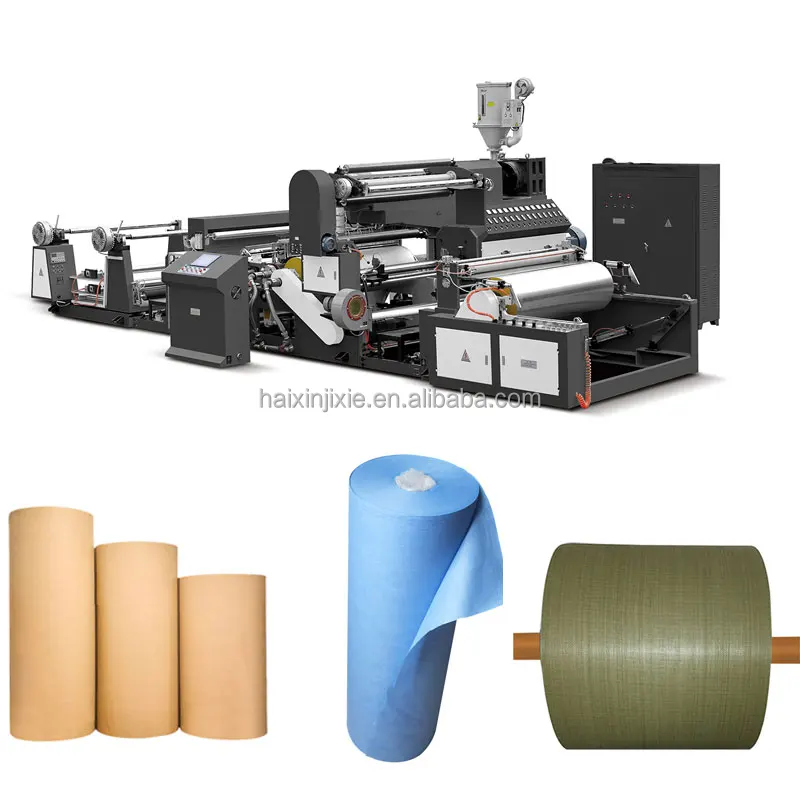

Extrusion Coating Laminating Machine
Automatic single side extrusion lamination pe coating paper machine is at the forefront of technology, boasting a high manufacturing quality with components suitable for processing paper, nonwoven fabric ,aluminium and so on. we has focused on high performance extruders with special screw design for a wide range of materials like PP, LDPE, LLDPE, PP, EVA, EAA. With customized
solutions including different layers, sizes and die widths.
Product Data
Max working speed: | 80~150m/min |
Max width of coating film: | 1600mm |
Thickness of coating film: | 0.008–0.11mm |
Inaccuracy thickness of coating film: | ±6% |
Setting range of Auto-tension : | 10-200kg/entire width (constant tension) |
Max extrusion: | 220kg/h |
Compound cooling roller: | Φ510×1700mm |
Total power： | about 150kw |
ACTURAL running power | 70KW |
Max rewinding diameter: | Φ1300mm |
Inside diameter of base material: | Φ76 |
Machine total weight: | about 18000kg |
Overall dimension: | 8800mm×9300×3250mm（L×W×H） |
Power: | 3 phase 380V 50Hz (three phase four wire system) |
Barometric pressure: | 6~8/kg/cm2 |
Water pressure: | 2~3kg/cm |

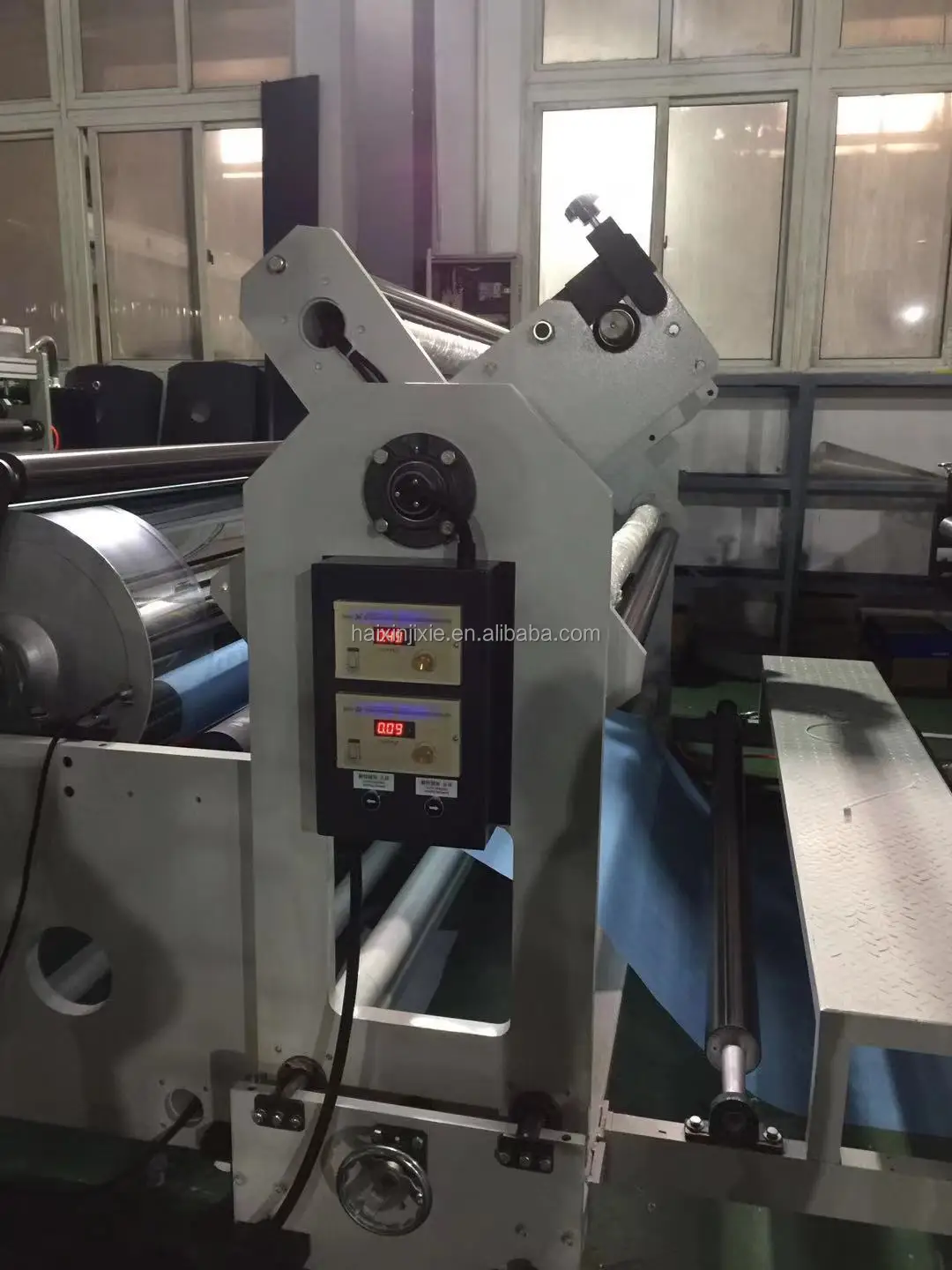

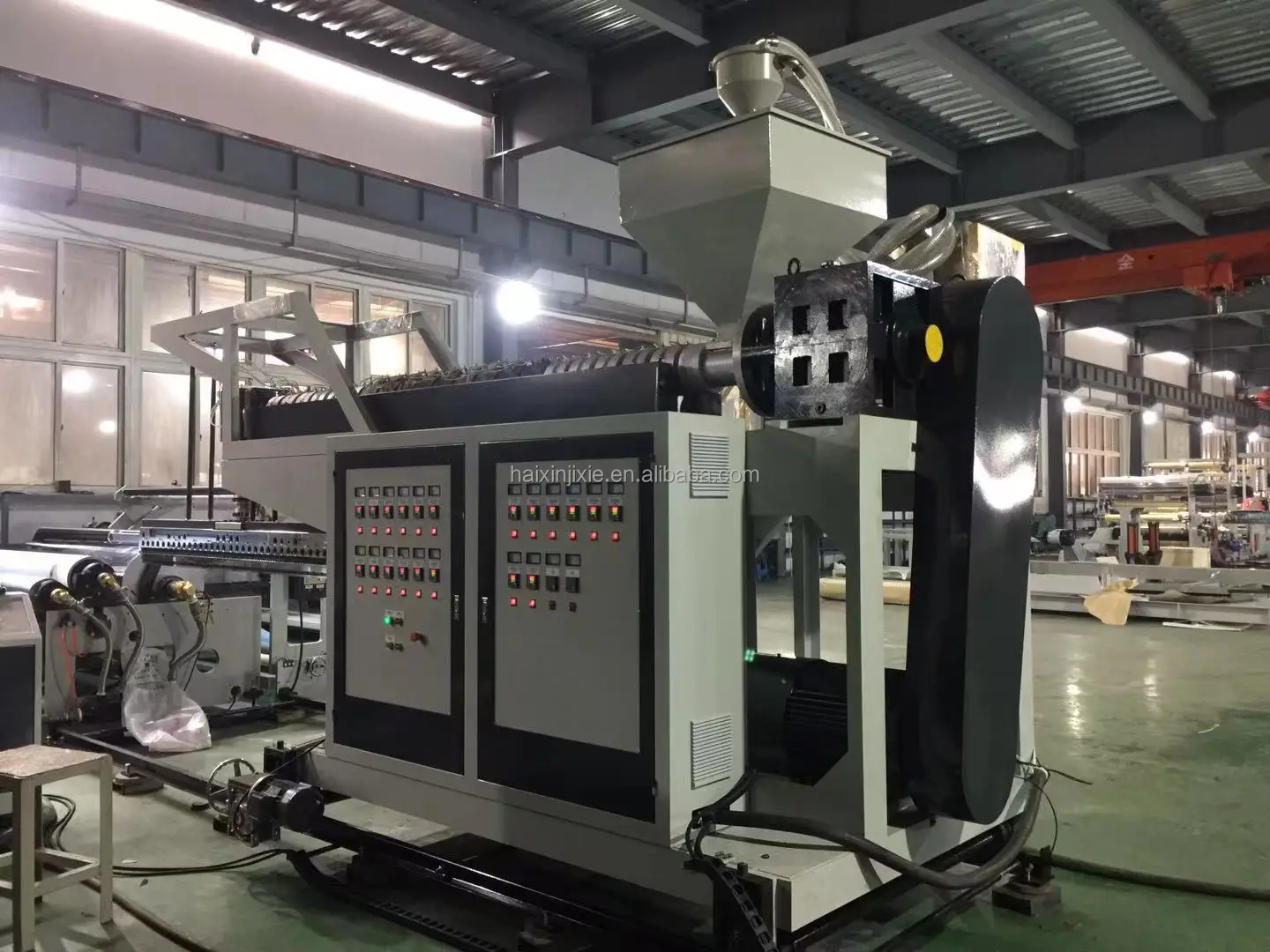

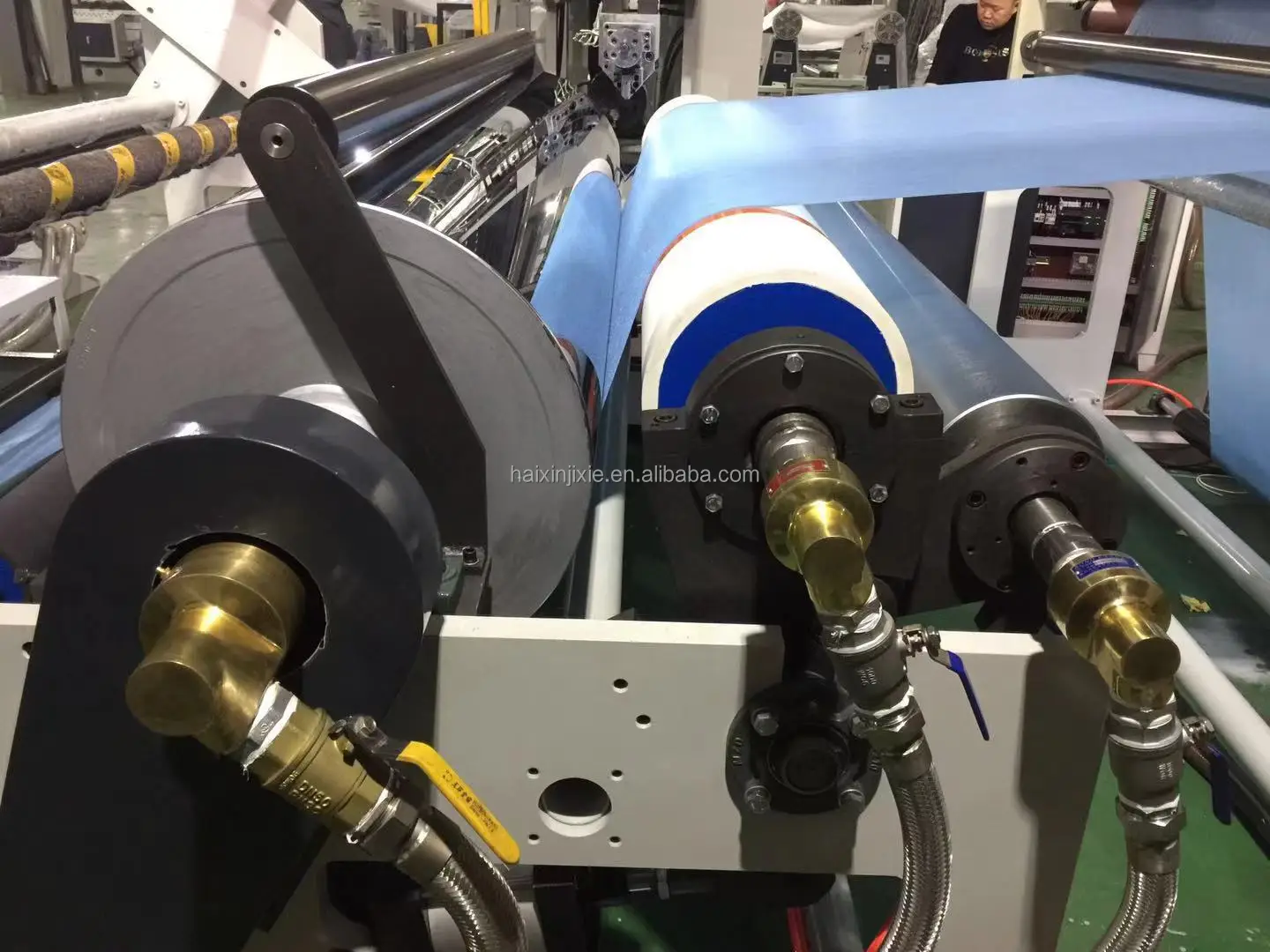

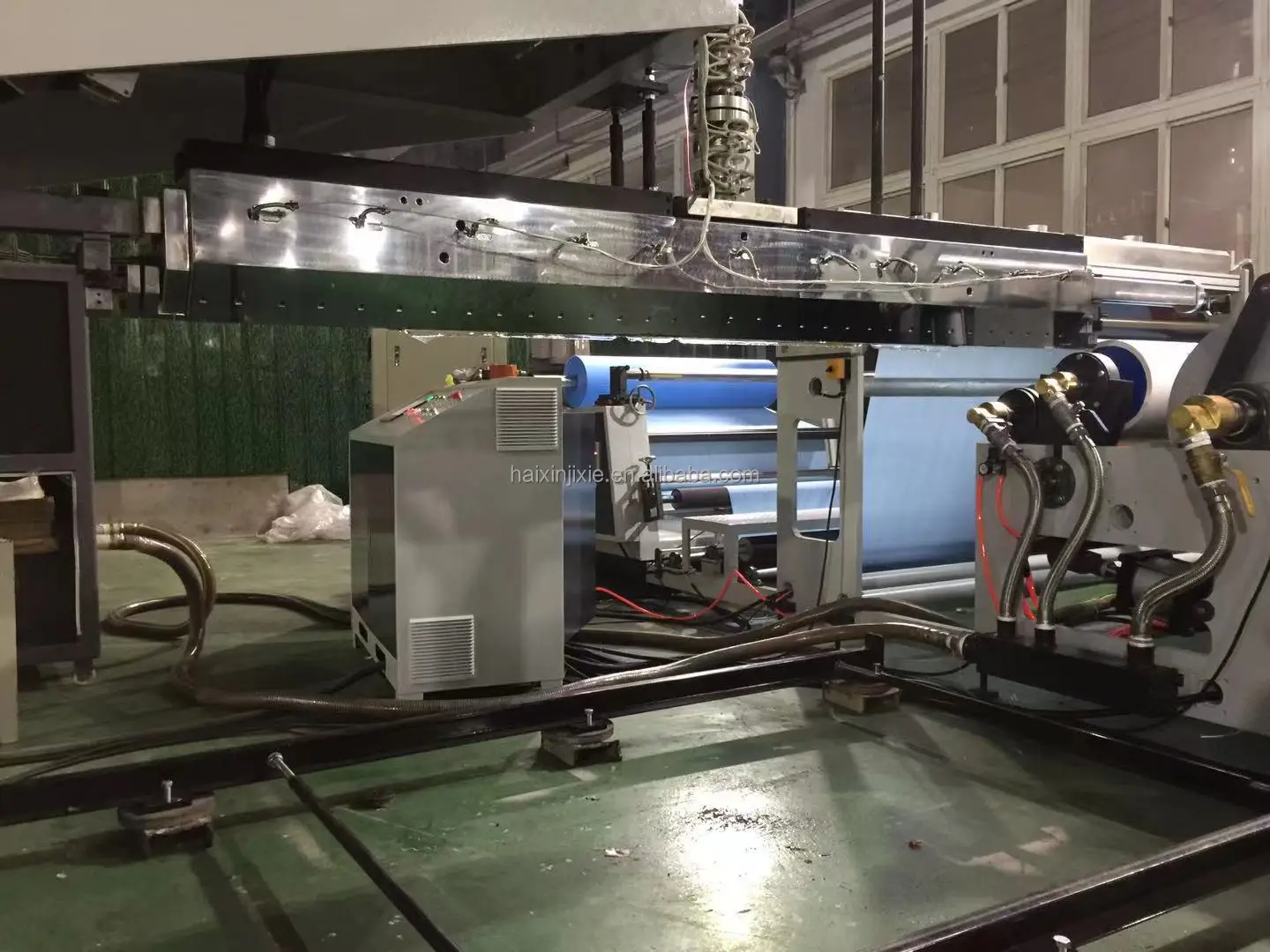

Extrusion Coating Laminating Machine Details Pictures
I am Jeanne.Nice to meet you,if you want to more details of Extrusion Coating Laminating Machine,please feel free to contact me ,attachment is my name card

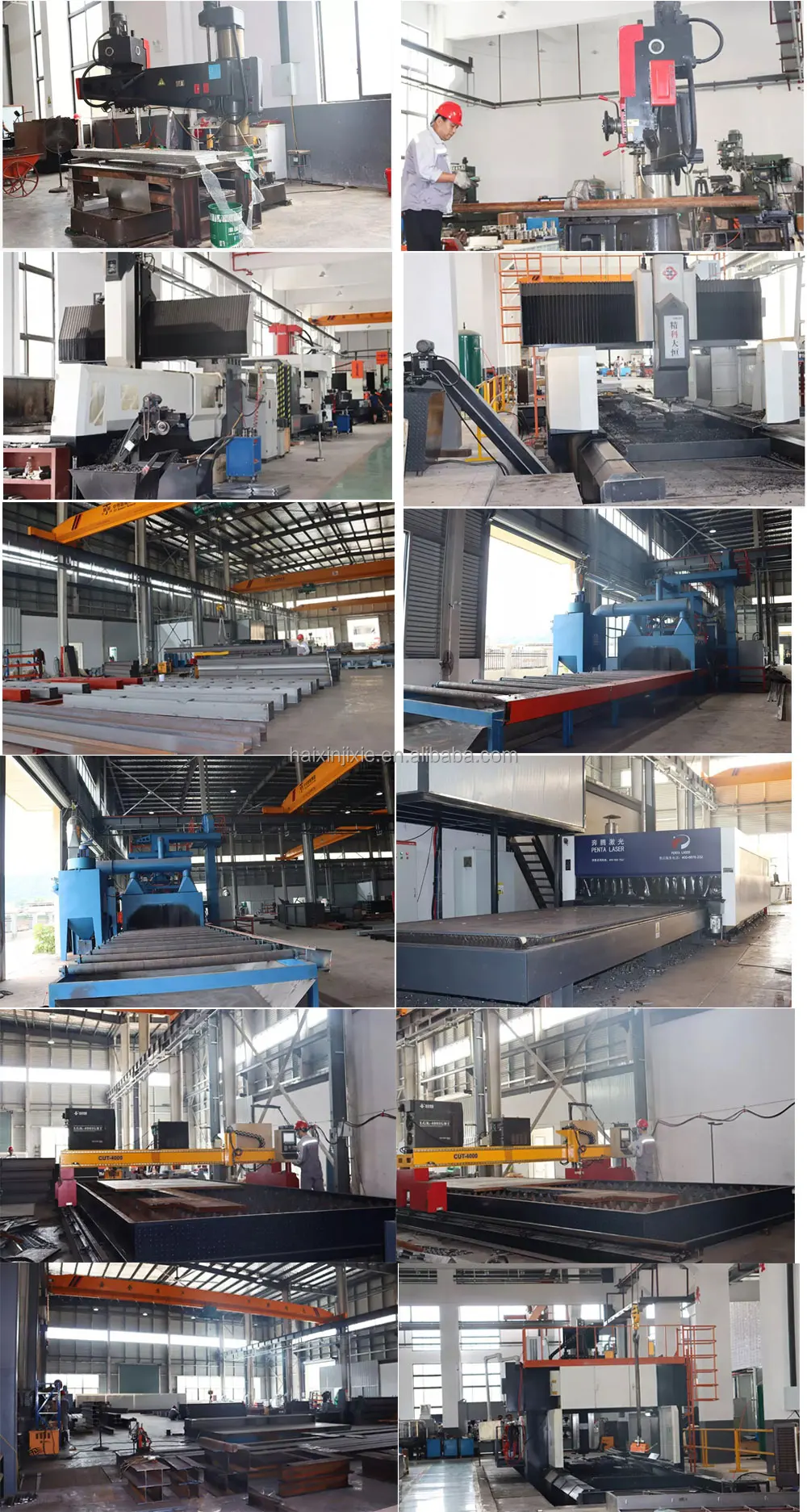

Factory overview

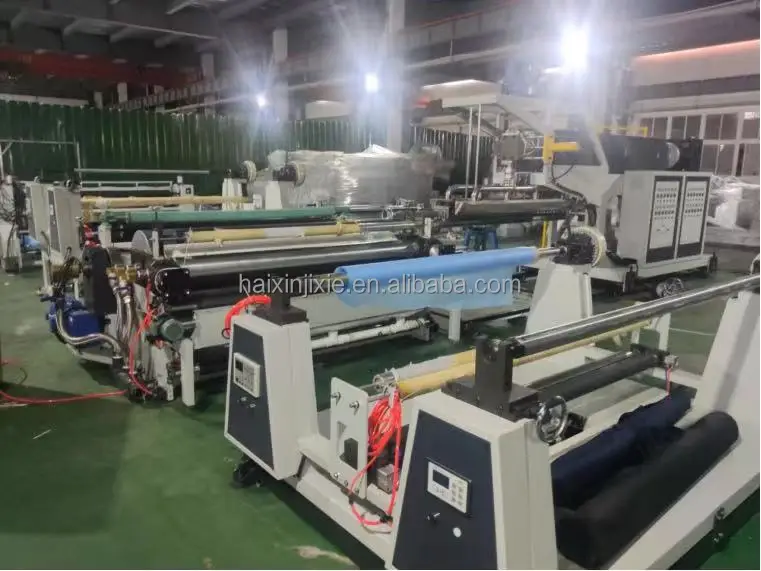

Customer Photos
FAQ
Q1-Are you a factory or trading company?
Q2-Where is your factory? How can i visit your company?
A2-HSENMACH located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). All our clients from home and abroad are warmly welcome to visit us.
Q3-What type of machine do you have?
A3-Suitable for all plastic bag making machines, such asshopping bags, diaper bags, express bags, self-supporting zipper bags,rolling garbage bags, bread bags, chicken bags, bubblebags, paper cups, paper bags, disposable machinery, etc...
Q4-How many years of your factory?
A4-HSENMACH MACHINERY setted up in1990.
Q5-What about your company The development of your company?
A5-HSENMACH Titled as “National key and new products” and Pass identification of the provincial new product; and honored as”patent model enterprise”
Q8-What is size of your factory?
A8-HSENMACH factory place have more than 8000 Square meters.
Q9-How about the payment term?
A9-For new customer, our payment termsis 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q10-What about your main market?
A10-Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseasmarket, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q11-How does your factorydo regarding quality control?
A11-Quality is the most important principle. GREAT WALL people always attach great importance toquality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q12-What aboutwarranty and do the engineers available to overseas?
A12-One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q13-What about the service after sale?
A13-One you have bought our machine, you cancall us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours andhelp you to slove the problem.
A1-We are established in 1990, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2-Where is your factory? How can i visit your company?
A2-HSENMACH located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). All our clients from home and abroad are warmly welcome to visit us.
Q3-What type of machine do you have?
A3-Suitable for all plastic bag making machines, such asshopping bags, diaper bags, express bags, self-supporting zipper bags,rolling garbage bags, bread bags, chicken bags, bubblebags, paper cups, paper bags, disposable machinery, etc...
Q4-How many years of your factory?
A4-HSENMACH MACHINERY setted up in1990.
Q5-What about your company The development of your company?
A5-HSENMACH Titled as “National key and new products” and Pass identification of the provincial new product; and honored as”patent model enterprise”
Q6-How many exhibition we took part in?
A6-We start to took part in CHINAPLAS from 2008 to now,and also K show in German,NPE in America,Arabplast in Dubai,Plastic Eurasiain Turkey etc..
Q7-How many workers from your company?
A7-HSENMACH has more than 200 employees.
A7-HSENMACH has more than 200 employees.
Q8-What is size of your factory?
A8-HSENMACH factory place have more than 8000 Square meters.
Q9-How about the payment term?
A9-For new customer, our payment termsis 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q10-What about your main market?
A10-Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseasmarket, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q11-How does your factorydo regarding quality control?
A11-Quality is the most important principle. GREAT WALL people always attach great importance toquality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q12-What aboutwarranty and do the engineers available to overseas?
A12-One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q13-What about the service after sale?
A13-One you have bought our machine, you cancall us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours andhelp you to slove the problem.
