SPECIFICATIONS

Item Series No:M14    center lock (Retchet system 36T)

---

Holes:28-248H

---

O.L.D:Front. 15*110mm boost  / Rear.12*148mm boost

---

Freebody:Shimano / XD/MS

---

Color:Black

---

Weight:

Front-Hub-15*110mm 136g ; Rear-Hub-12X148mm 214g(HG)/206g(XD) /213g(MS)



---

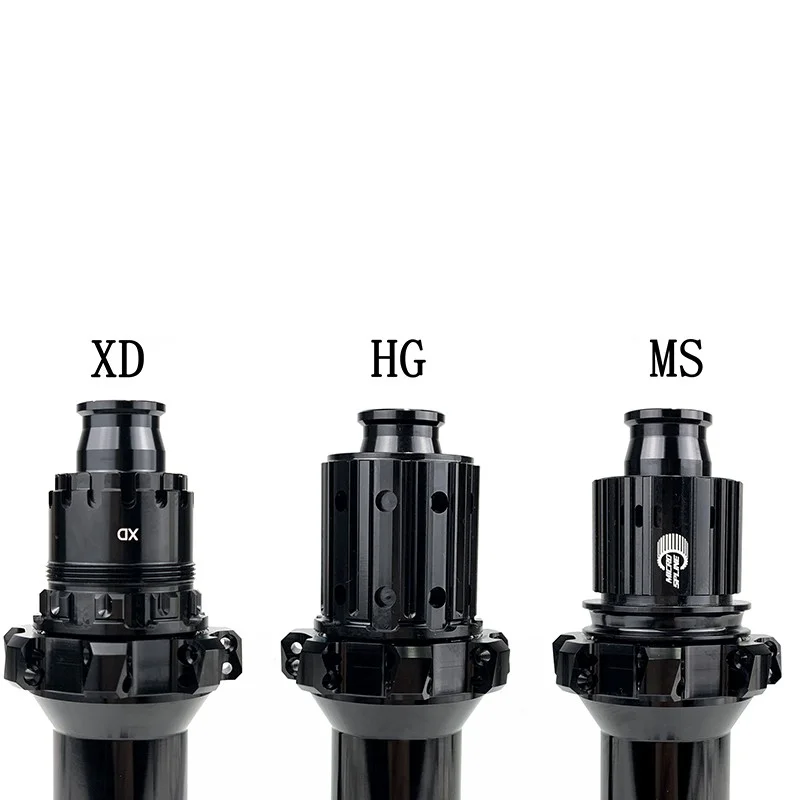

Three options for Freebody:Shimano 10 speed (HG) / SRAM XD 12 speed (XD) / shimano micro spline 12 speed (MS)



---

Spoke length for reference (straight pull)

Max for 2.3mm spokes



---

Spoke length for reference



---

ERD 527mm



---

Front brake side:268 other side:270



---

Rear brake side:270 driver side:268



---

ERD 542mm



---

Front brake side:272 other side:274



---

Rear brake side:274 driver side:272



---

ERD 552.6mm



---

Front brake side:275 other side:277



---

Rear brake side:277 driver side:275



---

ERD 590mm



---

Front brake side:300 other side:302



---

Rear brake side:302 driver side:300



---

ERD 580mm



---

Front brake side:292 other side:294



---

Rear brake side:294 driver side:292



---

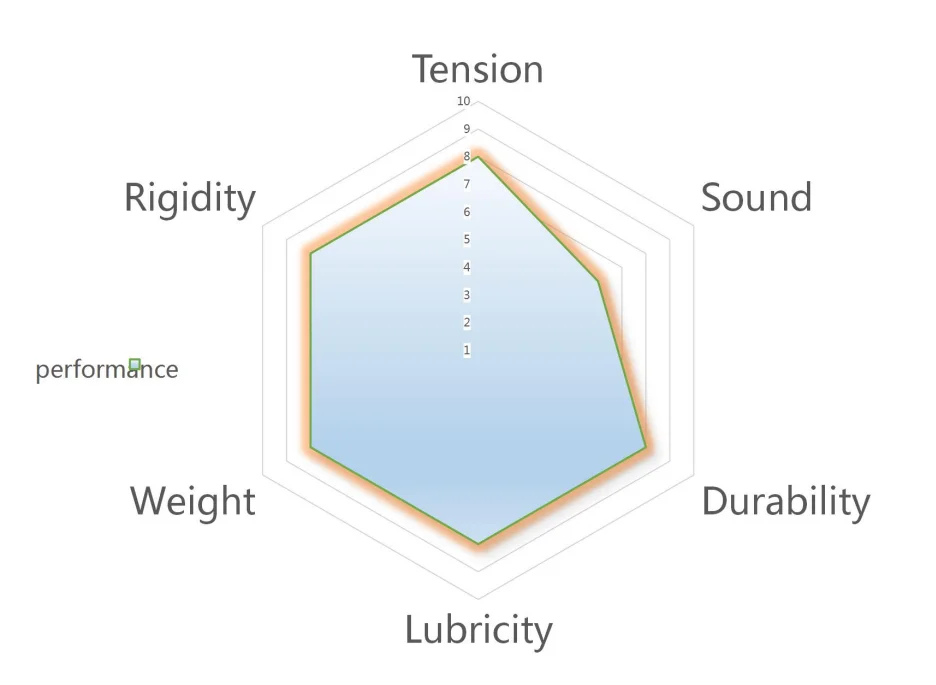

Performance Graph

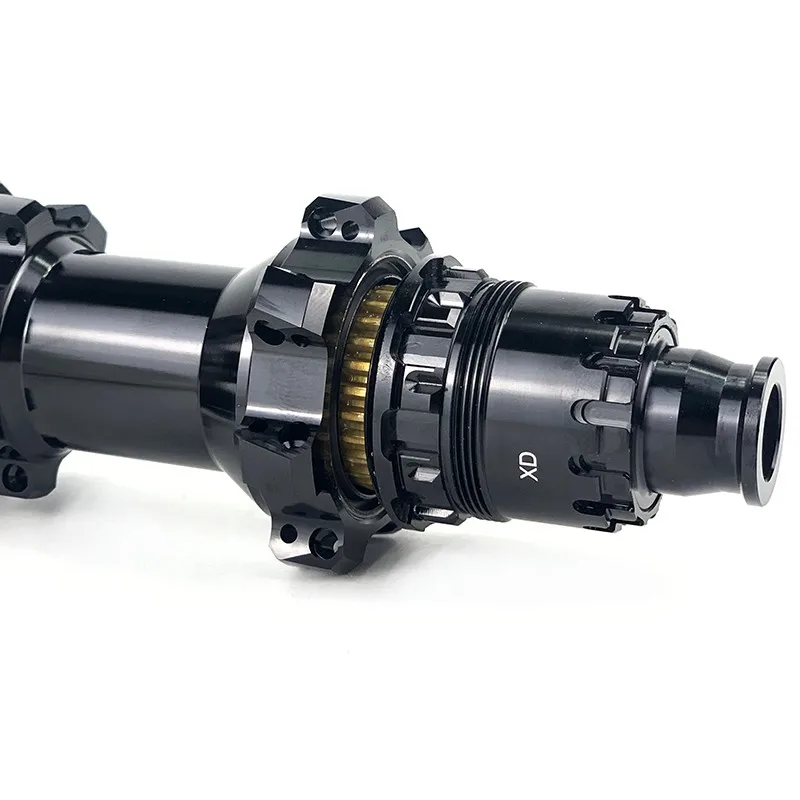

XD freebody:

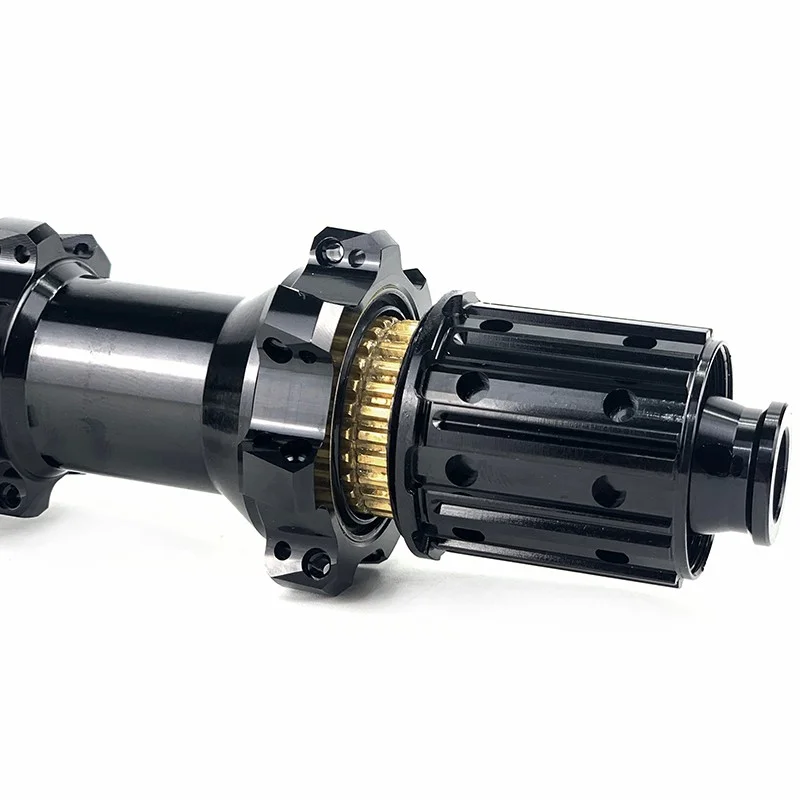

HG freebody:

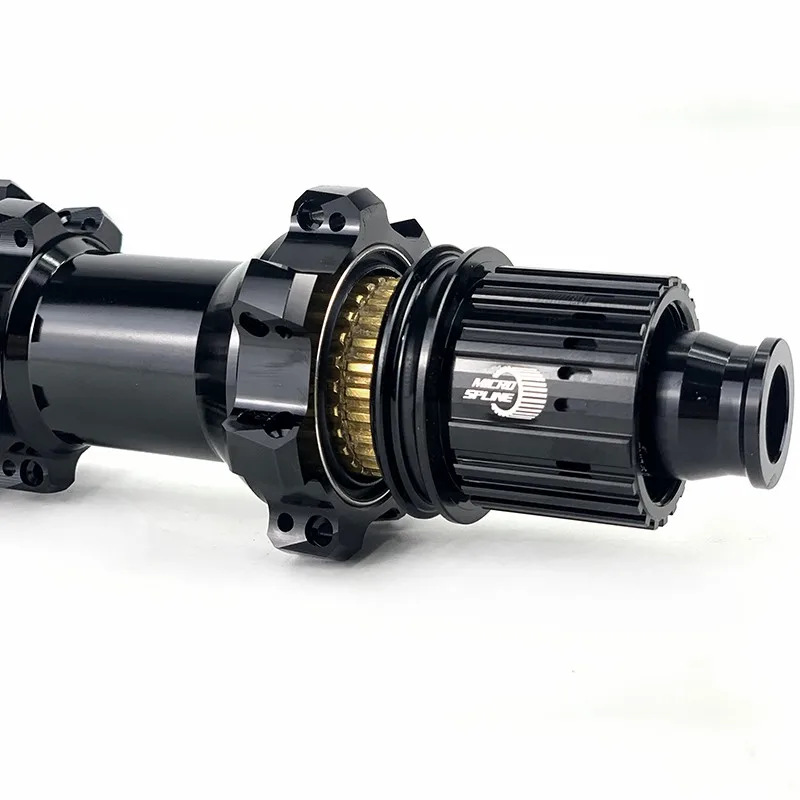

MS freebody:
