Control Cable 2x22AWG Shielded Tinned Copper Stranded

Product Applications:

> Voice alarm systems.

>  Emergency lighting.

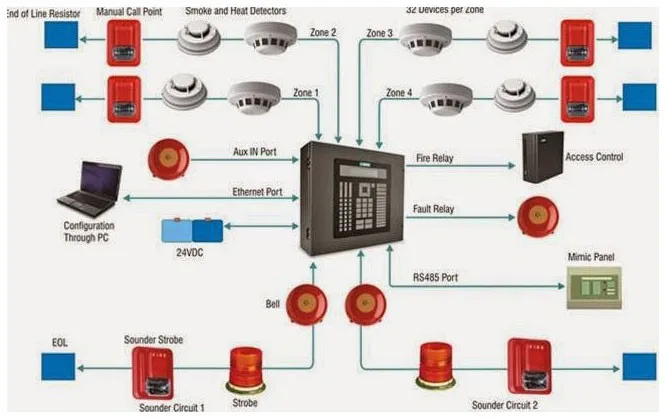

> Fire detection and fire alarm systems for buildings.

> Other essential service circuits.

Product Show:

 Harmonised Core Identification:

Non Harmonised Core Identification:

  Technical Information:

  Voltage Rating:   300/500V

  Temperature Rating: -20°C to +70°C

   Construction:

  Plain copper class 1 or 2, Insudite insulation, laminated aluminium foil screen and tinned copper earth wire, LSOH sheath.

   Technical information:

  Fire Resistance:  EN 50200 PH 30& PH 60

  Fire Retardant:     EN 60332-1-1   EN 50266-2-4

  Halogen Free:       EN 50267-2-1

  Low Smoke:          EN 61034-2

Cable Description:

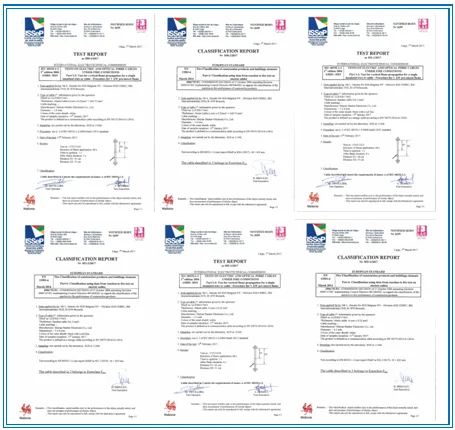

CPR Testing Report:

Packaging:

 Other product:

        Alarm cable                      UL2464                     Speaker cable

        Power cable                  Telcom cable            Micphone cable

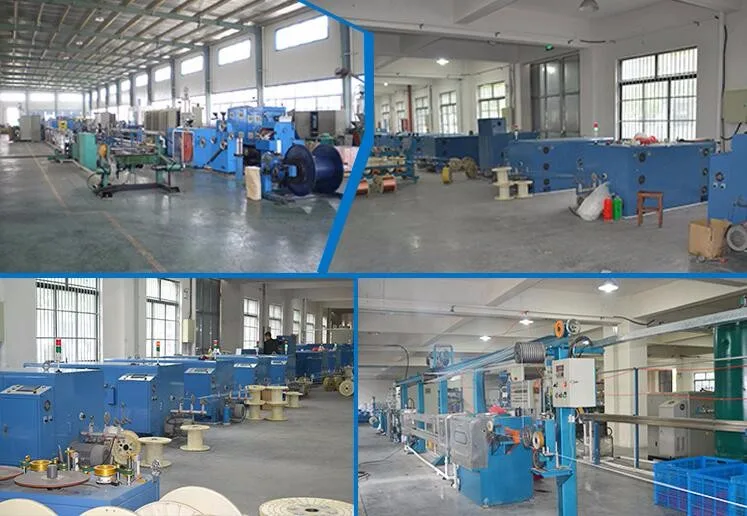

Factory:
