Telikou MDS 100 беспроводной этап Система внутренней связи

Product Overview

Description



MDS-100 433M frequency  Full Duplex Four users long range Wireless Intercom Talk Back System







MDS-100 Wireless system is designed for Tv station,communication command center,outside broadcast van,live performance and project command center.it is used to be used with telikou intercom main station. full-duplex work way and wired connection maintain the functions are more stable ,the voice is more clearly.easy to operate and well done in denosing would provide you more quality output.





Detail information:

 Operating frequency: 433MHz
Frequency range: 423.000MHz-443.000MHz
Data transfer rate: 500KB/S
Channel Spacing: 1MHz
Hopping frequency points: 10
Frequency hopping speed: 100 times/S
Transmit power: 29dBm
Launch period: launch 1mS every 10mS
Modulation: GFSK
Power supply: DC 12V~30V
Operating temperature: 0°- 40°C
Relative humidity: 0-90%
Dimensions: 111mm x 46mm x 126mm (W x H x D)
Weight: 0.36Kg
Bodypack operating voltage: 3 AA batteries
Bodypack working current: TX:max130mA, RX:max50mA

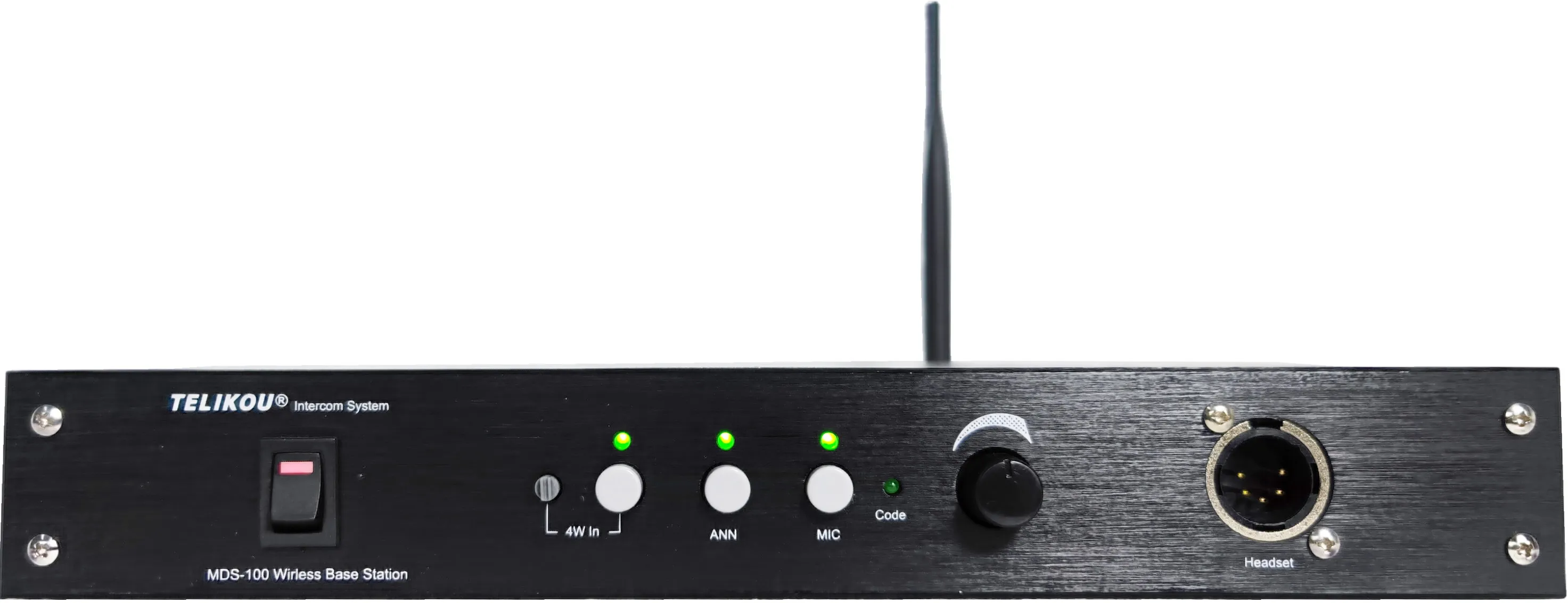

MDS-100 single-channel wireless communication host, using 433MHz frequency, full-duplex communication mode. MDS-100 uses single channel,

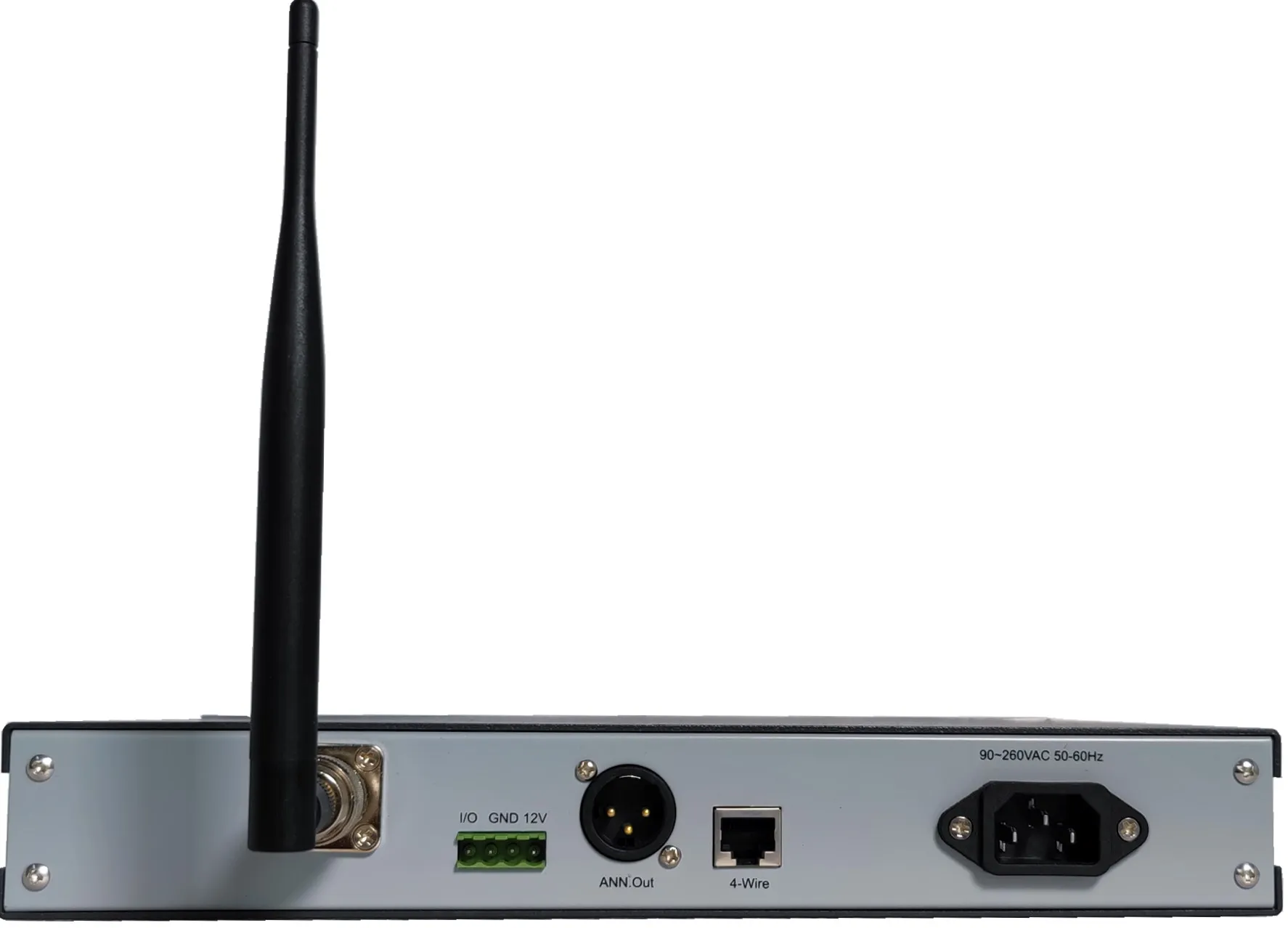

The MDS-100 is equipped with a broadcast output interface, a four-wire interface, and a 12-volt DC power supply interface.
12V DC power supply interface, which can be used for external battery power supply in the field

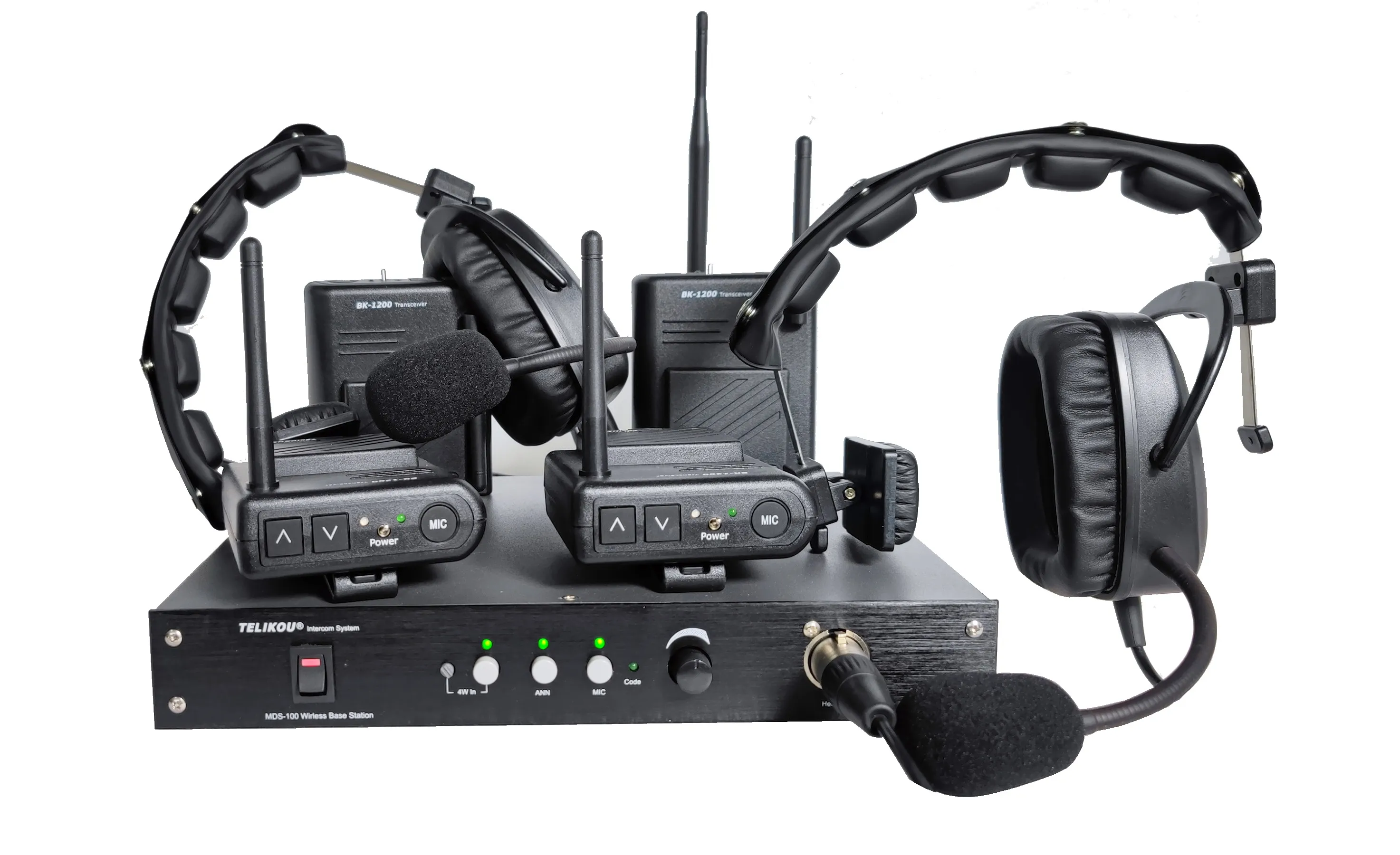

The total set contaions:



one MDS-100  wireless main station

 four BK-1200 wireless belt pack

 five HE-121/HE-122 single or dual ear headset

 four antennas











Advantage of us



1)any kind of express you want

2)packing as customer's requirement
3)reasonable price with high quality
4)OEM is welcome, pls feel free to contact with us, I will try my best to let you know more about our product.
5) a trial order or samle orders are also welcomed
7)Excellent after sale service





Payment



You can pay us through T/T, paypal
Price term: FOB beijing
Full payment should be made before we send goods to you
The customer don't have to responsible for any tax or bank charges by their countries.







Hello dear , this is susan from telikou , TELIKOU TECHNOLOGIES CO., LTD is a professional manufacturer and exporter , which is concerned with design , development , and production of audio and video equipment ,and we also do OEM , all of our products have the best price and high quality , our main products is all kinds of intercom talkback system , wireless intercom system and all kinds of wired intercom station , all full-duplex and with long talking distance , we also do all kinds of teleprompter , and studio light , our costomers are from all over the world , thanks !TELIKOU Technologies Co., LTD established in 2002.
It is experienced in providing cost-effective
Products have been used widely all over the world.
TELIKOU Technologies Co., LTD has developed a variety of products,
like: Intercom / Talk Back System (TBS) Teleprompter LED Light Audio Monitor Unit
we have wired intercom system station , including 2 channels main station and 8 channels main station , we also have matrix system, all of our prodcusts have the best price with high quality , and all are full-duplex , we also have wireless intercom system , works perfect and have the long distance , and then , all of our products and all the related accessories , all made by our selves , like intercom headset , intercom belt pack and all gooseneck microphone , so we have the best price , if you have any other questions , juts feel free let me know , thanks for reading !
