SKA CQ023 Y40 760mmHg 0 Back Mounting Medical Vacuum Pressure Gauge
- Category: >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (1600543407703):
Product Overview
Description

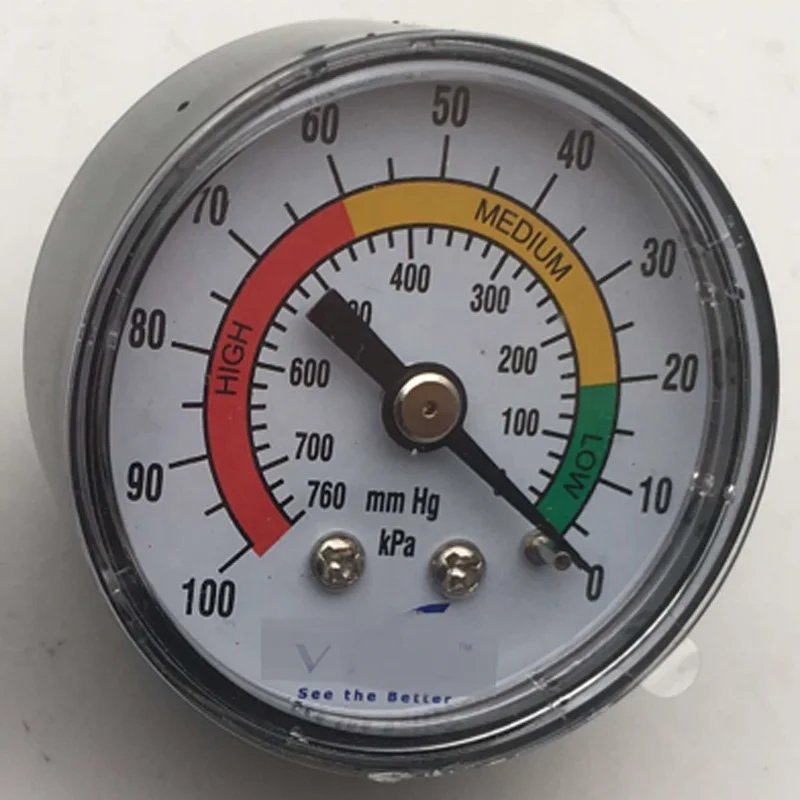

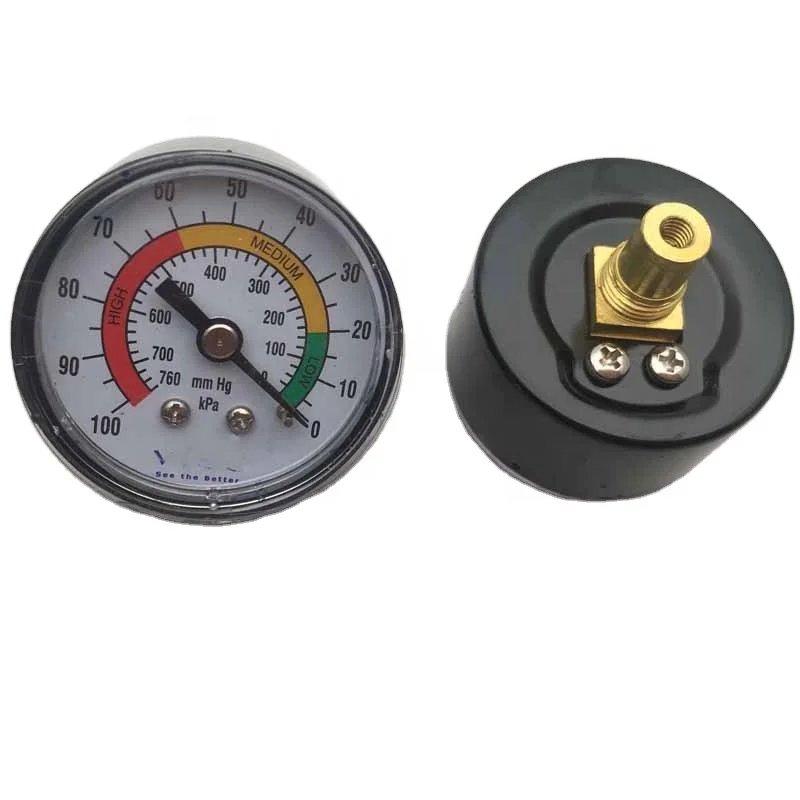

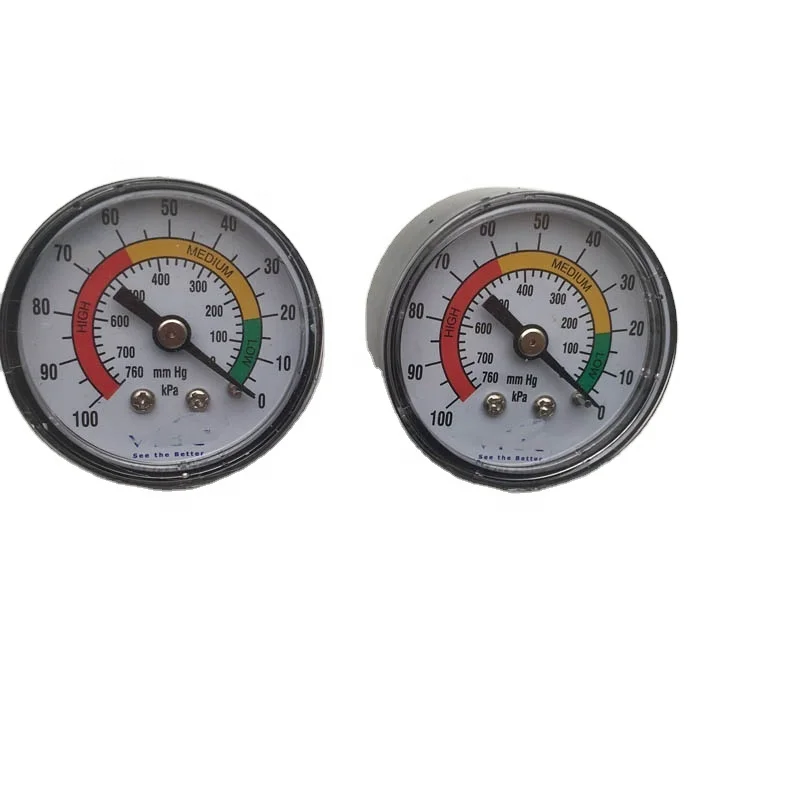

SKA-CQ023 Y40 760mmHg -0 Back Mounting Medical Vacuum Pressure Gauge
Vacuum pressure gauge designed for rugged performance requirements at an economical cost. It is used to measure pressure of the
gas and liquid. It is widely used in drilling furnace ventilation, gas pipelines, combustion devices and other similar equipment.
Dial size: 1.57” (40mm),
Pressure Range： 760mmHg -0 100-0 Kpa
Window: PC
Case: Steel black e-coated
Tube: Bronze
Socket: Brass
Ring: Black Steel
Point: Al. black finished

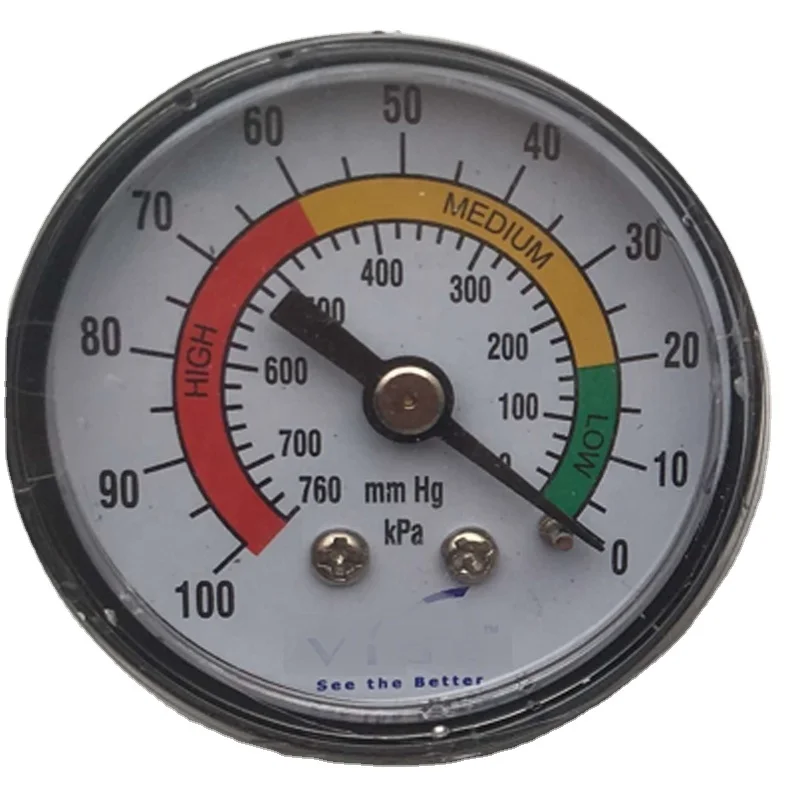

Dial Face: Aluminum, white background with white graduations and markings.
100-60 mmHg is Red, 60-20 mmHg is Yellow, 20-0mmHg is Green, and the bottom color of the dial is white,
Accuracy: -/+2.5% Full Scale

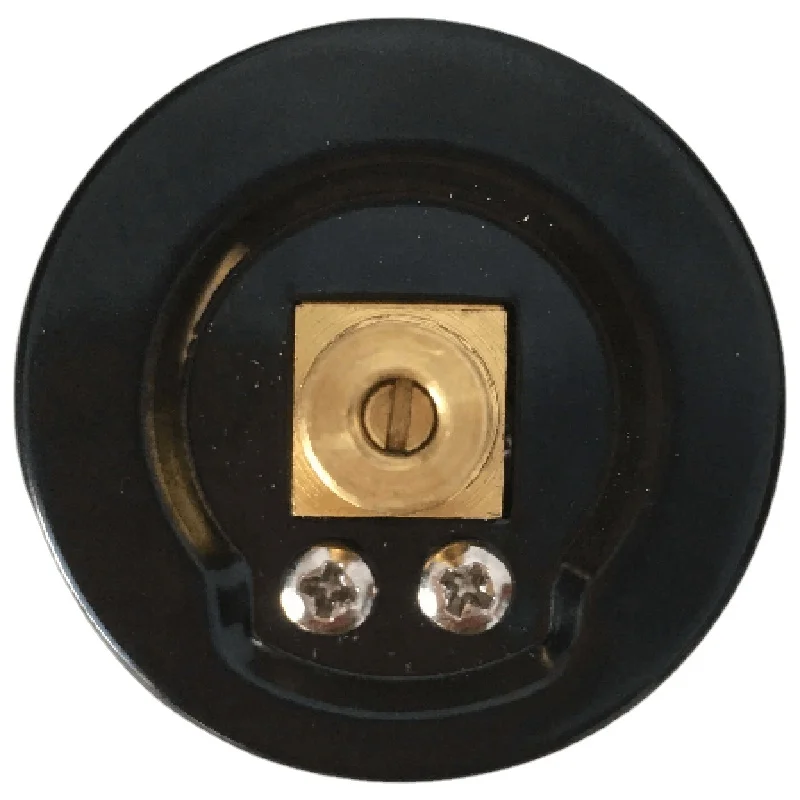

Connection: Back Mounting
Maximum Temperature: 150°F（65°C）
Units of Measure: psi, psi/kPa, customized.
Approximate Shipping Weight:77.1g
Packing box； 6x6x5cm
gas and liquid. It is widely used in drilling furnace ventilation, gas pipelines, combustion devices and other similar equipment.
Dial size: 1.57” (40mm),
Pressure Range： 760mmHg -0 100-0 Kpa
Window: PC
Case: Steel black e-coated
Tube: Bronze
Socket: Brass
Ring: Black Steel
Point: Al. black finished
Dial Face: Aluminum, white background with white graduations and markings.
100-60 mmHg is Red, 60-20 mmHg is Yellow, 20-0mmHg is Green, and the bottom color of the dial is white,
Accuracy: -/+2.5% Full Scale
Connection: Back Mounting
Maximum Temperature: 150°F（65°C）
Units of Measure: psi, psi/kPa, customized.
Approximate Shipping Weight:77.1g
Packing box； 6x6x5cm
Technology | |
Product Name | SKA-CQ023 Y40 760mmHg -0 Back Mounting Medic Vacuum Pressure Gauge |
Model Number | SKA-CQ023 |
Dial dimension | 1.57"(40 mm) |
Bourdon tube | Phosphor bronze |
Pressure range | 760mmHg -0 100-0 Kpa |
Movement | Copper Alloy |
Socket | Brass |
Windows | PC |
Case | Steel black e-coated |
Configuration | Center back, |
Accuracy | 2.50% |
Quality warranty | 1 year |
Net Weight | 77.1g |
Environment Condition | Temperature:-40-70℃;Relative Humidity≤85% |
