Product Overview

Description



Product Description


























1

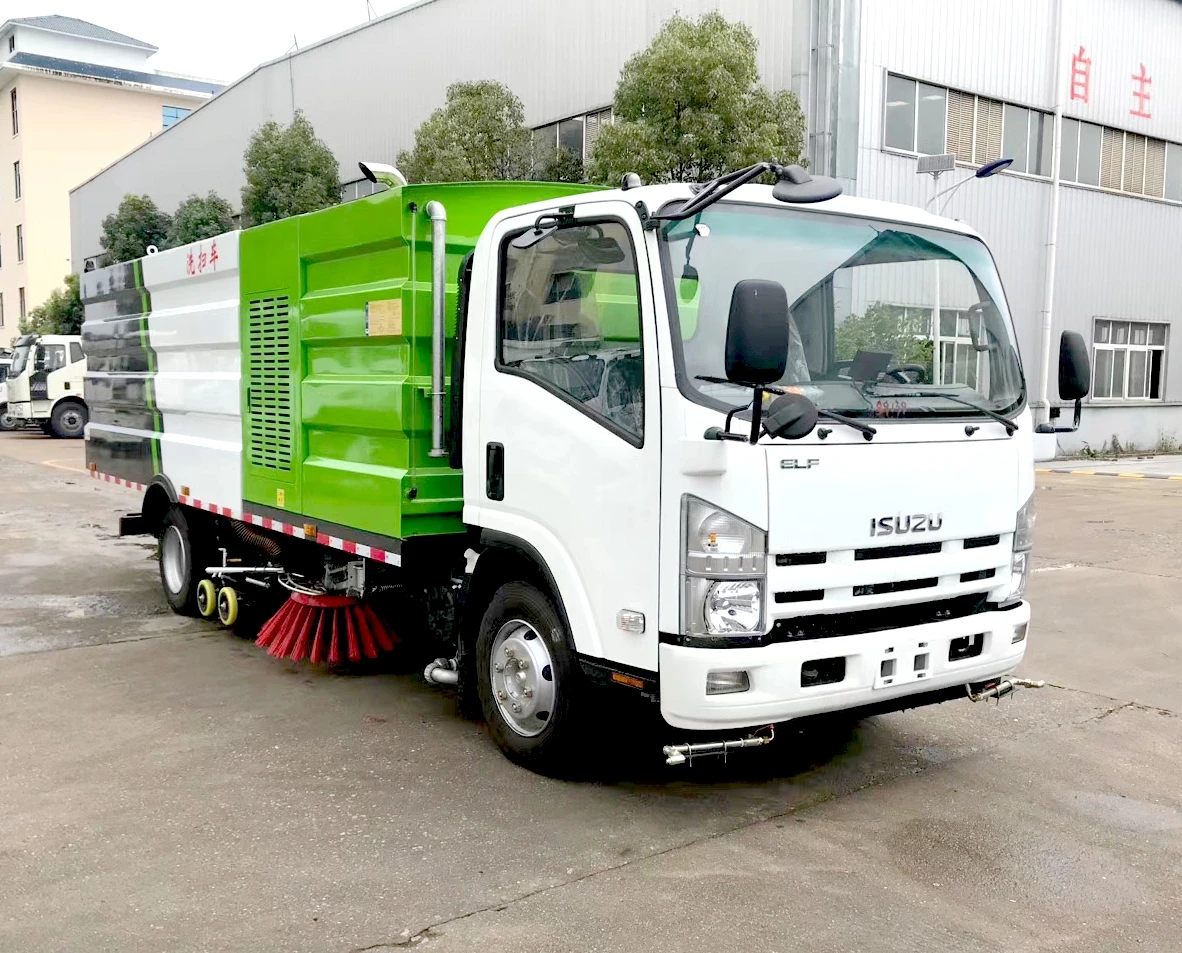

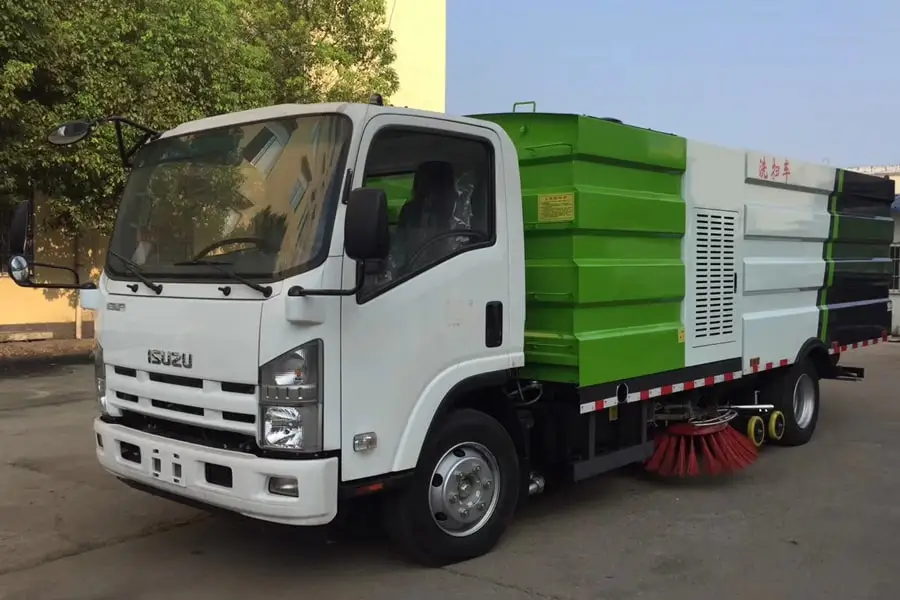

1SUZU 4X2 8m3 Vacuum  Road Washing and Sweeping Truck



The sweeping system is composed of vice engine, suction fan, clear water tank, garbage container, rear suction disc, left and right vertical sweepers, dust suppression and sweeping system, hydraulic system, electronic control system and auxiliary frame.


The washing system is composeing of water tank, water pump, the water spray nozzle and pipes.


1. Euro 5 engine, 130hp, 3815ml


2. 140hp vice engine


3. 4m3 clear water tank


4. 4m3 garbage container.


5. Vertical sweeper: equipped with water spray device, the front sweepers have automatic avoiding function.


6. Max sweeping width:3.5m


7. 21m high pressure hose reel





     1. General Specification


































Dimension



7160×2250×2750mm



Gross weight



7300kg



Rated load weight



670kg



Curb weight



6500kg



Max speed



110km/h



Crew seat



2



Wheelbase



3815mm






    2. Chassis Specification










































Chassis brand



1SUZU



Transmission



Manual



Fuel



Diesel



Tire number



6



Tire specification



7.00R16 14PR



Engine



4KH1CN5HS



Engine power



130hp



Displacement



2999ml



Emission standard



Euro 5






    3. Sweeping Specification














































Sweeping speed



3-20Km/h



Sweeping efficiency



≥98%



Maximum suction size



100mm



Max sweeping width



3.5m



Max sweeping capacity



60000m2/h



Max angle for discharging the garbage container



≥54°



Garbage container volume



4m³



Garbage cleaning



Self-cleaning function



Hydraulic oil tank volume



60L



Vice engine power



140hp






   4. Washing Specification






















Clear water tank volume



4 m³



Water pump flow



153L/m



Water nozzle position



Front, side, middle, rear

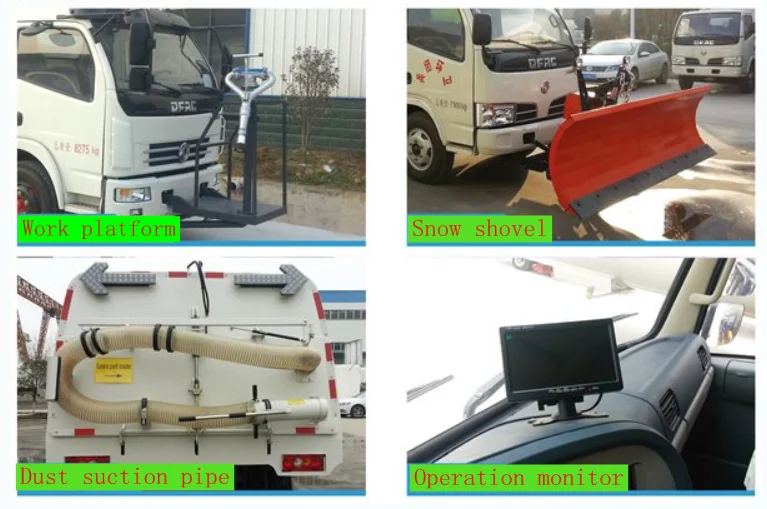

Optional device



Operation monitor, work platform, snow shovel






ISU-ZU 8-ton vacuum road Sweeper and cleaning truck for city street and airport runway
