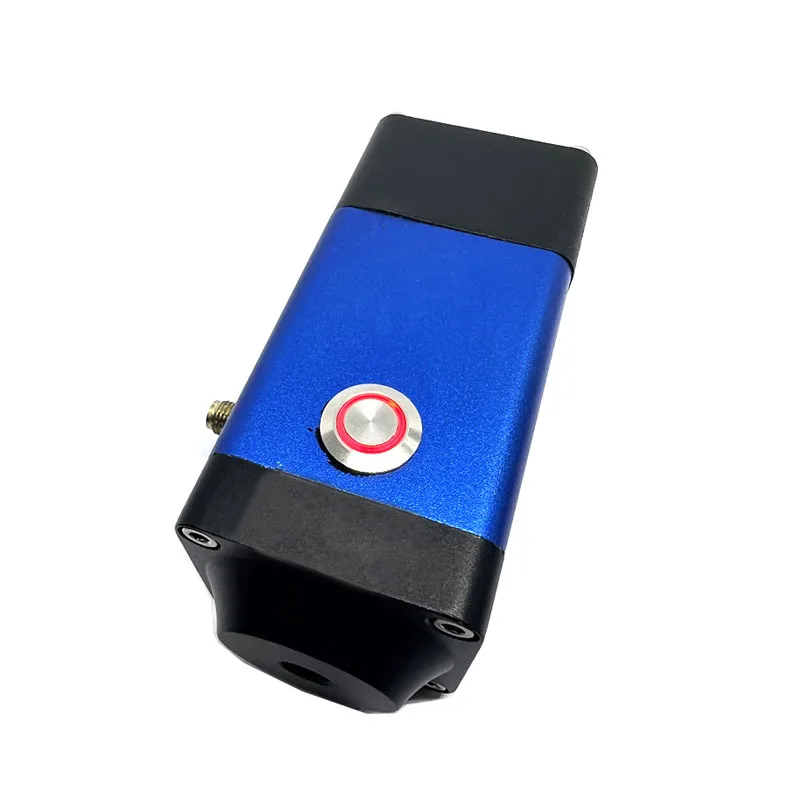

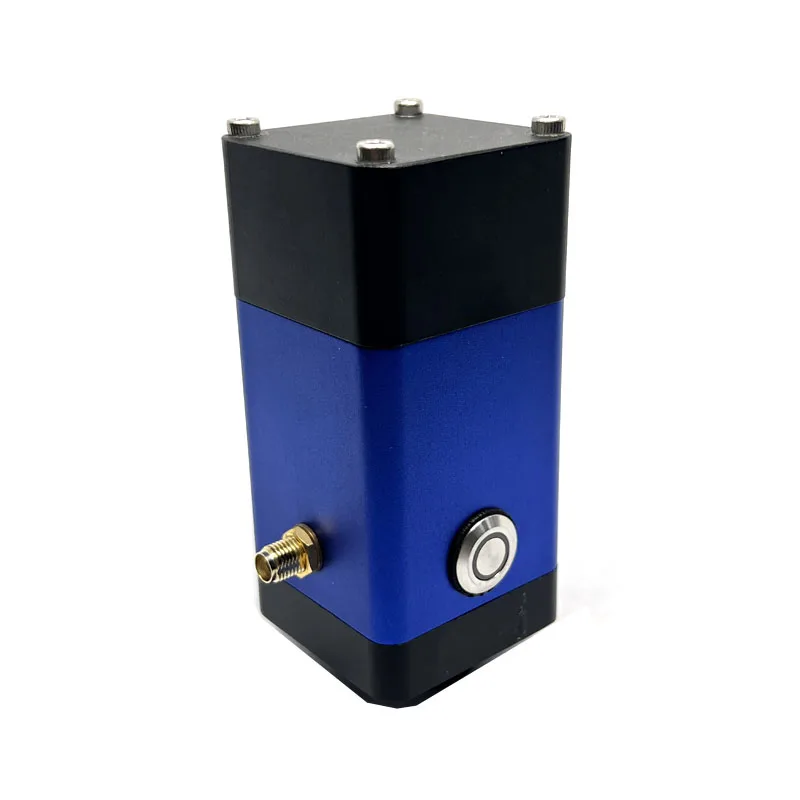

Wireless LORA Vibration Sensors For Monitoring And analysis of Industry, Rail transit, energy surveys etc
- Category: >>>
- Supplier: Chengdu Liangzhuo Technology Co. Ltd.
Share on (1600543457668):
Product Overview
Description
Product Description
Wireless LORA Vibration Sensors For Monitoring And analysis of Industry, Rail transit, energy surveys etc
Specification
● Focus on vibration trend analysis
● Focus on portable or temporary measurements

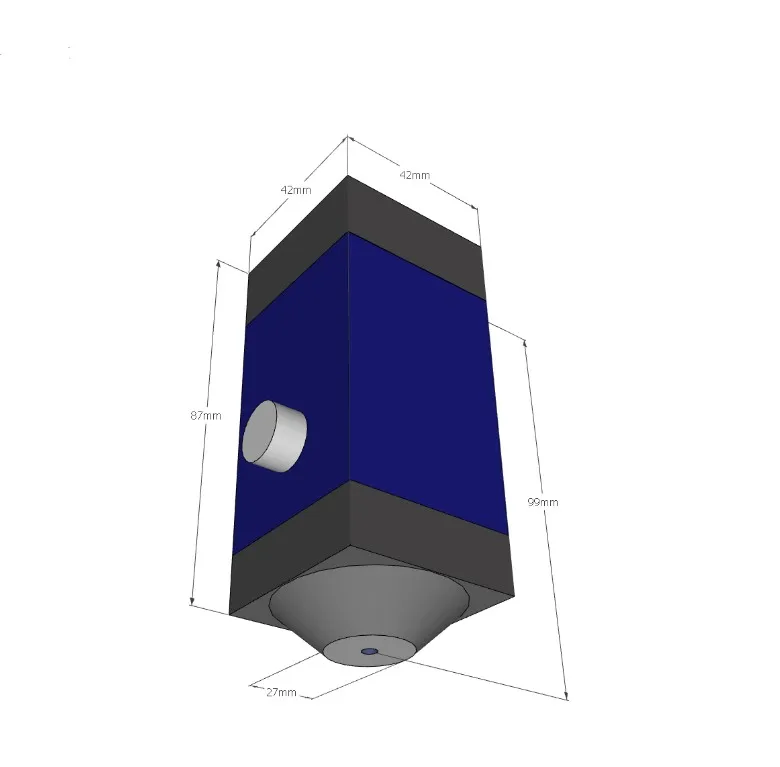

Dimensions | Size | 42*42*99mm |
Installation method | Magnetic seat/Screw/Glue | |
Degree of protection | IP65 | |
Communication | Output | LoRa |
Minimum transmission interval | At different levels | |
Protocol | TCPJSON | |
Power parameters | Power Supply | Lithium Battery 9AH |
Acceleration/ Velocity/Amplitude characteristics | Measure Vibration Parameters (optional) | 3-axis (optional) |
Velocity, Amplitude characteristics | Velocity Measurement Range | 50 mm/s (customizable) |
Velocity Accuracy | 1.5%FS | |
Acceleration Measurement Range | ±4g(customizable) | |
Acceleration Accuracy | 1.5%FS | |
Amplitude Range | 500um(customizable) | |
Amplitude Range | 2%FS | |
Frequency Response | 10-1000Hz(customizable) | |
Temperature Characteristics | Resolution | ±0.1℃ |
Measurement Range | -40~120 ℃ | |
Condition | Shock limit | 35g |
Ambient/Operating Temperature Range | -40~85 ℃ |

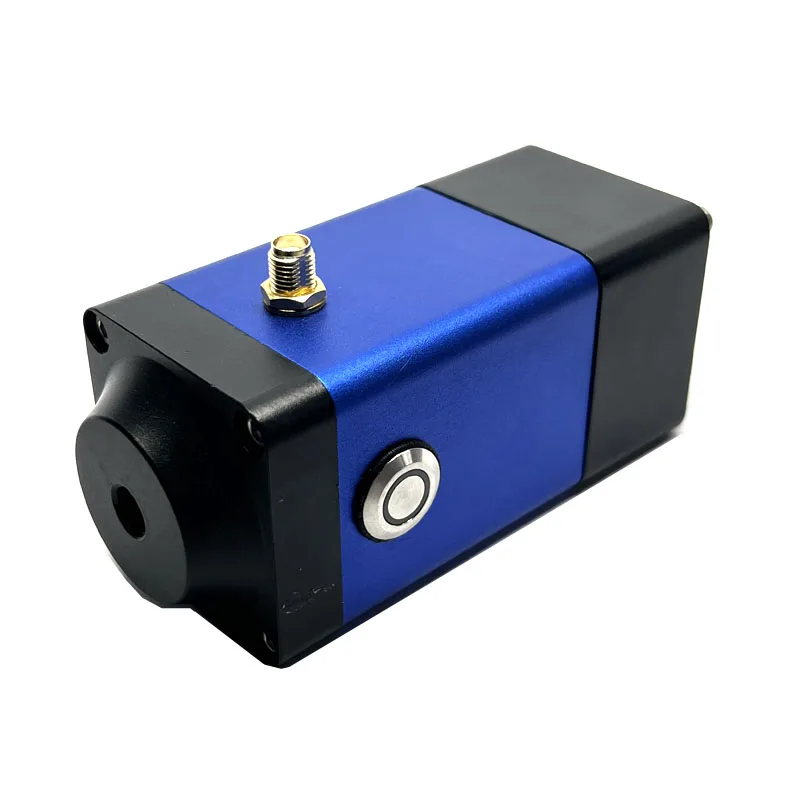

Details Images
Product Paramenters
1. One step to complete the deployment work, support magnetic base installation, internal battery powered, wireless data transmission.
2. Support Eigenvalves and original value transmission, convenient for various application scenarios
3. The shell is light, beautiful and easy to use.
4. Dual watchdogs, dynamic switching, stable online.
5. Interface overcurrent overvoltage protection, and the interface is equipped with overvoltage and reverse connection
protection measures, which has high reliability and anti-interference ability.
6. The detection data can be sent to the Cloud Computing Platform by wired or wireless, and the mobile phone and computer can be remotely viewed and received the alarm information.
7. Wireless transmission.
8. With firmware upgrade function.
9. With internal logic calculation, it can actively judge alarm abnormality.
10. Support software platform to view data, mobile phone SMS and WeChat can receive alarm information.
2. Support Eigenvalves and original value transmission, convenient for various application scenarios
3. The shell is light, beautiful and easy to use.
4. Dual watchdogs, dynamic switching, stable online.
5. Interface overcurrent overvoltage protection, and the interface is equipped with overvoltage and reverse connection
protection measures, which has high reliability and anti-interference ability.
6. The detection data can be sent to the Cloud Computing Platform by wired or wireless, and the mobile phone and computer can be remotely viewed and received the alarm information.
7. Wireless transmission.
8. With firmware upgrade function.
9. With internal logic calculation, it can actively judge alarm abnormality.
10. Support software platform to view data, mobile phone SMS and WeChat can receive alarm information.

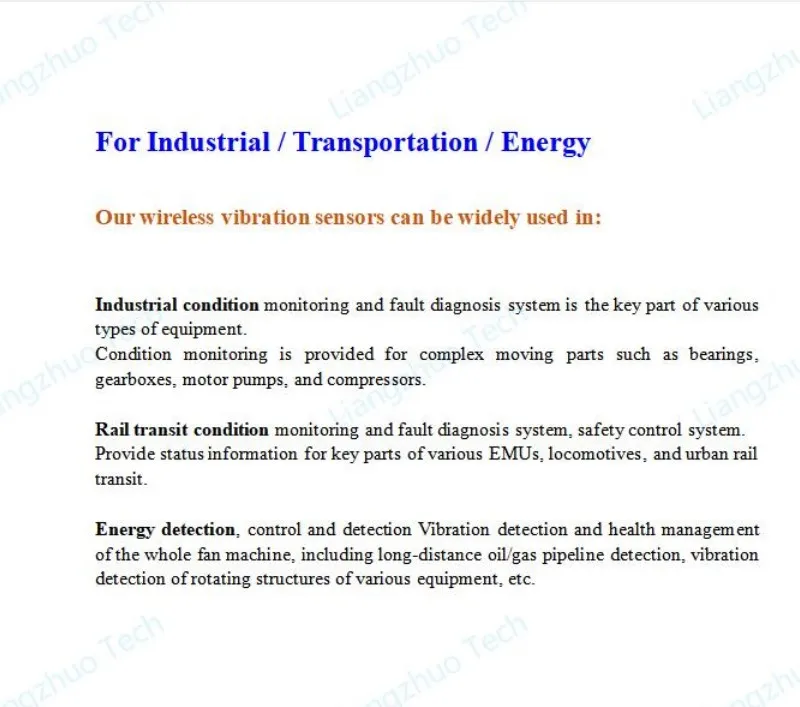

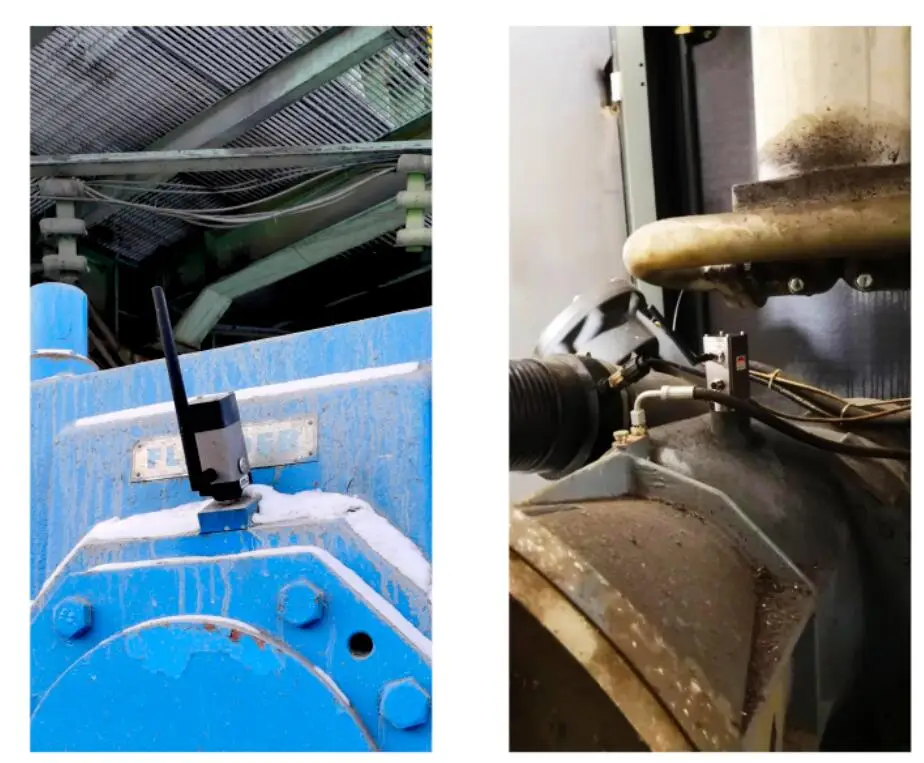

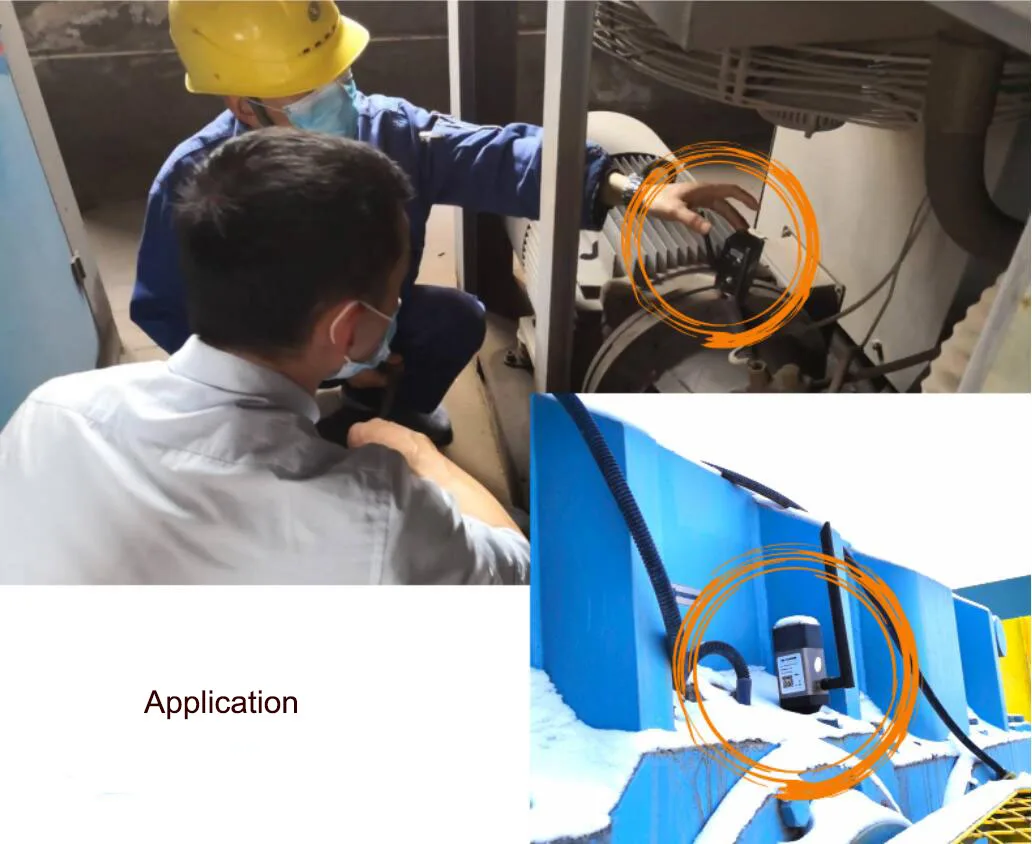

Application
The integrated motor data collector is a new type of small integrated package sensing device with "vibration + temperature + wireless transmission", using the micromachining technology imported from the United States
to integrate sensor. The vibration electrical signal is output to the high-performance data transmission module through the band-pass filter, converter, amplifier, and RMS converter for storage and analysis in the upper system.
to integrate sensor. The vibration electrical signal is output to the high-performance data transmission module through the band-pass filter, converter, amplifier, and RMS converter for storage and analysis in the upper system.
Company Profile
Chengdu Liangzhuo Technology Co., Ltd. is a manufacturer and exporter specializing in the development and production of sensors.
Our company has experienced design team, industry-leading R & D capability and strong manufacturing strength. In addition to independent research and development, we have also cooperated with many universities and factories in various aspects, and have obtained a number of patents and certifications. Unique technology enables our products to be widely used in various manufacturing plants, railways, bridges and environmental protection and many other fields.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us, we sincerely hope to establish friendly business relations with customers from all over the world.
Our company has experienced design team, industry-leading R & D capability and strong manufacturing strength. In addition to independent research and development, we have also cooperated with many universities and factories in various aspects, and have obtained a number of patents and certifications. Unique technology enables our products to be widely used in various manufacturing plants, railways, bridges and environmental protection and many other fields.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us, we sincerely hope to establish friendly business relations with customers from all over the world.
Certifications
FAQ
Q: Are you a manufacturer or trading company?
A: We are A manufacturer with Professional R&D team, and providing OEM & ODM services.Q: How do you make our business long-term and good relationship?
A1: We keep good quality and competitive price to ensure our customers benefit .
A2: We respect every customer as our friend and we sincerely do business, no matter where they come from.
Q: What kind of payment do you accept ?
A:We accept T/T(Wire transfer), Western Union and Paypal.
Q : What about your delivery time?
A: The stock goods delivery within 5-7 days, customized goods delivery within 20days.
Q : How to ship my order? Is it safe?
A1: For small package, send it by Express, such as DHL, FedEx ,UPS,TNT,EMS.That's a Door to Door service .
A2: For big packages, can send them by Air or By sea.We use standard export carton.will be responsible to any product damage caused on delivery.
Q : Can you make customized products?
A: Yes. We made a lot of customized products for our customer before.
