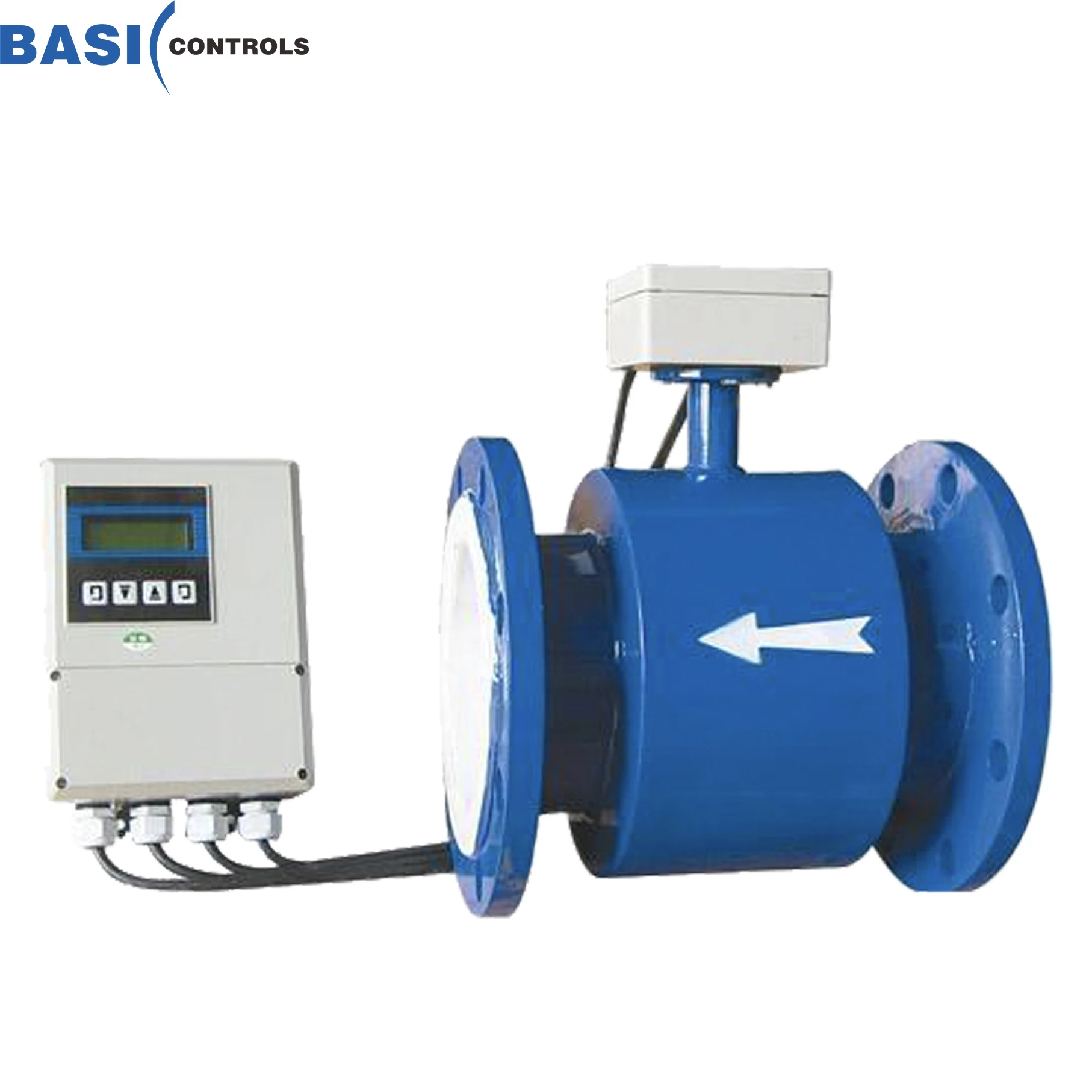

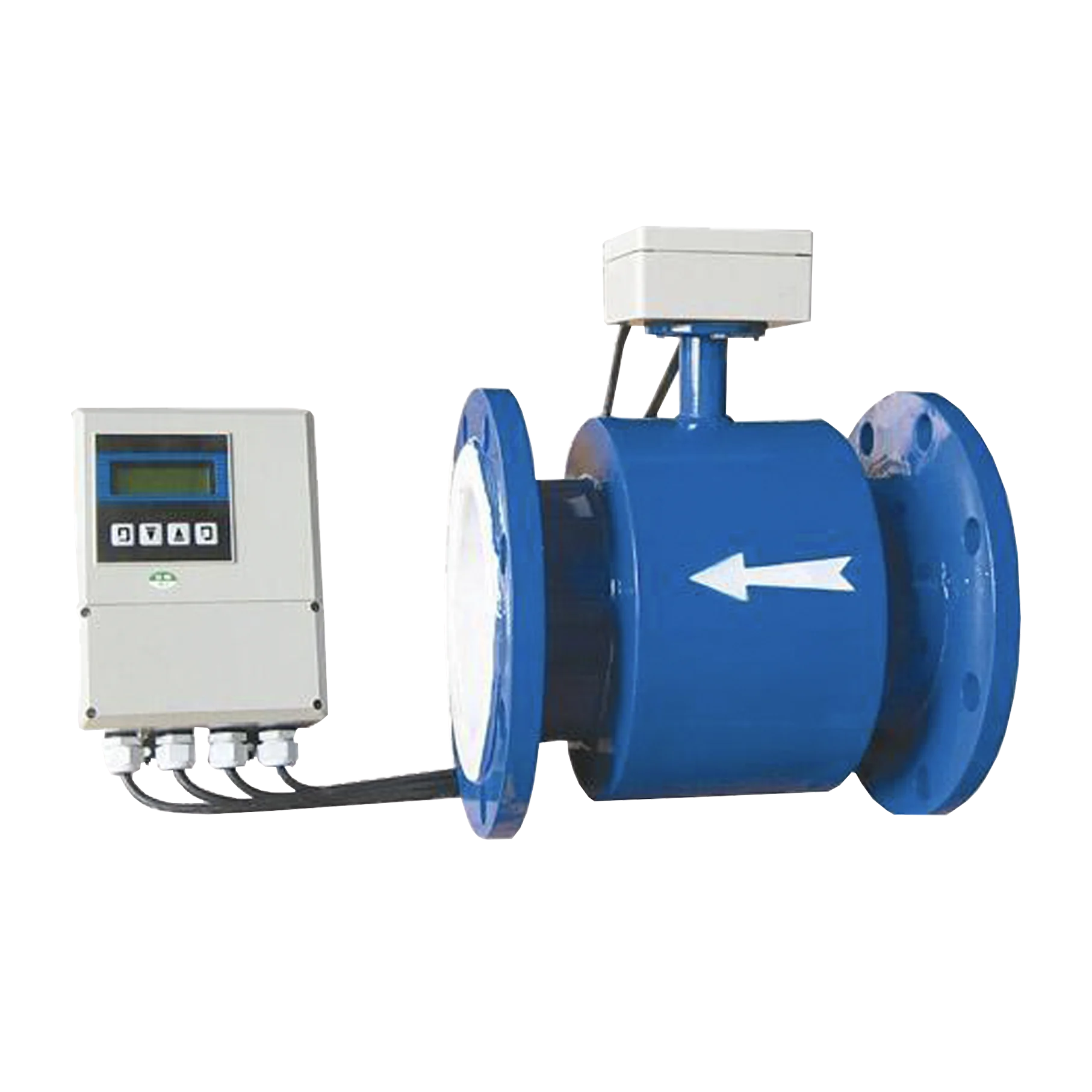

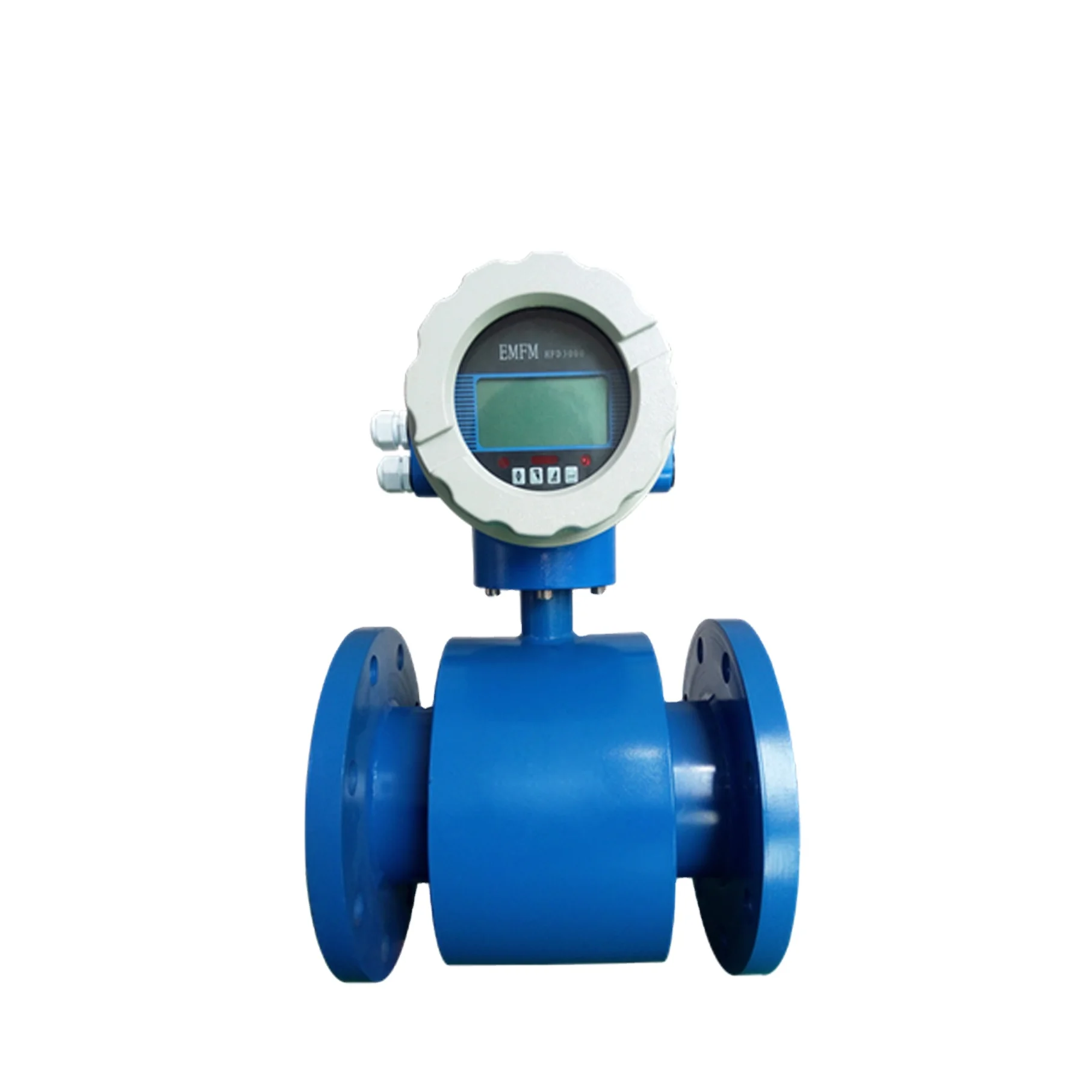

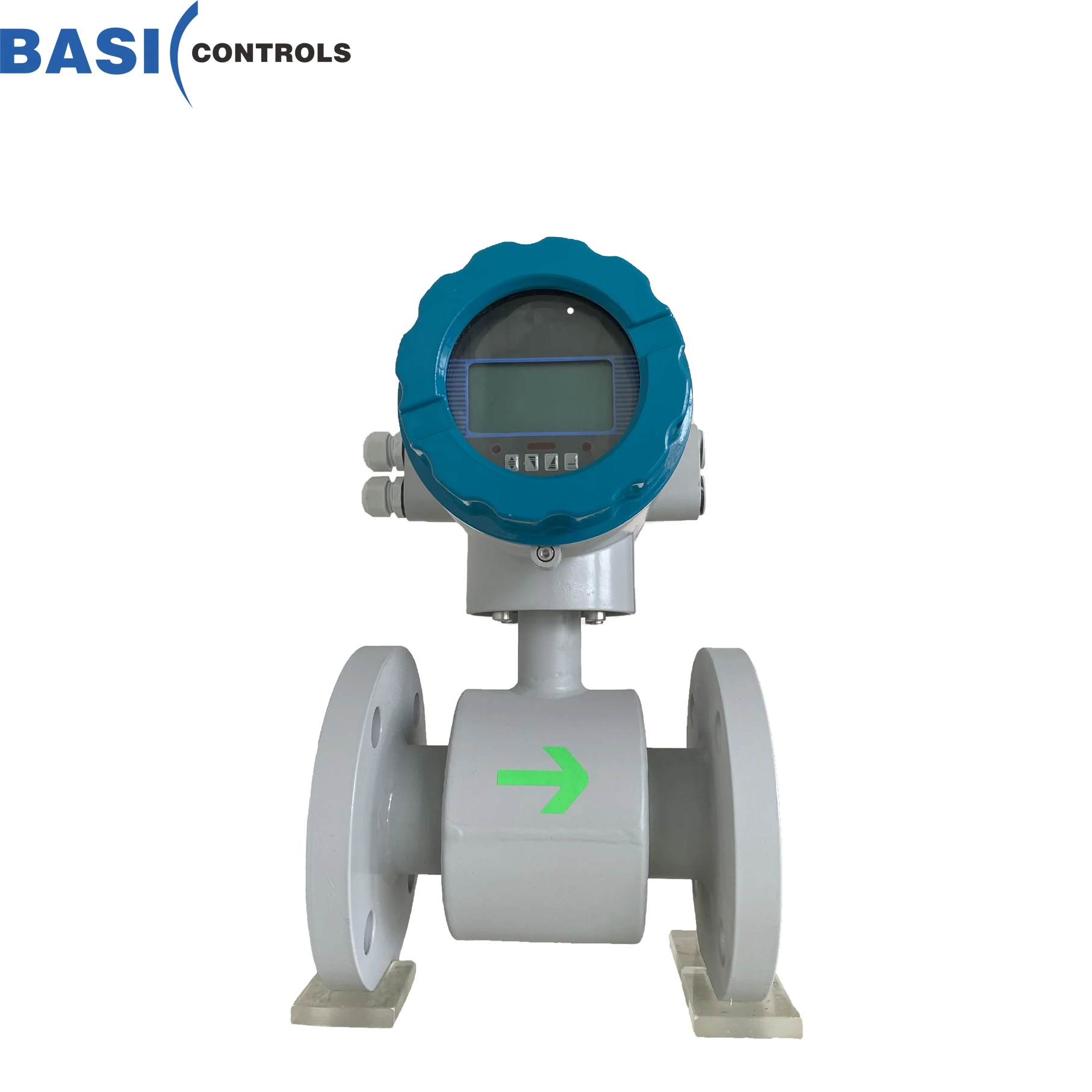

Low cost industrial chemical wastewater magnetic sewage flow meter liquid control digital water electromagnetic flowmeter
- Category: >>>
- Supplier: Guangzhou Basic Intelligence Technology Co. Ltd.
Share on (1600543458152):
Product Overview
Description
Product Description

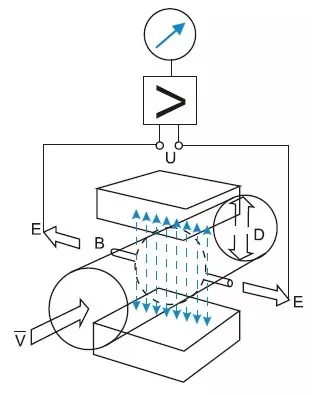

Working principle
Electromagnetic flow meters detect flow by using Faraday's Law of induction.
Inside an electromagnetic flow meter, there is an electromagnetic coil that generates a magnetic field, and electrodes that capture electromotive force(voltage). Due to this, although it may appear as if there is nothing inside the flow pipe of an electromagnetic flow meter, flow can be measured.Under Faraday's law of induction, moving conductive liquids inside of a magnetic field generates an electromotive force (voltage) in which the pipe inner diameter, magnetic field strength, and average flow velocity are all proportional. In other words, the flow velocity of liquid moving in a magnetic field is converted into electricity.
E= K B V D
Where:
Inside an electromagnetic flow meter, there is an electromagnetic coil that generates a magnetic field, and electrodes that capture electromotive force(voltage). Due to this, although it may appear as if there is nothing inside the flow pipe of an electromagnetic flow meter, flow can be measured.Under Faraday's law of induction, moving conductive liquids inside of a magnetic field generates an electromotive force (voltage) in which the pipe inner diameter, magnetic field strength, and average flow velocity are all proportional. In other words, the flow velocity of liquid moving in a magnetic field is converted into electricity.
E= K B V D
Where:
E—induced electromotive force; D—measuring tube diameter;
B—magnetic induction intensity; V— average velocity;
K—it is a coefficient that relates to the field distribution and axial length;
B—magnetic induction intensity; V— average velocity;
K—it is a coefficient that relates to the field distribution and axial length;

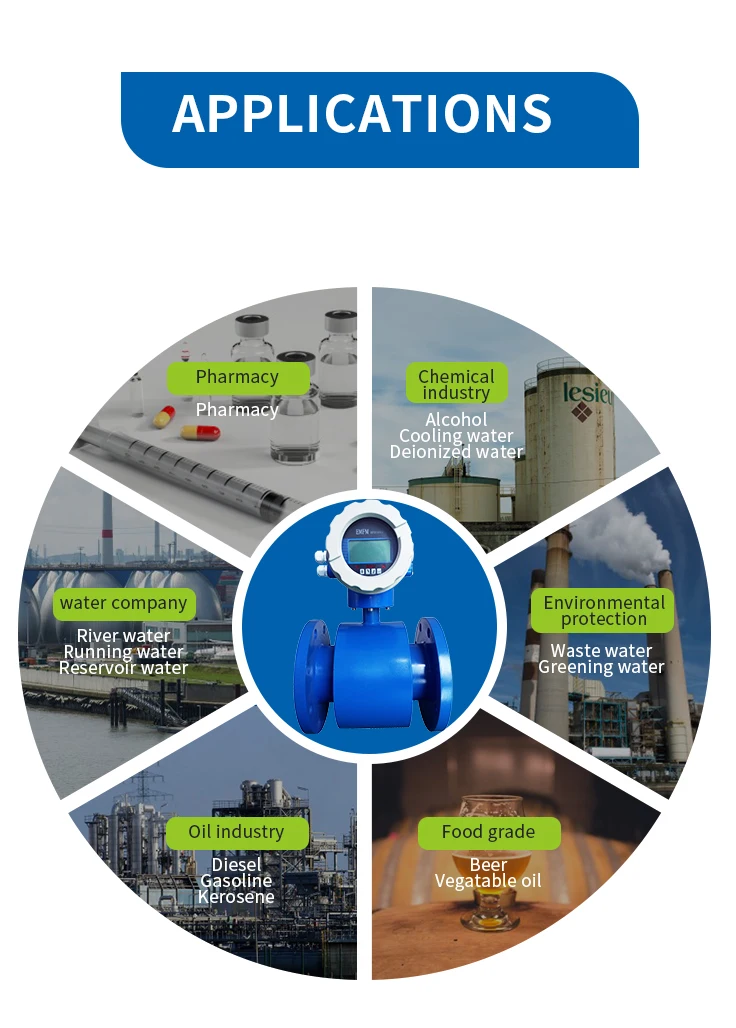

Applications
Specification

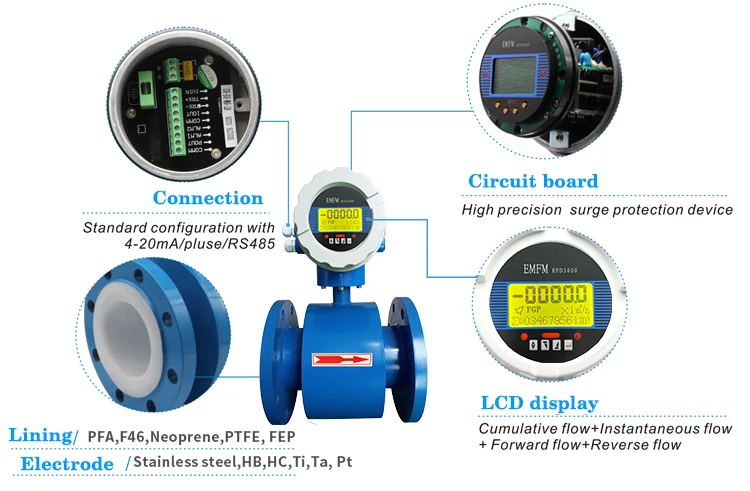

Features
1. Forward and reverse flow measurement.
2. Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
3. Multiple output communication (pulse, 4-20MA, RS485), convenient to collect signals from different devices .
4. A variety of electrodes and linings are available for a variety of complex working conditions.
5. It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.
1. Forward and reverse flow measurement.
2. Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
3. Multiple output communication (pulse, 4-20MA, RS485), convenient to collect signals from different devices .
4. A variety of electrodes and linings are available for a variety of complex working conditions.
5. It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.
Model Number | EFM |
Power supply | 100-240VAC, 50/60HZ,24Vdc±10% |
Diameter | DN15~1000 |
Velocity range | 0.5-10m/s |
Medium | Water,milk,sea water,beer |
Conductivity | Water 20μS/cm other medium 5μS/cm |
Accuracy | ±0.5%, ±1%R ±0.3%,±0.2%, |
Nominal pressure | 1.0MPa / 1.6MPa / 2.5MPa / 4.0MPa |
Liner material | PFA,F46,Neoprene,PTFE, FEP |
Electrode material | Stainless steel SUS316, Hastelloy B, Hastelloy C,Titanium, Tantalum Platinum-iridium |

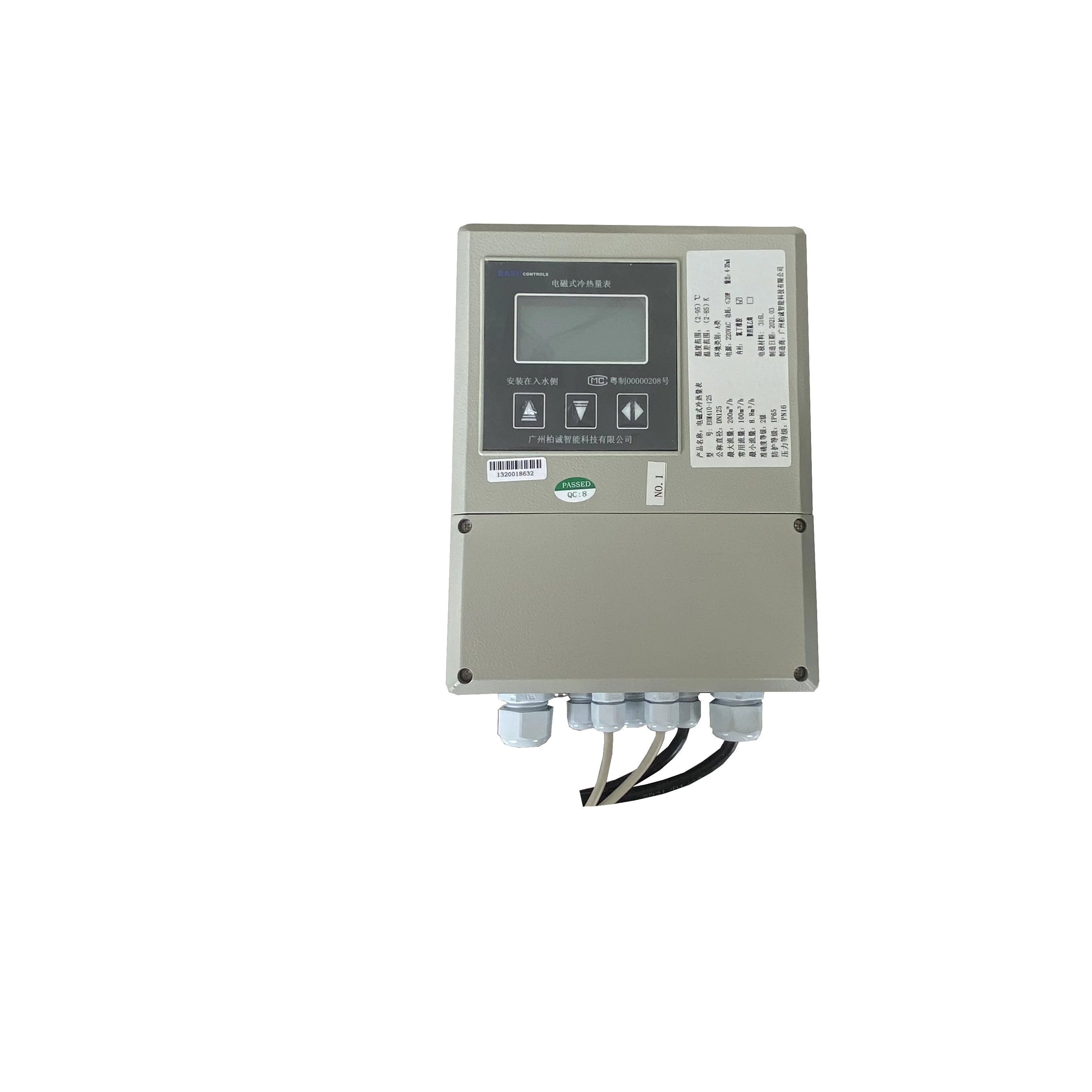

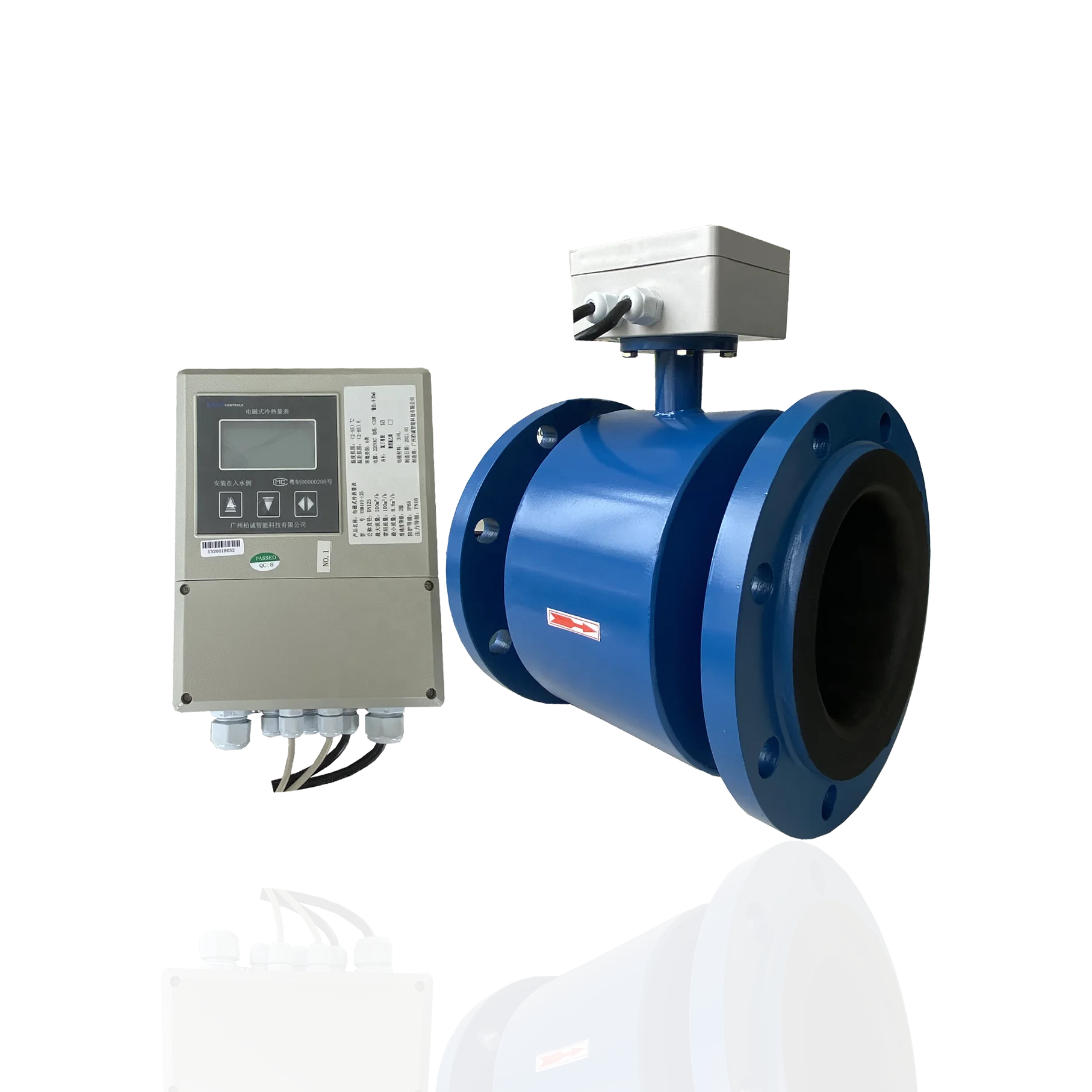

Structure type | Integral type, split type |
Protection Class | IP65,IP68(optional) |
Communication | RS232 ,RS485 or HART Communication are selectable ,with lighting resistance |
Singal Output | Current (4-20 mA) , pulse , frequency |
Lining materials
Electrode materials include 316L electrode, tantalum electrode, HC electrode, platinum electrode, etc.The magnetic flow meter should choose electrode materials according to corrosiveness of the measured fluid. See the table below and there are some common electrode materials and its applications.
Lining Materials | Main Performance | Applications |
Teflon (PTFE/F4) | 1. The most steady material in plastics which is resistible to boiling hydrochloric acid, sulfuric acid, aqua regia,as well as strong alkali and organic solutions. 2. Not perfect in abrasion resistance. | Applicable in strong corrosive fluids such as strong acid and alkali. |
PFA (Perfluoroalkoxy) | 1. The same abrasion resistance as PTFE. 2. Having strong ability of load pressure resistance. | Applicable in state of strong load pressure. |
F46 | 1. The similar corrosion resistance to acid, alkali, and salt with PTFE. 2. Better resistance to abrasion and load pressure than PTFE. | Same applications as PTFE. |
Neoprene (chloroprene rubber/CR) | 1. Good elasticity, retractility and abrasion resistance. 2. Resistance to corrosion of low aicd, lkali and salt but not for oxidation media. | Water, sewage, sea water and slurry, mineral serosity with low abrasion. |
Polyurethane | 1. Good abrasion-resistance performance. 2. Not be perfect in acid/alkali resisitance. 3. Can't be used for water mixed with organic impregnants. | Applicable in mineral serosity, slurry and coal slurry with high abrasion |
Electrode materials
Electrode materials include 316L electrode, tantalum electrode, HC electrode, platinum electrode, etc.The magnetic flow meter should choose electrode materials according to corrosiveness of the measured fluid. See the table below and there are some common electrode materials and its applications.
Electrode material | Applications |
Stainless steel SUS316 | Applicable in water,sewage and corrosive mediums.Widely used in industries of petrol,chemistry,carbamide,etc |
Stainless steel covered with tungsten carbide | Applicable in mediums of no corrosive and low abrasion. |
Hastelloy B(HB) | Having strong resistance to hydrochloric acid of any consistance which is below bioling piont. Also resistable against vitriol,phosphate,hydrofluoricacid,organic acid etc which are oxidable |
Hastelloy C(HC) | Be resistant to oxidable acid such as nitric acid,mixed acid as well as oxidable salt such as Fe+++,Cu++and sea water |
Titanium | Applicable in seawater,and kinds of chloride,hypochlorite salt, oxidable acid(including fuming nitric acid),organic acid,alkali etc.Not resistant to a pure reducing acid(such as sulphuric acid,hydrochloric acid)corrosion. But if acid contains antioxidant(such as Fe+++,Cu++)is greatly reduce corrosion. |
Ta | Other chemical media except hydrofluoric acid, fuming sulfuric acid and alkali, including boiling point hydrochloric acid, nitric acid and sulfuric acid <175℃. |
Platinum-iridium | Almost be applicable in all chemical mediums except for aqua fortis,ammonium salt. |

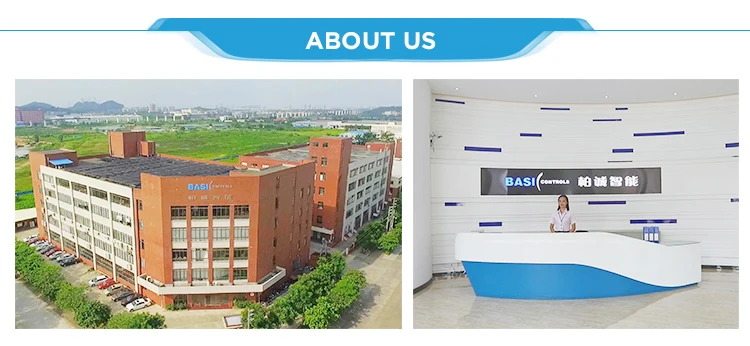

Company Profile
Guangzhou Basic Intelligence Technology Co., Ltd. founded in 1998, is a professional manufacturer specializing in R & D,
producing, sales and service of electromagnetic flowmeter, ultrasonic flowmeter, ultrasonic water meter, energy-saving valve, heat meter and energy management system.
We have more than 200 experienced staff, strict quality control procedures and considerate customer service,we can meet your special requirements at any time.
During these 20 years, we have obtained I S O 9 0 0 1, I S O 1 4 0 0 1, I S O 4 5 0 0 1 management system, intellectual property management system, SGS, ROHS, C E certification, M I D certification , etc.
Annual output up to 200,000 units and the products are mainly exported to North America, Southeast Asia, Oceania, South America and the Middle East.
We welcome O E M and O D M orders. Our promise: high quality , prompt and reliable service, timely shipment. We sincerely welcome customers from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.
producing, sales and service of electromagnetic flowmeter, ultrasonic flowmeter, ultrasonic water meter, energy-saving valve, heat meter and energy management system.
We have more than 200 experienced staff, strict quality control procedures and considerate customer service,we can meet your special requirements at any time.
During these 20 years, we have obtained I S O 9 0 0 1, I S O 1 4 0 0 1, I S O 4 5 0 0 1 management system, intellectual property management system, SGS, ROHS, C E certification, M I D certification , etc.
Annual output up to 200,000 units and the products are mainly exported to North America, Southeast Asia, Oceania, South America and the Middle East.
We welcome O E M and O D M orders. Our promise: high quality , prompt and reliable service, timely shipment. We sincerely welcome customers from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.
Certificate
Exhibition
Recommend Products
FAQ
Q1.what can you buy from us?
A1:Flow Meter,Water Electric Meter,Heat Meter,Auto Controls Product,Energy Billing System
Q3: Can I get a sample?
A3:We have materials in stock to help you to get the samples as soon as we can.
A1:Flow Meter,Water Electric Meter,Heat Meter,Auto Controls Product,Energy Billing System
Q2: What's the MOQ?
A2: Usually, our MOQ is 10 pcs under the consideration of the cost of our company.
A2: Usually, our MOQ is 10 pcs under the consideration of the cost of our company.
Q3: Can I get a sample?
A3:We have materials in stock to help you to get the samples as soon as we can.
Q4: Can you offer OEM or ODM service?
A4: Yes, we have a strong R&D team that can undertake OEM & ODM service.
Q5: What's the delivery time?
A5: .We have materials in our stock, it take 3 day to ship once we receive your payment .If you need it urgently,
you can tell us and we will try our best to satisfy you.
Q6: How long is your warranty
A6:Normally our warranty is 12 months.
Q7:How do you support the aftersale service?
A7: By phone call,by video chat,by sending our engineer to your work field.
A4: Yes, we have a strong R&D team that can undertake OEM & ODM service.
Q5: What's the delivery time?
A5: .We have materials in our stock, it take 3 day to ship once we receive your payment .If you need it urgently,
you can tell us and we will try our best to satisfy you.
Q6: How long is your warranty
A6:Normally our warranty is 12 months.
Q7:How do you support the aftersale service?
A7: By phone call,by video chat,by sending our engineer to your work field.
Q8. why should you buy from us not from other suppliers?
A8:24 years experience; strong R&D team, 60+ patent and copyright, 200+ international certifications, strict quality control system makes Basic Controls the leading company in the HVAC industry. Welcome to visit and cooperate with us.
A8:24 years experience; strong R&D team, 60+ patent and copyright, 200+ international certifications, strict quality control system makes Basic Controls the leading company in the HVAC industry. Welcome to visit and cooperate with us.
