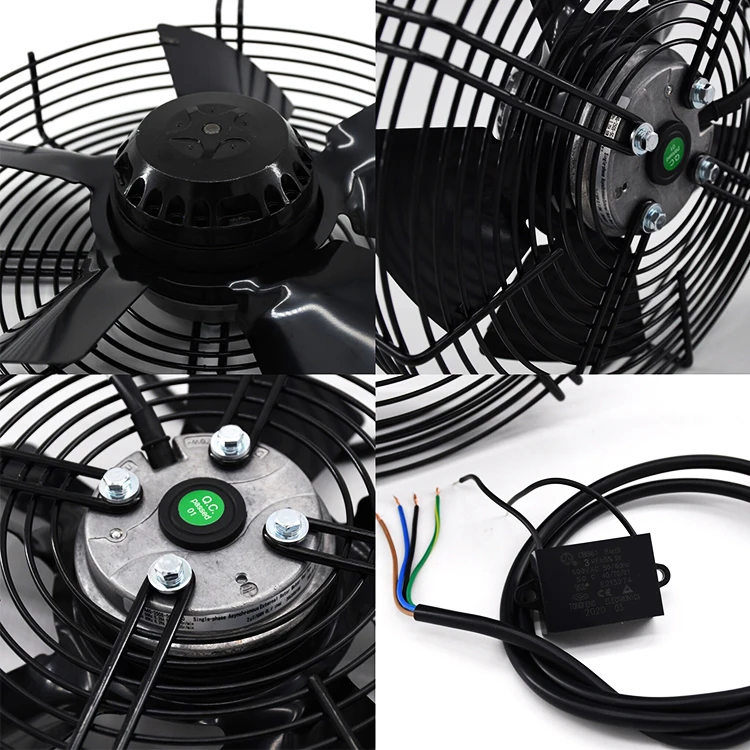

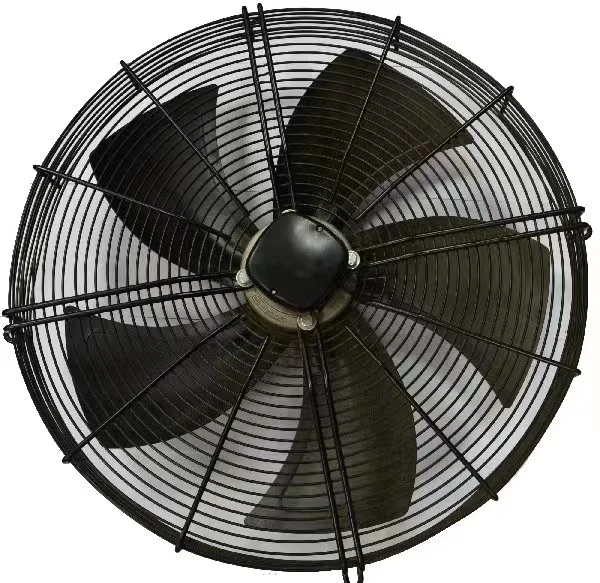

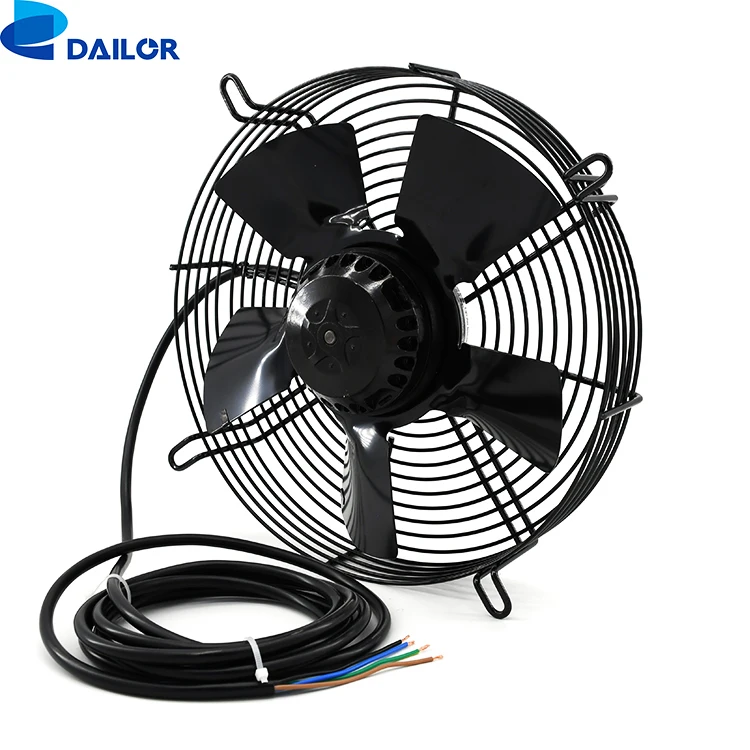

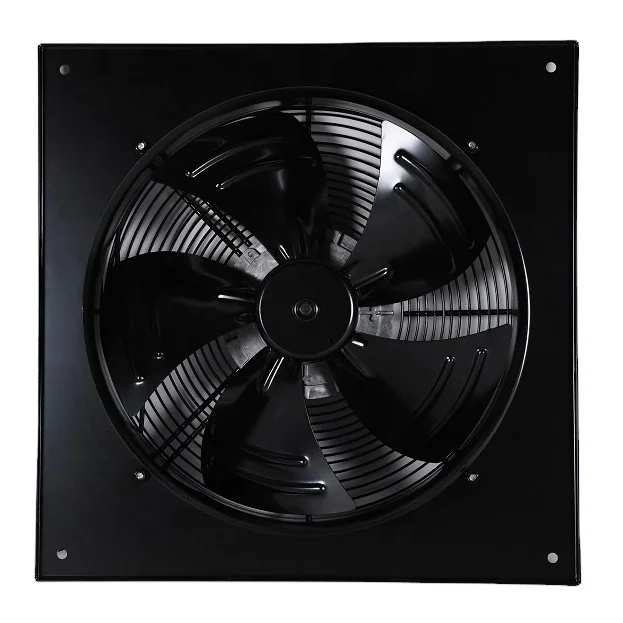

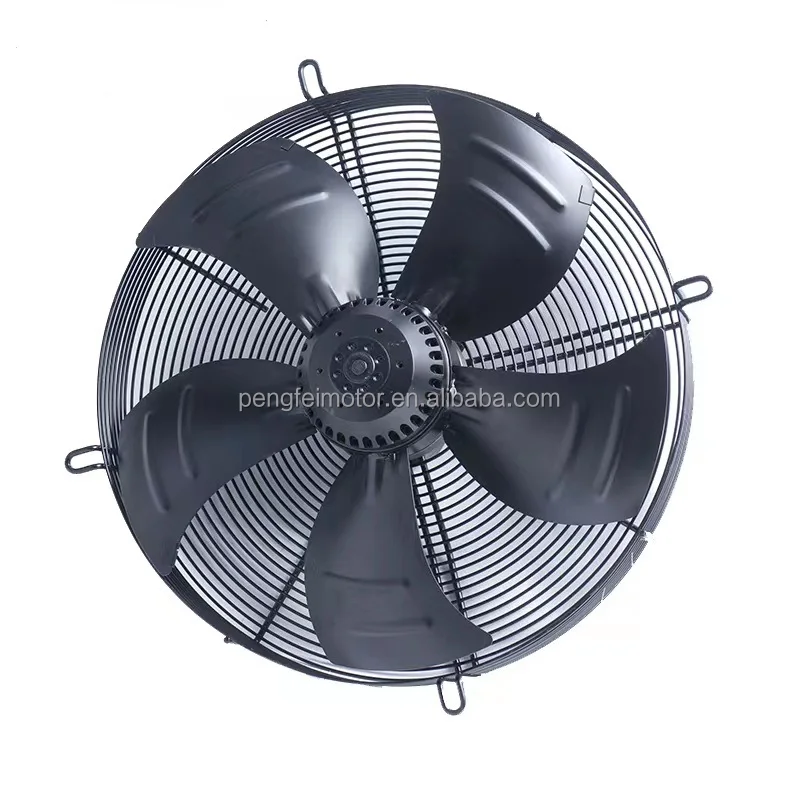

AC Axial Fan 450mm SPCC blade three phase Blowing type axial blower fan 1651rpm
- Category: >>>
- Supplier: Zhongshan Pengfei Electrical Appliance Co. Ltd.
Share on (1600543463390):
Product Overview
Description
Certifications and Patents
Product Paramenters
Name | Axial Fan | |
Current Type | AC | |
Model NO. | YWF.A4T-450B-5DIAOO | |
Fan Type | Blowing | |
Impeller Diameter | 450mm | |
Blade Material | SPCC | |
Voltage | 220V | |
Ingress Protection | IP44 | |
Insulation Class | F | |

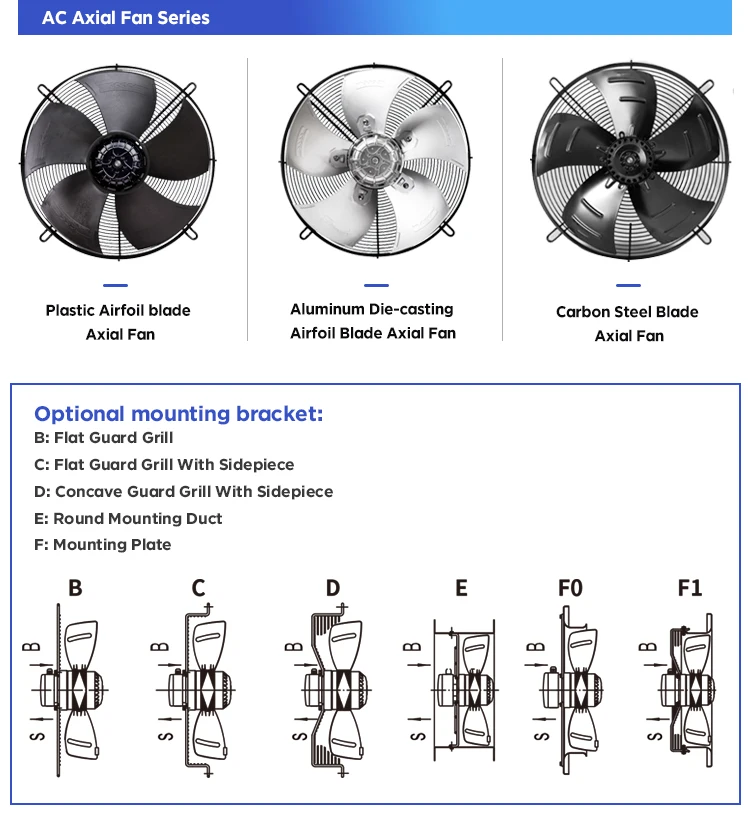

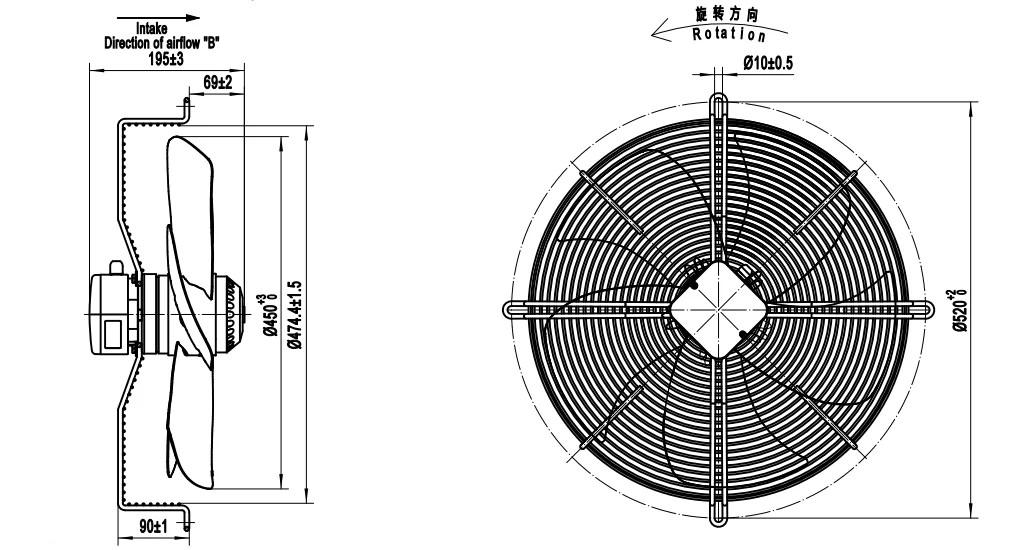

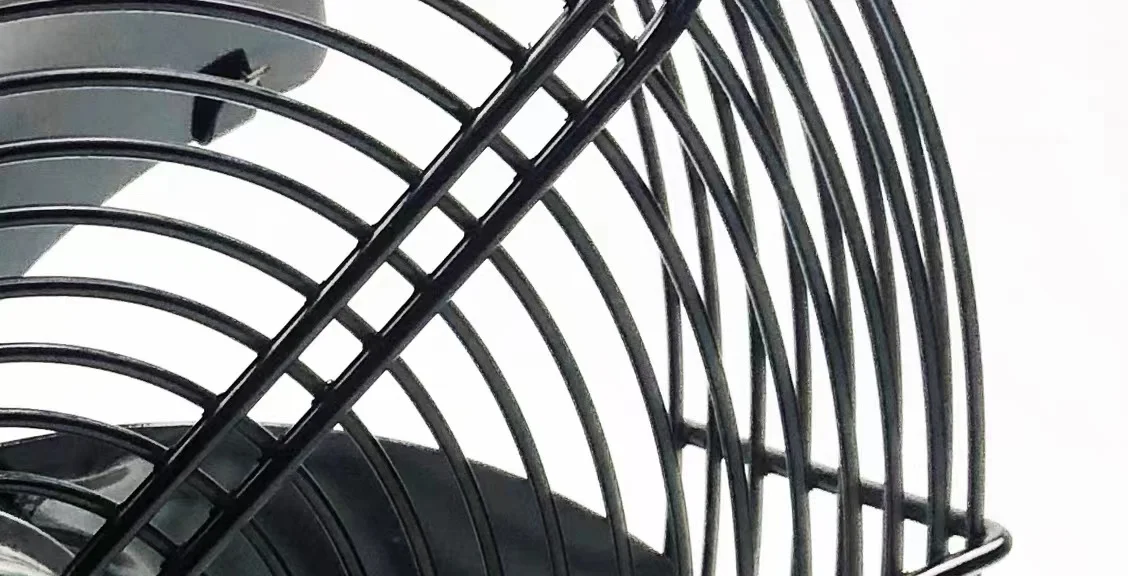

The fan with Type D concave guard grill | ||

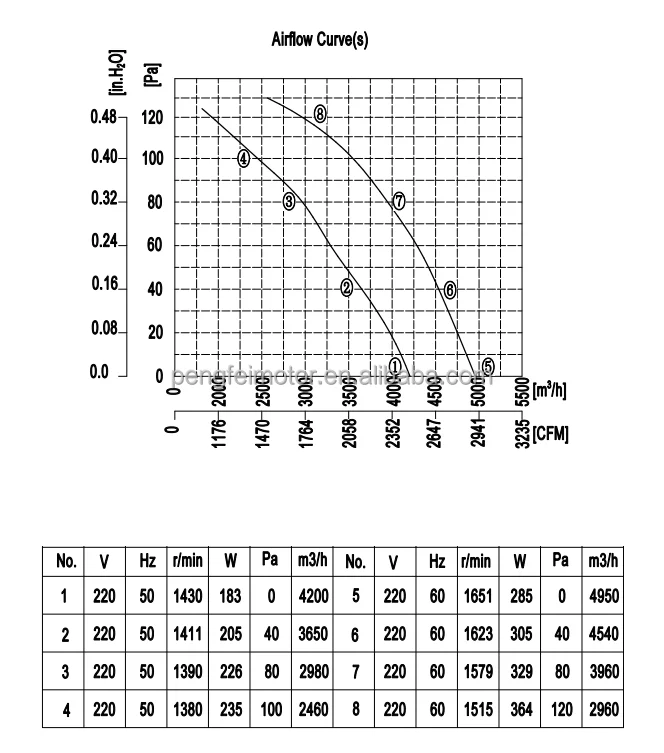

Model NO. | Voltage (V) | Frequency (Hz) | Power (W) | Speed (RPM) | Air Flow (m3/h） | Noise (dB) |
YWF.A4T-350S-5DIAOO | 220 | 50 | 200 | 1400 | 4200 | 62 |
220 | 60 | 290 | 1600 | 4950 | 66 |
Three-phase Asynchronous External Rotor Motor for Fan
Rated Voltage: 220V
Material of Blade: SPCC
Bearing Type: Ball bearing
Material of Motor Magnets: Silicon steel and high strength enamelled wire QZ-2 180℃
Net Weight: 7.5kg
Protection: with cut-off temperature is 150~160℃, and reset temperature is 90~120℃
Operating Temperature Range: -30℃~+60℃
Operating Humidity Range: 0%~95%RH
Atmospheric Pressure Range: 80~110Kpa
Fan Life: 40,000 hours
The fan is CCC, CE approved, and material are RoHS compliant.
Products Description
Manufacturing Technique
Recommend Products
FAQ
1.Q: I don't find the specification that meets our requirement.
A: Don't worry. We have hundreds of fans. Send us messages, we will recommend the right one to you.
2.Q: How about the delivery time?
A: Generally, ready to ship order will be shipped in 15 days after payment.
3.Q:What is your main market?
A: We have UL, CE certificate, North America, Europe are our main market we also have client in Southeast Asia, South America, Africa and so on.
4.Q: Can I have samples for testing before ordering products?
A:Yes, we sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted. More info about samples and fans, send us message below.
5.Q: What is your QC procedure?
A: We have a strict QC system. Before manufacturing, all raw material will be QC sampled.
During manufacturing, when each part is finished, it will be QC sampled. We will assemble samples before mass assembling. After manufacturing, all finished fans will be QC tested.
Send us messages to get more information and catalog.
