Product Overview

Description

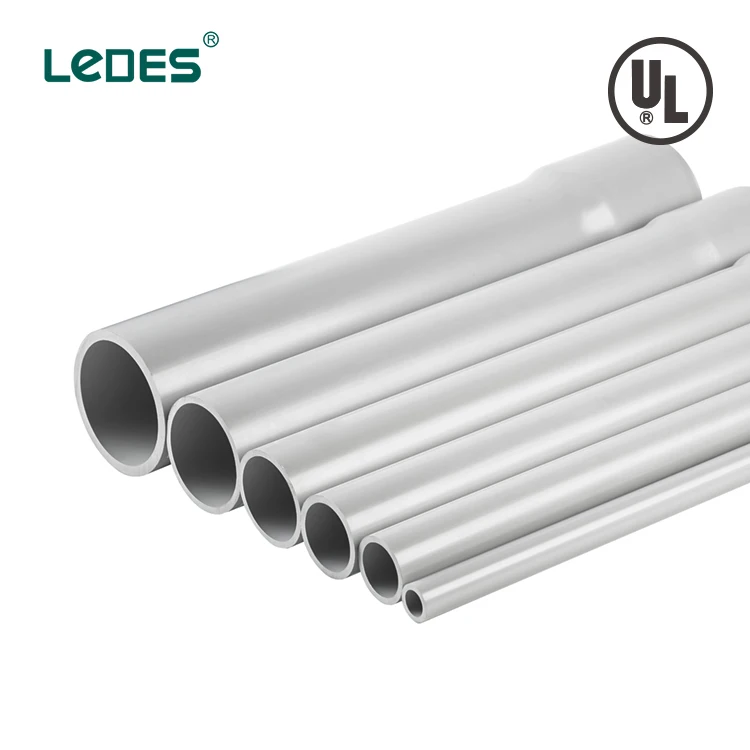

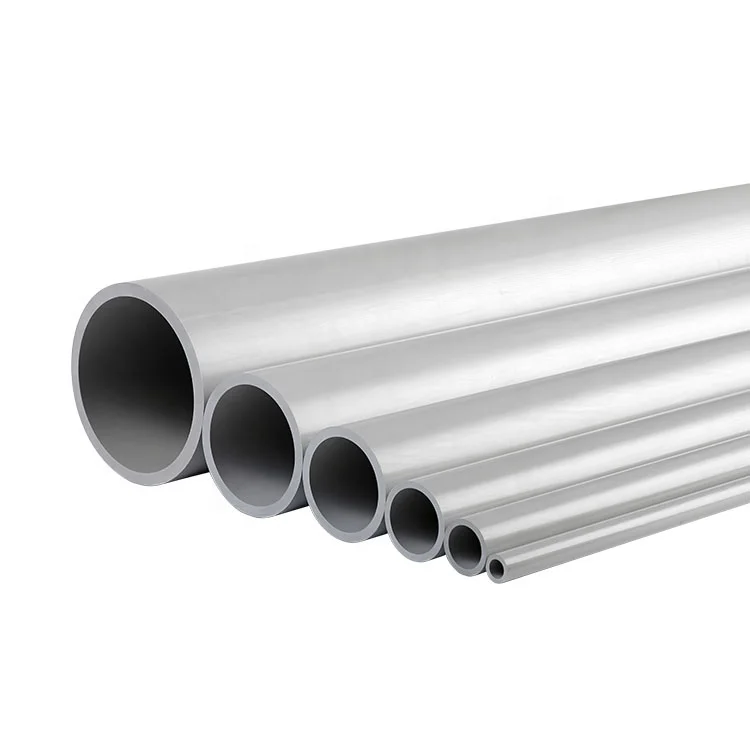

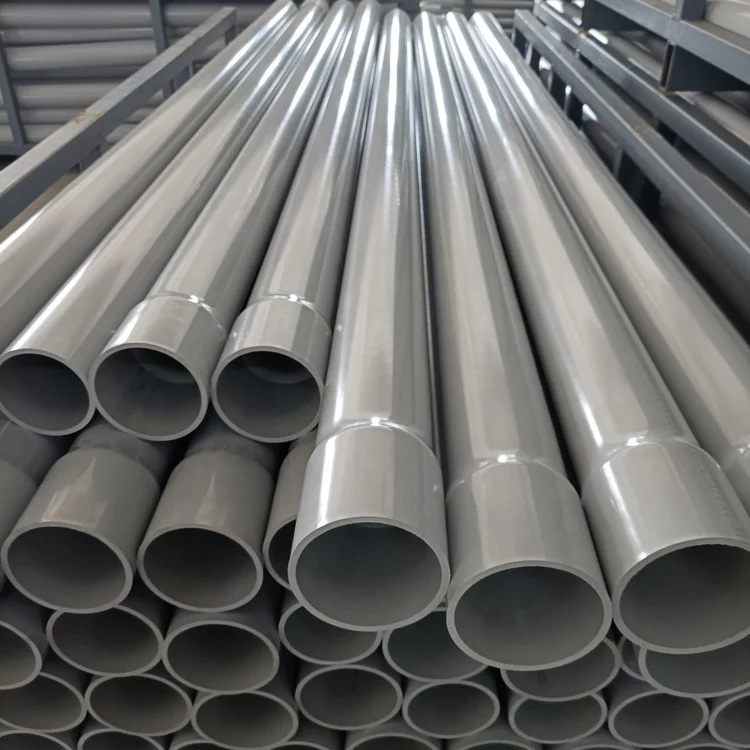

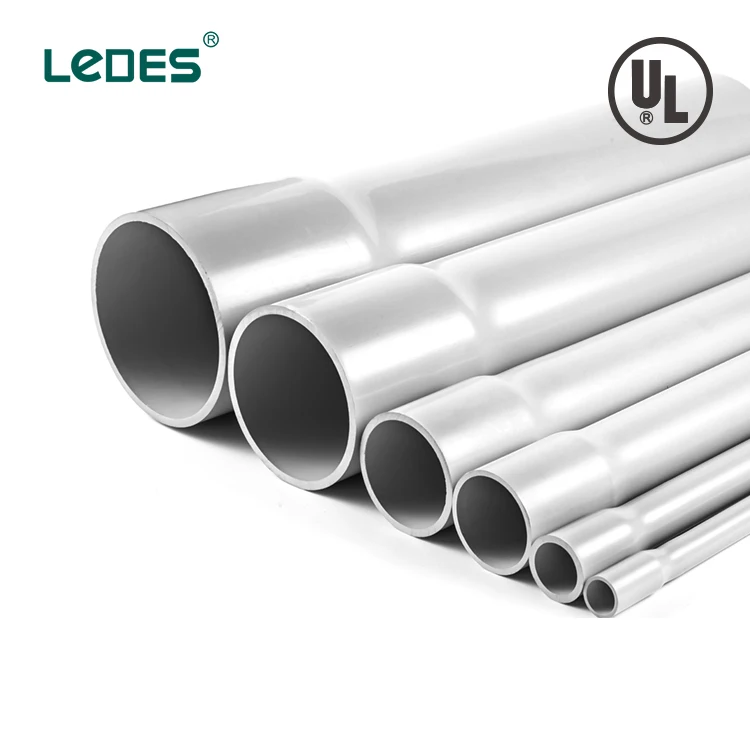

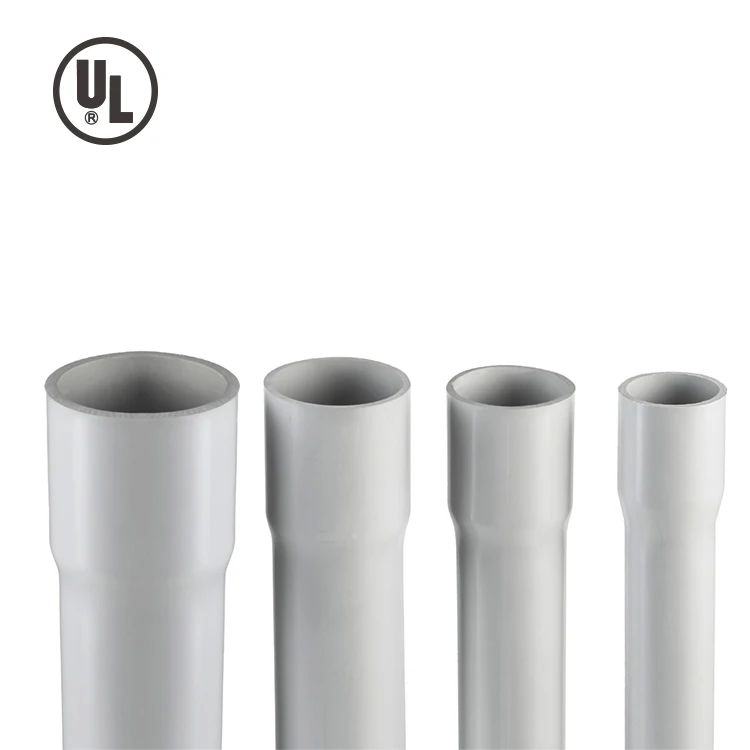

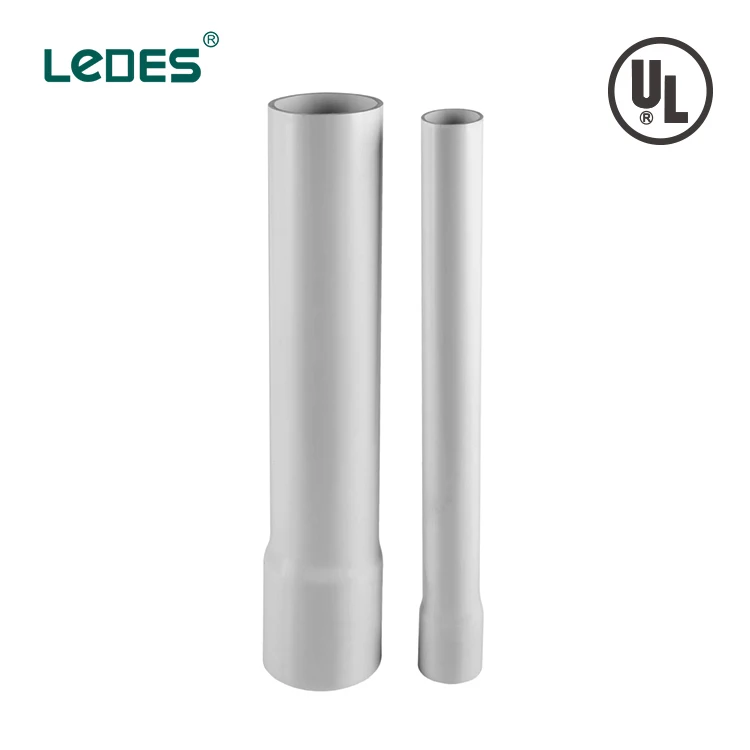

UL 651 Non Metallic U PVC Pipe Sunlight Resistant PVC Rigid Conduit Schedule 40 80 Electrical Pipe




Name Of Commodity :
UL651 Rigid Pvc Pipe
Raw Material :
PVC
Certification:
UL/SGS/ROSH /CE/IEC
Trade Size :
1/2'', 3/4'', 1'', 1 1/4'',1 1/2'', 2'', 2 1/2'', 3'', 3 1/2'', 4'' , 5'' , 6''
Length :
10 FT / 20 FT
Thickness :
See Table 2 Shown As Below
Color :
Grey , Black Or Can Be Customized
Application :
Approved For Underground And Above Ground
Feature :
Flame Resistance,UV Resistance,Corrosion Resistance ,ect




TABLE 2 - WALL THICKNESS


 Trade Size
Outside Diameters ( inch - mm )
Minimum Wall Thickness ( inch - mm )
inch - mm
Maximum
Minimum
Schedule 40
Schedule 80
1/2 - 16
0.848 - 21.54
0.832 - 21.13
0.109 - 2.77
0.147 - 3.73
3/4 -21
1.060 - 26.92
1.040 - 26.42
0.113 - 2.87
0.154 - 3.91
1 - 27
1.325 - 33.66
1.305 - 33.15
0.133 - 3.38
0.179 - 4.55
1-1/4 - 35
1.672 - 42.47
1.648 - 41.86
0.140 - 3.56
0.191 - 4.85
1-1/2 - 41
1.912 - 48.56
1.888 - 47.96
0.145 - 3.68
0.200 - 5.08
2 - 53
2.387 - 60.63
2.363 - 60.02
0.154 - 3.91
0.218 - 5.54
2-1/2 - 62
2.890 - 73.41
2.860 - 72.64
0.203 - 5.16
0.276 - 7.01
3 - 78
3.515 - 89.28
3.485 - 88.52
0.216 - 5.49
0.300 - 7.62
3-1/2 - 91
4.050 - 102.87
3.950 - 100.33
0.226 - 5.74
0.318 - 8.08
4 - 103
4.550 - 115.57
4.450 - 113.03
0.237 - 6.03
0.337 - 8.56
5 - 129
5.613 - 142.57
5.513 - 140.03
0.258 - 6.55
0.375 - 9.52
6 - 155
6.675 - 169.54
6.575 - 167.00
0.280 - 7.11
0.432 - 10.97




GOOD PERFORMANCE
- Non-conductive And Non-corrosive
- Impact Resistant
- Sunlight Resistant
- Fire Retardant - V0 Fire Rated.
- Chemical resistance
- Compression Resistance

STRICT QUALITY
- In Accordance With UL651 Standard
- PVC Material Test: ASTM D1784-20
- Smooth Interior And Outside.
- Uniform Wall Thickness
- 100% Environmental Raw Materials
- Permanent Markings


WIDE APPLICATION

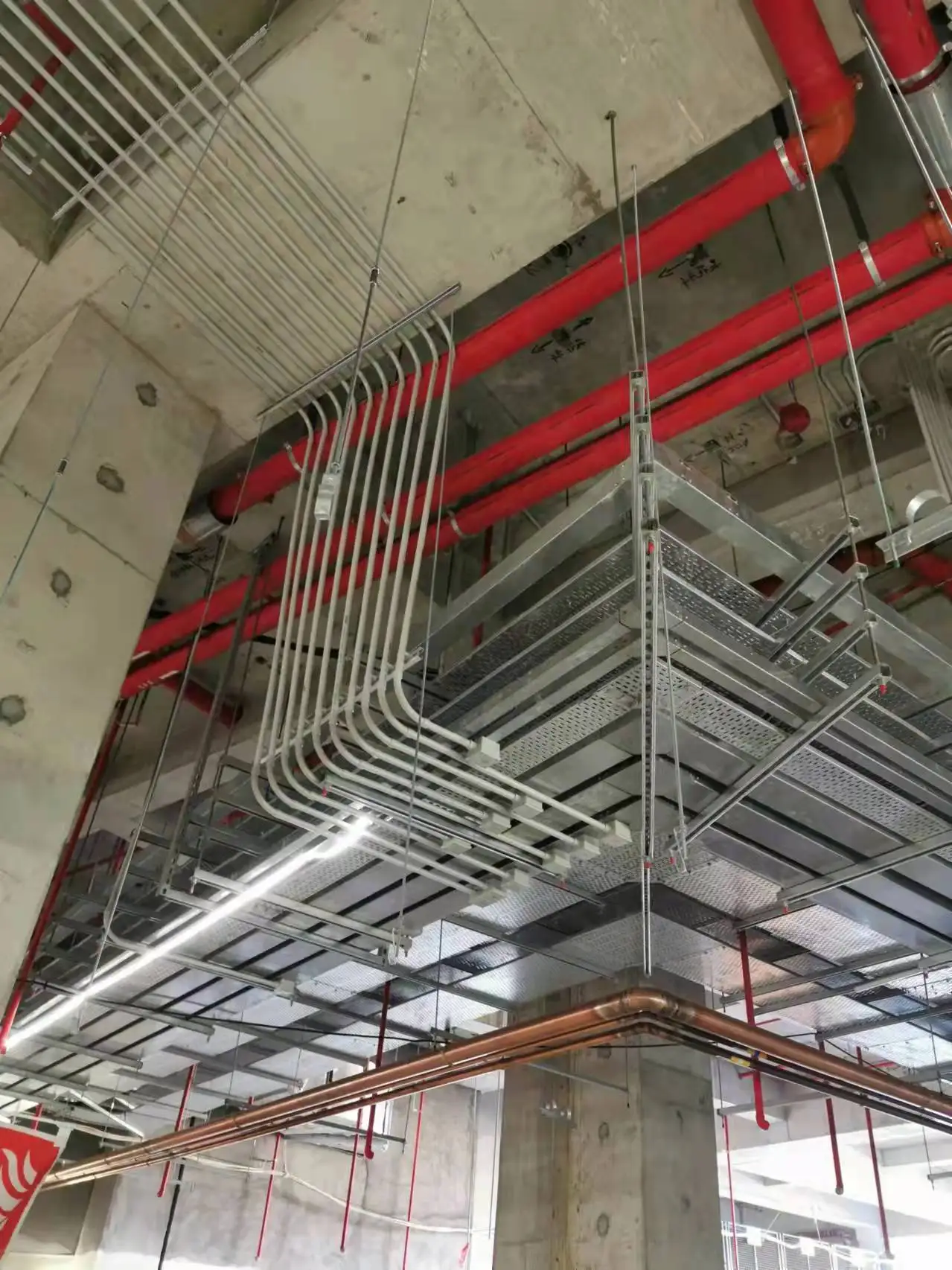

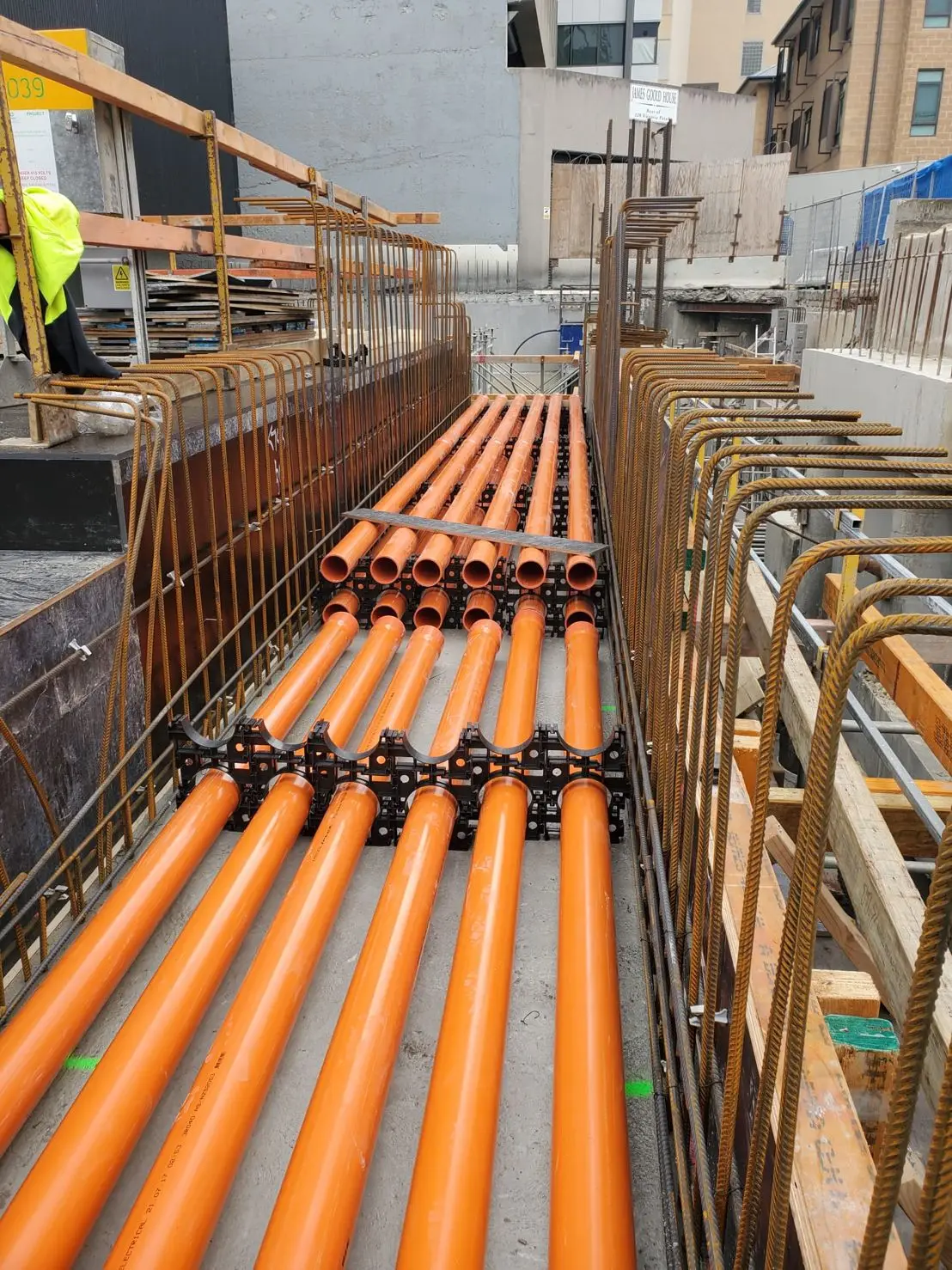

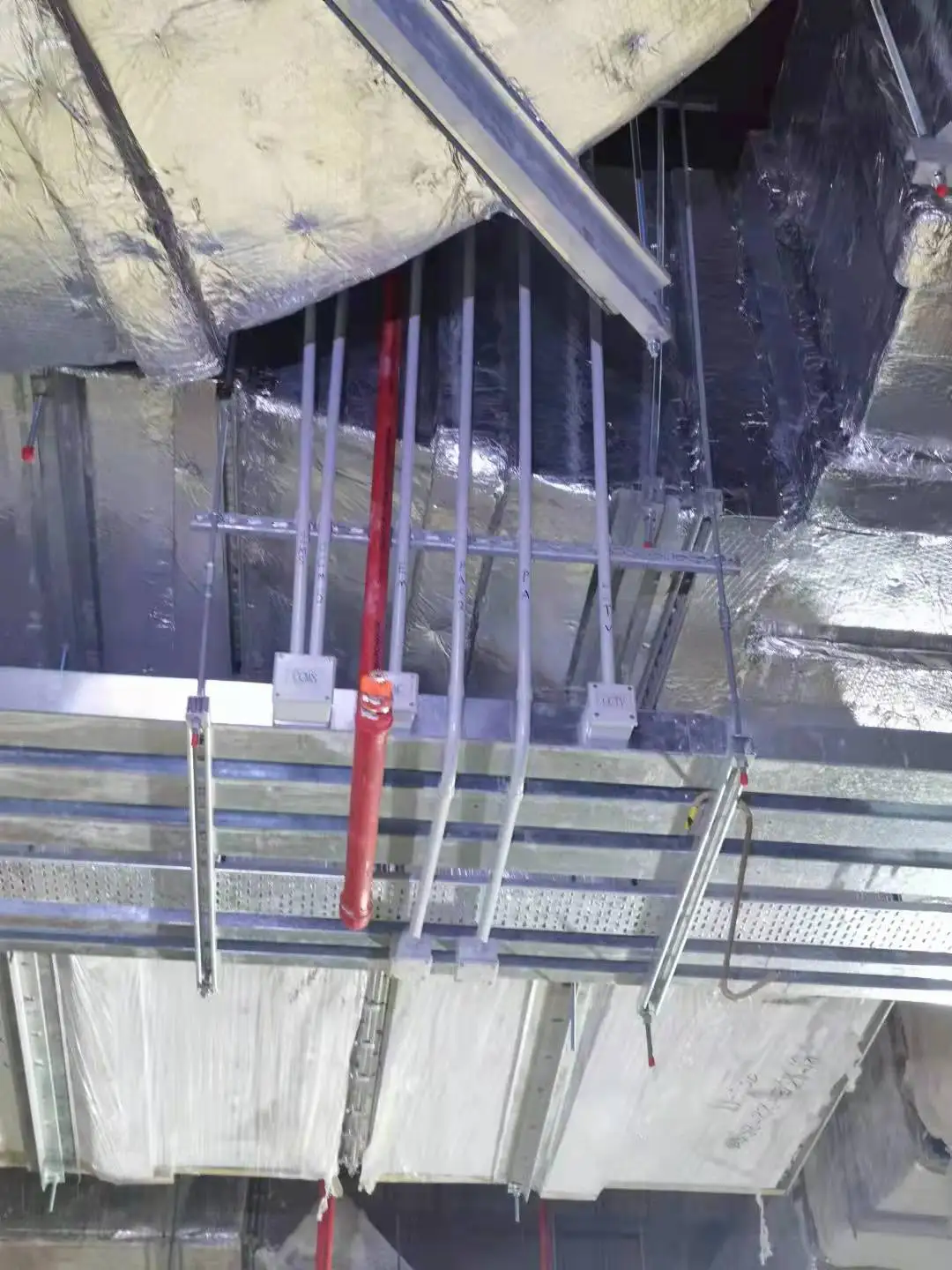

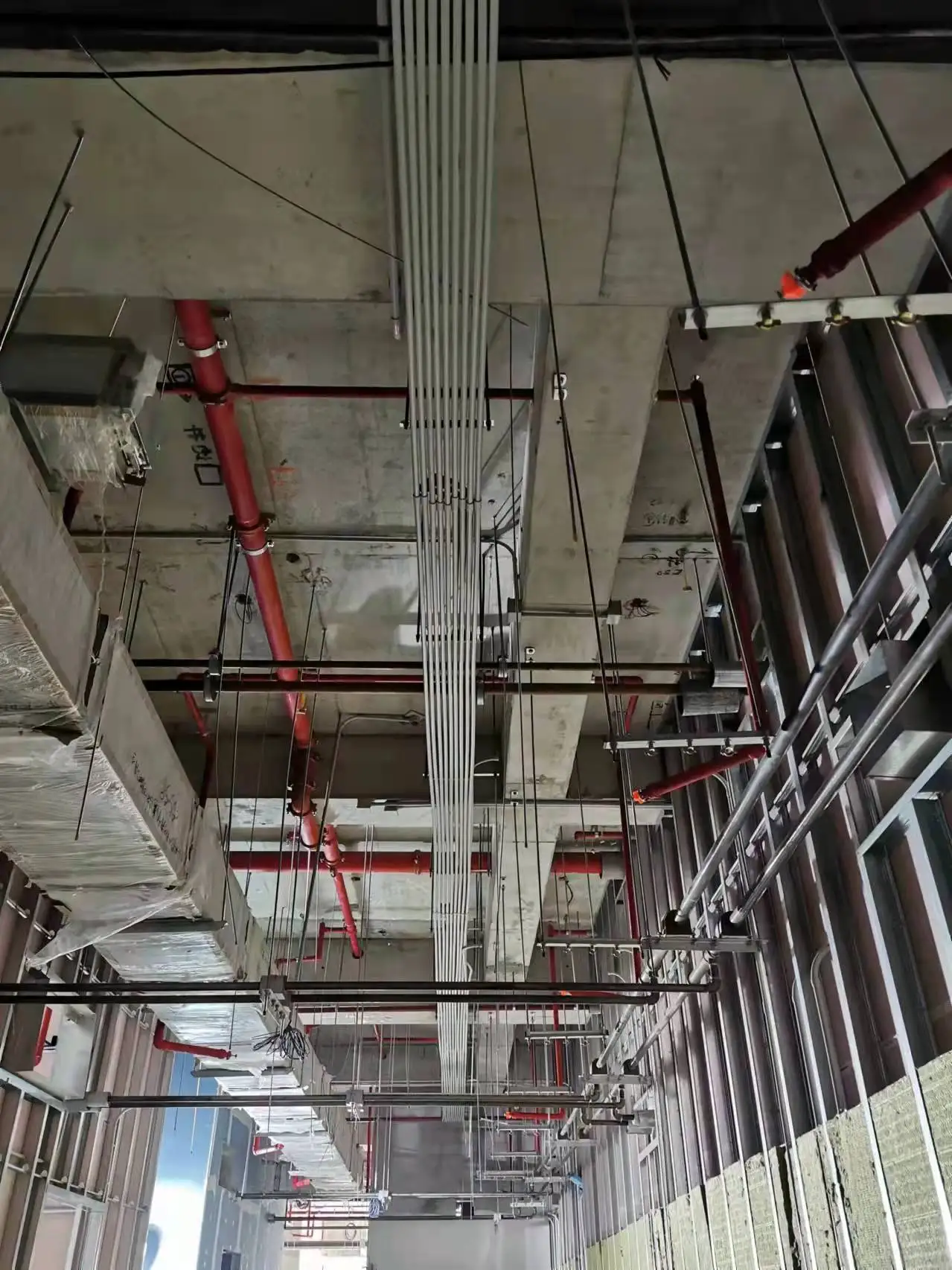

- Exposed or Concealed (plasterboard or cavity wall)

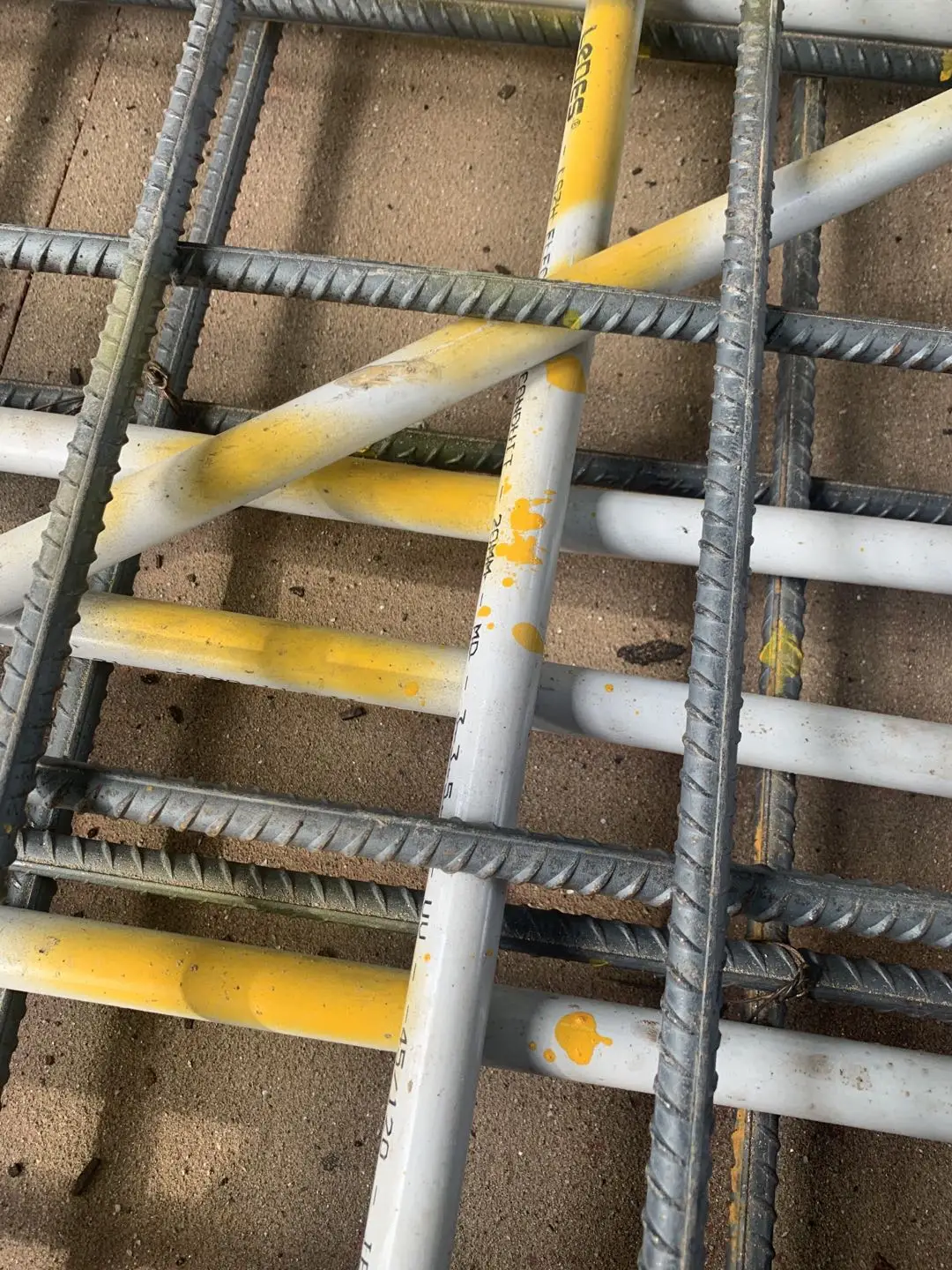

- Concrete or Buried Underground
- Indoor or Outdoor
OEM&ODM AVAILABLE
- Company Industry Experience (13 Year)
- Support Customized Products,Packaging and Mould.
- Direct Factory Will Supply You Competitive Price.

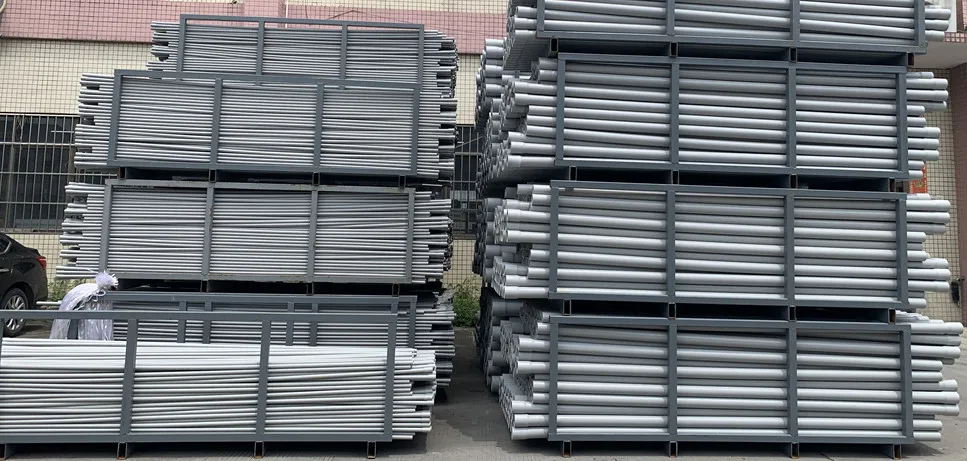

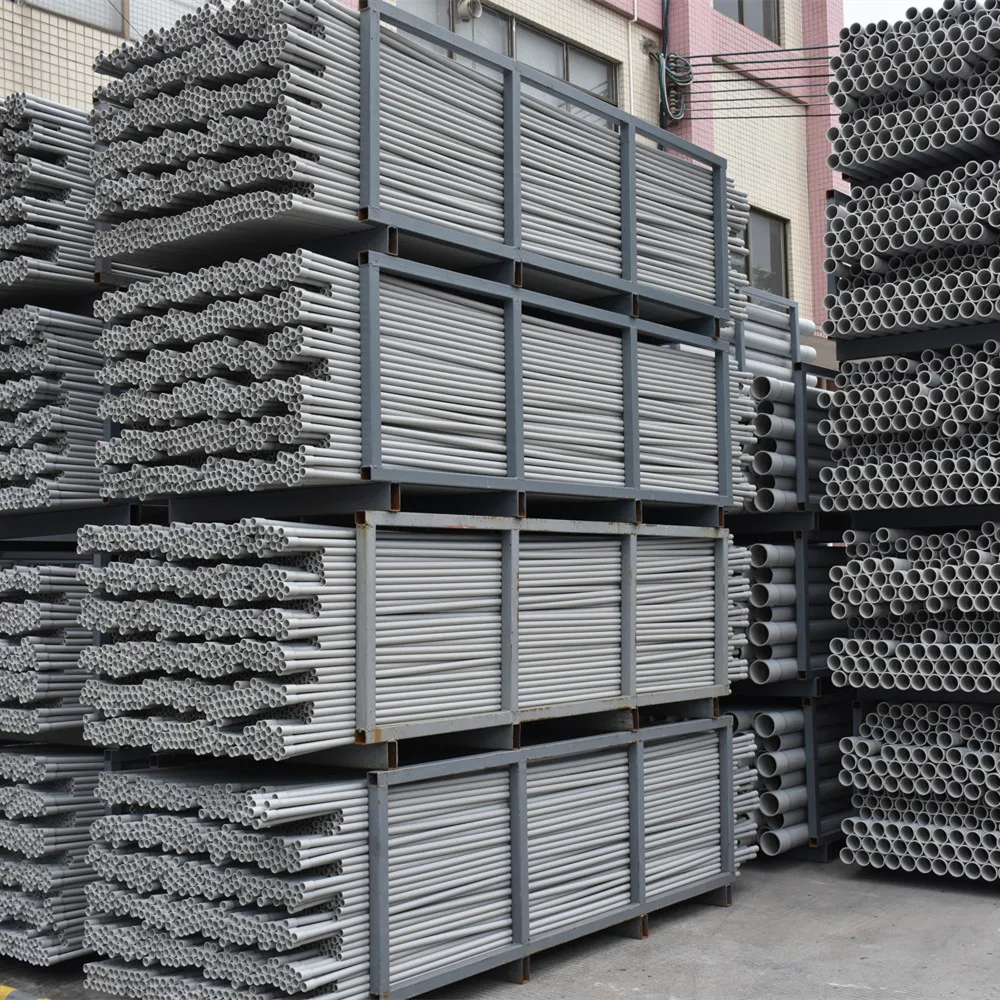

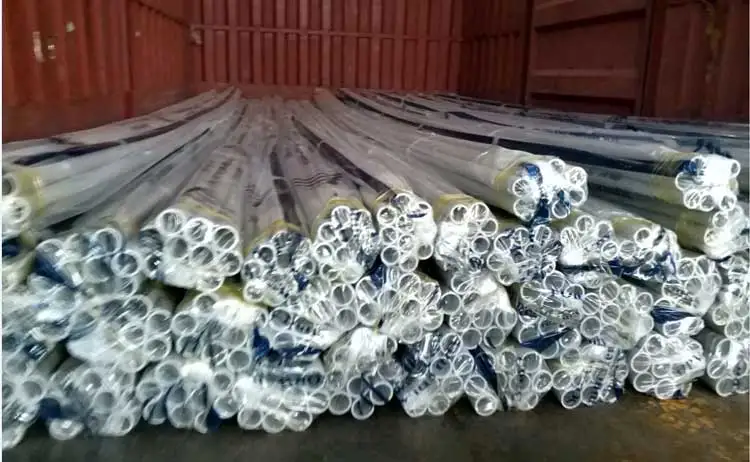

Normal Packaging :
1) In Bulk
2) Plastic Bag
3) Wooden Frame.
The Packaging Material Can Be Customized According To Your Need.














Our Factory Has Passed :
- ISO 9001 Quality System Certification.
- ISO 14001 Environmental Management System Certification.
- SGS, ROSH, CNAS, CE, IEC Certification ...

Please do not hesitate to contact us for more details of the certifications if you need !! Thank you.





We are one of the most professional manufacturers of electrical plastic conduits and accessories in China,specializing in
the development and production of innovative conduits and accessories for cable management and protection.

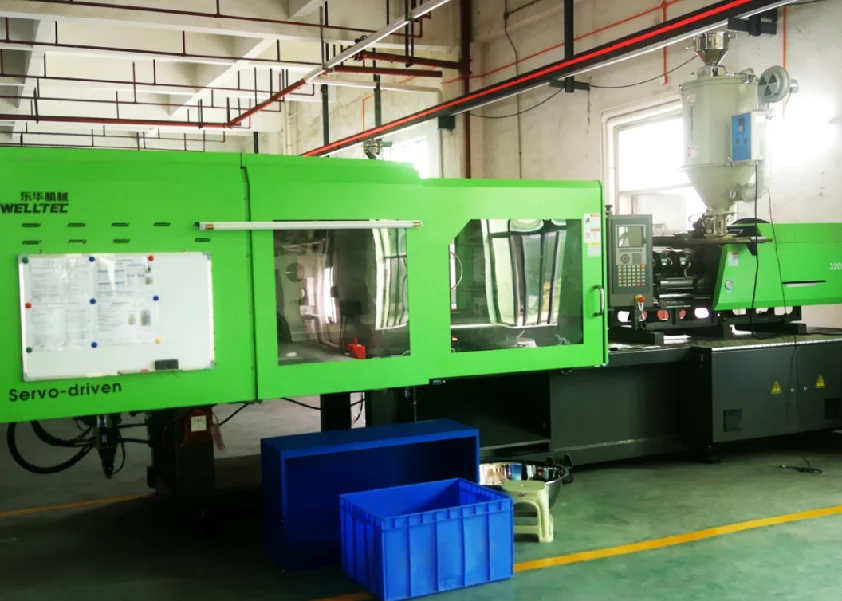

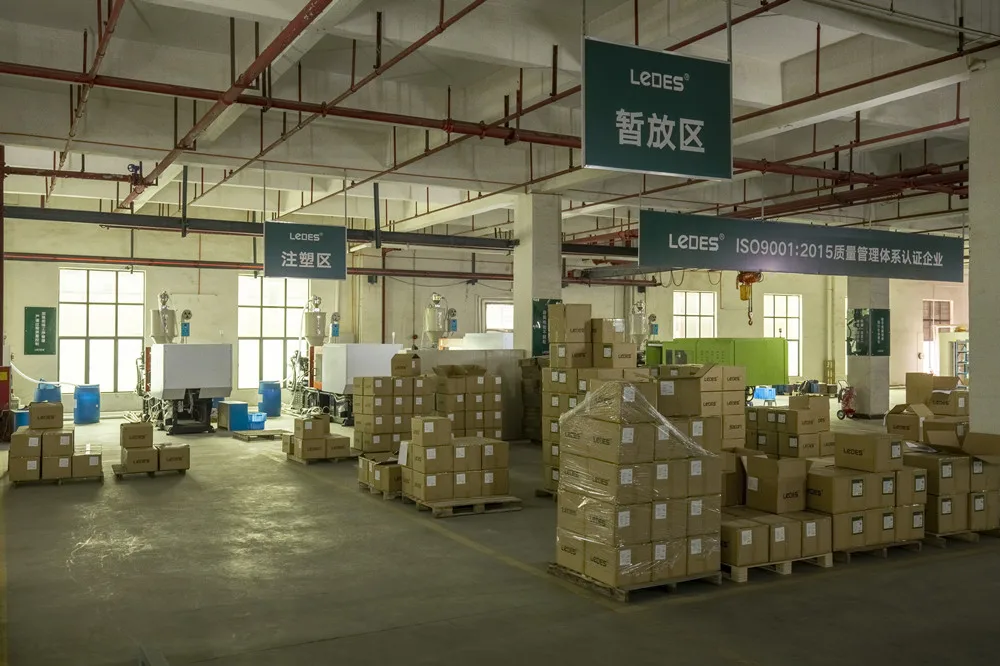

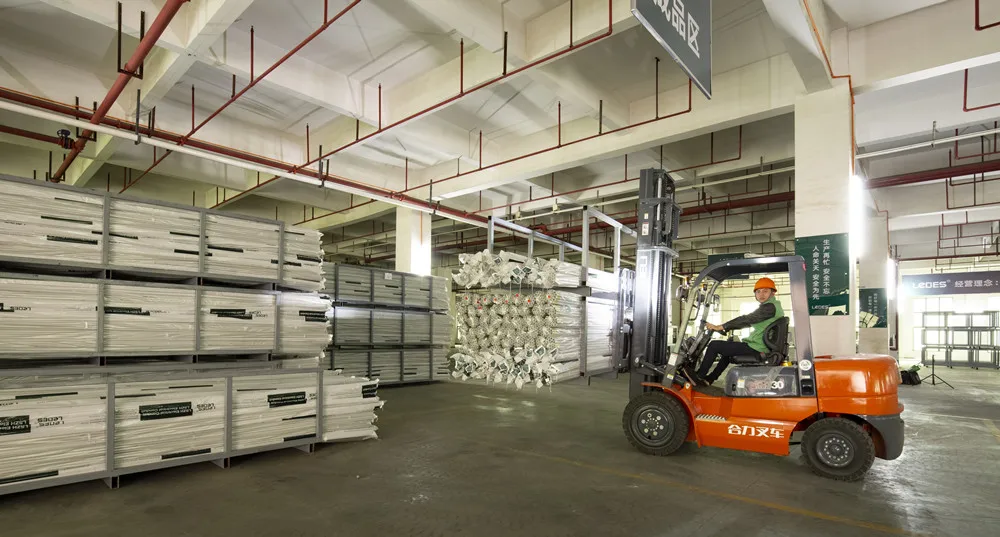

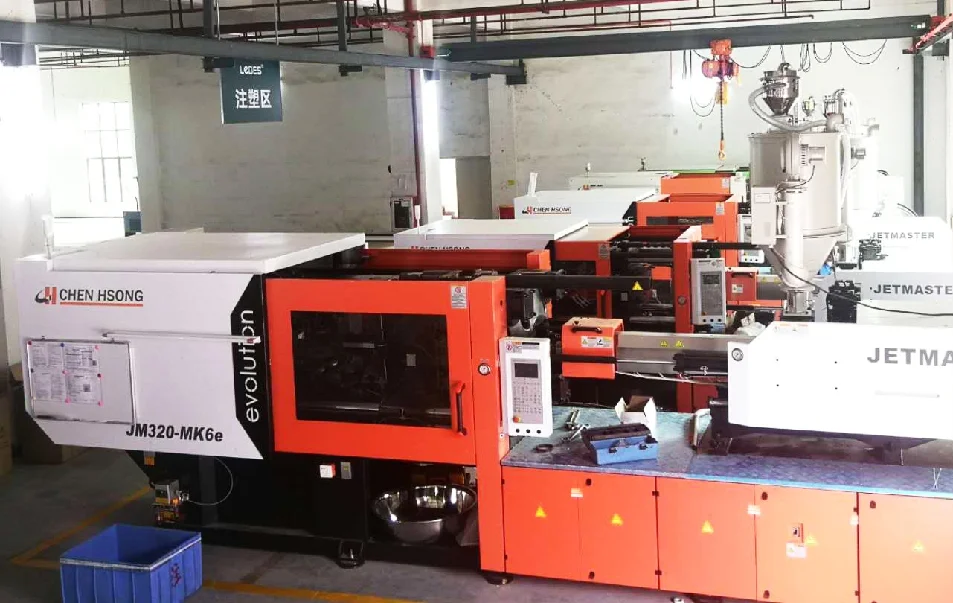

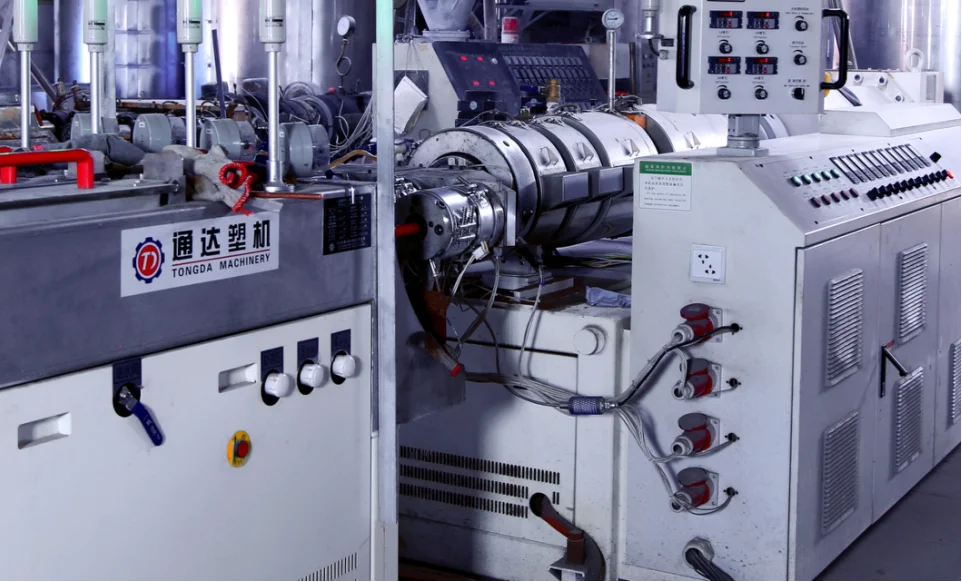

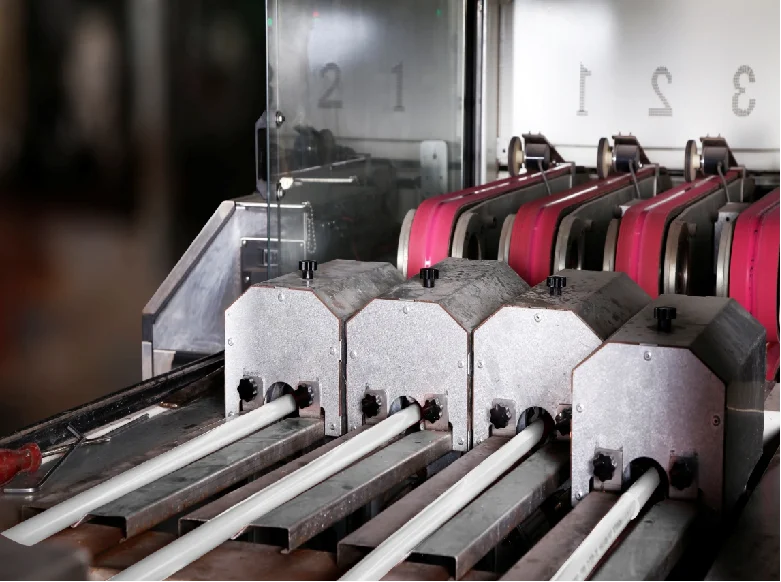

Our plants are in Dongguan City(China) and Lechang City (China), occupy more than 100,000 square meters. We have over 200 skilled employees, 50 modern manufacturing injection and extruder machines.

There are five series of products as below :

- American Standard Electrical Conduit
- Low Smoke And Halogen Free Conduit & Fittings
- Solar Conduit & Fittings
- AS/NZS 2053 Conduit & Fitting
- BS Conduit & Fittings

We have exported these items to Europe and America, Australia for many years, and now expanding to global world markets day by day. Hopehead can also support OEM&ODM service.















1.What is your MOQ ?
Depend on your order (different kinds of items have different MOQ )

2. What is your delivery time ?
Normally, the time of delivery duration is around 15-30 days.

3. What is the shipping port ?
We ship the goods via Shenzhen Port, Guangzhou Port.

4. What is your payment term ?
We accept T/T or L/C.

5. How should I contact you ?
You can contact us with Trade Manager or send us an email.

6. How about the samples ?
Our samples are free . We could send you the sample, most samples are free to send to most places.
