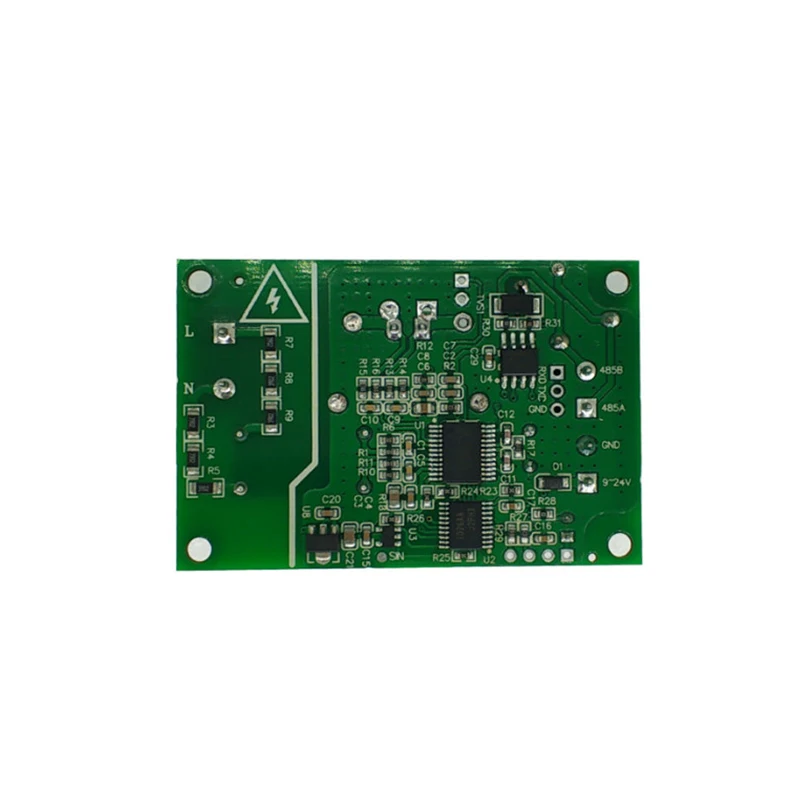

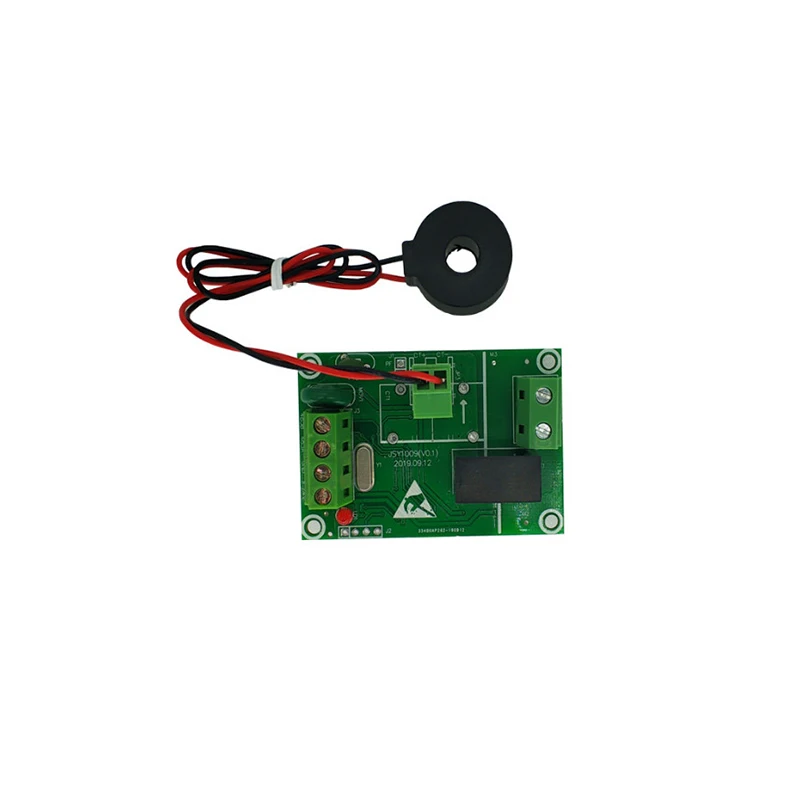

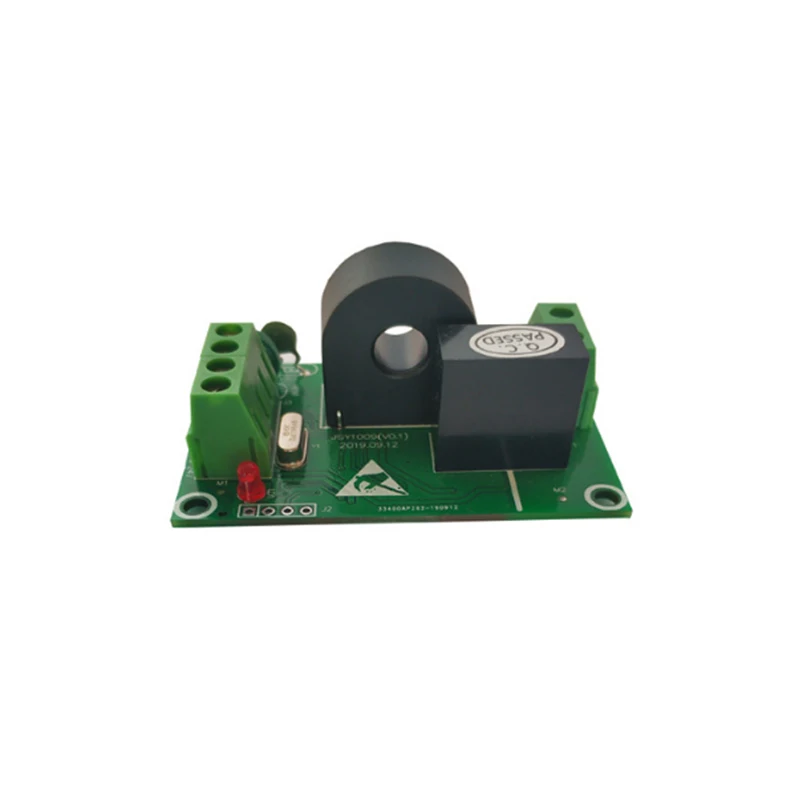

mini digital power meter rs485 communication Modbus RTU power acquisition monitoring module
- Category: >>>
- Supplier: Shenzhen Jiansiyan Technologies Co. Ltd.
Share on (1600543507919):
Product Overview
Description
Specification
project | technical parameter | ||
Measurement | Load type | Single-phase AC power load | |
Voltage range | 0-264V accuracy 0.5 level | ||
Current range | 10mA-60A accuracy 0.5 level | ||
Current display digits | 0.01A | ||
level of accuracy | Active Class 1.0 | ||
Minimum energy display | 0.001kWh | ||
communication | Interface Type | RS485/TTL two communication modes are optional | |
Communication protocol | MODBUS RTU | ||
Data Format | Can be set, "n,8,1", "e,8,1", "o,8,1", "n,8,2"; default "n,8,1" Can be set to 4800, 9600, 19200Bps; the default baud rate is 9600bps | ||
Baud rate | Can be set to 4800, 9600, 19200Bps; the default baud rate is 9600bps | ||
mailing address | The default address is 1, which can be set | ||
performance | Typical power consumption | ≤50mA | |
Power supply | 5 VDC | ||
Power frequency withstand voltage | DC 2KV | ||
Overload capacity | 1.2 I max sustainable | ||
working environment | Operating temperature | -20 ~ 45℃; storage temperature: -40 ~0℃ | |
Relative humidity | 5～95%, no condensation (under 40℃) | ||

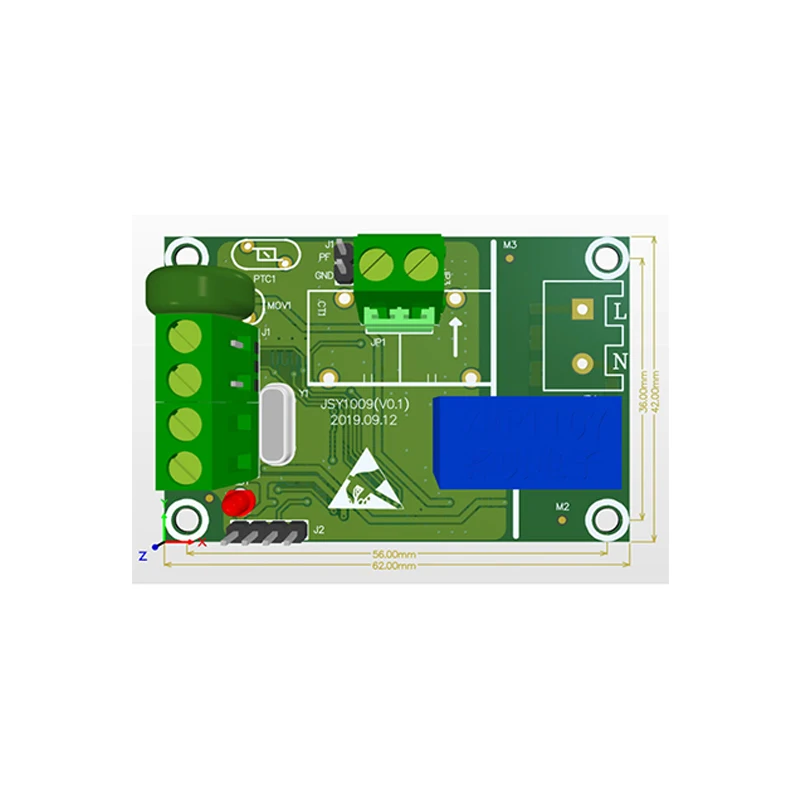

size | Product Size | 62×42×23mm(Length*width*height) | |
