Automatic vaccine reagent collection test tube vial eye drop Bottle Pharmaceutical Filling Machines
- Category: >>>
- Supplier: Changzhou Powerrig Machinery Technology Co. Ltd.
Share on (1600543545463):
Product Overview
Description
Product Introduction

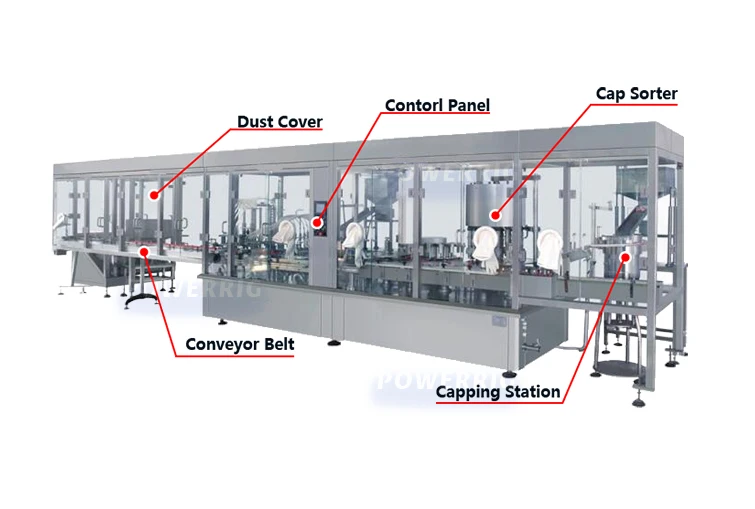

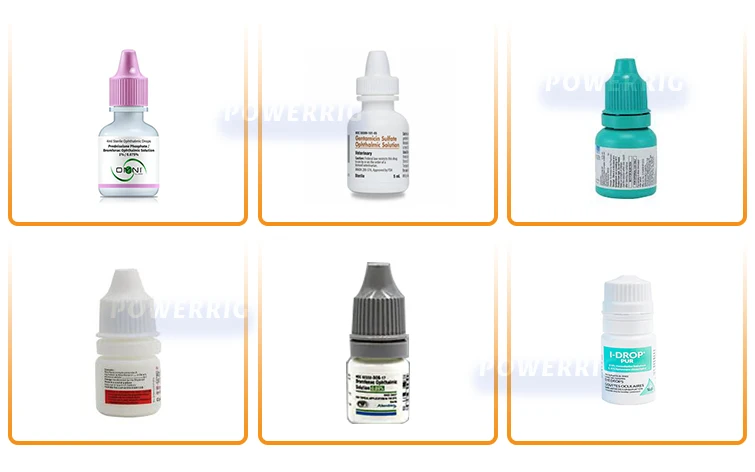

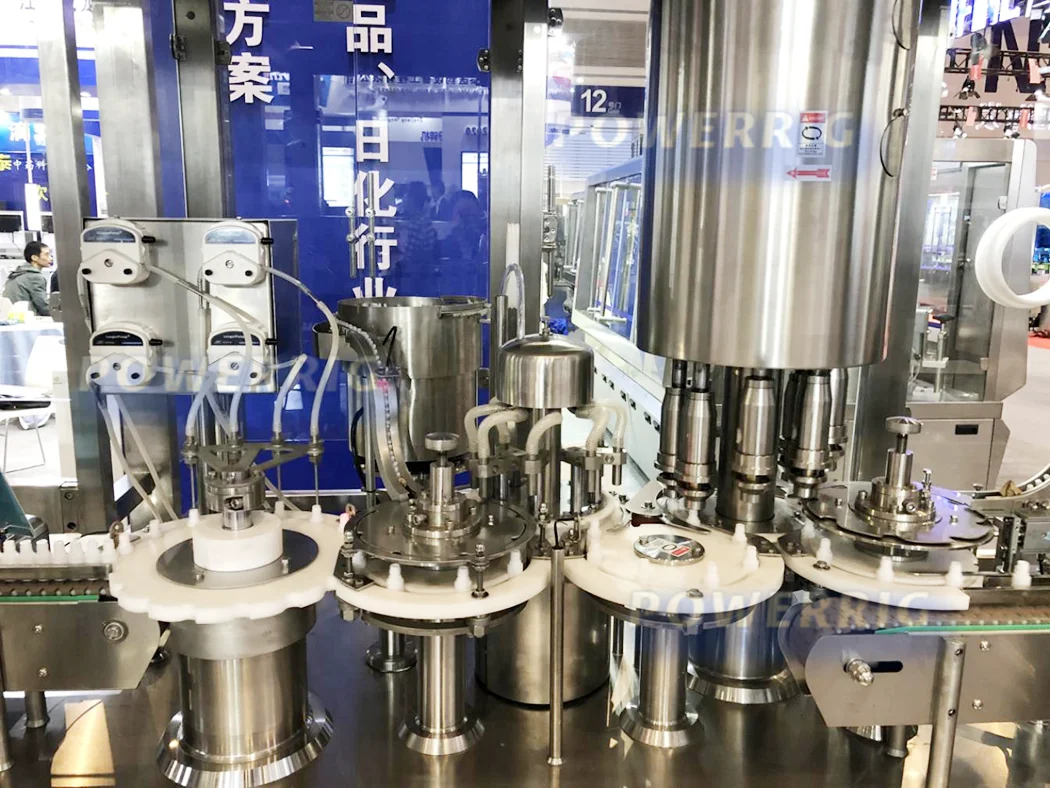

The aseptic filling production line for eye drops is composed of six main parts: bottle arrangement, transportation, aseptic purification gas washing bottle, filling, inner stopper and outer cap. It is mainly used to complete the bottle arrangement,bottle transportation, gas washing, metering and sub packing, stopper, capping and capping of eye drops bottle.
The whole production process is completed under 100 level laminar flow protection and aseptic isolation operation, The production line is also suitable for the production of other small capacity plastic bottles.
Weight | 1500kg |
Voltage | 380V 50/60Hz |
Filling volume | 5-10ml |
Air supply | 0.4-0.6Mpa |
Dimension | 1800*1000*1500mm |
Motor power | 2.5KW |
Filling speed | 60-70 bottles each minute |
Filling error | ≤±1% |

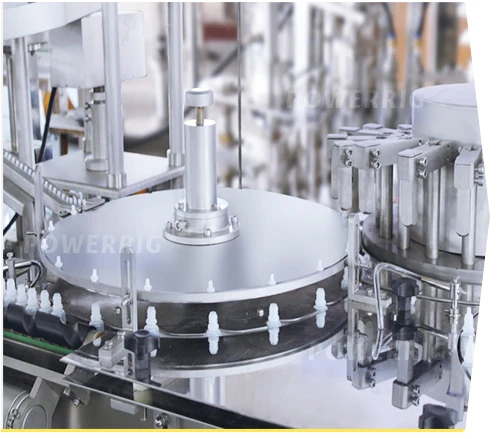

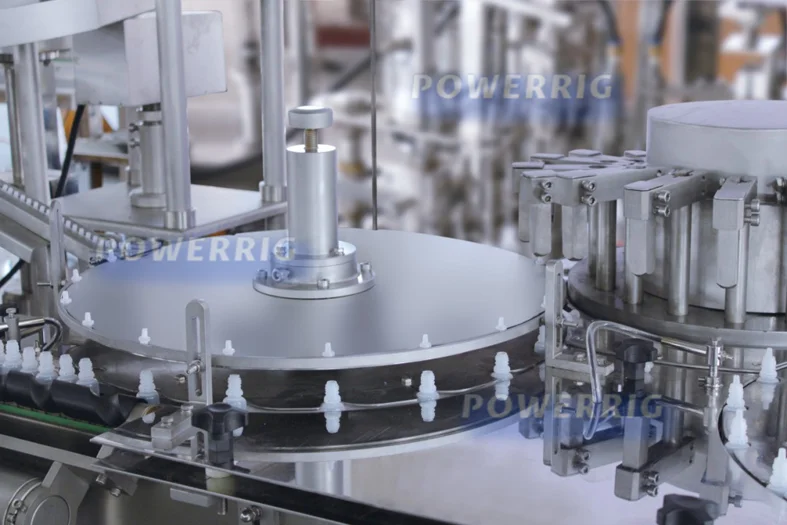

Inside plug loading

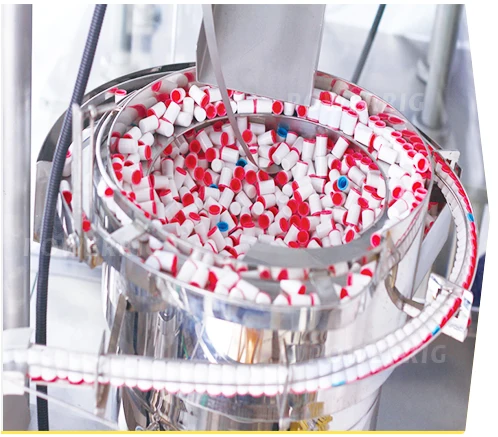

Inside plug feeding cage with vibrating disk is connected to a pipe that carries the Inside plug ,They automatically arranges the Inside plug and deliver the Inside plug.

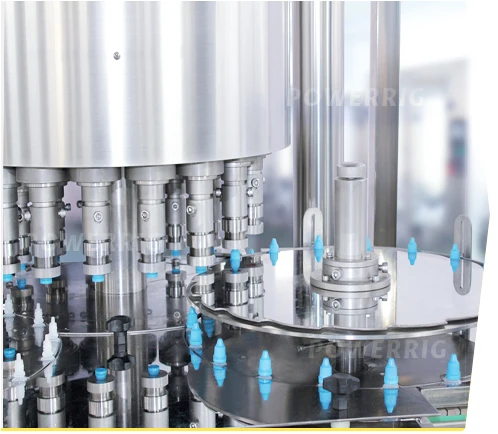

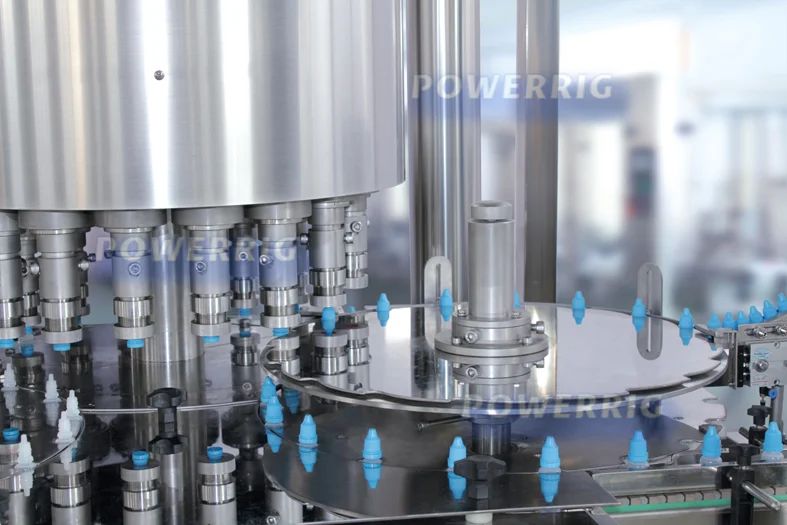

cap screwing system
The machine will automatically grab the cap, and the bottle will automatically screw the cap when it reaches the specified position,no bottle then no cover, when the rotation of the cap side moving down, rotation (pressure) cap under the action of the CAM to complete cover.

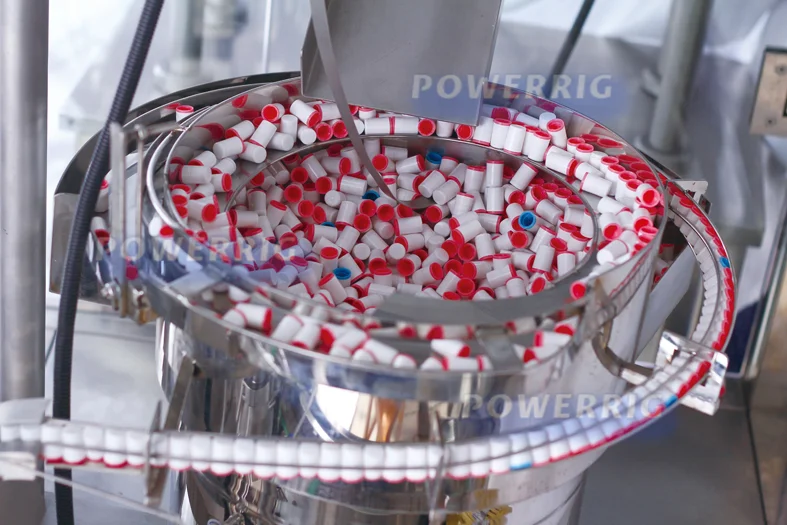

cover loading
Cover feeding cage with vibrating disk is connected to a pipe that carries the outside cover ,They automatically arranges the outside cover and deliver the outside cover.
