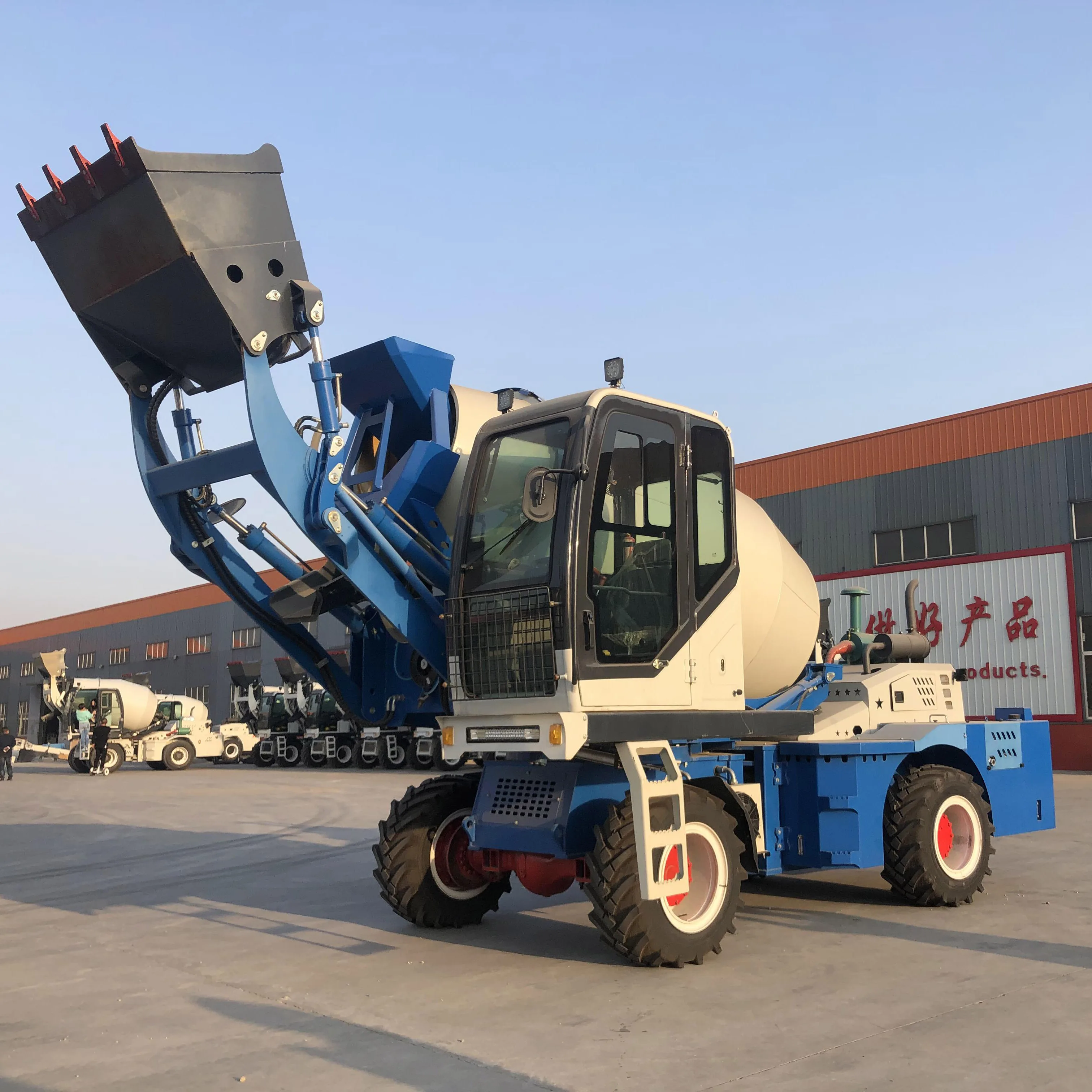

Chinese factory sale Automatic Weighing Mobile Self Loading Concrete Mixer Truck Self Loading Rough Terrain Concrete mixer
- Category: >>>
- Supplier: Shandong Laigong International Business Co. Ltd.
Share on (1600543550175):
Product Overview
Description

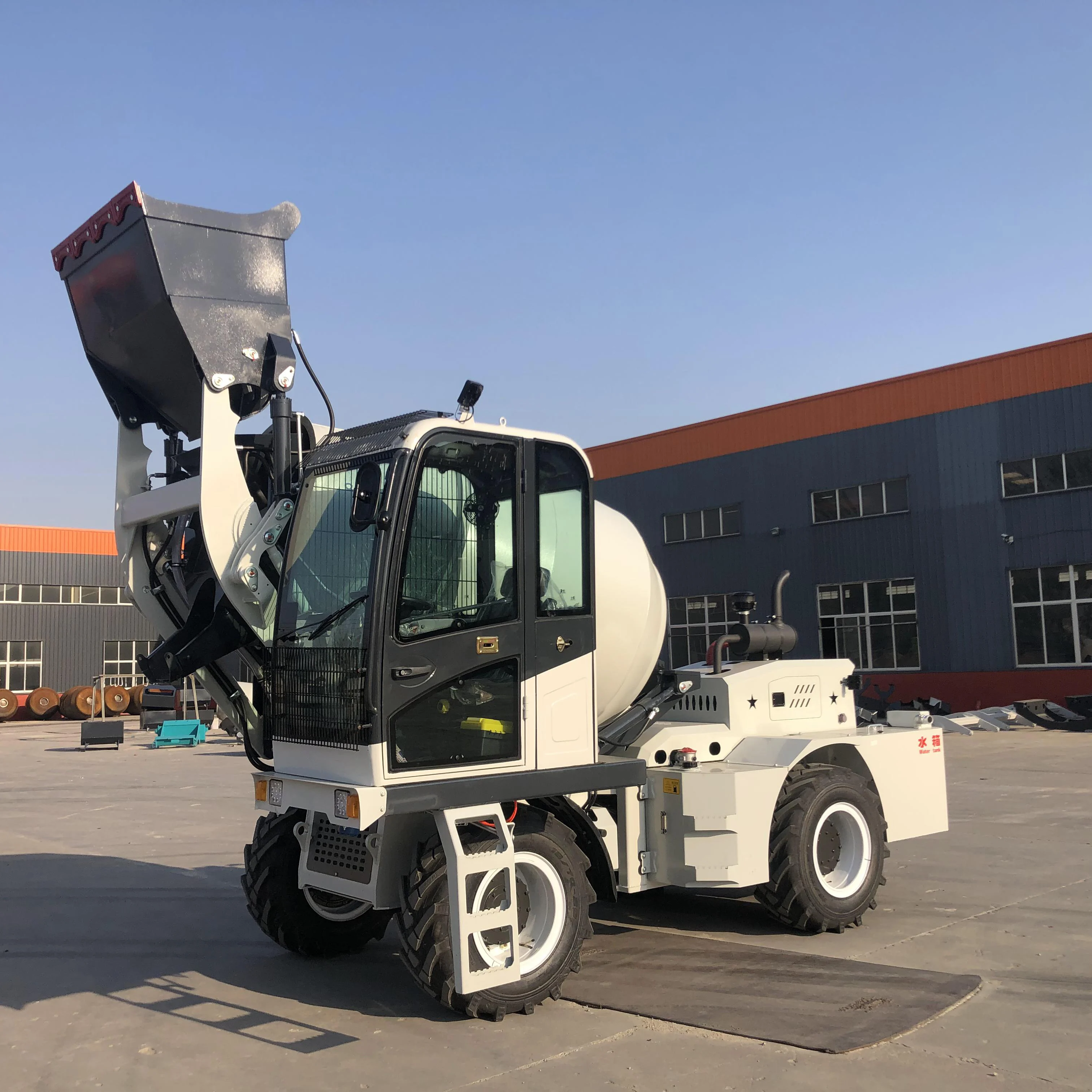

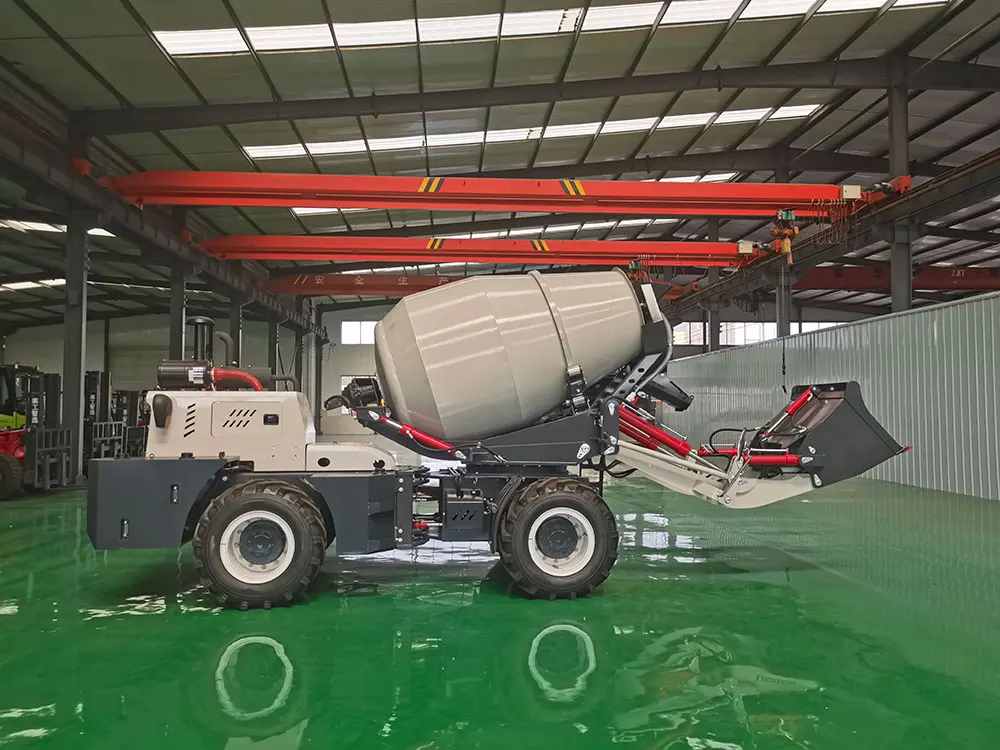

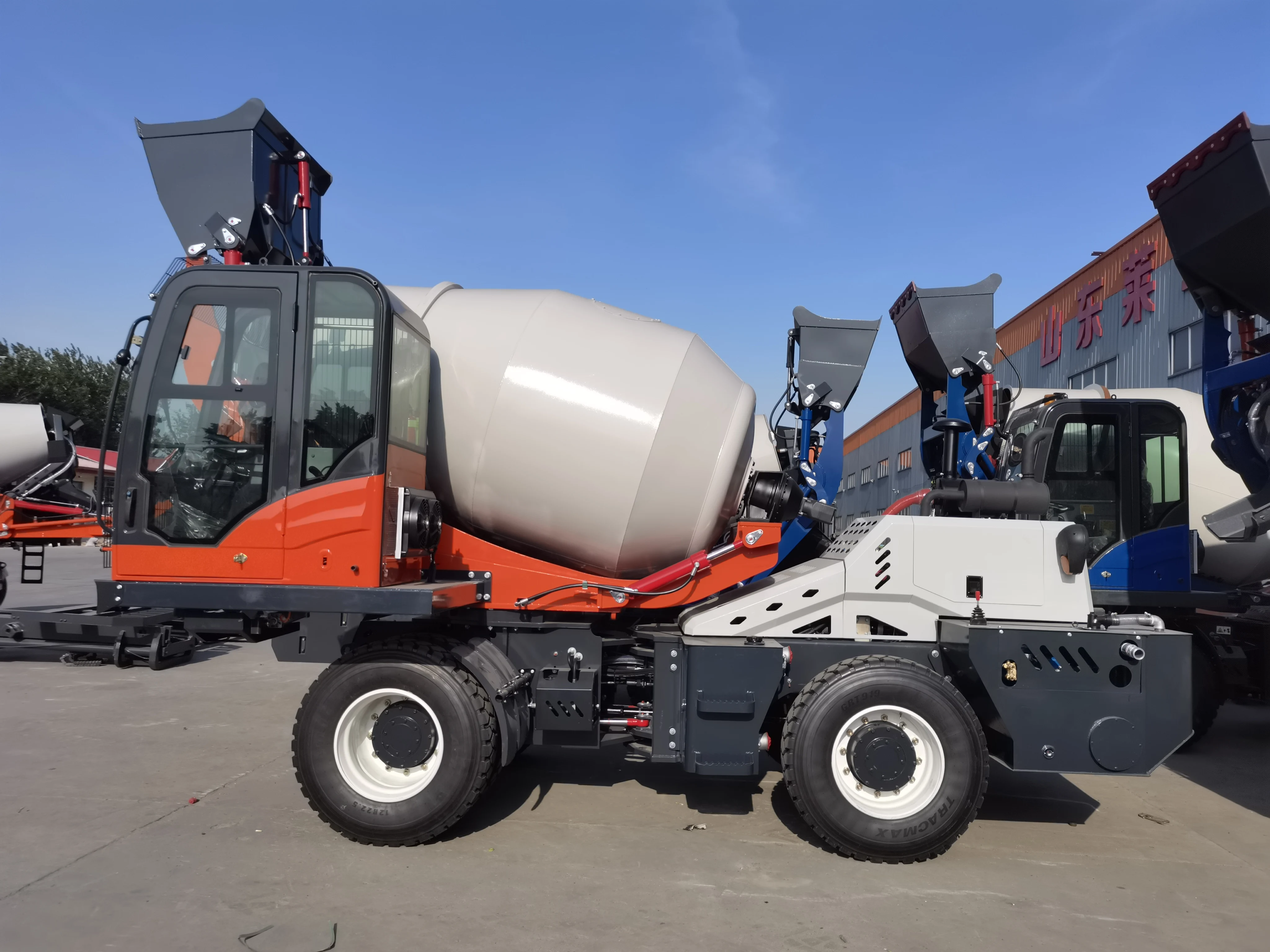

Self-loading concrete mixers are unique machines designed to batch, mix and transport concrete. They consist of a rotating drum mounted on an operator-driven cab-mounted chassis frame fitted with a loading bucket.
Shandong Laigong has 20 years' history of manufacturing of self-loading concrete mixers.
There are different models for choice: from 1.5 to 4 cubic meter.
Product Description
Item No. | Unit | H30 |

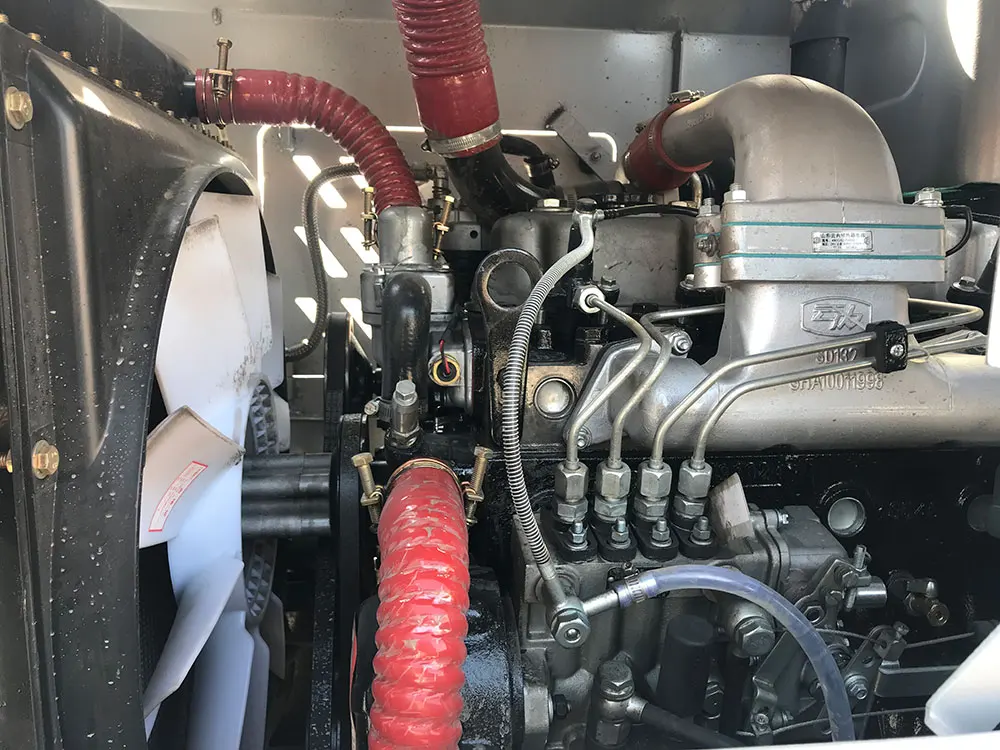

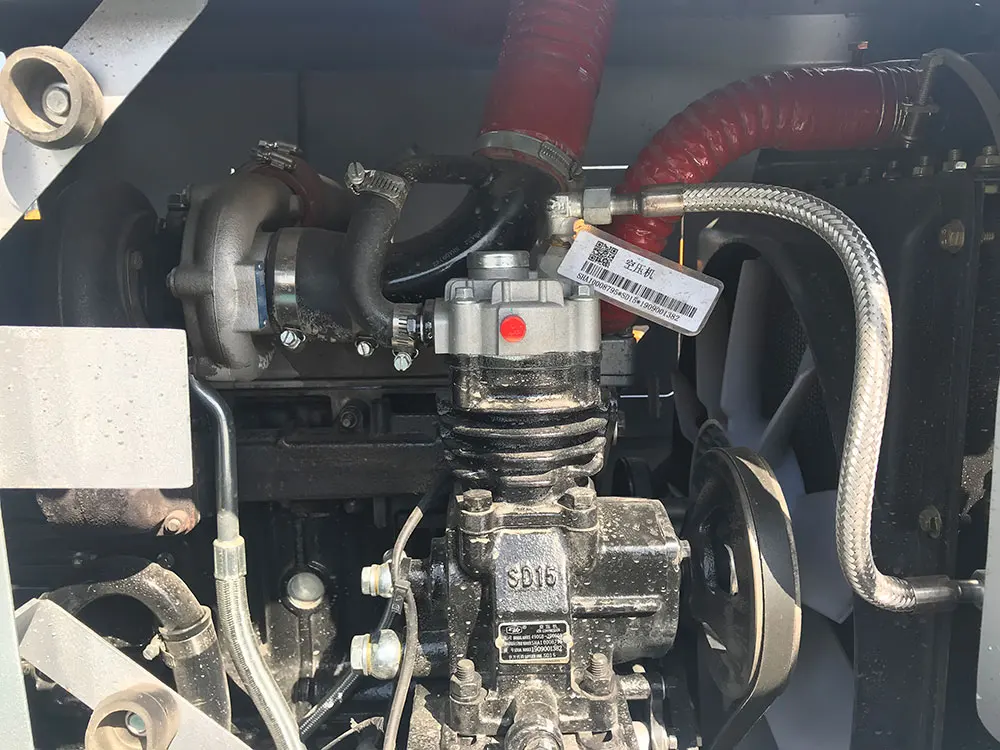

Engine Type | / | Yunnei490 Turbocharging |
Engine power(KW) | KW | 85 |
Drum Capacity(m³) | m³ | 5.2 |
Valid output(m³) | m³ | 3 |
Overall dimension Length*Width*Height(mm) | mm | 7600*2880*3380 |
Axle base | mm | 2600 |
Front wheel base | mm | 2370 |
Rear wheel base | mm | 1680 |
Dumping height | mm | 1400 |
Minimum ground clearance(mm) | mm | 290 |
Total weight(KGS) | KGS | 8000 |
Fuel consumption (Theoretical)L/H | L/H | 8.0-10.0 |
Maximum drive speed | KM/H | 25 |
Tank rotation speed | Turn/minute | 18 |
Tank rotation angle | ° | 0 |
Drive Bridge | / | small hub reductor |
Gear box | / | 280 splitted |
Tire Dimensions (Front) | / | 12R22.5(Double) |
Tire Dimensions (Rear) | / | 12R22.5 |
Braking distance | mm | 1000 |
Engine oil capacity | L | 12-13 |
Hydraulic oil capacity | L | 120 |
Hydraulic oil type | L | No.46 efficient wearable |
Fuel tank | L | 120 |
Water tank | L | 750 |
Small pump displacement | L/MINUTE | 120 |
Big pump displacement | L/MINUTE | 120（sinking pump） |
Bucket capacity | m³ | 0.4 |
Transmission oil type/capacity | L | No. 8 transmission oil/21-23 |
Axle gear oil type/capacity | L | No. 18 double curve bight/ |
Hub reduction gear oil type/capacity | / | No. 18 double curve bight/ |
Double tire pressure | Bar | / |
Single tire pressure | Bar | 6 |
Tank pressure | Bar | 4.0-8.0 |
Brake mode | / | Disc brake |

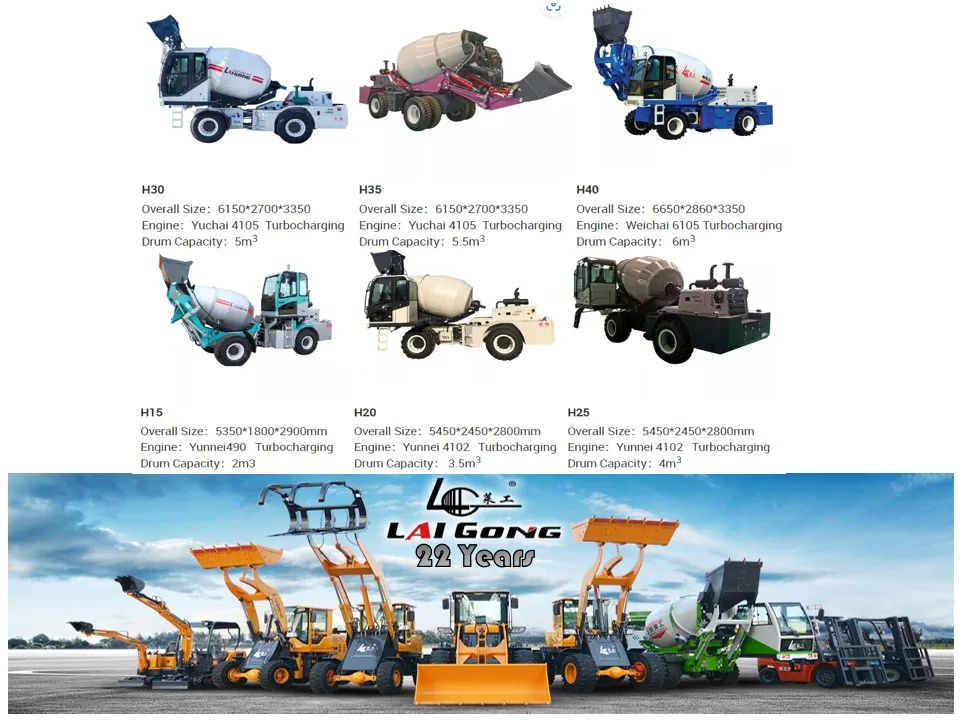

Related Products
H15
Overall Size：5350*1800*2900mm
Engine：Yunnei490 Turbocharging
Drum Capacity：2m3
H20
Overall Size：5450*2450*2800mm
Engine：Yunnei 4102 Turbocharging
Drum Capacity： 3.5m3
H25
Overall Size：5450*2450*2800mm
Engine：Yunnei 4102 Turbocharging
Drum Capacity：4m3
H30
Overall Size：6150*2700*3350
Engine：Yuchai 4105 Turbocharging
Drum Capacity：5m3
H35
Overall Size：6150*2700*3350
Engine：Yuchai 4105 Turbocharging
Drum Capacity：5.5m3
H40
Overall Size：6650*2860*3350
Engine：Weichai 6105 Turbocharging
Drum Capacity： 6m3
Main Categories
Company Profile
Customer Case
Transportation
FAQ
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
