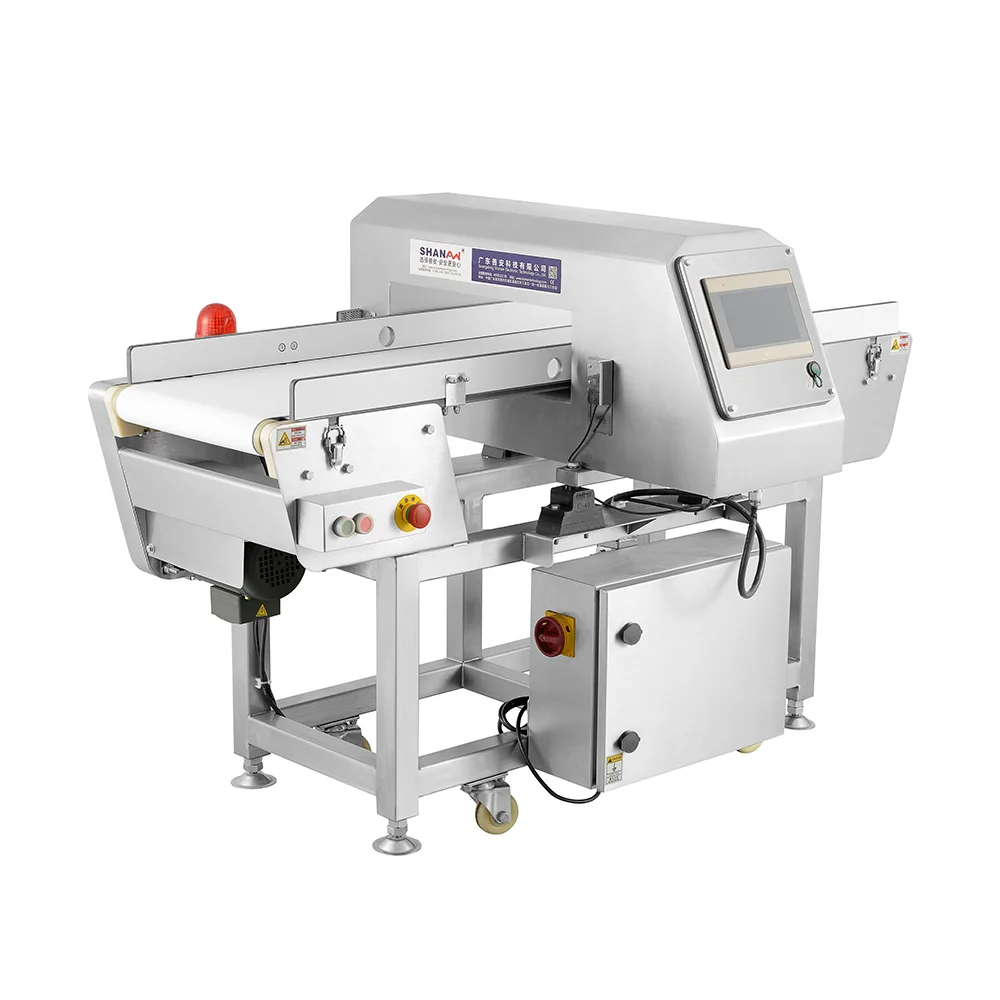

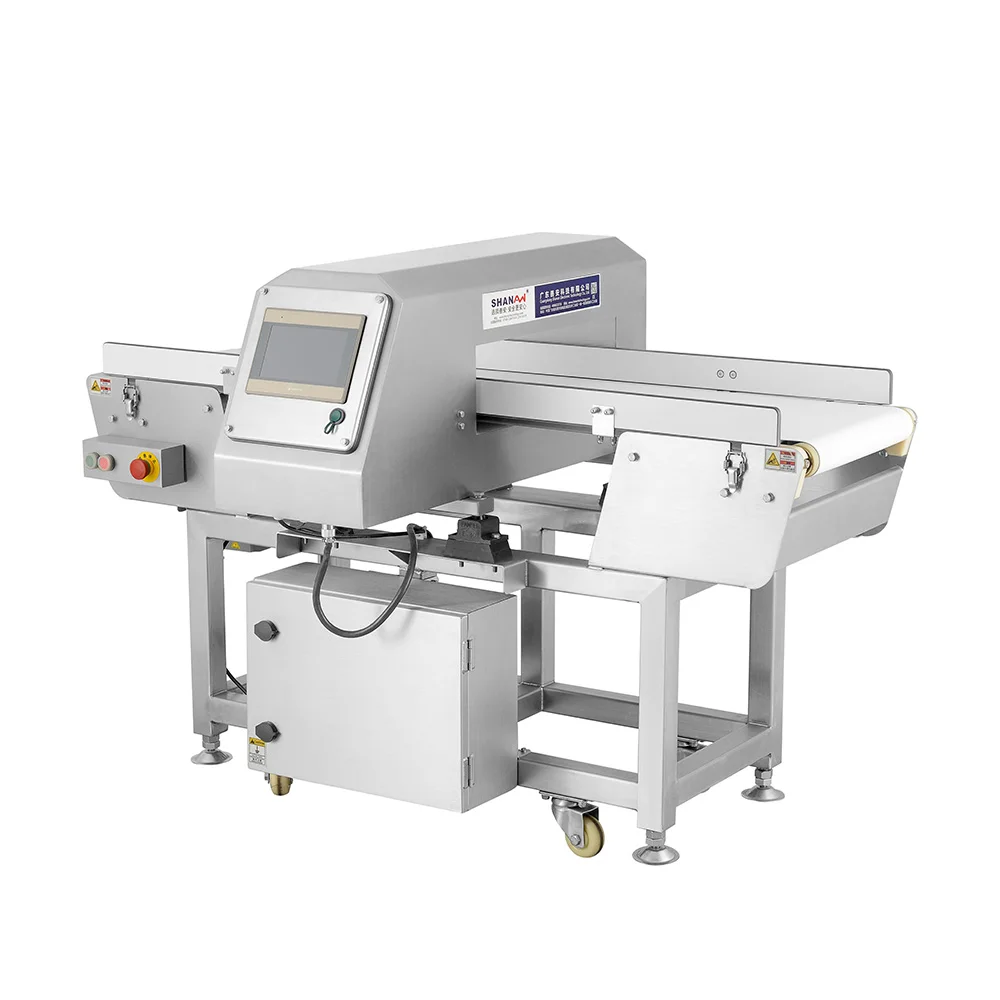

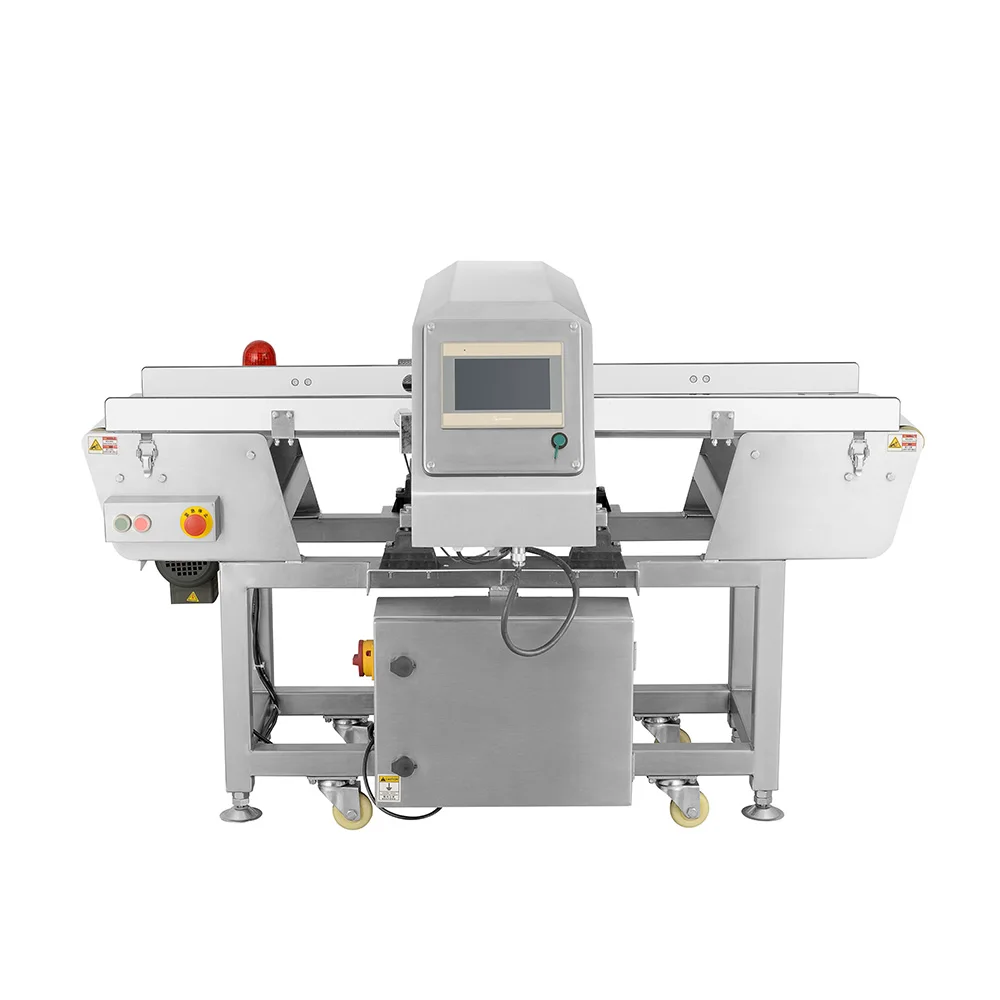

Factory Rhing Food Processing Contamination Detection Conveyor Belt Metal Detector
- Category: Electronic Measuring Instruments >>>
- Supplier: Guangzhou Rhing Trading Co. Ltd.
Share on (1600543603750):
Product Overview
Description
Product Description
Scope of application: food, pharmaceutical, chemical, rubber, ice, ice products, toys, eyewear, shoes, leather, knitting, printing and other industries to detect the metal impurities in the production process or raw materials, such as: iron, non-magnetic metal Items (gold, silver, steel, aluminum, stainless steel and other non-ferrous metals can be detected), improve product safety factor and reduce hazards.
Product features and advantages:
Advanced technology: the introduction of imported multi-detection technology, phase and comprehensive, product and automatic balance correction technology, the detection sensitivity and stability have been improved, the detection range is wider, especially for salt, high moisture content is difficult to detect The product has 2-3 times better detection sensitivity than similar products.
The core circuit adopts a single-chip high-performance FPGA hardware solution, using imported high-quality electronic components; [mainly selected by the United States Micro-chip, Analog Device, National Semiconductor, Wimma, Japan Hitachi, NEC, Sanyo and other companies to produce integrated circuits, capacitors, etc. Electronic components] After advanced processing technology and standardized inspection process, the product has high sensitivity and stable
Parameter:
Pass width (mm) | 600 | Custom non-standard | ||||||||
Pass height (mm) | 80 | 120 | 150 | 180 | 200 | 250 | 300 | 350 | 400 | |
Standard detection sensitivity | FE(Φmm) | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 |
NON-FE(Φmm) | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | |
SUS304(Φmm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | |
Belt width(mm) | 370 | 370 | 370 | 370 | 470 | 470 | 470 | 470 | 470 | |
Conveyor length(mm) | 1330 | 1330 | 1330 | 1330 | 1700 | 1700 | 1700 | 1700 | 1700 | |
Height of from the belt to ground(mm) | 650±50 can be customized | |||||||||
Protection level | IP66 | |||||||||
Number of memory products | 100kinds | |||||||||

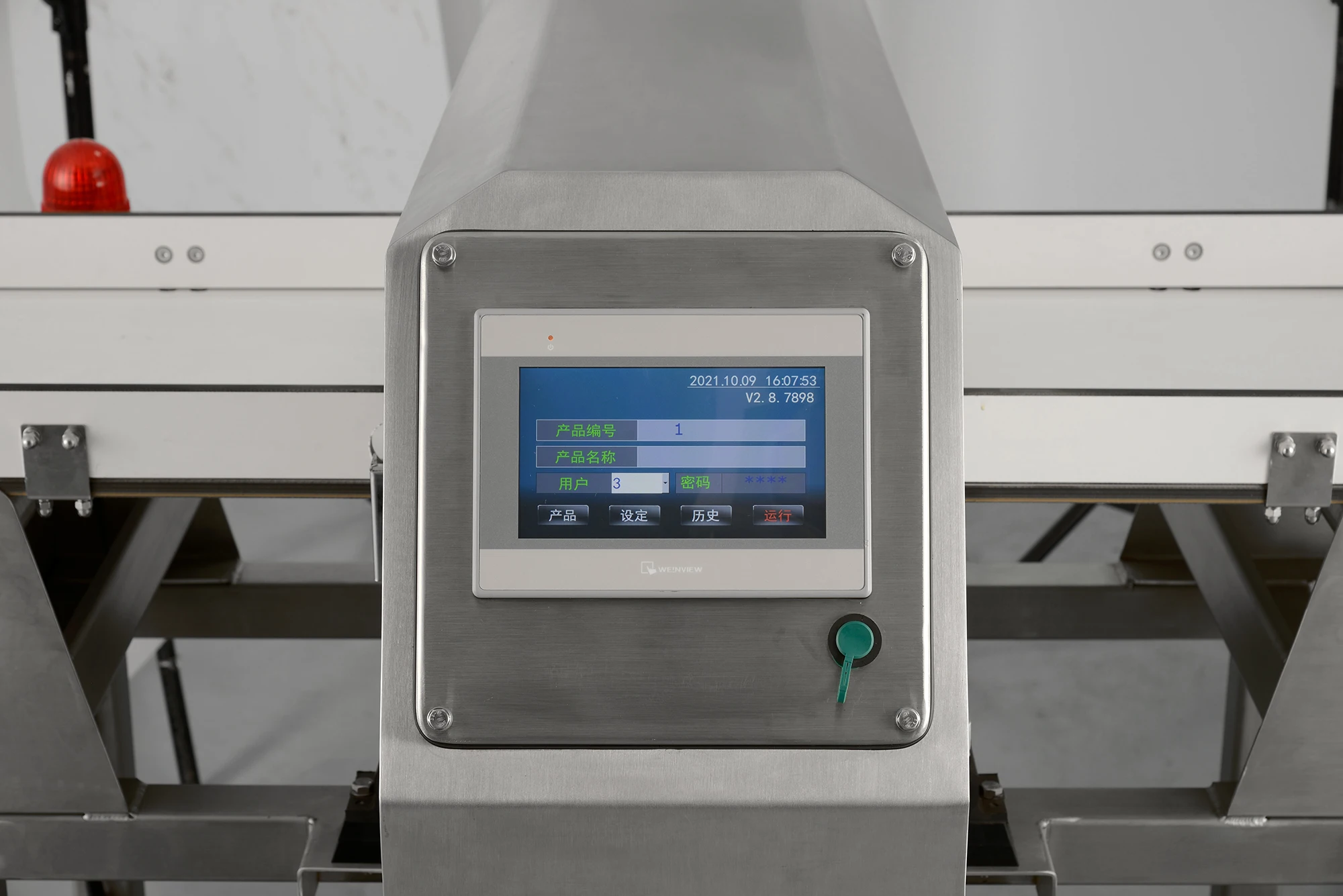

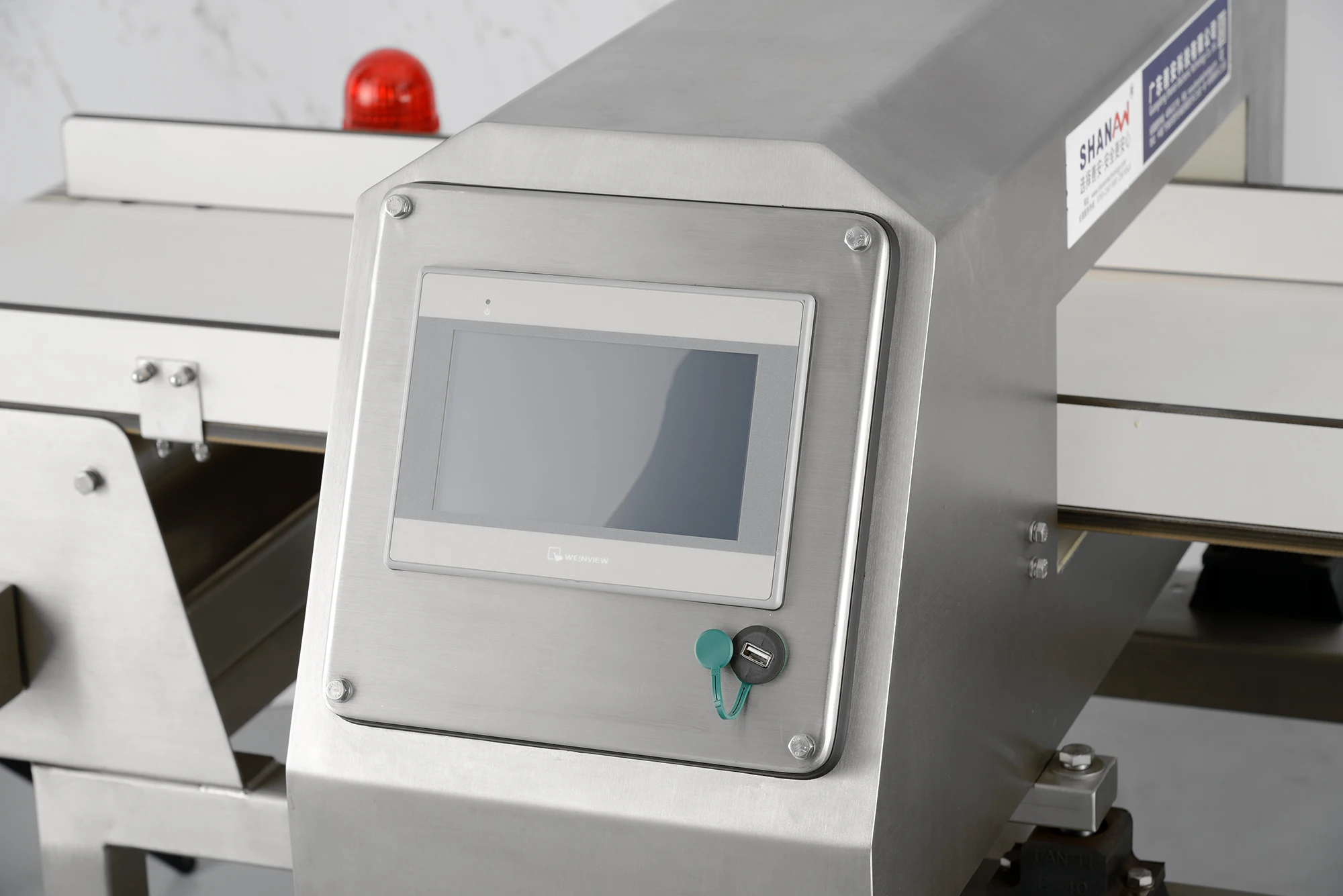

Display method | LED LCD (or custom touch screen) | |||||||||
Operation method | Touch key input (touch optional) | |||||||||

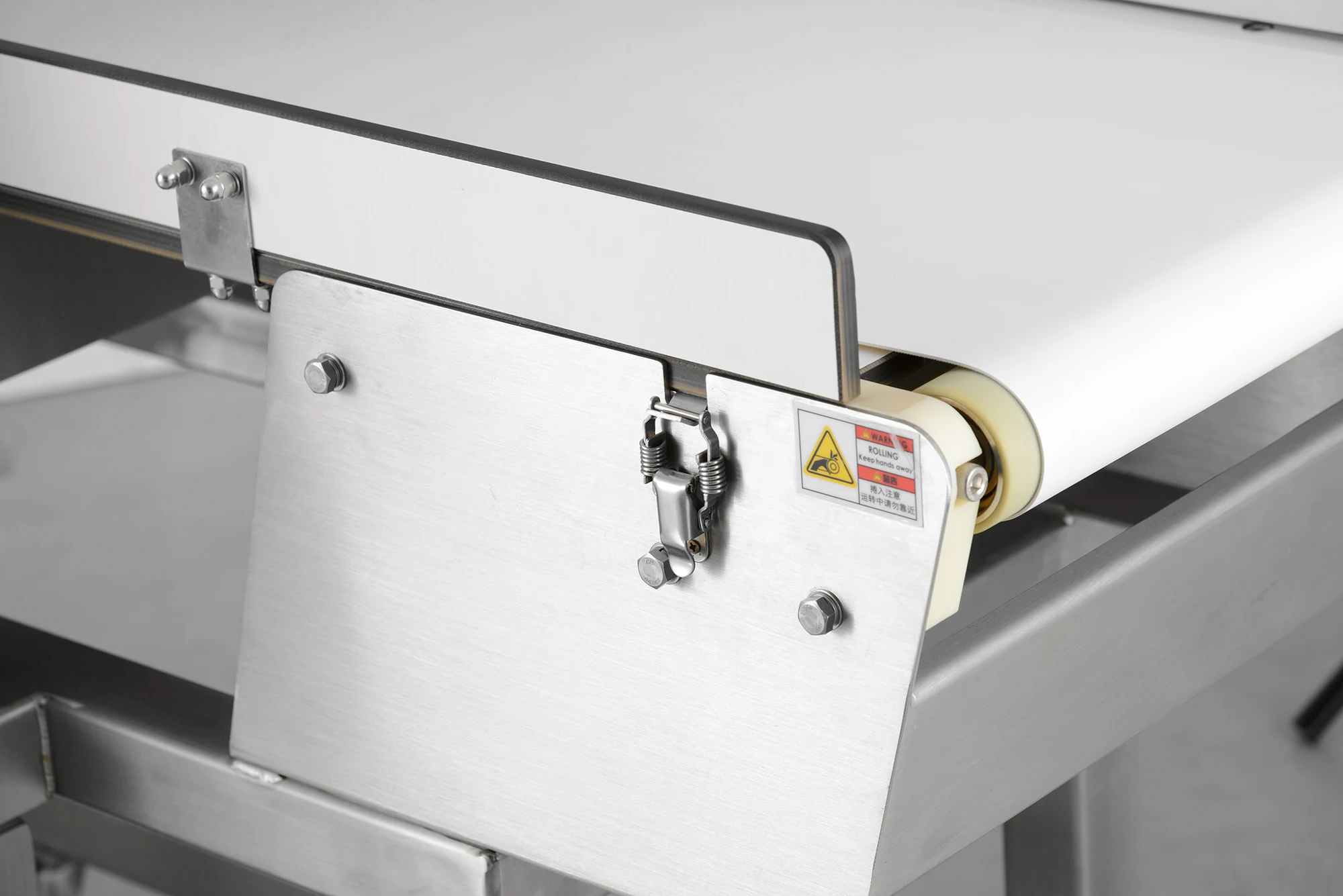

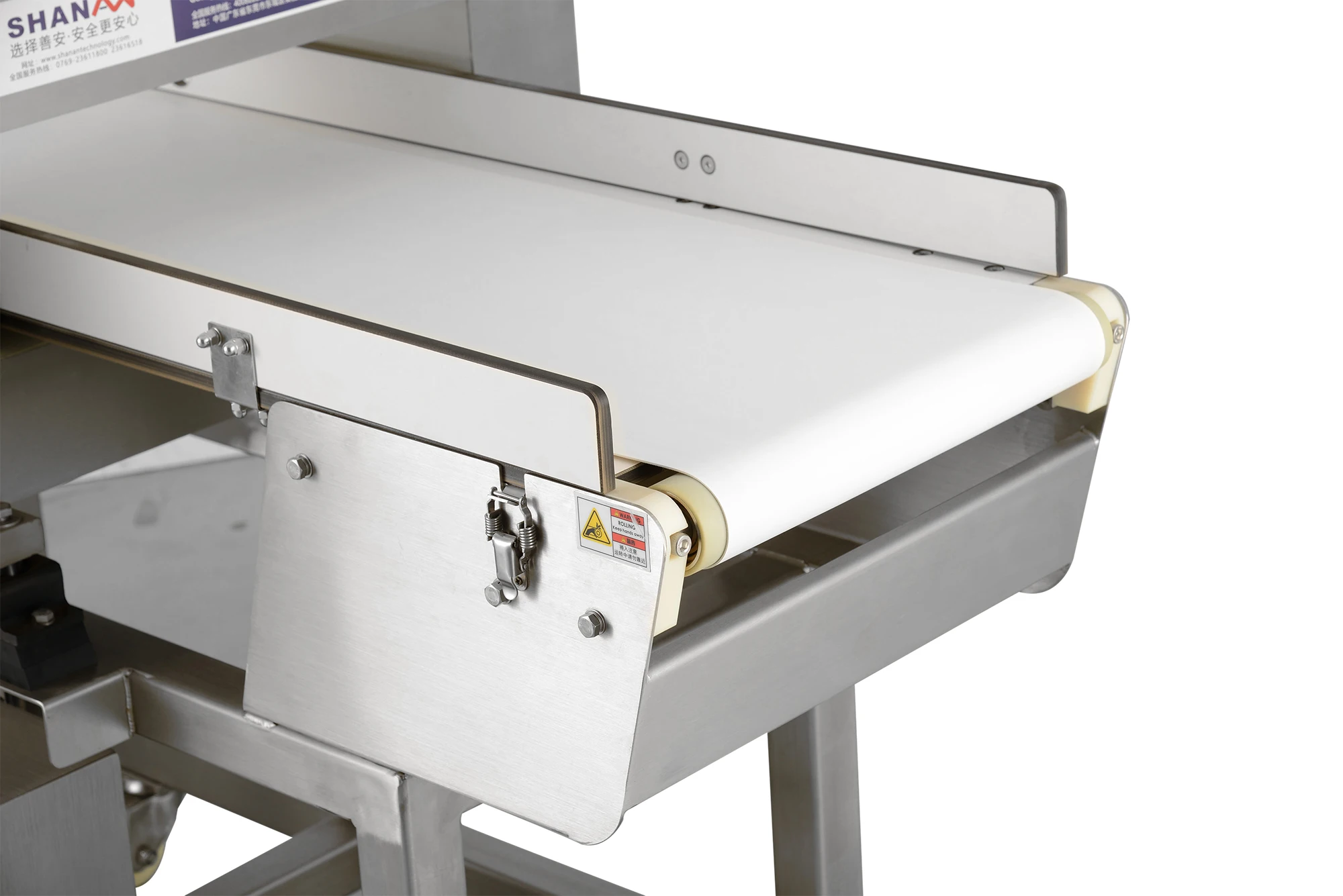

Material of conveyor belt | Food grade plate chain | |||||||||

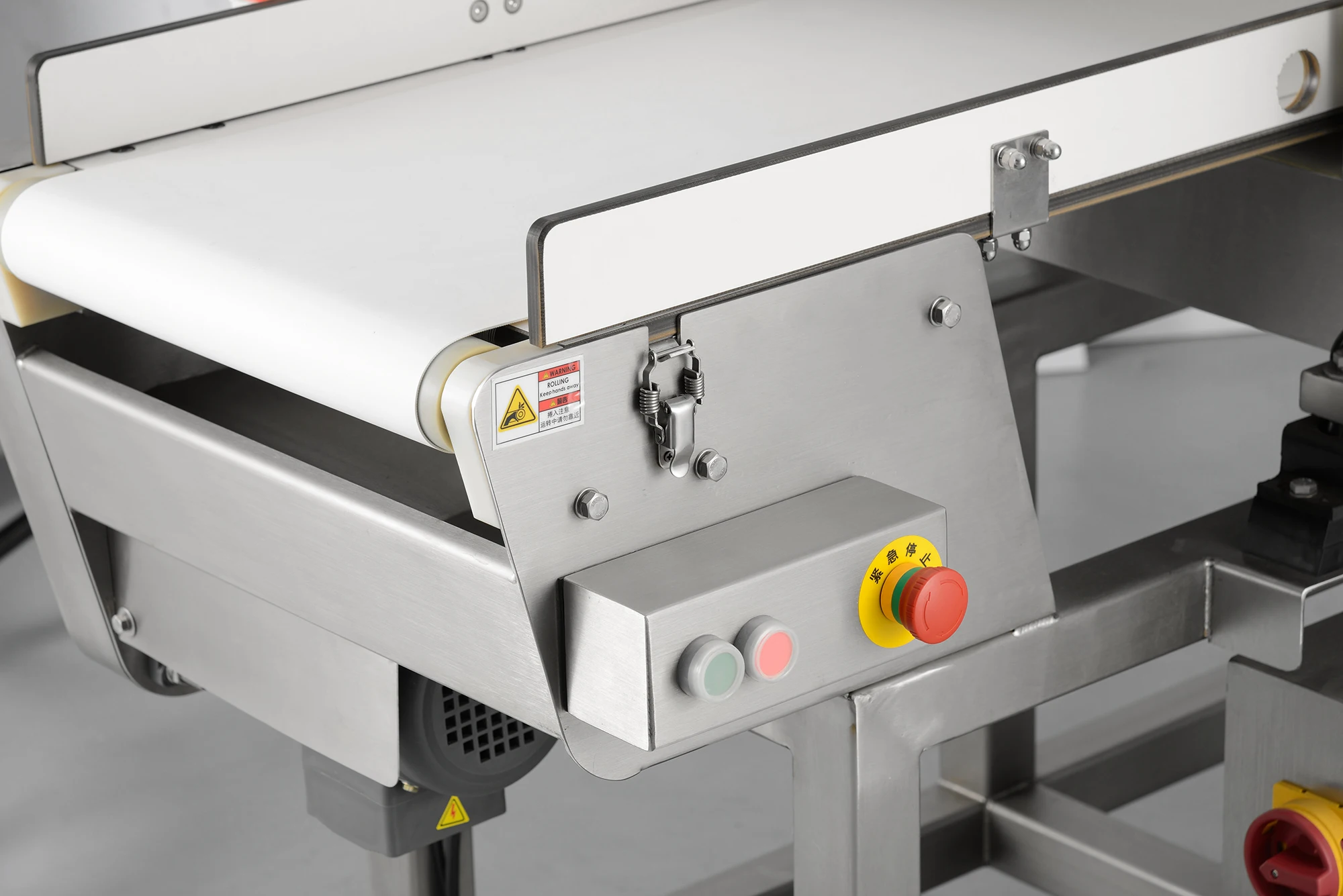

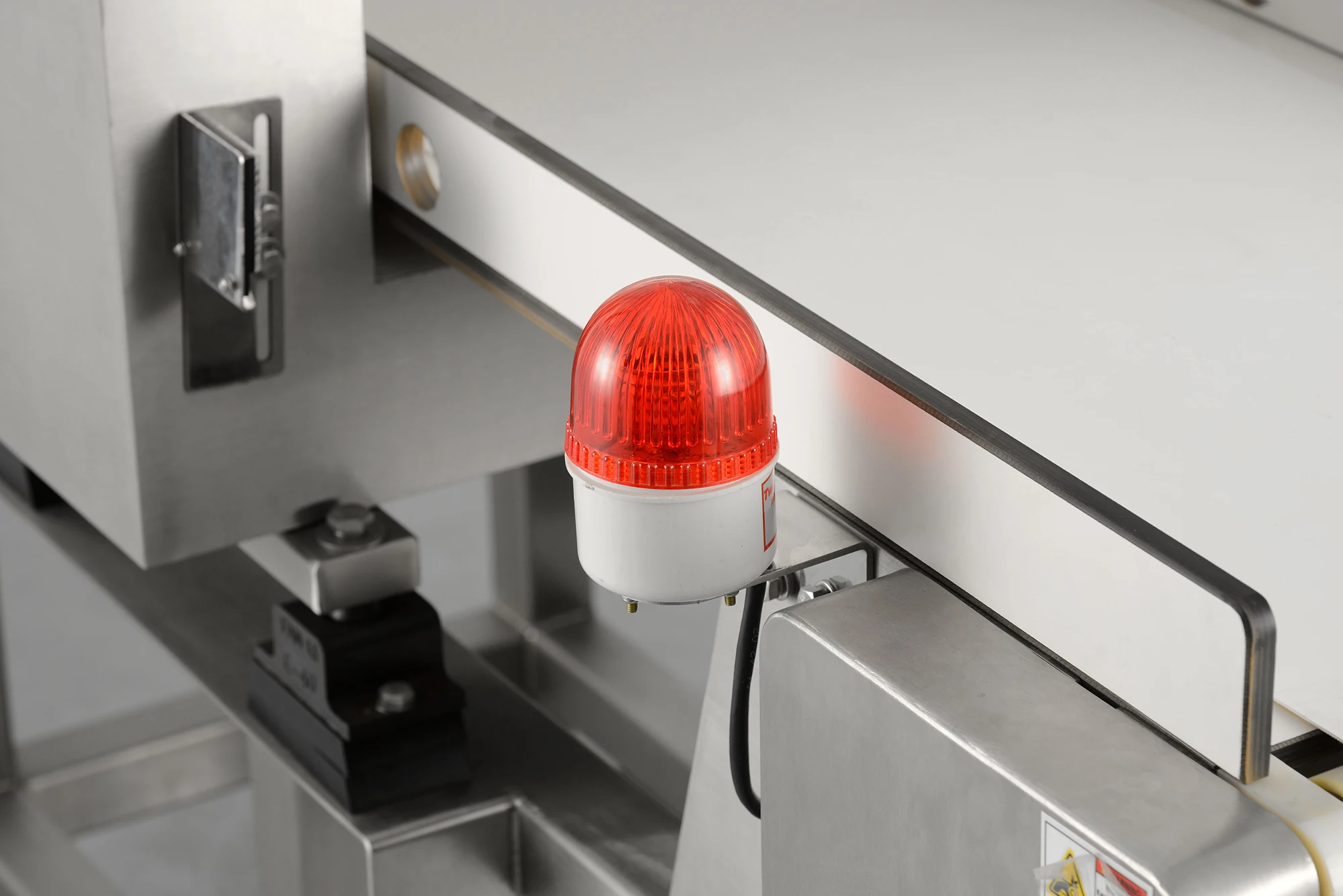

Alarm method | alarm shutdown, buzzer alarm or rejection mechanism optional | |||||||||
Belt speed | 28m / min constant (variable speeds for different varieties, if you need to adjust the speed, you can customize the frequency conversion) | |||||||||
Machine material | The whole rack is made of SUS304 food grade stainless steel, which complies with HACCP, GMP, CAS and other standards | |||||||||
Mechanical size (mm) | 1330 × 980× 1100 (length × width × height) non-standard can be customized | |||||||||
Machine weight | About 300KG | |||||||||
