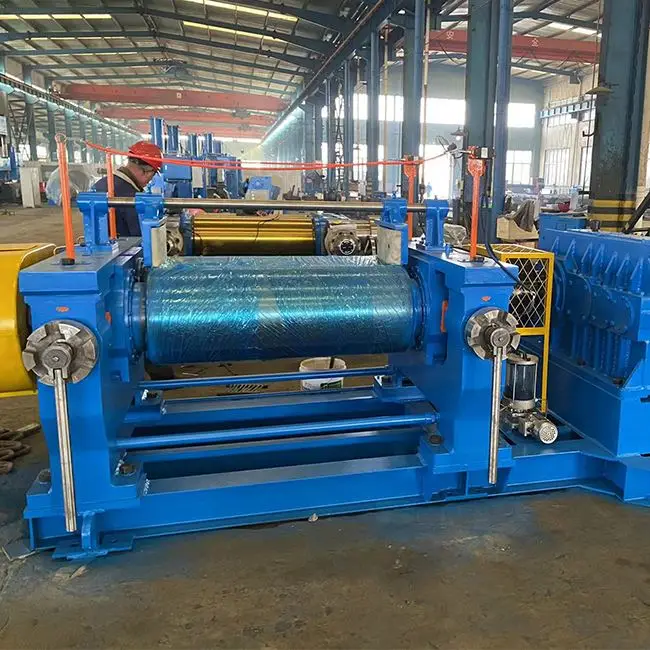

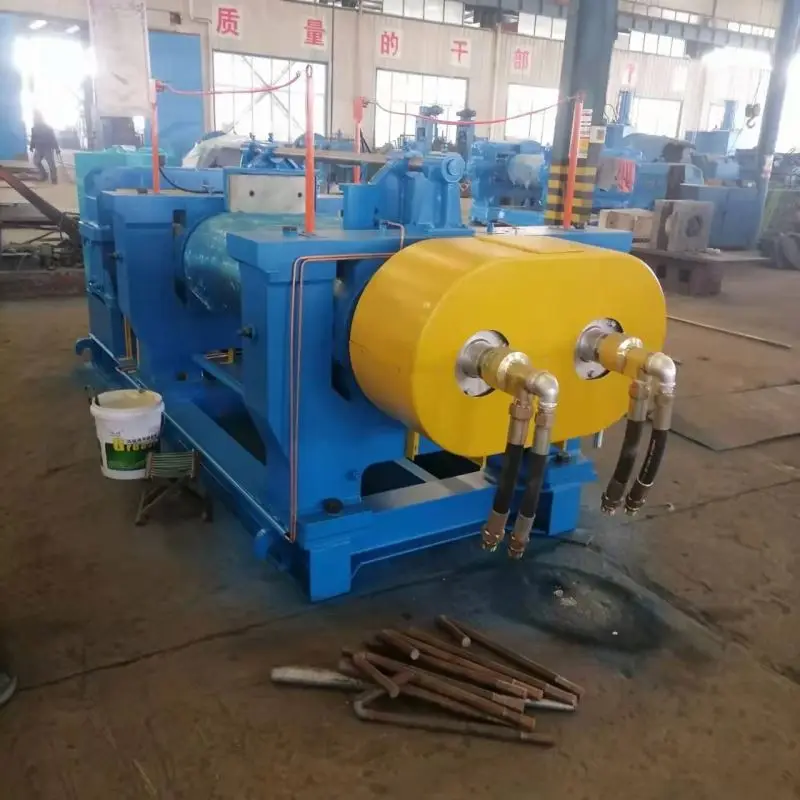

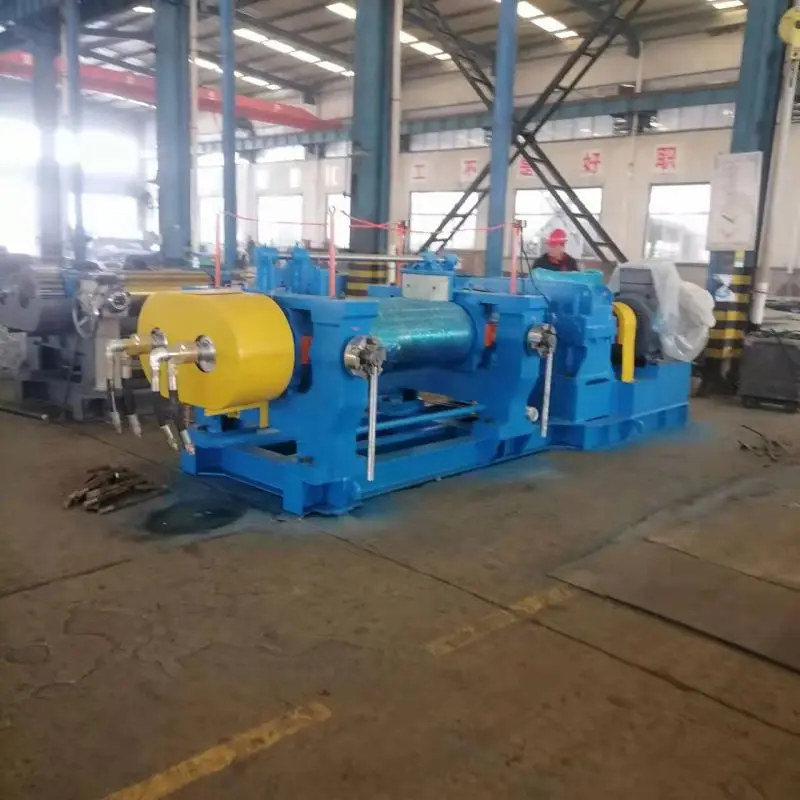

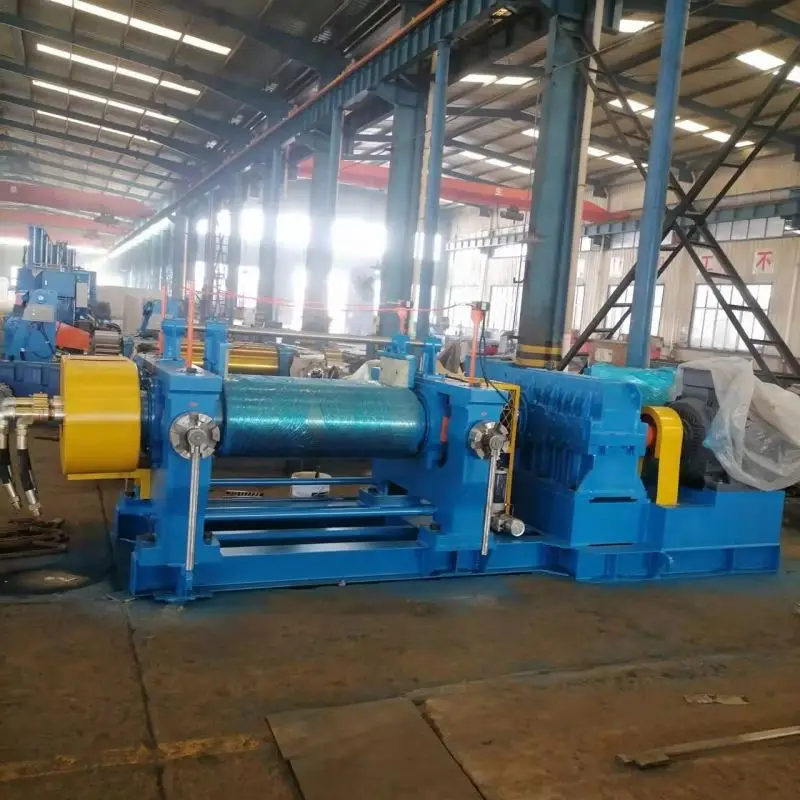

Best Price Rubber Processing Machinery 2 Roll Rubber Mixing Mill for Plastic
- Category: >>>
- Supplier: Qingdao Hangsen Industry And Trade Co. Ltd.
Share on (1600543604192):
Product Overview
Description
▲two emergency stop buttons
▲ overhead emergency stop rope
▲ kick emergency stop switch
▲ overhead emergency stop rope
▲ kick emergency stop switch
Non-operating side
▲ two emergency stop buttons
▲ overhead safety pull cord
▲ Kick emergency stop switch
▲ overhead safety pull cord
▲ Kick emergency stop switch
Plus one plate of plane thrust bearing,each mill has 12 plates of bearing,saving energy by 10-15% and reducing grease usage by 20-25%

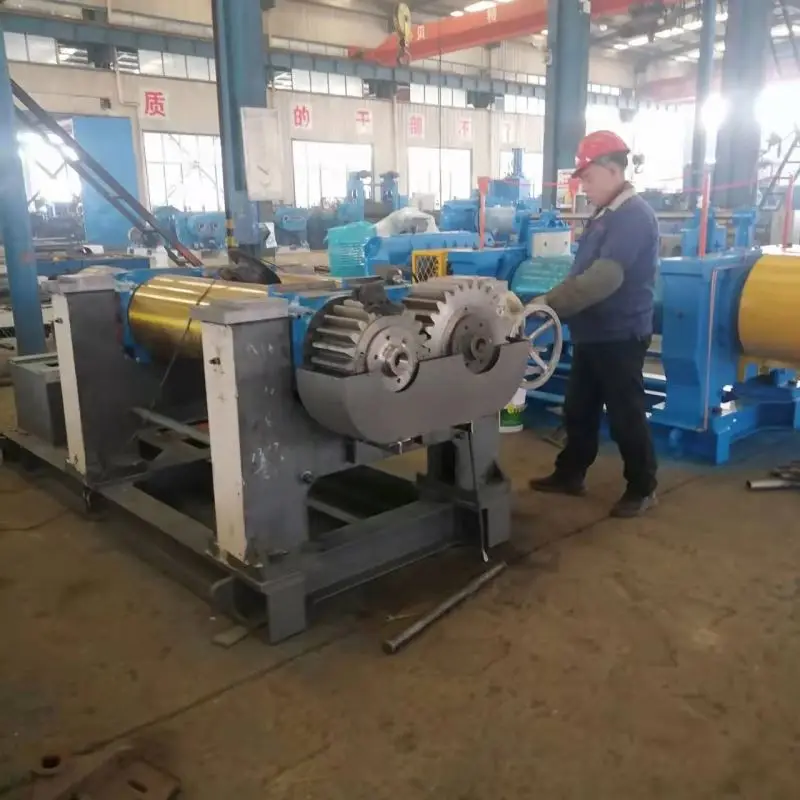

Open mixing mill machine the speed ratio gear made of 42CrMo alloy steel after forging and heat treatment
Rubber mixing mill machine frame with tempering treatment
Rubber mixing mill bearing seat with tempering heat treatment
Each bearing has two disc double row cylindrical roller bearings
Equipment application and operation requirements

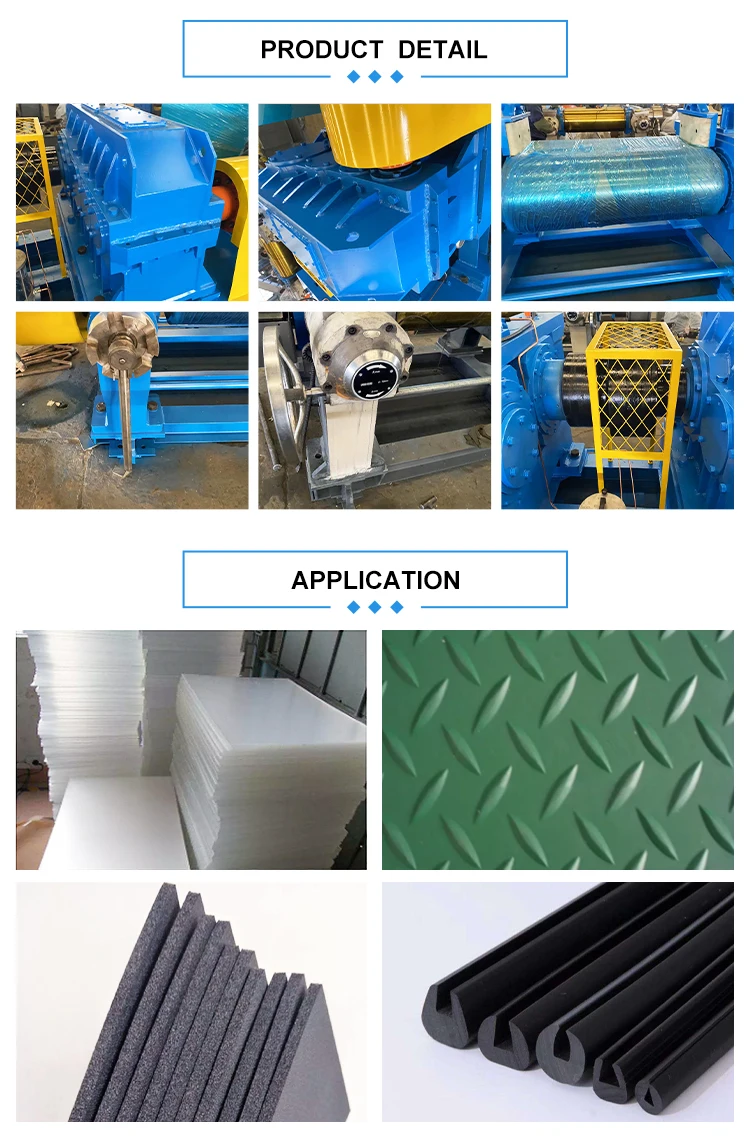

1. Main application: mixing mill is mainly used for rubber compound warming, mixing &sheeting, as well as raw rubber plasticating, mixing &sheeting.
2. Operation requirements
1. Main application: mixing mill is mainly used for rubber compound warming, mixing &sheeting, as well as raw rubber plasticating, mixing &sheeting.
2. Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Power supply: AC380V, 50Hz, 3-phase
C. Cooling water pressure: 2-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
temperature: 5℃-40℃, max. relative humidity 95%
B. Power supply: AC380V, 50Hz, 3-phase
C. Cooling water pressure: 2-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
Type | XK-160 | XK-230 | XK-250 | XK-300 | XK- 360 |
Working diameter of rolls (mm) | 160 | 230 | 250 | 300 | 360 |
Working Length of rolls (mm) | 320 | 600 | 620 | 750 | 900 |
Front roll surface speed (m/min) | 8.95 | 10.21 | 14.1 | 15.1 | 16.25 |
Friction ratio | 1:1.35 | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.25 |
Max. nip (mm) | 4.5 | 7 | 8 | 10 | 10 |
Capacity per batch (kg) | 1-2 | 6-10 | 8-15 | 15-20 | 20-25 |
Motor power (KW) | 5.5 | 15 | 18.5 | 22 | 30 |
Size (L*W*H) (mm) | 1380*850*1320 | 2800*1200*1120 | 3400*1500*1500 | 2450*1500*1550 | 3780*1850*1750 |
Type | XK-400 | XK-450 | XK-560 | XK-550B | XK-660 |
Working diameter of rolls (mm) | 400 | 450 | 560/510 | 550 | 660 |
Working Length of rolls (mm) | 1000 | 1200 | 1530 | 1500 | 2130 |
Front roll surface speed (m/min) | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 |
Friction ratio | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 |
Max. nip (mm) | 10 | 15 | 15 | 15 | 15 |
Capacity per batch (kg) | 18-35 | 25-50 | 35-50 | 50-60 | 165 |
Motor power (KW) | 37 | 55 | 90 | 110 | 245 |
Size (L*W*H) (mm) | 4350*1850*1785 | 5200*2380*1840 | 5845*2284*1978 | 5878*2475*2045 | 7455*3662*2080 |
QINGDAO HANGSEN Group was established in 1967，have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,Hangsen Group has exported to more than 40 countries,enjoy a good reputation in the world market.
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,Hangsen Group has exported to more than 40 countries,enjoy a good reputation in the world market.
Market advantage
More than 30 years history of manufacturing experience. 6-8 years foreign sales experience staff, more efficiency and professional.
Technical advantages
Service timely, promise to give solution within 12 hours, guarantee customer trouble free.
