Low cost agricultural greenhouse invernadero gothic greenhouse polytunnel greenhouse
- Category: >>>
- Supplier: Hangzhou China Agrotime Agri-Tech Co. Ltd.Hangzhou Ltd.
Share on (1600543669680):
Product Overview
Description
Products Description
Products Name | Poly TUnnel Greenhouse/Hoop House/Green House/Greenhouse/Shed house |
Model No. | CMS3810 |
Width | 30ft |
Length | 100ft |
Ridge Height | 13ft |
Structure | Hot Dip Galvanized with Zinc |
Covering | 150micron |
Ventilation | Roll-up side curtain |

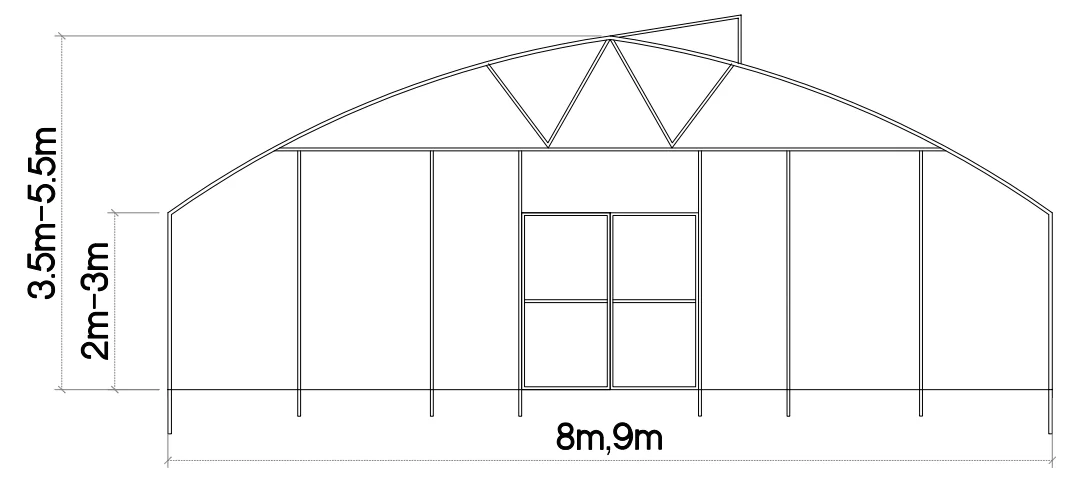

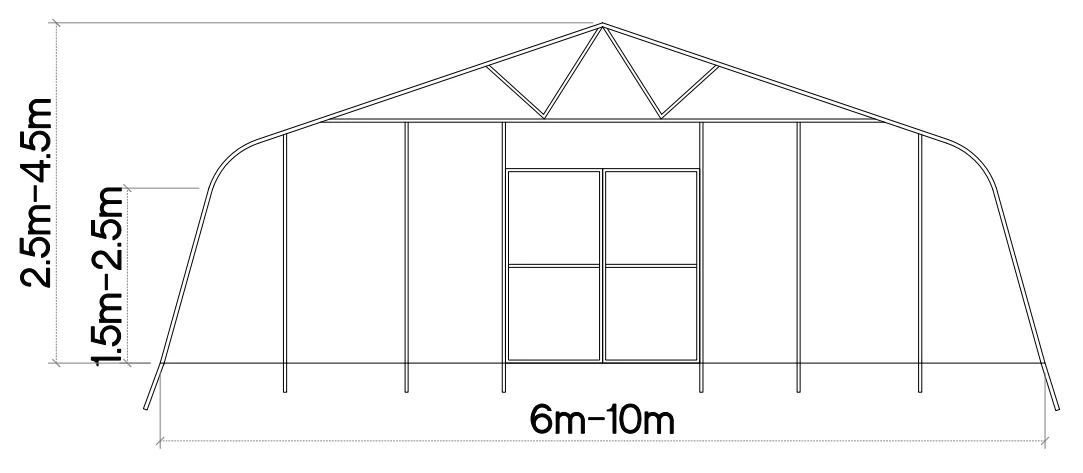

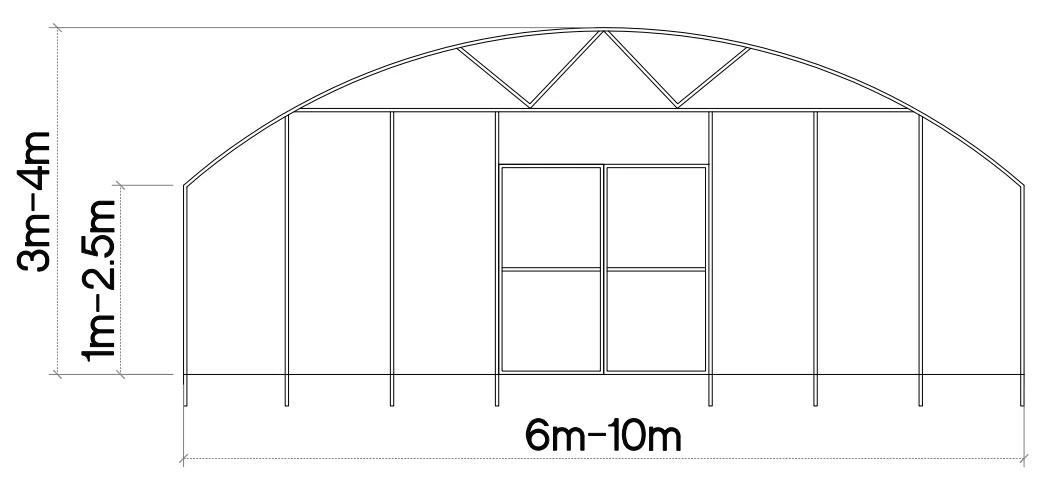

Structure for Greenhouse
We have many types and configurations of greenhouse to choose.to help you increased your crop growth.Tunnel Greenhouse allows growers to extend their crop growing seasons. longer growing seasons result in an increased product yield and higher profits.Help to create ideal growing conditions in any climate. plants grow healthier and faster in optional environments

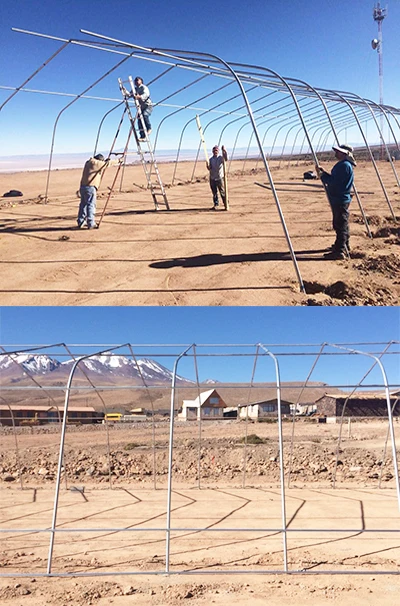

Constructed from hot dip galvanized structure steel tubing.
Arch Pipe: 1.6'' or 1.9'' or 2.35''x1.5''
Sidewall Height: 5'
Ridge Height: 12'
Covering: single layer. 6mil 3-5 years warranty greenhouse film
Ventilation: Roll-up side curtain by manual or electricity.
Purlins: 1.315' three rows
Our factory can accept any size to be customized.

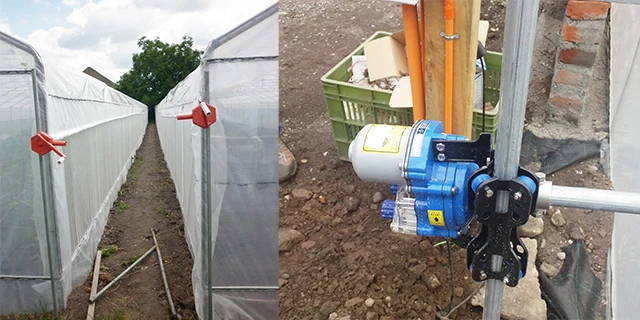

Roll-up sidewall curtain for ventilation
Easy to ventilate with roll-up curtain.Sidewall roll-up curtain can be manual or electricity.
Side ventilation and roof roll up ventilation is optional

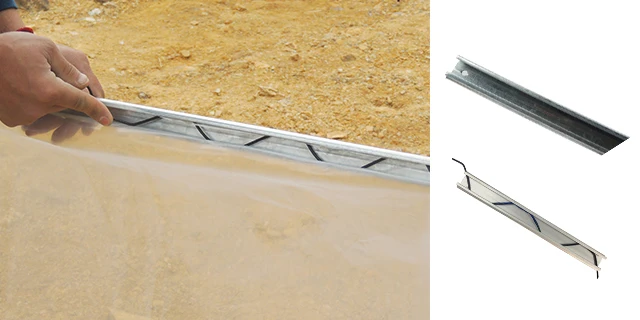

Attach plastic to greenhouse structure
wiggle wire to lock channel to fasten plastic to greenhouse structure. lock channel is optional between steel and aluminium alloy lock channel.

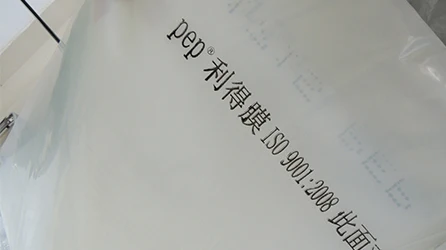

Covering Material
Outer layer :LDPE, Transparency. High strength Medium layer: LDPE. Thermal insulation properties. Excellent flexibility
Inner layer: Anti-dripping
UV Transmission, 300-390,,(%)
Inner layer: Anti-dripping
UV Transmission, 300-390,,(%)
Thickness: 150micron or 200micron
Certificate: ISO9001:2008.
Certificate: ISO9001:2008.

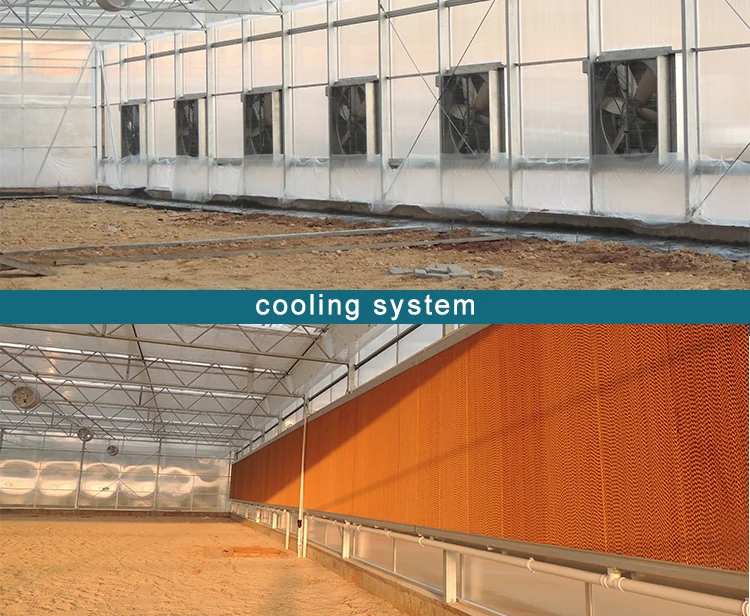

Cooling fan & Pad System
The air inside the greenhouse is drawn out by the fan, resulting in negative pressure inside, so the dry and hot air will be pulled in the greenhouse by the pressure through the wet cooling pad, and then it becomes cool after passing the Cooling pad. The
cool air then absorbs the heat inside and then drawn out by the fan. The temperature is at last reduced.
cool air then absorbs the heat inside and then drawn out by the fan. The temperature is at last reduced.
Exhaust Fan: 1380*1380*450mm
Cooling Pad::1.5m/1.8m/2.0m/3.0m
Frame:Aluminum alloy frame
Controller is including

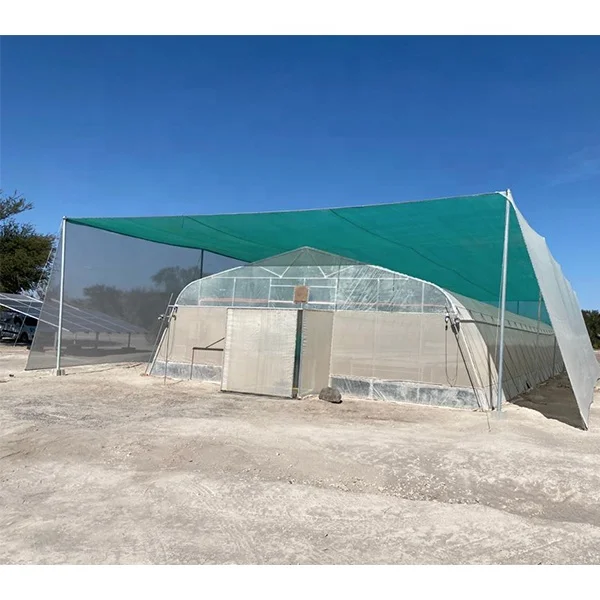

Projects Show
32000sqm Net House in Qatar. to plant tomato .
3200sqm polycarbonate greenhouse in Sudan，to plant vegetable，like cabbage，cucumber。strawberry etc
Dutch bucket system together with multi span greenhouse in Chile，totally 3200sqm
24000sqm CMC3810 greenhouse in Saudi Arabia. greenhouses were built on the fish tank. greenhouse with Aquaponics system
4800sqm light deprivation greenhouse in United States. to plant herbal medicine,
4200sqm ebb and flow table in United States.

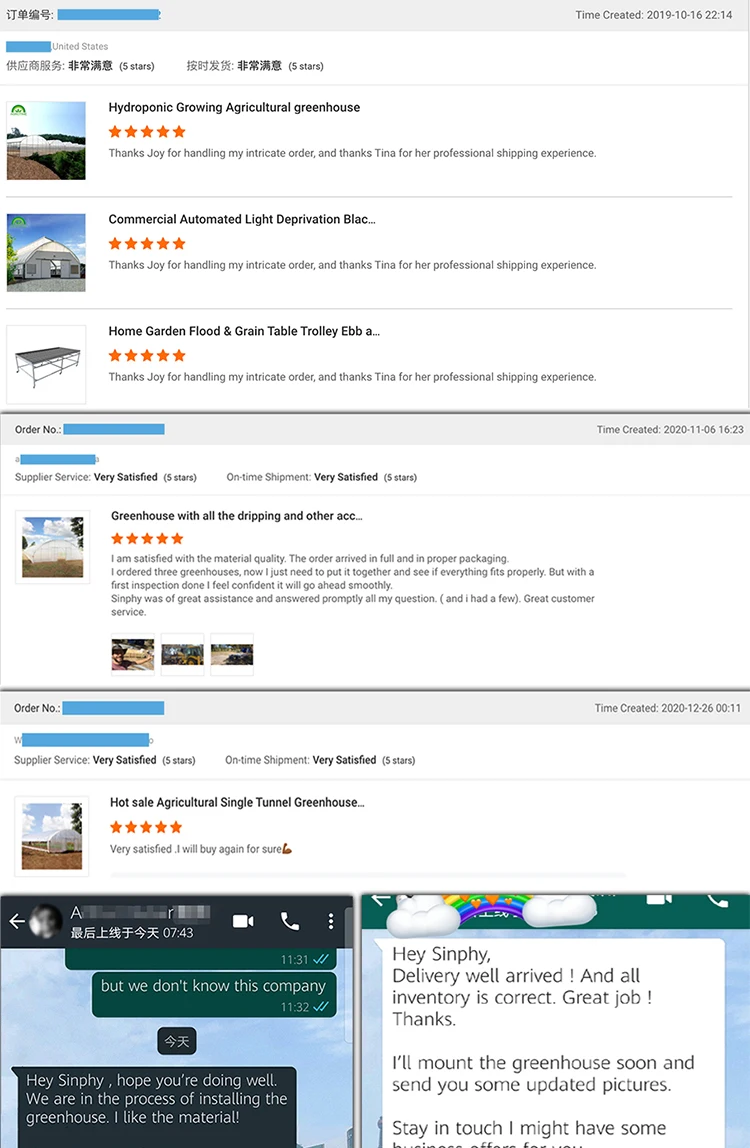

Customer Review

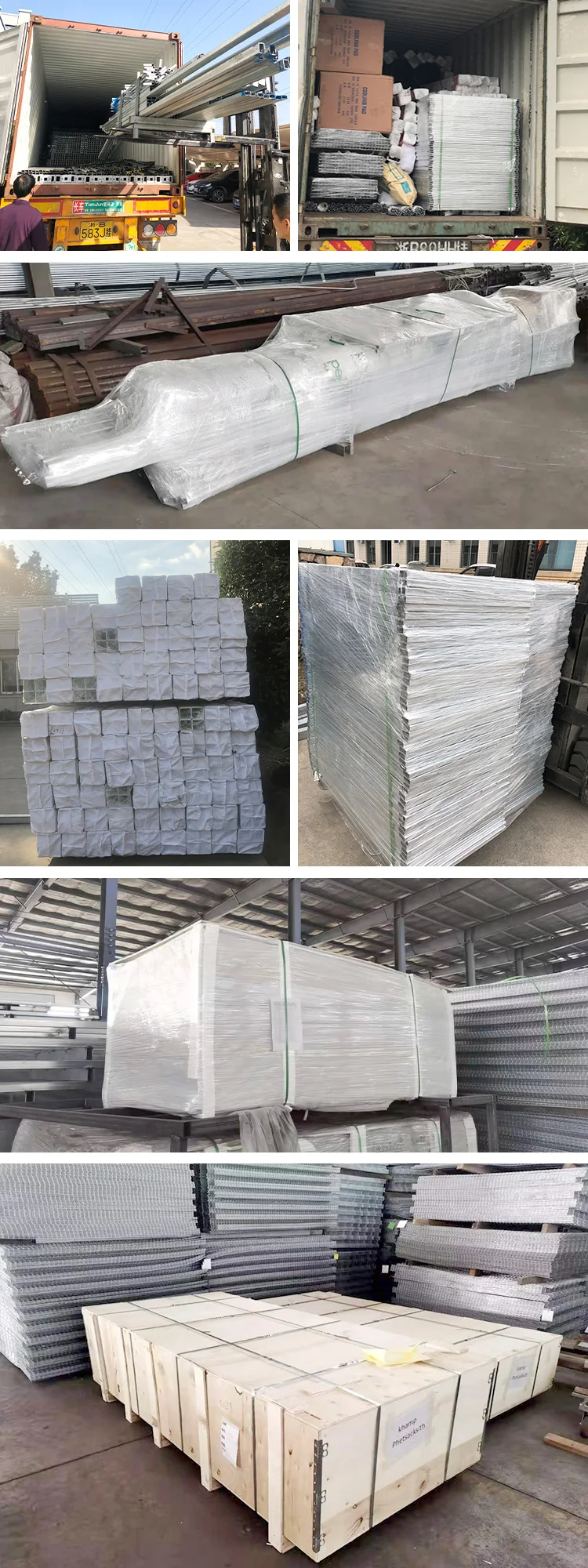

Package & Loading
Company Profile
Certifications
FAQ
Are you factory or trading company?
Yes.We are factory, we locates in Hangzhou city. Which is close to Shanghai and Yiwu.
Do you supply sample?
Yes. Sample order can be supplied, Sample will be sent within 2-3 working days after you paid.
How can I get quotation for greenhouse?
Please let us know what size of greenhouse is needed? And what will be planted inside greenhouse? So that we can suggest relative system accordingly
How should I choose greenhouse heater?
Please let us know what is the area of greenhouse.what temperature outside of greenhouse.and what temperature you need.
How many days will ship cargo after we ordered?
Delivery time is 7-15days
what is the payment terms?
T/T, .L/C, Credit Card.
How to assemble greenhouse when we bought?
We have professional after service engineer will send manual instruction book to you according to your greenhouse. You can communicate with him time to time.we also can send our engineer to your country to supervise to install greenhouse.but all cost
will be into your account
Do you have warranty of your products?
Yes. Different products supply different years warranty. For example, greenhouse structure is 8-10years. Covering material is 3-5years.etc
Yes.We are factory, we locates in Hangzhou city. Which is close to Shanghai and Yiwu.
Do you supply sample?
Yes. Sample order can be supplied, Sample will be sent within 2-3 working days after you paid.
How can I get quotation for greenhouse?
Please let us know what size of greenhouse is needed? And what will be planted inside greenhouse? So that we can suggest relative system accordingly
How should I choose greenhouse heater?
Please let us know what is the area of greenhouse.what temperature outside of greenhouse.and what temperature you need.
How many days will ship cargo after we ordered?
Delivery time is 7-15days
what is the payment terms?
T/T, .L/C, Credit Card.
How to assemble greenhouse when we bought?
We have professional after service engineer will send manual instruction book to you according to your greenhouse. You can communicate with him time to time.we also can send our engineer to your country to supervise to install greenhouse.but all cost
will be into your account
Do you have warranty of your products?
Yes. Different products supply different years warranty. For example, greenhouse structure is 8-10years. Covering material is 3-5years.etc
What is your advantage
Greenhouse kits are freely for replace in one year.We supply on line support service and manual instruction.
