Product Overview
Description
YUK100-421
Broadcast DVB-ASI 3G-SDI Audio XLR To Fiber Extender Converter over Fiber Up to 40km

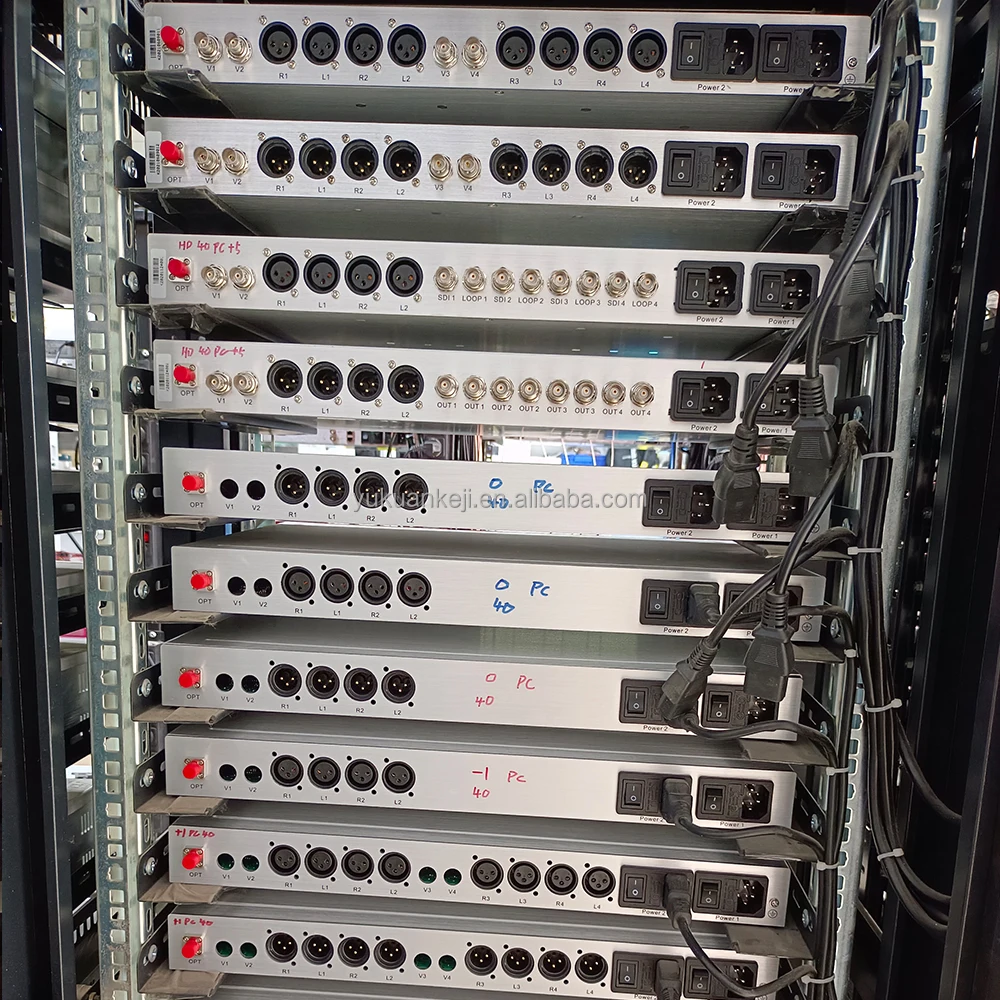

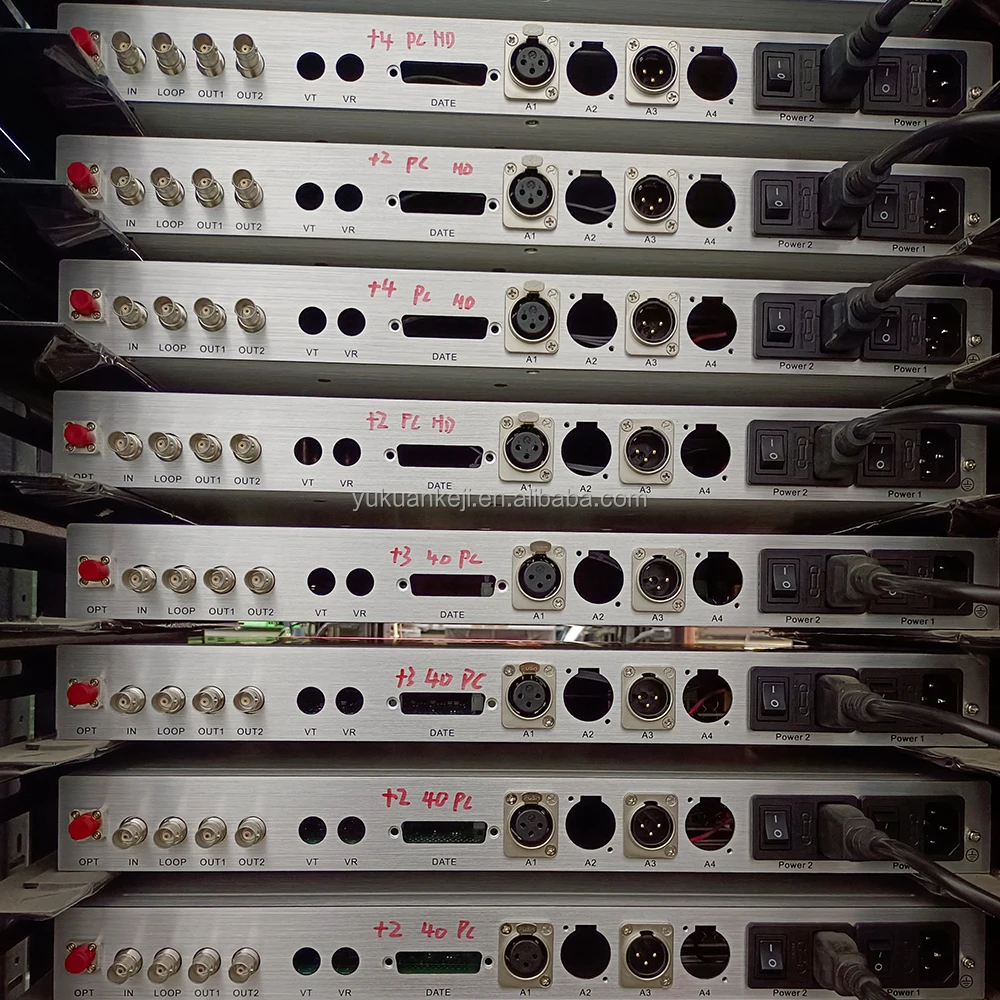

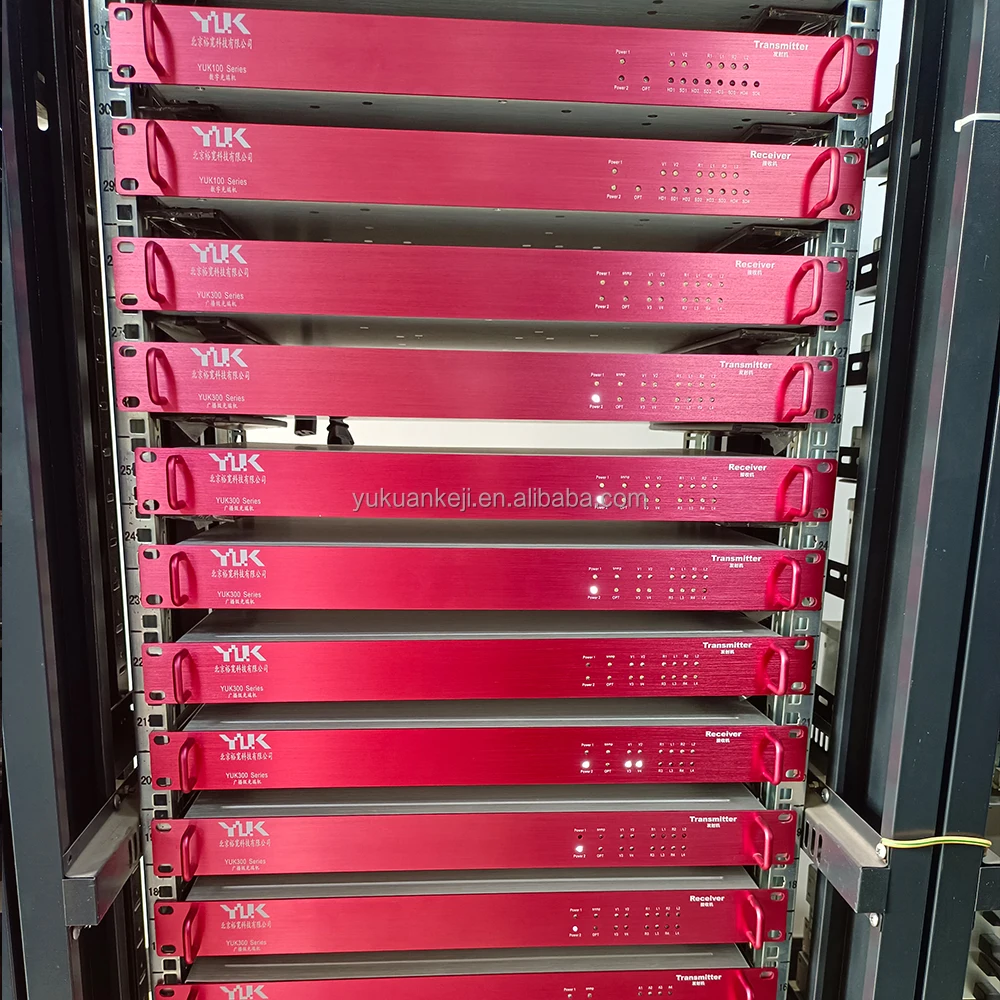

Product Overview
YUK100-421 series fiber optic extender can transmit maximam 4 channel unidirectional or 2 channel bidirectional 3G--SDI and 2-ch analog stereo or 4-ch AES EBU unidirectional transmission, or 2-ch AES EBU or 1-ch analog stereo bi-directional transmission over 1-core single model or multi-mode fiber, downward compatible with SD-SDI and ASI.Transmitter with loop out and receiver with dual output.It provides reliable high quality transmission up to 120KM (single mode fiber) and 1KM (multi-mode fiber). Digital transmission meet the requirement of high quality image transmission and can achieve the broadcast transmission level, full real-time transmission and non time delay.
Product Feature
* Support maximum 4-ch 3G-SDI uni-directional transmission or 2-ch 3G-SDI bi-directional transmission over single mode 1-core fiber
* Support maximum 2-ch analog stereo(L&R) uni-directional or 4-ch AES/EBU uni-directional transmission or
1-ch analog stereo(L&R) bi-directional or 2-ch AES/EBU bi-directional transmission over single mode 1-core fiber
* Support maximum 2-ch analog stereo(L&R) uni-directional or 4-ch AES/EBU uni-directional transmission or
1-ch analog stereo(L&R) bi-directional or 2-ch AES/EBU bi-directional transmission over single mode 1-core fiber
* Compatible with SD-SDI and ASI, adaptive signals HD-SDI,SD-SDI,ASI
* High definition TV signal format:HDI 143,177,270,360,540,1485,2500Mbps
* Comply with SMPTE259M,SMPTE297M,SMPTE310,SMPTE305(HDTI),SMPTE344, SMPTE292M,SMPTE424M
* SDI input has cable equalization and can compensate the loss of cable transmission
* Support passed SDI pathology code test(optional)
* Redundant dual power supply
* High definition TV signal format:HDI 143,177,270,360,540,1485,2500Mbps
* Comply with SMPTE259M,SMPTE297M,SMPTE310,SMPTE305(HDTI),SMPTE344, SMPTE292M,SMPTE424M
* SDI input has cable equalization and can compensate the loss of cable transmission
* Support passed SDI pathology code test(optional)
* Redundant dual power supply
Specification
Parameter | Typical Value | |
Video Audio Input | ||
Video Input | 4 channel uni-directional or 2 channel HD--SDI/ASI bi-directional transmission Each channel has loop out | |
Audio Input | 2-ch analog stereo(L&R) uni-directional or 4-ch AES/EBU uni-directional transmission or 1-ch analog stereo(L&R) bi-directional or 2-ch AES/EBU bi-directional transmission | |
Input Level | >380mVP-P | |
Input Automatic Cable Equalization | >100m(1485Mbps)(BELDEN8281 cable) >250m(270Mbps)(BELDEN8281 cable) | |
Input Reflection Loss | >16dB@270Mbps, >15dB@1485Mbps, >10dB@2970Mbps | |
Impedance | 75Ω | |
Connector | BNC | |
Video Audio Output | ||
Video Output | 4 channel uni-directional or 2 channel HD--SDI/ASI bi-directional transmission Each channel has dual outputs | |
Audio Output | 2-ch analog stereo(L&R) uni-directional or 4-ch AES/EBU uni-directional transmission or 1-ch analog stereo(L&R) bi-directional or 2-ch AES/EBU bi-directional transmission | |
Output Level | 800mVP-P±10% | |
Rise/Fall time | < 135ps(HD/3G), < 800ps(SD) | |
Maximum Jitter | < 0.1UI@270 Mbps < 0.2UI@1485 Mbps < 0.3UI@2.97Gb/s | |
Impedance | 75Ω | |
Connector | BNC | |
Optic and Physical Characteristics | ||
Wavelength | From 1310nm to 1610nm | |
TX power/RX sensitivity | -5dBm~0dBm/-30dBm~-12dBm | |
Power supply | AC 220V, <20W | |
Temperature Range | -30°C~+70°C(operation), -20°C~+80°C(storage) | |
Transmission distance | 0~100KM(Actual distance is determined by customer’s requirement) | |
Optical connector | FC/PC or FC/APC or customize according to your requirement | |
Dimension | 19 inch 1U Rack, 485×320×44mm | |
Application
Notes:
1.Transmission distance 0-40KM,40-80KM, 80-100KM.
2.Optical interface FC/PC, FC/APC. Fiber patch cable is available for other interface.
1.Transmission distance 0-40KM,40-80KM, 80-100KM.
2.Optical interface FC/PC, FC/APC. Fiber patch cable is available for other interface.
