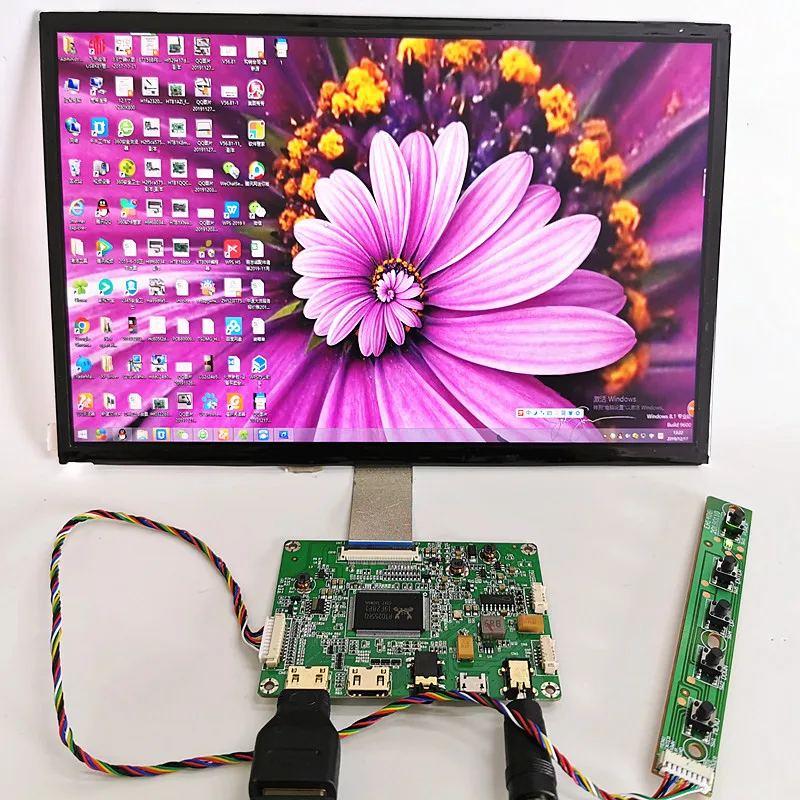

10 inch 2K display capacitive touch display module kit for Car Raspberry pi 3 pi 4 Android system IPS 2560X1600 LCD panel

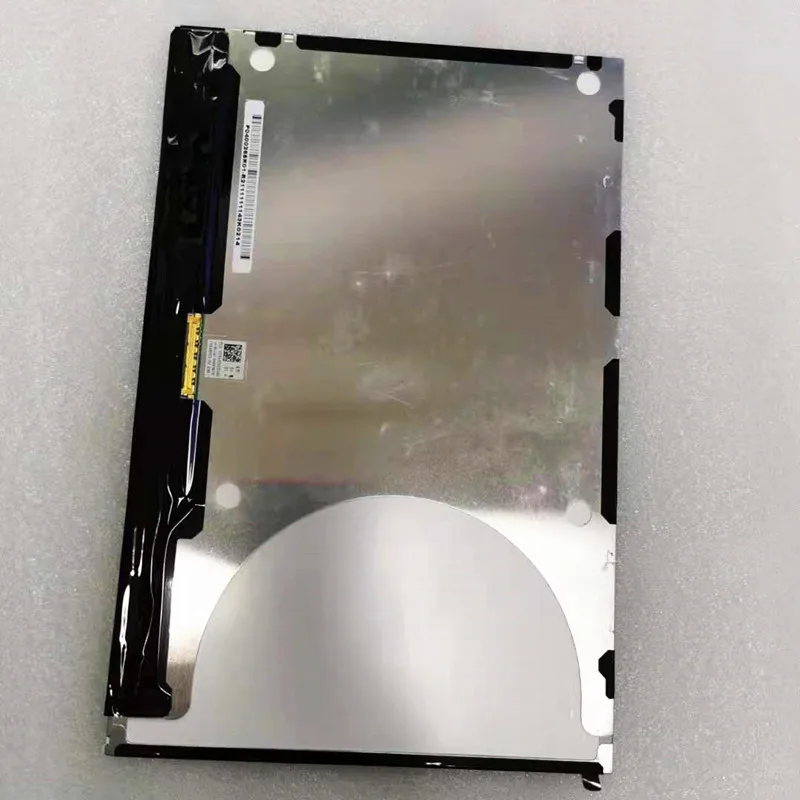

LCD Specification:

LCD type IPS

Screen Size Inside: 10.1 inch

Model Name: VVX10T025J00

Resolution: 2560(RGB)×1600 (WQXGA)

Active Area(mm): 216.96 × 135.6 (H×V)

Outline(mm): 229.75 × 151.22 (H×V)

Response Time: 30 (Max.)(Tr+Td) ms

Color 1670w Colors 8-Bit

Refresh frequency 60Hz

Luminance: 400 (Typ.)(cd/m²)

Viewing Angle: 80/80/80/80 (Min.)(CR≥10)

Contrast: 1000 : 1 (Typ.) (TM)

Color Depth: 16.7M 72% NTSC

Blacklight WLED

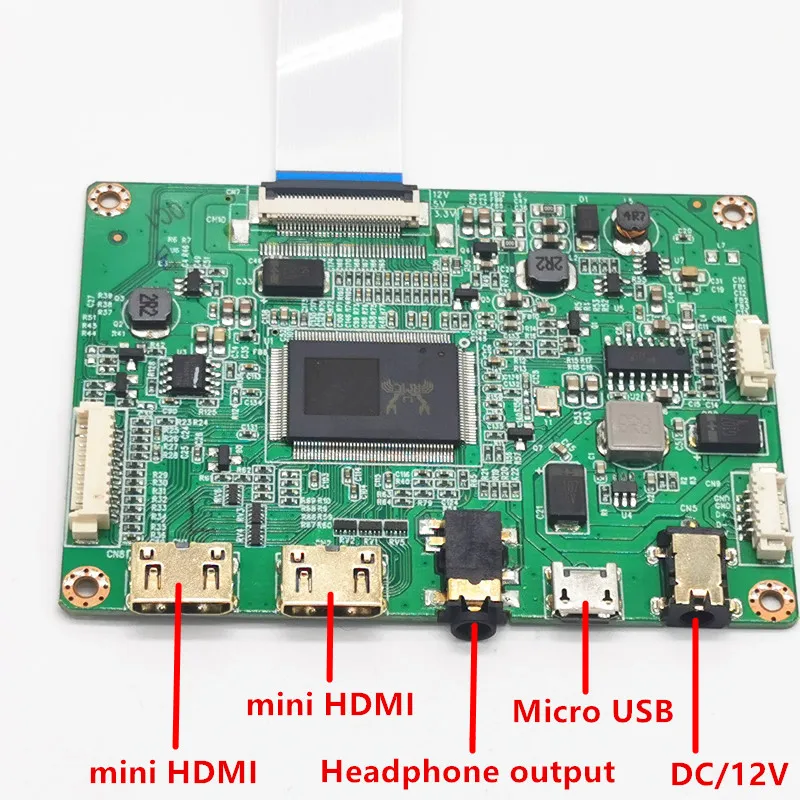

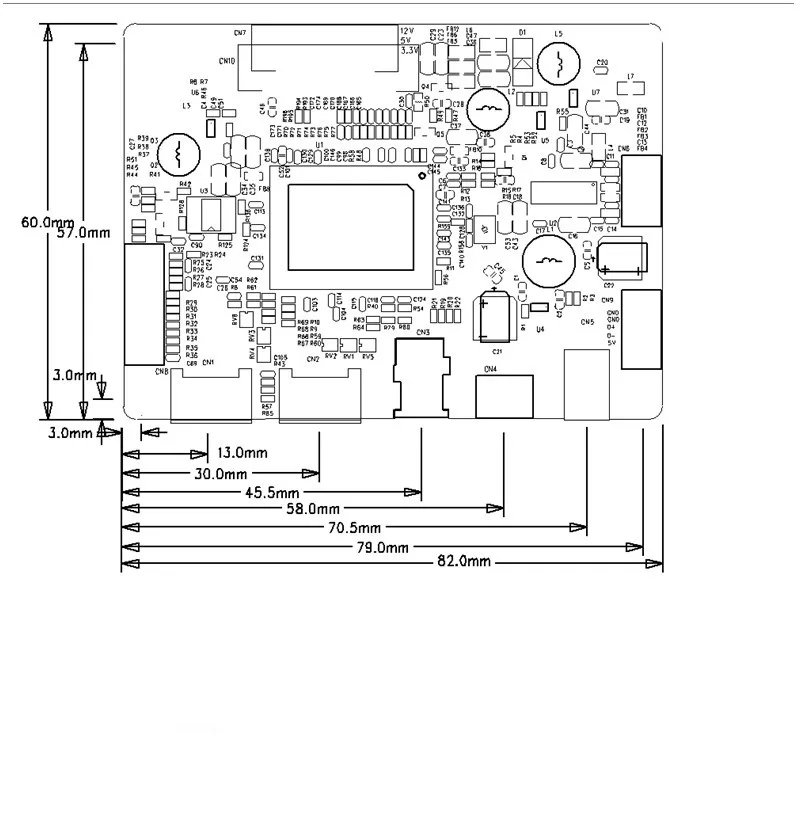

Drive motherboard specifications: (main features)

1. Main chip RTD2556

2. Input 2 HDMI

3. Output PANEL interface 0.5mm pitch 30PIN Flip-flop FFC connector

4. Output Headphone output Support horizontal socket

5. Power Input DC 12V1A-12V4A/Micro USB 5V2A

OSD menu; brightness, contrast, auto correction, phase, clock, line position, function settings, reset, etc.; OSD language Chinese, English, etc.

key :POWER/ ENTER /MENU/ UP/ DOWN 5 button

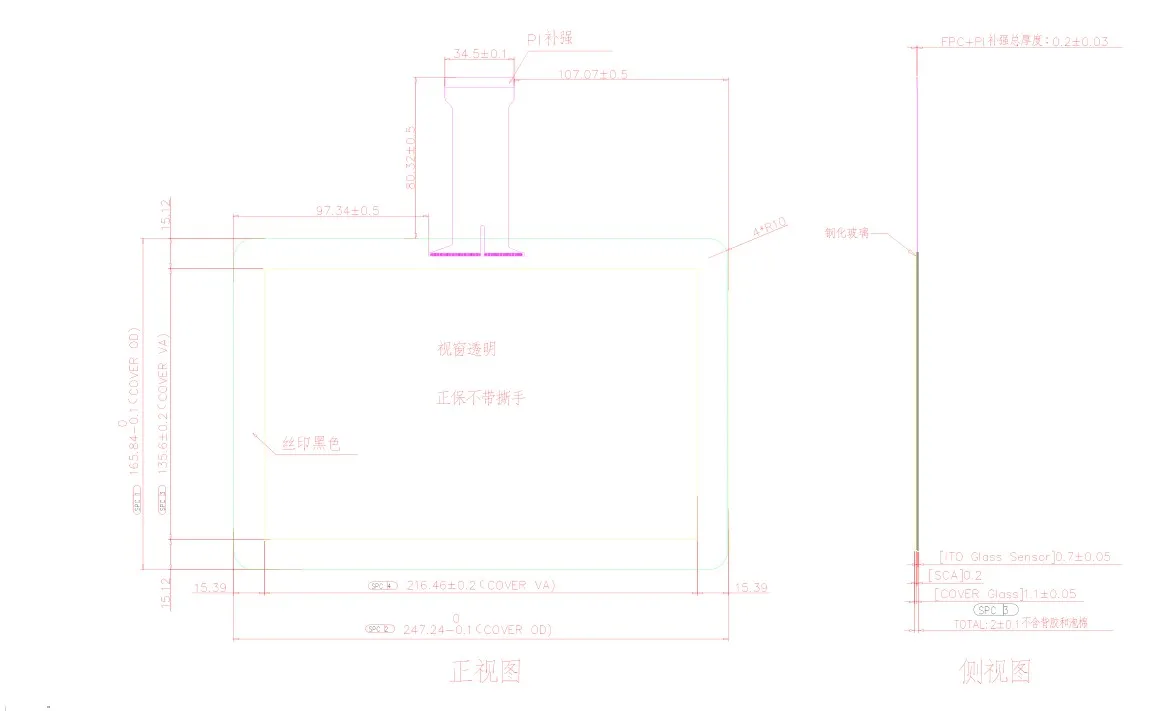

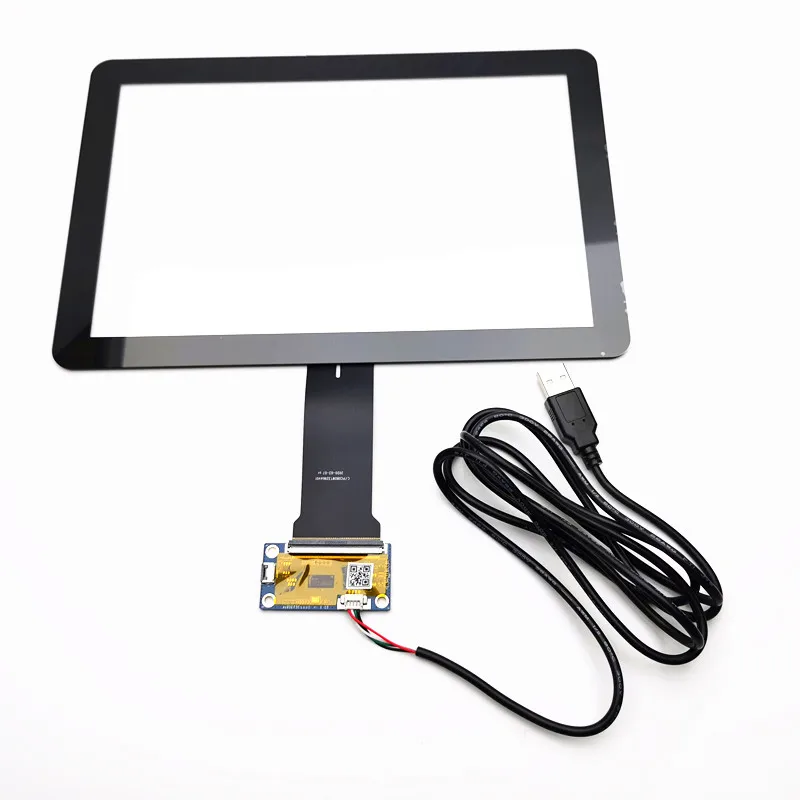

Capacitive Touch Screen parameters and description

10.1 inch multi-point capacitive touch



Android kernel 3.1 system 5.1 or above; linux kernel version 3.5 or above are plug and play.



Capacitive touch screen linuxWIN7810 and Android system plug and play

LCD Display module contenido del paquete

1 *10.1 inch LCD

1 * Driver board

1 * EDP cable

1 * teclado OSD

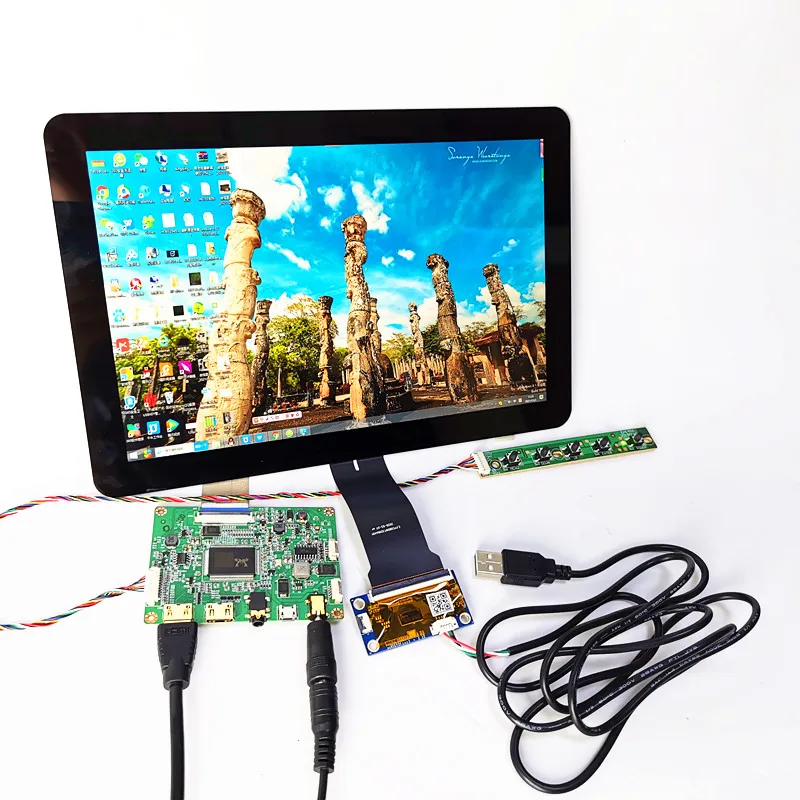

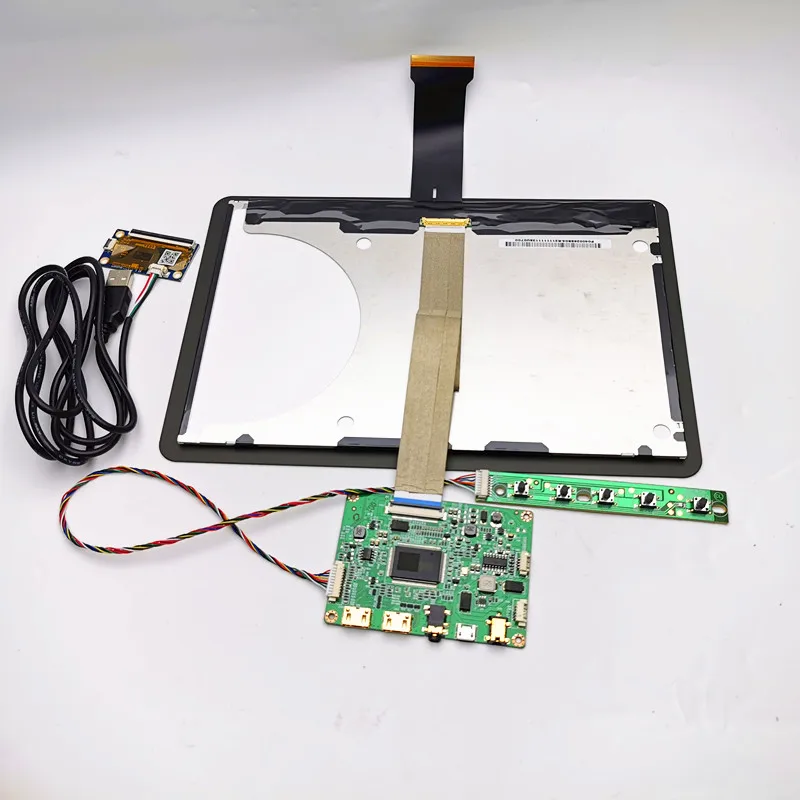

LCD Touch display module contenido del paquete

1 * Capacitive Touch Panel

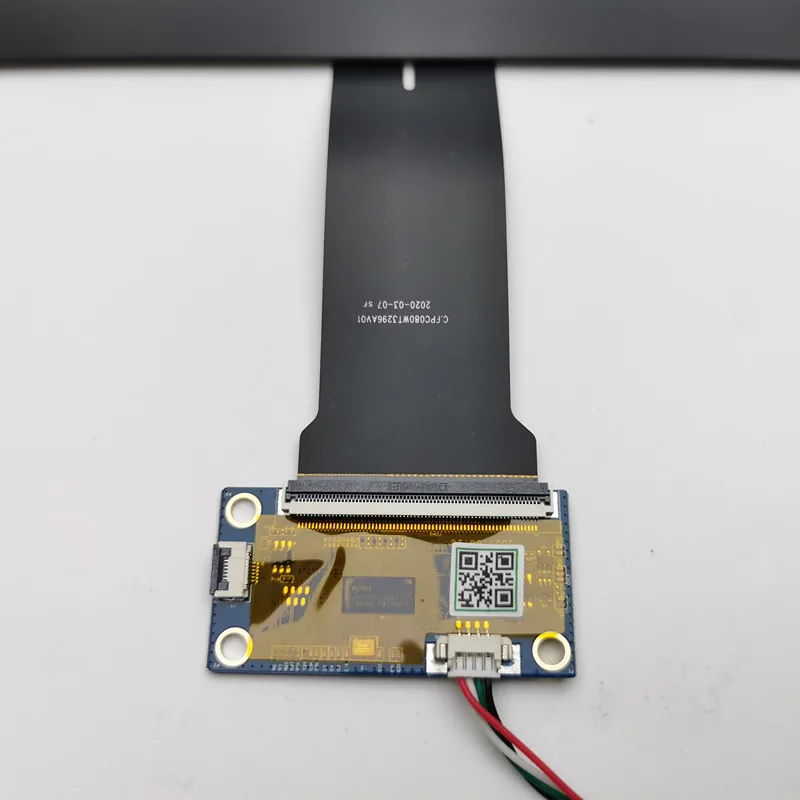

1 * CTP driver board (Capacitive Touch Panel Driver board)

1 * USB touch screen cable wire

1 *10.1 inch LCD

1 * Driver board

1 * EDP cable

1 * teclado OSD
