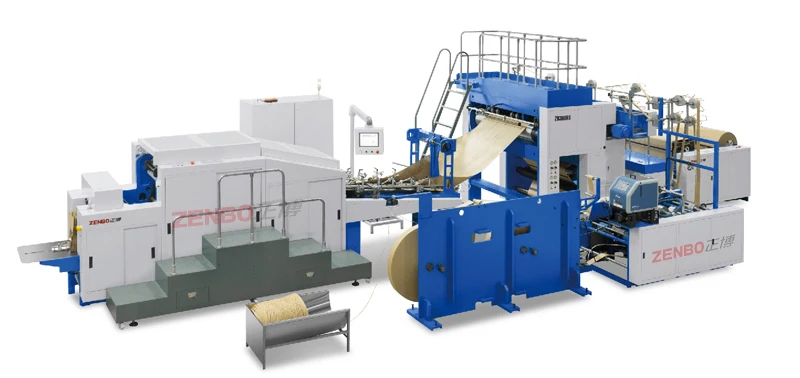

Fully automatic roll feeding recycled paper bag making machine ZB360RS;making machine craft paper bag recycling equipment
- Category: >>>
- Supplier: Zhejiang Zenbo Intelligent Machinery Co. Ltd.
Share on (1600544043162):
Product Overview
Description
Product Description

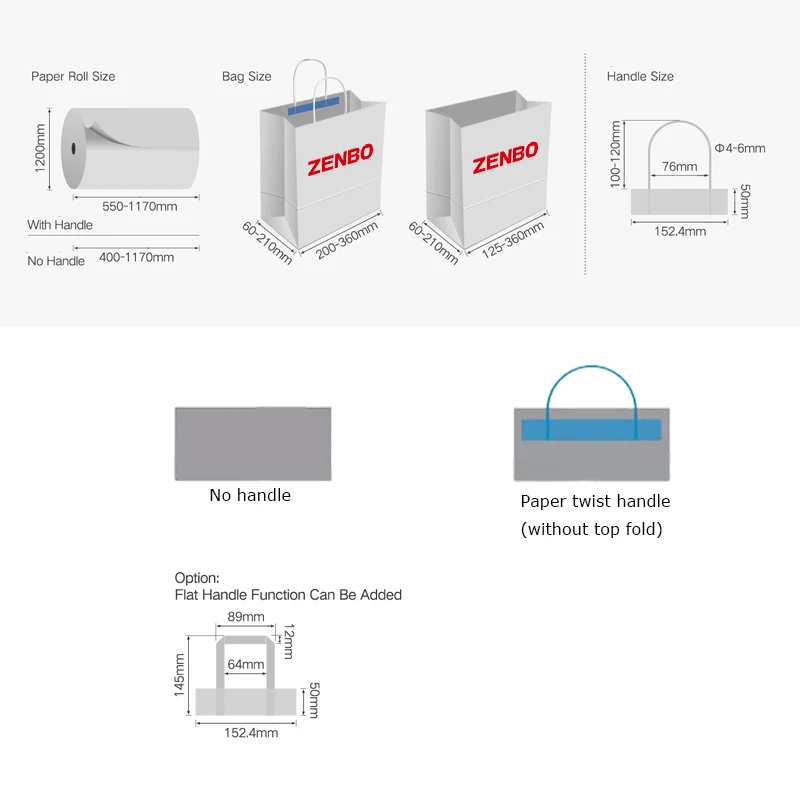

| Main Techinical Parameters |  |  | |
| Paper Roll Width | 550-1170mm | 400-1170mm | |
| Max.Paper Roll Diameter | Φ1200mm | Φ1200mm | |
| Core Diameter | Φ76mm(3″) | Φ76mm(3″) | |
| Paper Thickness | 80--170g/m^2 | 60--170g/m^2 | |
| Bag Body Width | 200-360mm | 125-360mm | |
| Paper Tube Length | 260-550mm | 260-650mm | |
| Bag Bottom Size | 60-210mm | 60-210mm | |
| Handle Rope Height | 100-120mm | - | |
| Handle Rope Diameter | Φ4-6mm | - | |
| Handle Patch Length | 152.4mm | - | |
| Paper Rope Center Distance | 76mm | - | |
| Handle Patch Width | 50mm | - | |
| Handle Patch Roll Diameter | Φ1200mm | - | |
| Handle Patch Roll Width | Φ100mm | - | |
| Paper Patch Thickness | 100-180g/m^2 | - | |
| Max Production Speed | 130bags/min | 170bags/min | |
| Total Power | 42KW | ||

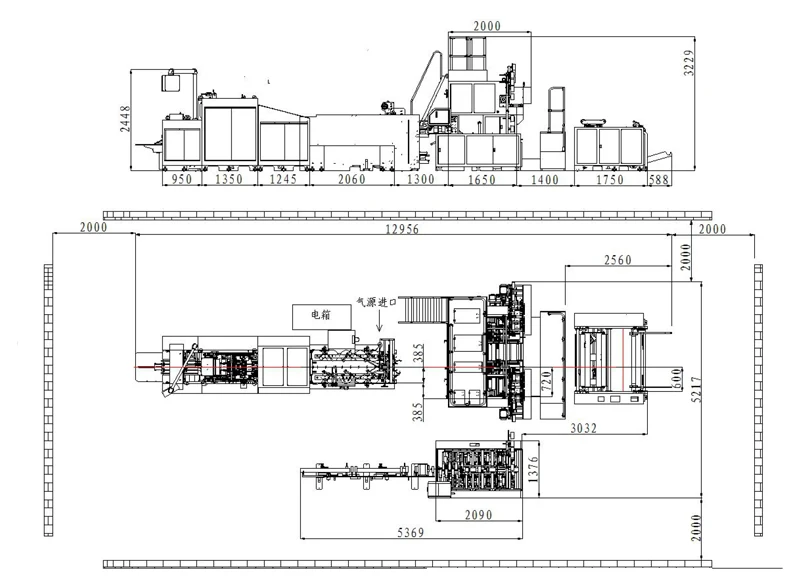

| Overall Diamension | 13000*6000*3100 | ||
| Total Weight | 17000KGS | ||
