4mm 10mm 16mm 35mm 50mm 4 Core Armoured Power Cable Price
US $0.85-$1.25
0.6/1kv OFC Copper Conductor 4 Core 25mm 70mm 16mm SWA STA Armoured Cable Electrical Power Cable Price
- Category: Power Cables >>>
- Supplier: Yifang,Electric,Group,Inc.
Share on:
Product Overview
Description
Product Description
XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting aiti-chemical,corrosion, and simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant XLPE cable can be manufactured with three technology. The flame-retardant cable covers all kinds of low-smoke, halogen free, and non-smoke non-halogenated and three classes of A,B,C.
Various of flame-retardant XLPE cable can be manufactured with three technology. The flame-retardant cable covers all kinds of low-smoke, halogen free, and non-smoke non-halogenated and three classes of A,B,C.

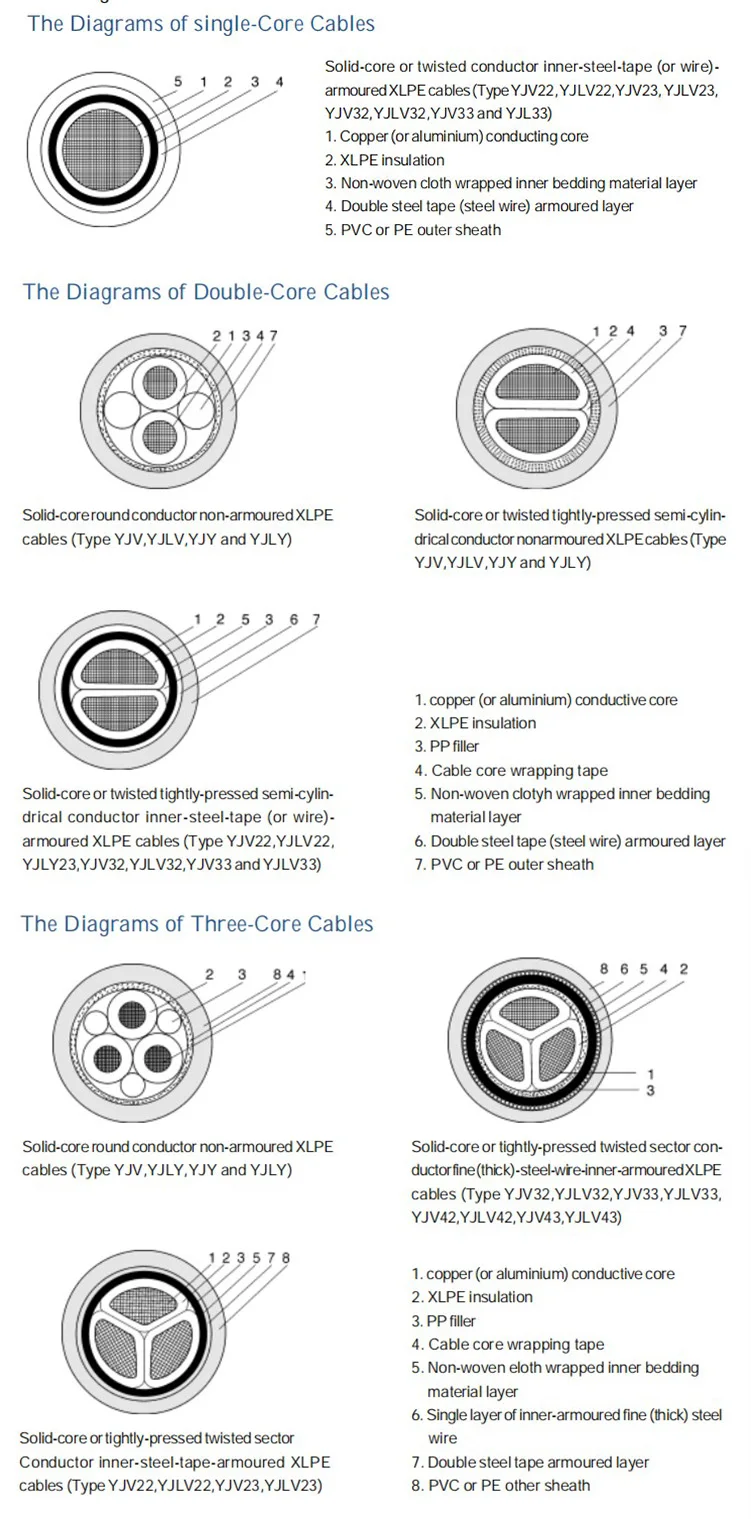

Type | No. of Core | Nominal cross-section |
Cu(AL)/XLPE/PVC(PE) Cu(AL)/XLPE/ATA/PVC(PE)Cu(AL)/XLPE/AWA/PVC(PE) | 1 | 1.5-1000 |
Cu(AL)/XLPE/STA/PVC(PE) Cu(AL)/XLPE/SWA/PVC(PE) | 2,3,4,5 | 1.5-400 |
Package | 3+1,4+1,3+2 | 2.5-400 |
Voltage test
Each drum of finished cable should withstand power frequency voltage 3.5kV for 5 minutes,the insulation is not breakdown.
Service conditions and operation parameters of Cable:
1.The cable is applied to fixed installation for rated voltage 0.6/1kV of power transportation and distribution line.
2.Max. rated temperature of conductor. nominal operating 90℃ Short circuit: max. for 5 sec.250℃
3.The cable can be laid without drop restriction, and the environment temperature shall not be lower than 0℃.
Service conditions and operation parameters of Cable:
1.The cable is applied to fixed installation for rated voltage 0.6/1kV of power transportation and distribution line.
2.Max. rated temperature of conductor. nominal operating 90℃ Short circuit: max. for 5 sec.250℃
3.The cable can be laid without drop restriction, and the environment temperature shall not be lower than 0℃.
Conditions and Paramenters
Company Introduction
Yifang Electric Group Inc. is a large joint-stock, hi-tech enterprise established in 2001. We are specialized in wires & cables,including designment, production and sales. Located in Zhengzhou, China. There are more than 300 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.
Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire),flame retardant mining cable, etc.
Certifications
