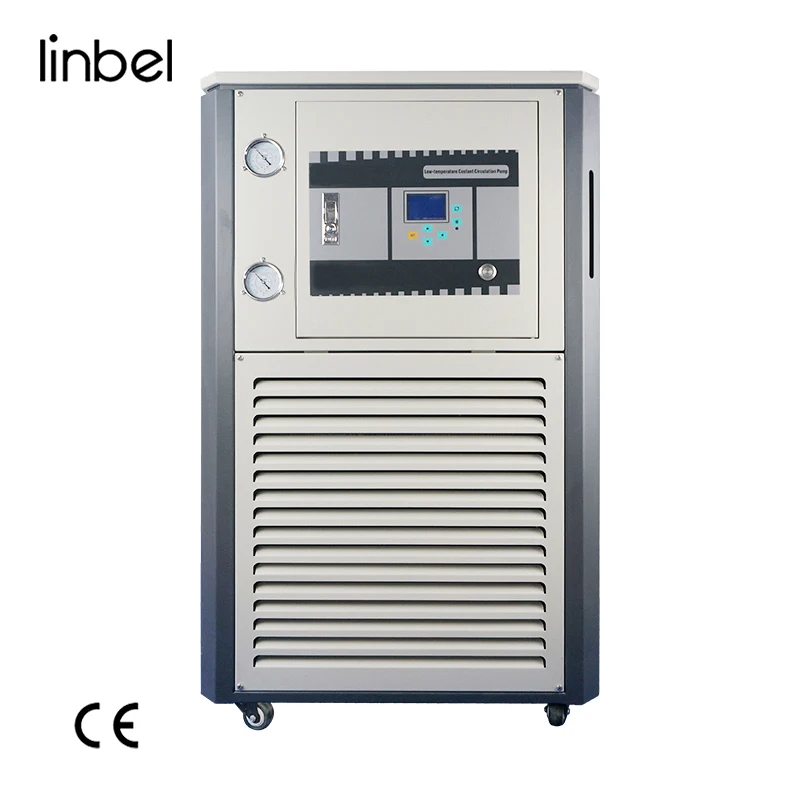

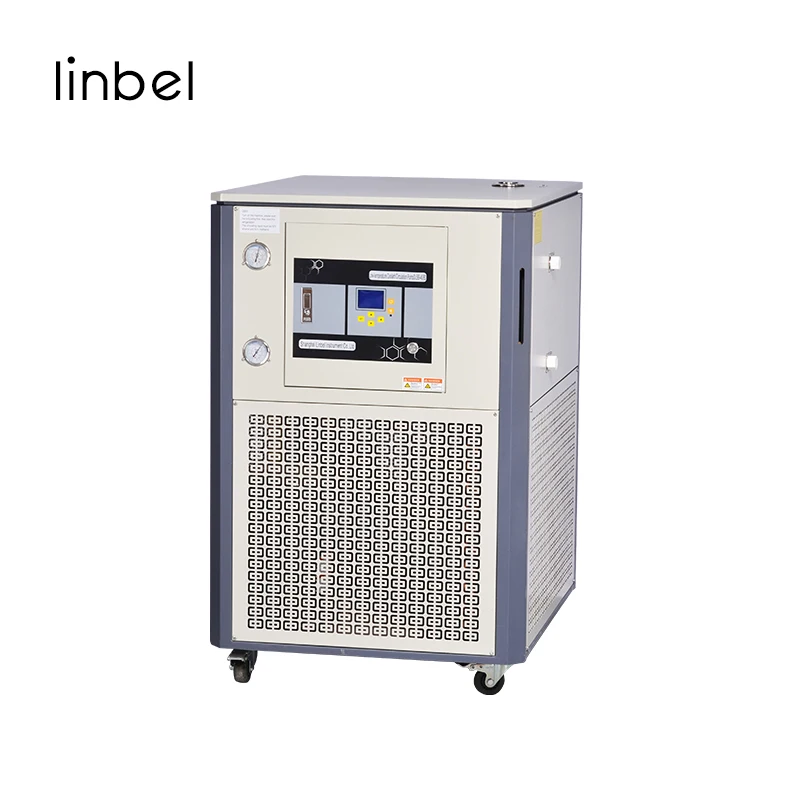

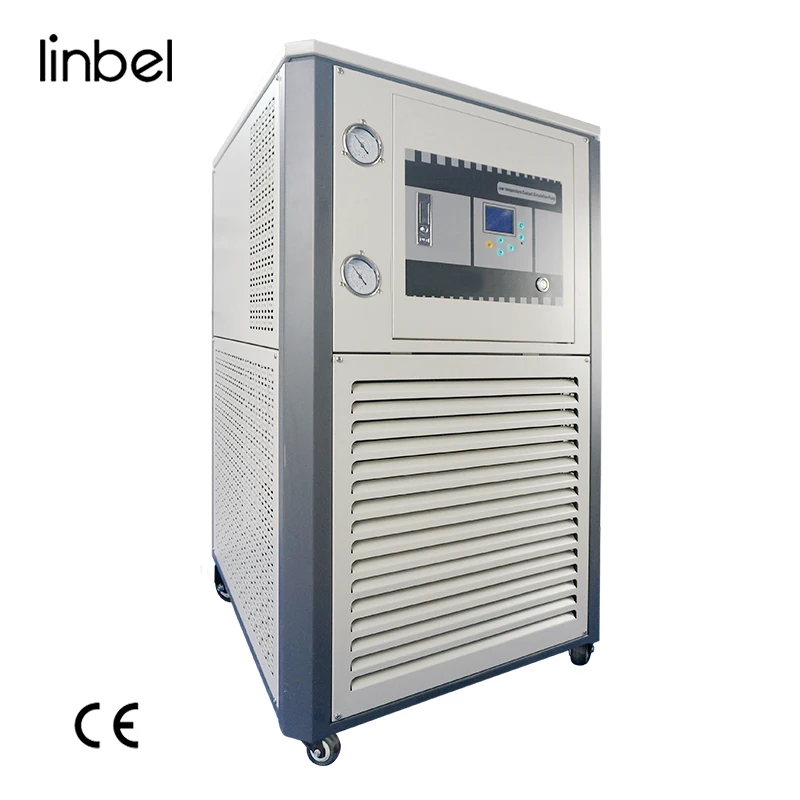

Hot Sale Low Circulating Chiller Air cooled Water Chillers 80c Chiller

Model

DLSB-5/80

DLSB-10/80

DLSB-20/80

DLSB-40/80

DLSB-50/80

DLSB-100/80

DLSB-200/80

DLSB-300/80

Technical data

Temperature range

-80~RT;±1℃

Ambient temperature(℃)

≤30℃

Ambient humidity

60%

Voltage(V)

110/220

220

220 1P/3P

380 3P

460 3P

220/380/460

Phase(P)

1

6

7

10

13.3

Frequency(Hz)

50/60

universal

50 or 60

non-universal

50/60

universal

50 or 60

non-universal

50/60

universal

Power(Kw)

1.6

3.3

5

5.6

10

10

16

20

Cooling capacity(w)

25℃

2044

4500

6750

7665

13500

18000

N/A

5℃

N/A

29610

32479

0℃

1850

4100

6100

7300

12000

15750

24950

27232

-10℃

N/A

-30℃

-40℃

1200

2600

4500

5800

8500

10565

11000

13549

-60℃

900

N/A

7623

7663

-80℃

170

292

550

900

1100

1500

1701

2678

Temperature sensor

PT100

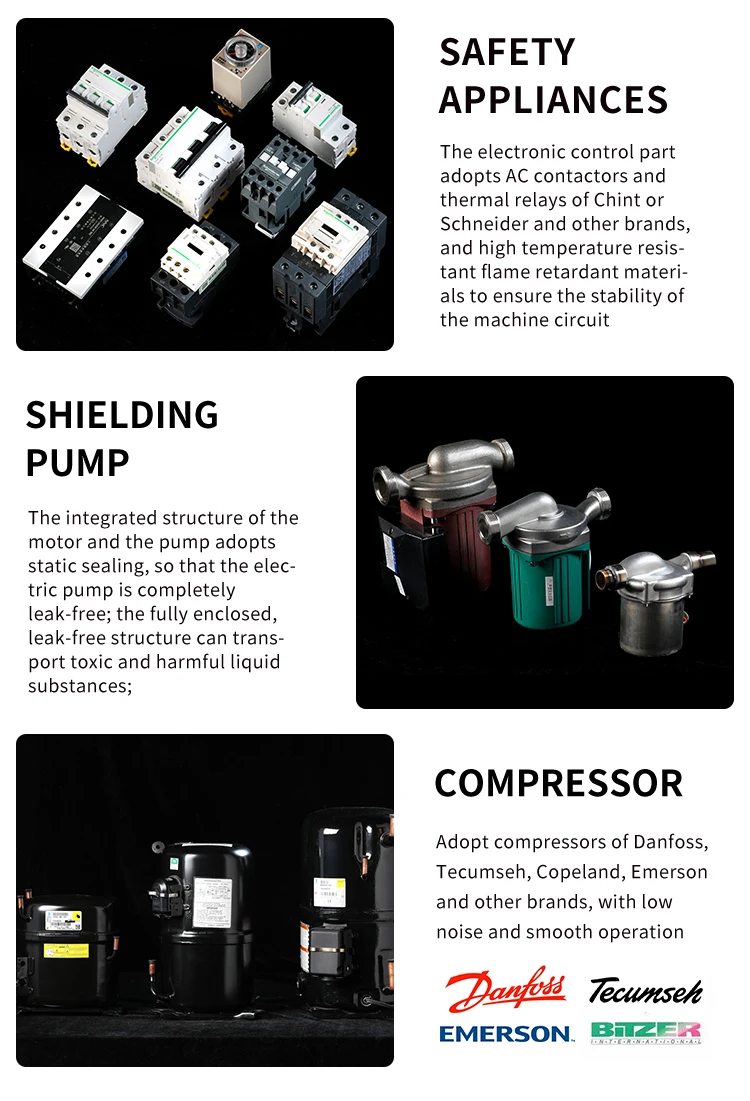

Protection

Overvoltage, time delay, overcurrent, overheating, leakage, protector

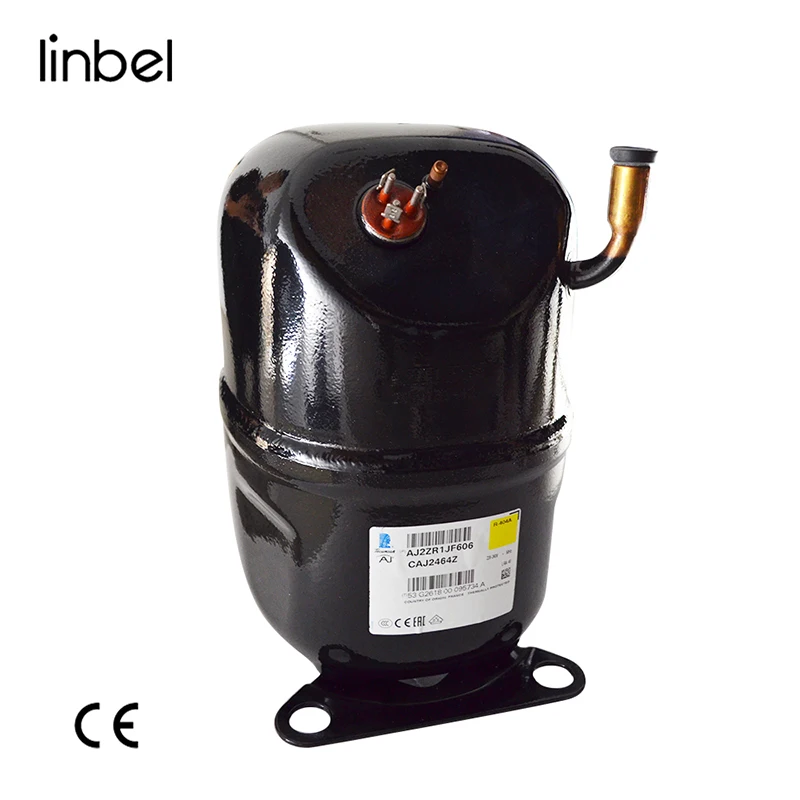

Compressor

Type

Closed

Brand

Danfoss

Tecumseh

Danfoss

Power(Kw)

1.5

3

4.5

5.25

9

9

15

19.5

Current(A)

7

13

20

23

30

30

30

38

Horsepower

1

1.5

3

3.5

6

6

10

13

Quantity

2

2

2

2

2

2

2

2

Refrigerant

R404A,R23

Condenser

Type

Air cooling

Fan type

External rotor axial flow fan

Quantity

1

2

Evaporator

Type

Plate heat exchanger

Tank volume(L)

5

7

10

10

17

35

100

100

Flow(L/min)

15

25

35

35

35

35

97

97

External circulation adapter size(DN)

15

15

20

20

20

20

20

20

Circulating pump

Type

Magnetic pump

Shield pump

Magnetic pump

Brand

Puneet

Shanghai Jingyi

Puneet

Power(w)

15

100

280

280

280

280

550

550

Current(A)

0.5

0.5

1.2

1.2

1.2

1.2

2

2

Rated head(m)

3

8

8

11

11

11

15

15

Rated flow(L/min)

15

25

25

35

35

35

180

180

Appearance dimension

Running weight(Kg)

95

210

250

255

330

350

570

590

Chiller size

Length(mm)

600

770

810

810

970

970

1400

1400

Width(mm)

480

670

710

710

800

800

970

970

Height(mm)

770

1180

1240

1240

1245

1345

1580

1780

*PLC

Control system

Siemens S7-200 smart PLC

Programming

5 programs can be written, each with up to 40 steps

Control model

Material temperature and equipment outlet temperature can be switched automatically

Protocol

Modbus RTU protocol RS485 interface (optional RS232 Ethernet)

Control panel

7-inch Siemens color touch screen (optional 10 inch)

Data export

Support USB flash disk data export, and export temperature data in TXT format

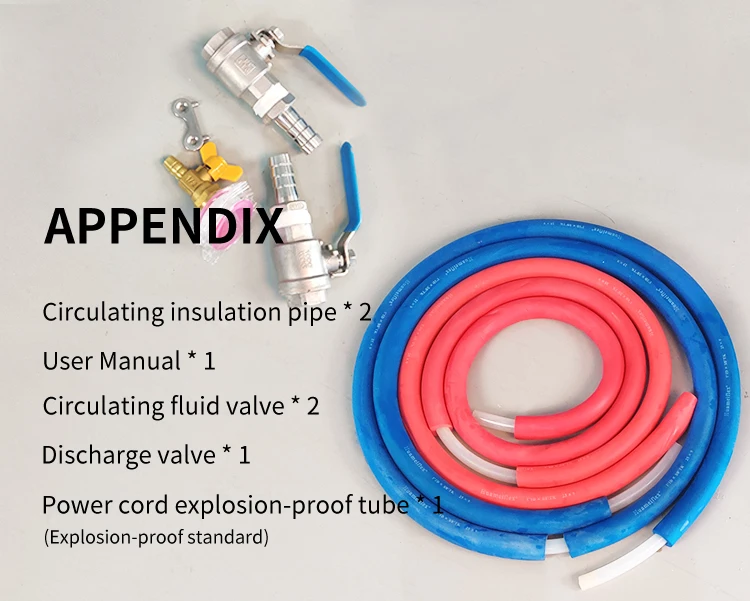

Packing list

2 sets of adapter valves, one roll of raw meal

2 stainless steel insulated hoses

Operation instructions

All data are measured in the factory, and users will have errors in the process of use

*PLC for optional PLC part data, it is not applicable if there is no PLC
