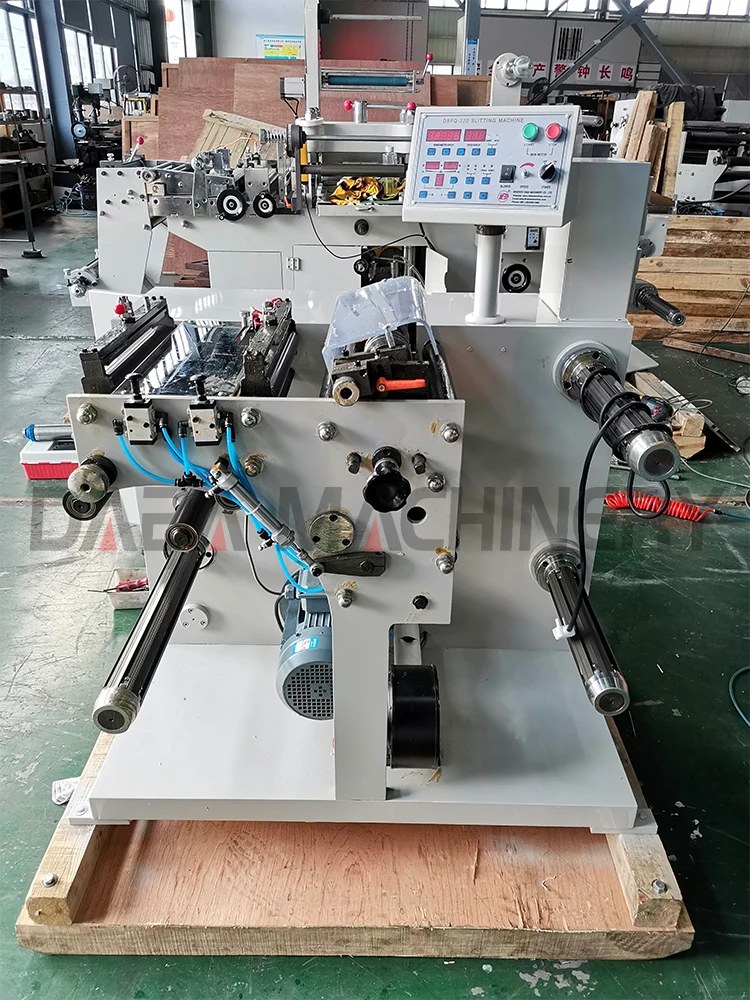

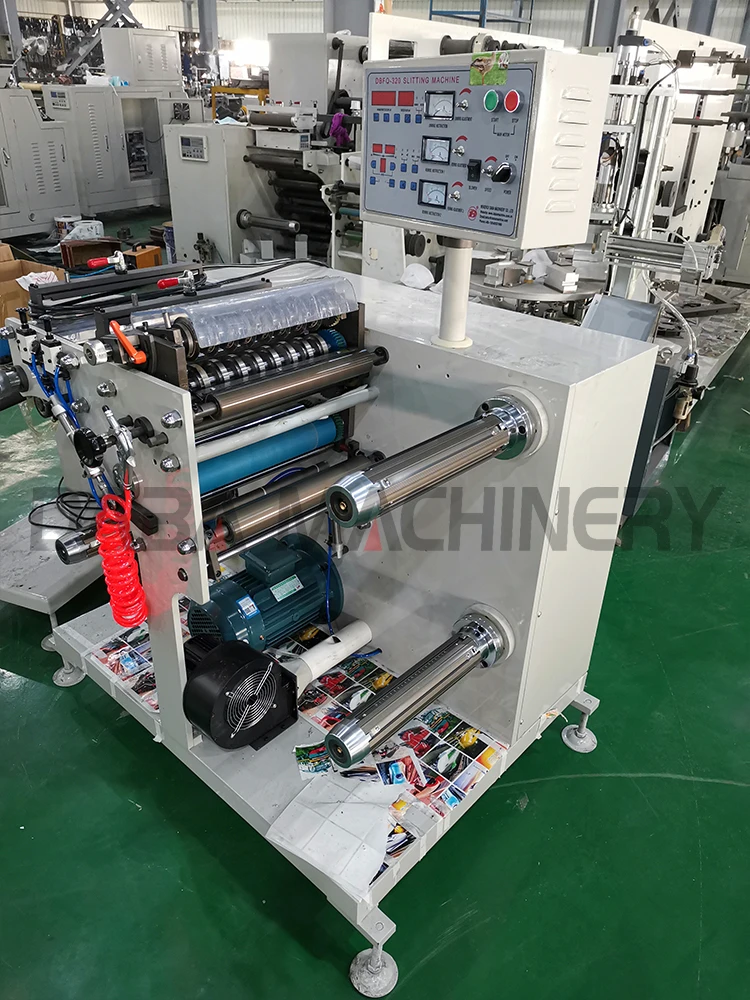

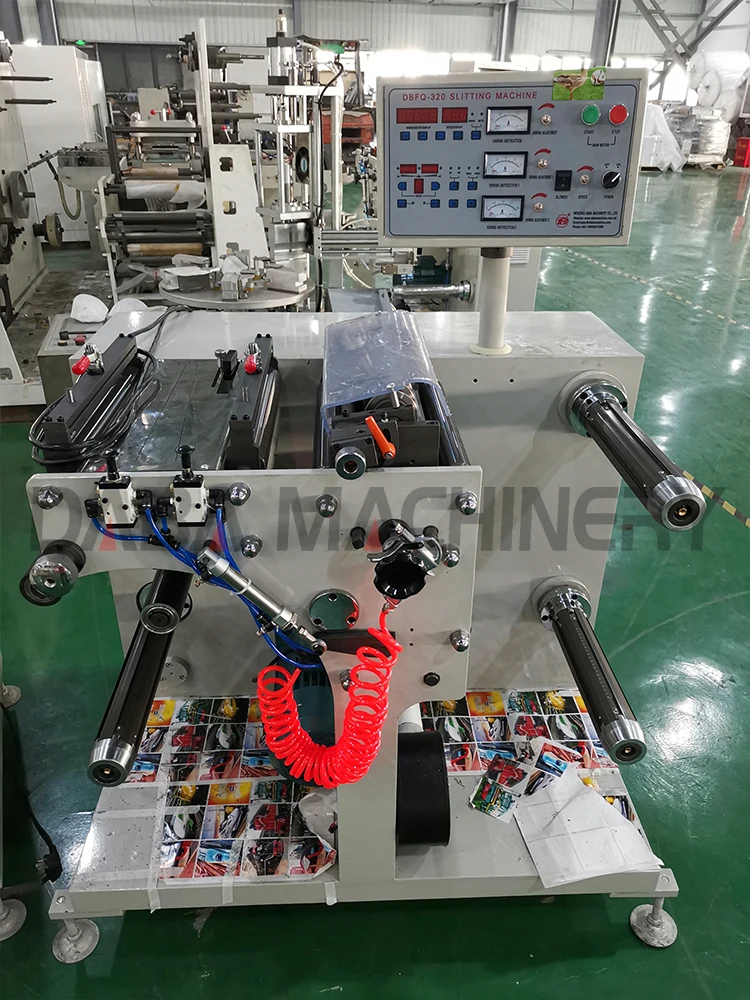

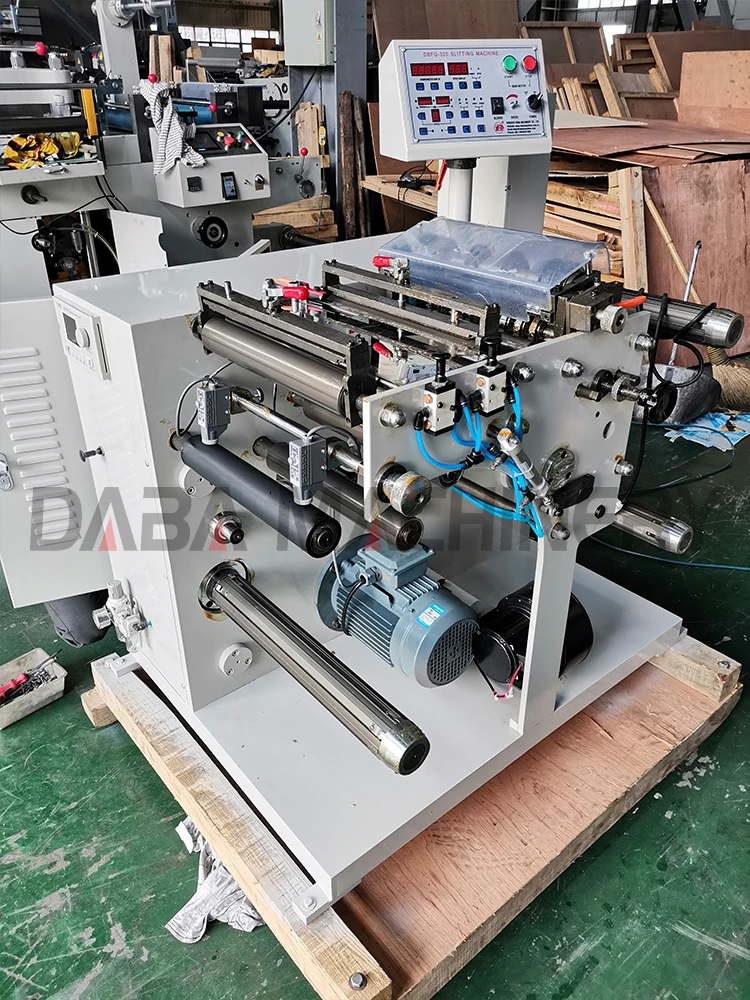

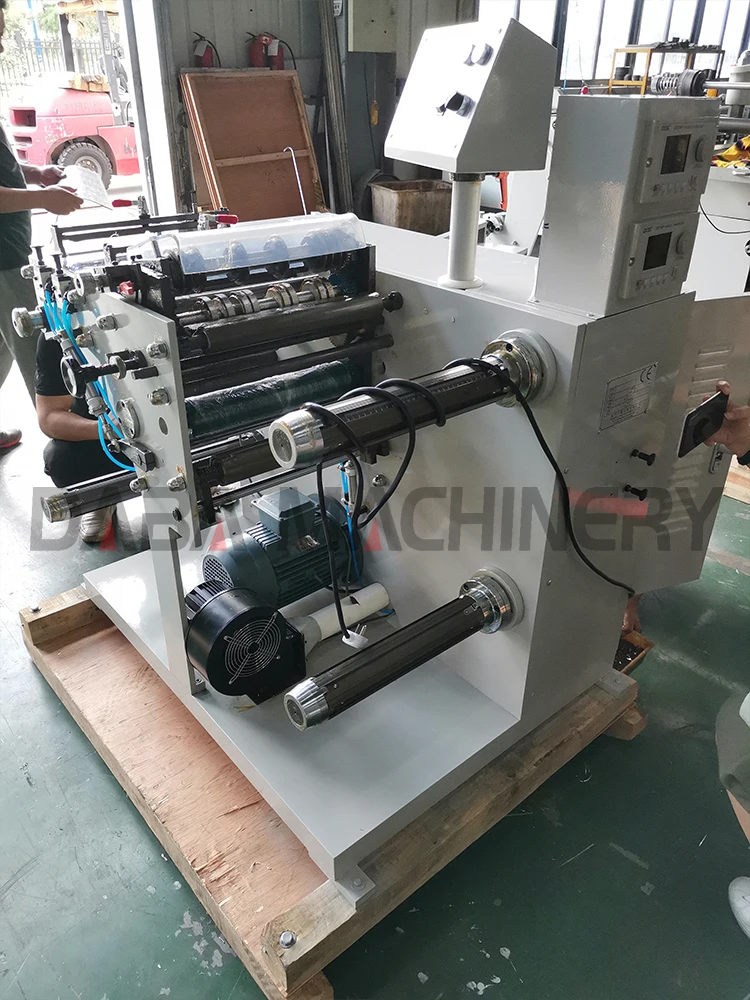

roller thermal paper circular razor blade slitting rewinding machine
- Category: >>>
- Supplier: Ruian Dingyu Machinery Co. Ltd.
Share on (1600544111811):
Product Overview
Description
Products Description
Main Features
1.Main motor is controlled by stepless frequency conversion timing.
2.Automatic meter counter , reaching the preset meter ,warning and stop.
3.EPC adopts double photoelectric sensor .
4.Rewinding and unwinding adopts Air shaft ,easy loading and unloading.
5.High speed ,high precision,running stablely.
2.Automatic meter counter , reaching the preset meter ,warning and stop.
3.EPC adopts double photoelectric sensor .
4.Rewinding and unwinding adopts Air shaft ,easy loading and unloading.
5.High speed ,high precision,running stablely.
Machine Parameter | ||||
Model | DBFQD-320 | DBFQD-470 | ||
Slitting Speed | 0-140m/min | 0-140m/min | ||
Max. Web Width | 330mm | 480mm | ||
Max. Slitting Width | 320mm | 450mm | ||
Min. Slitting Width | 15mm | 15mm | ||
Slitting Knife (Up/Down) | each 6pcs / set | each 6pcs / set | ||
Max. Unwinding Diameter | 700mm | 700mm | ||
Max. Rewinding Diameter | 600mm | 600mm | ||
Slitting Precision | ±0.10mm | ±0.10mm | ||
Weight: | 500kgs | 800kgs | ||
Dimension (L * W * H ) | 1300*900*1500mm | 1300*1100*1500mm | ||
Application and Sample
Applicable Material:
* Self-adhesive paper,Self-adhesive thermal paper,thermal paper ATM etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material:kraft paper,paper cup paper,etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material:kraft paper,paper cup paper,etc.
Details Images
1 Unwinding Unit
a.The max diameter of unwinding is 600 mm.
b.With 3 inch air shaft
2 Web Guide
a.Double photo electric eyes automatic control.
b.The precision is +-0.1 mm. c.It can work in EPC (edge position control) and LPC (edge position control).
Splice Table
It is more convenient when changing to the next roll of material.
Slitting Unit
a.With 8 pcs rotary/razor knives.
b.The min slitting width is 20mm.
UP-Rewinding Unit
a.The max diameter of up rewinding is 600mm.
b.With 3 inch air shaft.
Down-Rewinding Unit
a.The max diameter of down rewinding is 600mm.
b.With 3 inch airshaft.
Waste Blower
There are air blower that can automatically discharge waste.
Control Panel
a.Speed control
b.Main switch
Air Gun
Inflate the shaft with an air gun.
Foot Switch
Use your feet to control the operation,jog and stop of the machine.It is more convenient at work.
In Factory Photo
Services
1.Purchase Service
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some
samples of your products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
samples of your products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exported documents could be made perfectly
DABA COMPANY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.
DABA Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines But the buyer need to supply the round trip tickets food hotel cost.
DABA Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines But the buyer need to supply the round trip tickets food hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factory to learn how to operate machines.
DABA Company technician will teach and train the learners hand by hand till he can operate machine by himself.
DABA Company technician will teach and train the learners hand by hand till he can operate machine by himself.
Obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year. Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken Just a pictures or a videos.The new free parts will reach within 3-7 Express working days.
Any parts broken Just a pictures or a videos.The new free parts will reach within 3-7 Express working days.
Contact
Product packaging
Company Profile
FAQ
Q: What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy. We accept L/C at sight. We accept Cash.
Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100 USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100 USD one day per person.
