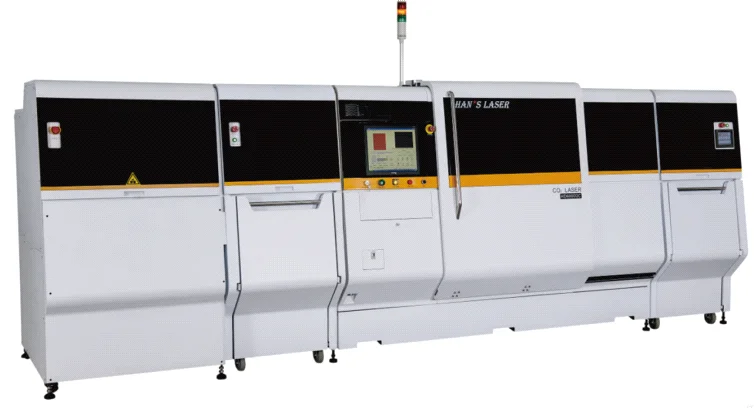

PCB Laser Drilling Machine for Conformal Mask/Large Window/Direct Laser Drill (DLD) and Other Blind Holes Process Requirement
- Category: >>>
- Supplier: Everest Pcb Equipment Co. Ltd.
Share on (1600544115060):
Product Overview
Description
Related Product
Details Images
Products Description
Function characteristics:

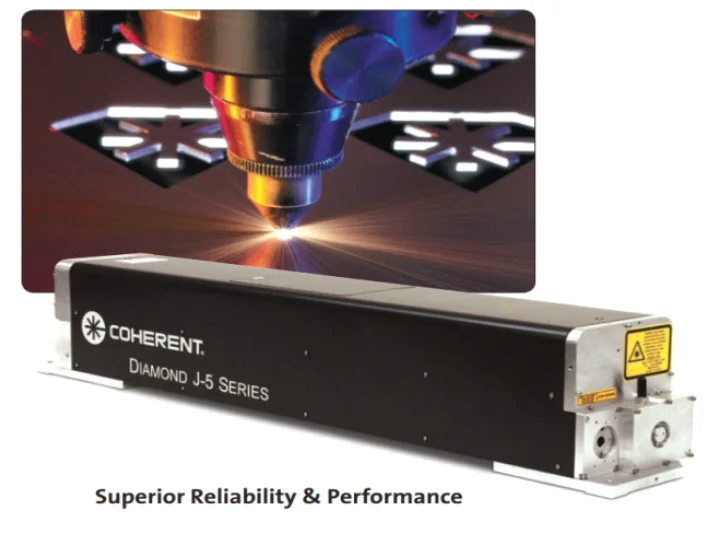

1, New laser system is adopted, with better performance and stability;

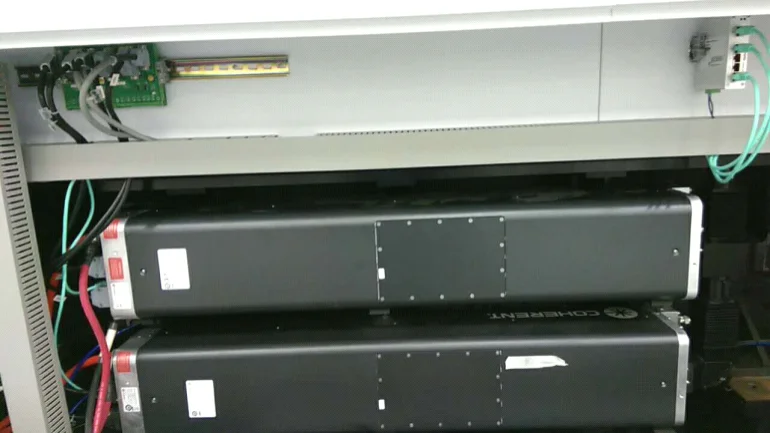

2, Dual laser configuration, the processing performance is improved qualitatively, and better flexibility;
3, New galvanometer scanning system with perfect speed and accuracy combination;
4， it can be equipped with a new second-generation automatic turnover mechanism;
5，The processing efficiency has been greatly improved.
2, Dual laser configuration, the processing performance is improved qualitatively, and better flexibility;
3, New galvanometer scanning system with perfect speed and accuracy combination;
4， it can be equipped with a new second-generation automatic turnover mechanism;
5，The processing efficiency has been greatly improved.
No. | Model | HD600D2C | HD600F2 |
1 | Maximum working range | 550 mm * 650 mm * 2 | 550 mm * 650 mm * 2 |
2 | Maximum moving speed of X Y | 50 m/min | 50 m/min |
3 | Positioning accuracy of X Y | ±5 um | ±5 um |
4 | Galvanometer scanning frequency | 3000 Hz * 2 (max.) | 3200 Hz * 2 (min.) |
5 | Scanning range of galvanometer | 82 * 82 mm (max.) | 82 * 82 mm (max.) |
6 | Scanning accuracy of galvanometer | ± 15 um | ± 15 um |
7 | Laser output power | 400 W (max.) | 300 W *2 |
8 | Laser processing beam mode | TOPHAT | TOPHAT |
9 | Automatic loading and unloading exchange time | within 10 seconds | within 10 seconds |
10 | Stacking height of loading and unloading | 200 mm | 200 mm |
11 | Processing efficiency | 1 | >1.30 |
