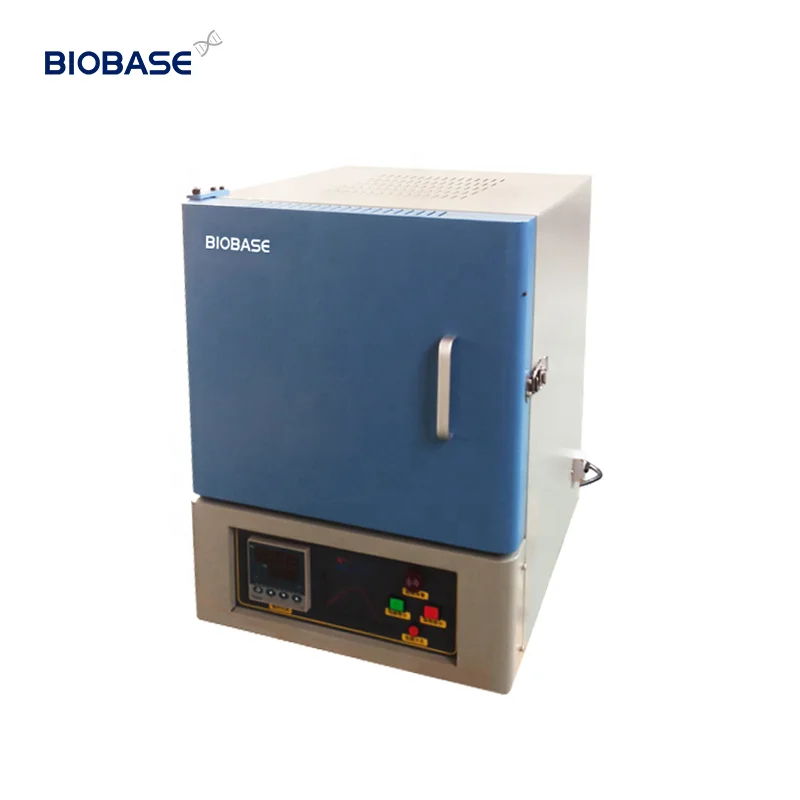

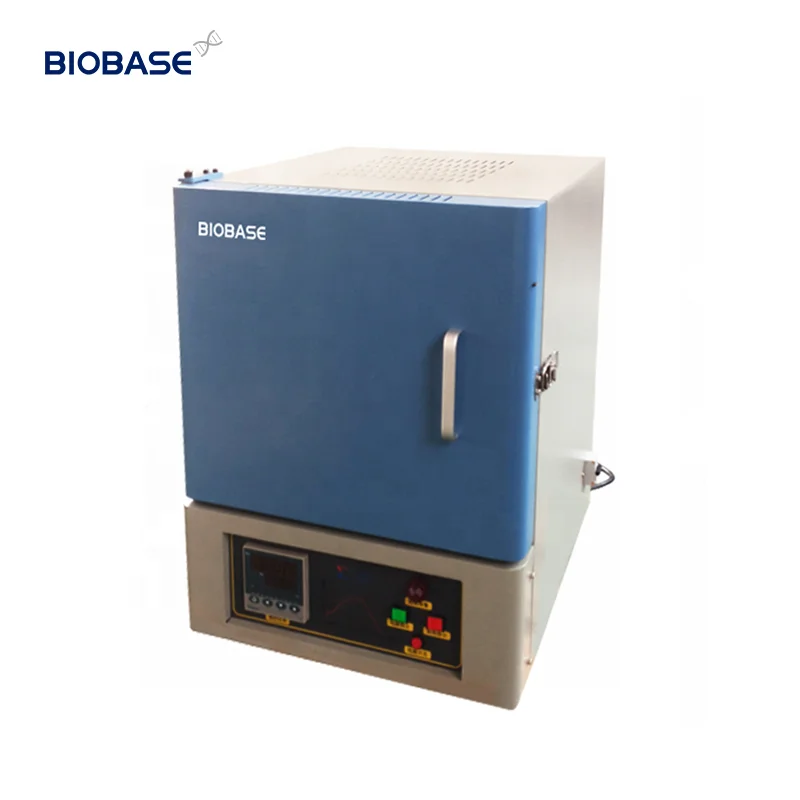

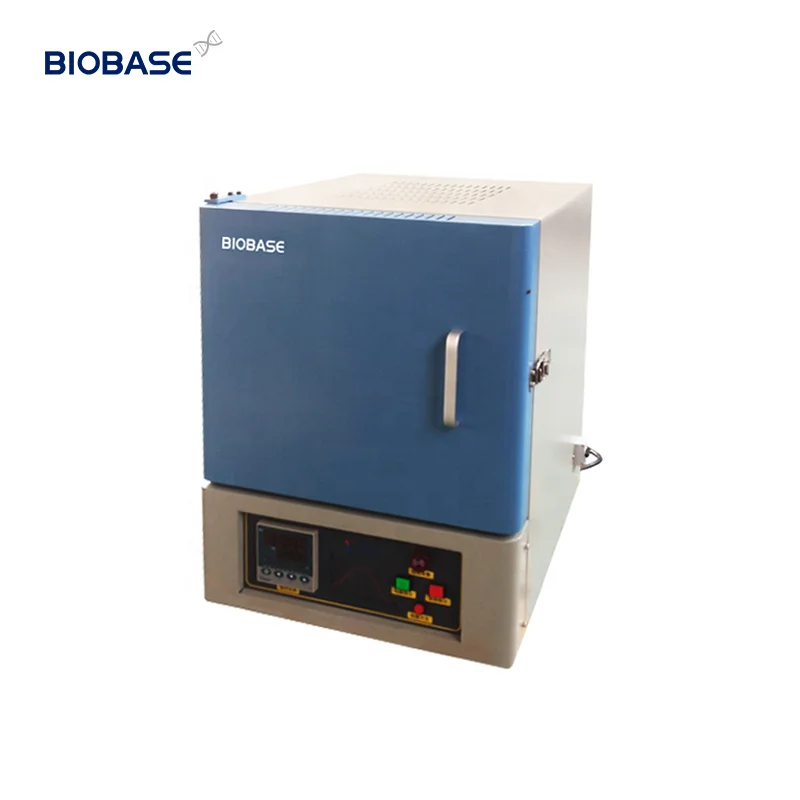

BIOBASE China Manufacturer Laboratory Heating Equipment 1000 DegreeCeramic Fiber Muffle Furnace 6 30L
- Category: >>>
- Supplier: Biobase Biodustry ( Shandong) Co. Ltd.
Share on (1600544132760):
Product Overview
Description
Product Description
Ceramic Fiber Muffle Furnace( MX6-10T)
Feature
* Program controlling temperature for TP series.
* Heating wire is set in four sides of the furnace,anti-corrosion, prevent contamination.
* Special insulation design, low shell temperature.
* SCR control, PID parameter self-setting;
* Low energy consumption.
* Multiple safety protection design:Over-temperature alarm;
Power off when over-temperature/over-load.
Manual or automatic switch without interference;
Built-in parameter password control function.
* Heating wire is set in four sides of the furnace,anti-corrosion, prevent contamination.
* Special insulation design, low shell temperature.
* SCR control, PID parameter self-setting;
* Low energy consumption.
* Multiple safety protection design:Over-temperature alarm;
Power off when over-temperature/over-load.
Manual or automatic switch without interference;
Built-in parameter password control function.
Product Parameters
Model | MX6-10T/TP | MX8-10T/TP | MX16-10T/TP | MX30-10T/TP | MX6-12T/TP | MX8-12T/TP | MX30-12T/TP | ||||||
Max. Temp.(℃) | 1000 | 1200 | |||||||||||
Capacity(L) | 6 | 8 | 16 | 30 | 6 | 8 | 30 | ||||||
Temp. Accuracy | ±1℃ | ||||||||||||
Consumption(Kw) | 2.8 | 3.5 | 6 | 10 | 2.8 | 3.5 | 10 | ||||||
Power Supply | 110/220/380V±10%,50/60HZ；（110V not suitable forMX30-12T/TP） | ||||||||||||
HeatingRate | 0-30℃/min settable | ||||||||||||
Rising Time(Empty) | 30 minutes | ||||||||||||
Temp. Uniformity | ±6℃ | ||||||||||||
Material | External material:Cold rolled steel carbon steel spraying Internal material:Ceramic inner chamber | ||||||||||||
Heating Element | Nickel chromium alloy wire | ||||||||||||
Temp.Control | Intelligent temperature controller | ||||||||||||
Optional Accessory | Observation hole;Exhaust chimney; Furnace bottom plate; | ||||||||||||
Optional Functions | Automatically power off once the door is opened;30 programmable periods; | ||||||||||||
Internal Size(W*D*H)mm | 180*230 *150 | 200*300 *120 | 250*400 *160 | 300*500 *200 | 180*230 *150 | 200*300 *120 | 300*500 *200 | ||||||
External Size(W*D*H)mm | 480*500 *660 | 500*580 *660 | 550*690 *700 | 770*820 *580 | 480*500 *660 | 500*580 *660 | 770*820 *580 | ||||||
Package Size(W*D*H)mm | 610*660 *870 | 610*800 *870 | 660*910 *870 | 870*1110 *800 | 610*660 *870 | 610*800 *870 | 870*1110 *800 | ||||||
Gross Weight(Kg) | 65 | 75 | 80 | 85 | 65 | 75 | 85 | ||||||
