Лидер продаж 2022, высокочастотная автоматическая сварочная паяльная машина для алмазной циркулярной пилы T.C.T
- Category: >>>
- Supplier: Danyang City Spo Tools Co. ltd.
Share on (1600544145839):
Product Overview
Description
Product Description

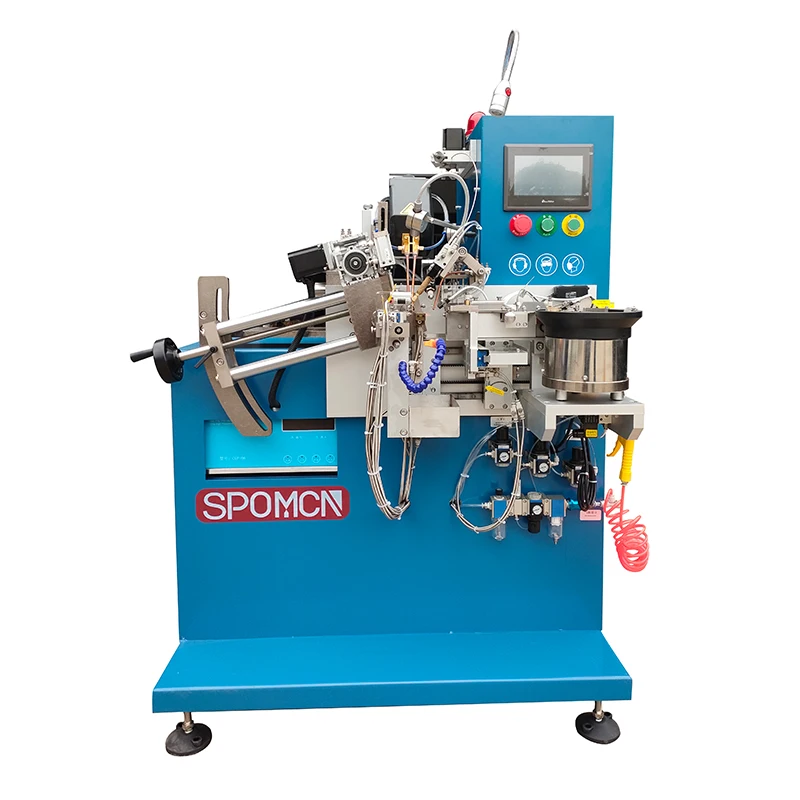

1.This machine is a special equipment for automatic welding of carbide circular saw blade for Brazing Wire. 2.Automatic tooth selection, dispensing, wire feeding, welding, tempering. welding quality is stable and firm.
3.Can fine adjust automatic tempering function, adapt to all kinds of special requirements, left and right teeth automatic tool,single-piece one-time welding, woodworking, cutting blade can be automatic welding.
4.Using advanced infrared temperature measurement device, the error of 1 ° or less accuracy of temperature control, so as to ensure the welding strength.
5.Imported electrical components, advanced uhf heating controller, small size, low energy consumption,high efficiency.
Specification
Blade Diameter | 100-500mm |
Arbor Size | 16-32mm |
Front Angle | -5°-+35° |
Tooth Length max | 7mm |
Tooth Width max | 3.5mm |
Tooth Thickness max | 2.5mm |
Blank thickness max | 3mm |
Capacity/Hour | 600 Teeth |
Brazing Precision | ≤0.05mm |
Brazing Strength | ≥120MPA |
Power Supply | 220V 50HZ |
Motor Power | 6.5KW |
High Frequency Output Power | 6KW |
Working Air Pressure | 0.5MPA－0.6MPA |
Working Water Pressure | 0.35MPA－0.45MPA |
CBM(cm) | 110x95x155 |
Weight(kg) | 280 |
Related Products
Company Profile
Our Company
Our Workshop
our team
Our Advantage
We supply professional India local technology support.
Packing & Delivery
Packing Details : 1set/wooden box open-container
Delivery time : 3-40 days
Delivery time : 3-40 days
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the samples ,and we need the samples value cost.
Q: What is your terms of payment ?
A: Payment<=30000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the samples ,and we need the samples value cost.
Q: What is your terms of payment ?
A: Payment<=30000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
