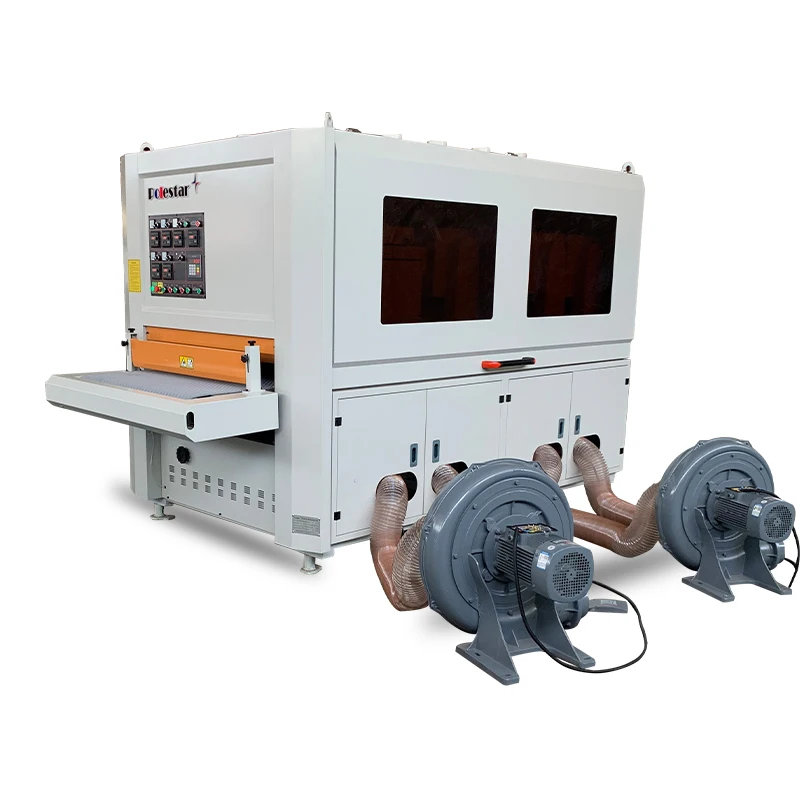

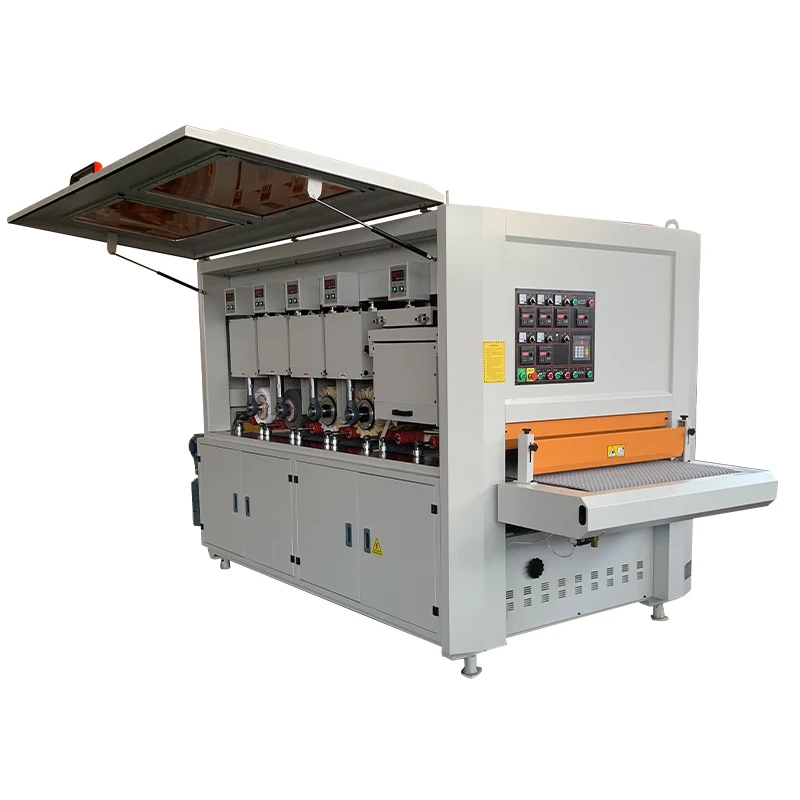

Brush Sanding Machine Wood Woodworking Brush Sanding Machine Wood Door Sander Automatic Sanding Polishing Machine
- Category: >>>
- Supplier: Qingdao Polestar Mechanical And Electrical Co. Ltd.
Share on (1600544148855):
Product Overview
Description
Product Information
Wood polishing Machine is for finish sanding of louver,shutter,raised panel,doors and frames. For sanding finishing of hard wood, softwood,MDF,veneer,plywood Inverts control spindle speed Converyor belt speedless The model can improve the curve surface polishing rate
Working width | 1000mm |
Min. Working length | 80*100mm |
Working thickness | 2-150mm |
Polishing roller speed | Frequency speed |
Feeding speed | 3-12.5m/min |
Disc motor | 1.5KW*1 |
Oscillating motor | 0.37KW *1 |

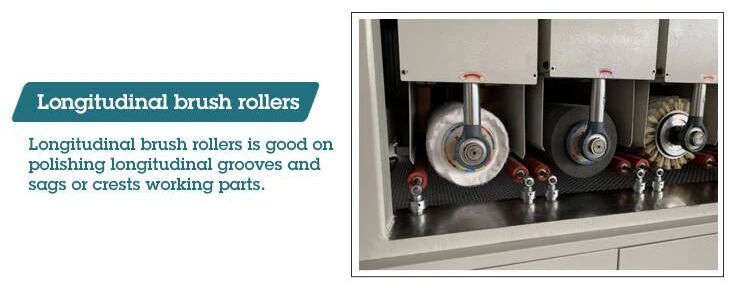

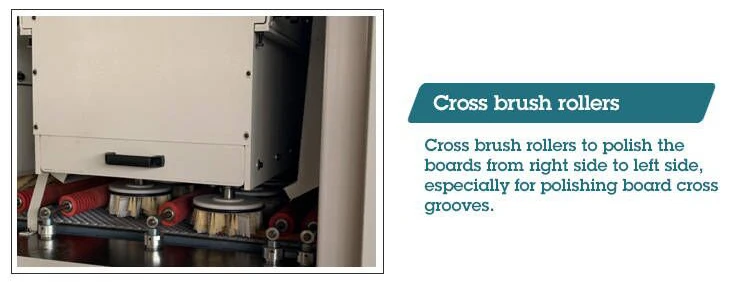

Brush roller motor | 2.2KW *2 |
Clearing roller motor | 3KW |
Last roller motor | 4KW |
Lifting motor | 0.37KW*5 |
Workbench lifting motor | 0.55KW |
Conveying motor | 4KW |

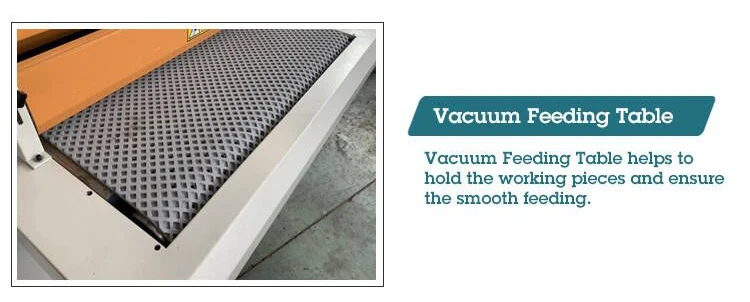

Vacuum motor | 3.7KW *2 |
Total motor power | 27.07kw |
Overall dimensions | 3500*1850*2100mm |
Net weight | 2500kg |

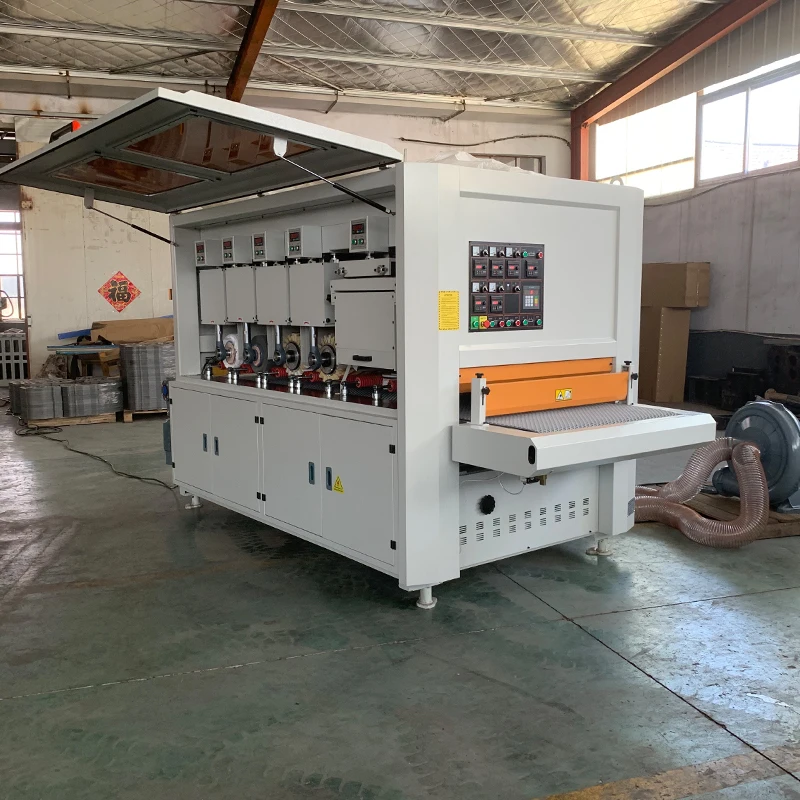

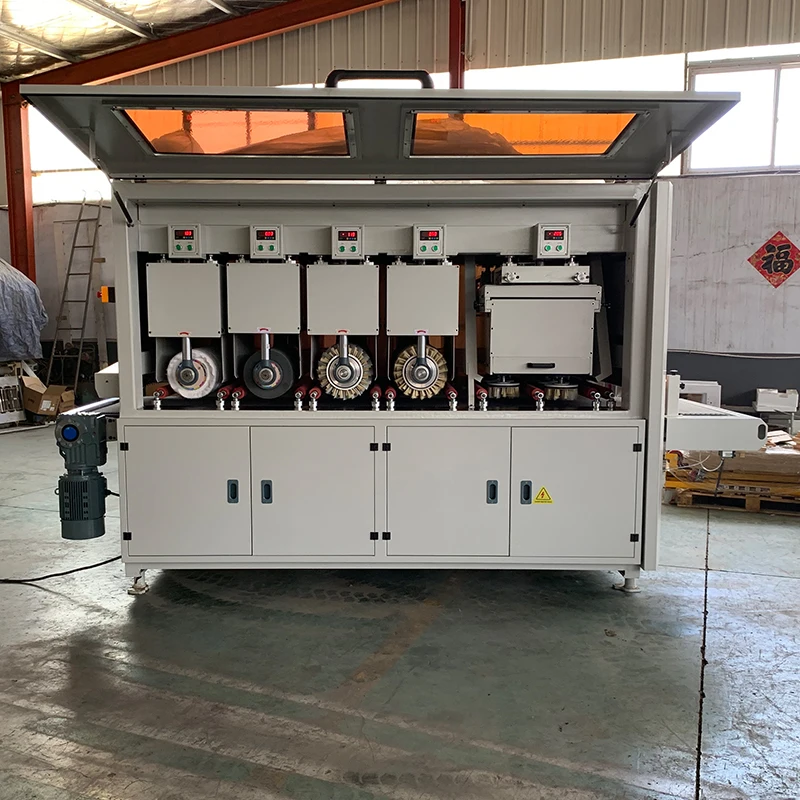

Product Show
Product Detail
Product Advantage

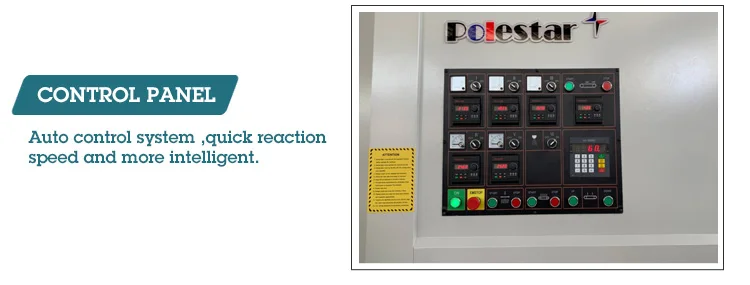

1. Numerical control facility,high efficiency and accuracy.Feeding speed with frequency converter,suitable for different material.
2. Sealed lifting guide screw,with strong power and high accuracy
3. Modular mechanical structure of the latest design,can be easily adjusted.Double safety protective shows humanization.
4.The machine is equipped with a frequency converter, which can adjust the speed freely, and the frequency converter is super long High efficiency, save labor cost and improve work efficiency.
2. Sealed lifting guide screw,with strong power and high accuracy
3. Modular mechanical structure of the latest design,can be easily adjusted.Double safety protective shows humanization.
4.The machine is equipped with a frequency converter, which can adjust the speed freely, and the frequency converter is super long High efficiency, save labor cost and improve work efficiency.

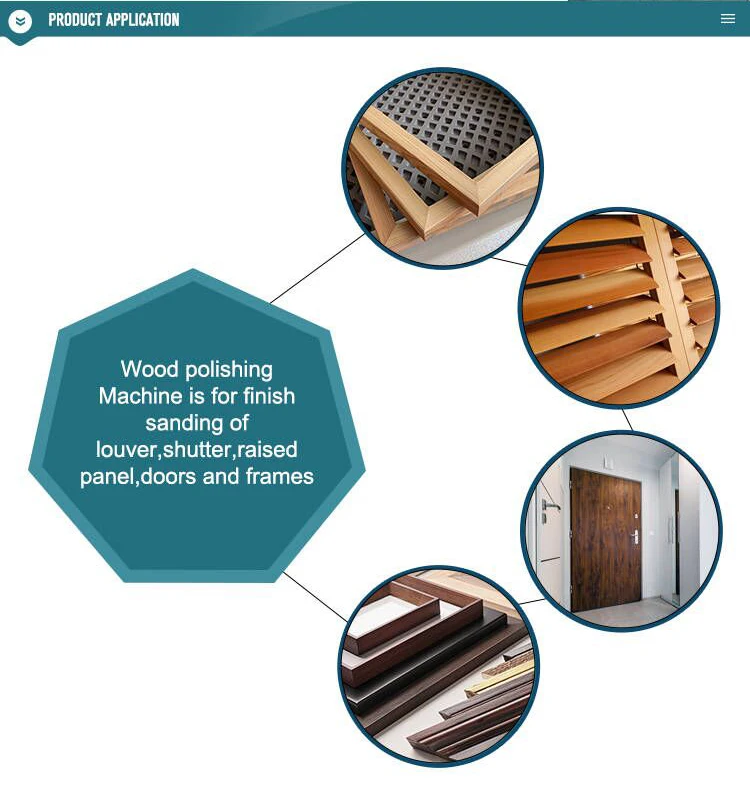

Product Application

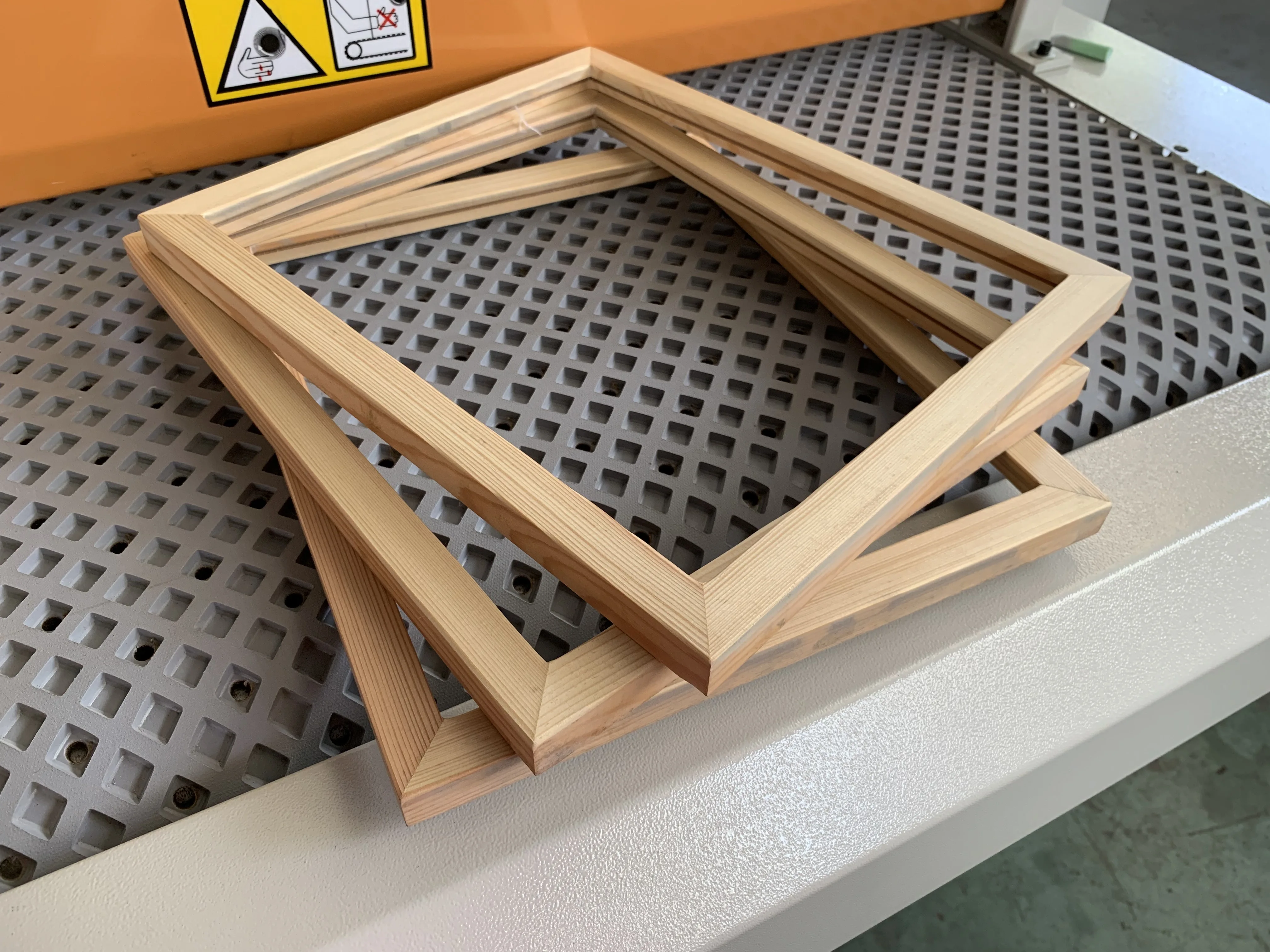

Wood polishing Machine is for finish sanding of louver,shutter,raised panel,doors and frames
Packing & Delivery
Packing：Stretch film with wooden case or as your request per edge banding machine
Delivery：within 10-15days after confirming the payment
Delivery：within 10-15days after confirming the payment
Company Profile
Qingdao Polestar Mechanical and Electrical Co.,Ld has been supplying quality woodworking machines in CHINA for over 18 years and prides itself on producing the woodworking machines for all types of machines.America, Europe, Mid east also AISA both have markets. Technology team design ,We've been doing this for more than 20 years and have over 14,000 wood machines export every year. And what all those customers will tell you is that if you choose Polestar you will get a better-built wood machine with more standard features for a great price.
